Satin chrome cabinet deadbolt drawer lock with cylindrical zinc body and thumbturn

Olympus Lock Inc.

Olympus Lock Inc. 721DW-26D Satin Chrome Cabinet Deadbolt Drawer Lock

SKU CH-42YW-XDBHD MPN 721DW-26D

Satin-chrome zinc die-cast cabinet deadbolt drawer lock accepts six- or seven-pin SFIC cores and meets ANSI/BHMA 156.11 Grade 1

  • FinishSatin Chrome
  • Selling UnitBox
  • GradeGrade 1
  • KeyingKeyed Different
  • Satin chrome finish resists corrosion and matches modern hardware
  • Grade 1 ANSI/BHMA A156.11 certification confirms heavy-duty durability
  • Field-reversible design maintains keyway verticality for drawers or cabinets
  • Accepts 6- or 7-pin SFIC cores from Best, Arrow, Falcon, KSP or equivalents
  • Includes 725-1 spacer, thumbturn, three 10-350 spacers, 10-054 and 10-057 strikes

Cabinet deadbolt for SFIC cores

The Olympus Lock 721DW-26D is a Grade 1 cabinet deadbolt drawer lock finished in satin chrome. It accepts 6 or 7 pin small-format interchangeable cores from Best, Arrow, Falcon, KSP or equivalent brands. The zinc die-cast body provides durability for commercial or residential cabinetry. Core is sold separately.

Fits 1-1/8 inch bore with reversible function

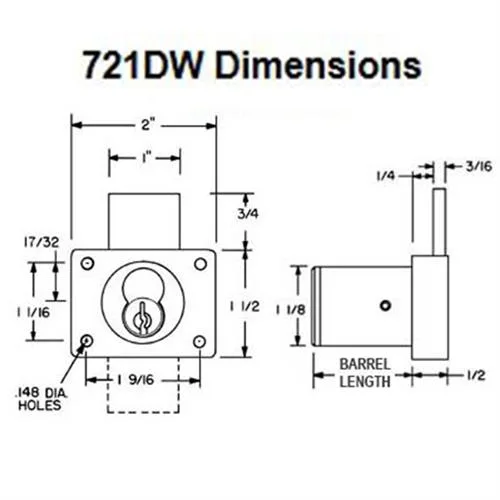

This lock requires a 1-1/8 inch barrel diameter and 1-1/4 inch barrel length cutout. It is field reversible between lost motion and key retaining operation to maintain keyway verticality on drawers. A 725-1 spacer is included to adapt the housing for either 6 or 7 pin core lengths. Buyers needing a different bore size or a non-SFIC cylinder format cannot use this model.

Spacers and strikes adjust fit and operation

The package supplies a 725-PA plastic thumbturn, three 10-350 plastic spacers, a 10-054 1/4 inch plastic bar strike and two 10-057 0.65 inch plastic bar strikes. These components let the installer shim the core depth and select the strike projection that matches the cabinet frame. No mounting screws, core keys or installation tools are provided.

Highlights

  • Satin chrome finish resists corrosion and matches modern hardware
  • Grade 1 ANSI/BHMA A156.11 certification confirms heavy-duty durability
  • Field-reversible design maintains keyway verticality for drawers or cabinets
  • Accepts 6- or 7-pin SFIC cores from Best, Arrow, Falcon, KSP or equivalents
  • Includes 725-1 spacer, thumbturn, three 10-350 spacers, 10-054 and 10-057 strikes

Specifications

BrandOlympus Lock, Inc.
Model721DW-26D
FinishSatin Chrome
Selling UnitBox
GradeGrade 1
KeyingKeyed Different

Questions about this item

What is the ANSI/BHMA grade that defines the lock's durability limit under sustained use?

The lock meets ANSI/BHMA A156.11 Grade 1 performance requirements.

How much heat or noise does the zinc die-cast body produce during all-day operation?

Mechanical deadbolts generate no heat and operate silently; the zinc die-cast body simply houses the bolt and core.

Which small-format interchangeable core must I already own for this lock to function?

You need a 6- or 7-pin SFIC core from Best, Arrow, Falcon, KSP or an equivalent manufacturer; the core is sold separately.
