Silver rectangular car amplifier with platinum terminals and bass remote knob

NVX

NVX VAD8402 840W RMS 2-Channel Car Amplifier

SKU CH-V5QV-4QB0R

840 W RMS two-channel amplifier delivers 300 W per channel at 4 ohms, 420 W at 2 ohms, or 840 W bridged, with marine-grade conformal coating and a compact 9.2 × 7.2 × 2.0 inch Class D chassis

  • TypeAmplifiers
  • 840 watts RMS bridged output for strong single-channel bass
  • 420 watts RMS per channel at two ohms for flexible speaker wiring
  • Marine-grade conformal coating protects circuitry in wet environments
  • Compact 9.2 by 7.2 by 2.0 inch chassis fits tight installs
  • Wired bass remote gives 0 to +12 dB boost at 45 Hz

Product Overview

The NVX VAD8402 is an 840W RMS Full Range Class D 2-Channel amplifier built for car, marine and powersports audio systems. It delivers 300W x 2 channels at 4 ohms, 420W x 2 channels at 2 ohms and 840W x 1 channel bridged at 4 ohms with a peak power of 1680 Watts. The compact chassis measures 9.2"L x 7.2"W x 2.0"H.

Installation Requirements

Verify that your electrical system can supply 16 Volts to support the amplifier's rated output. Confirm the speaker load matches the 4-ohm, 2-ohm or bridged 4-ohm configurations listed in the specifications. Ensure the mounting location accommodates the 9.2 by 7.2 inch footprint and allows airflow around the heavy-duty aluminum alloy heat-sink.

Sustained Performance

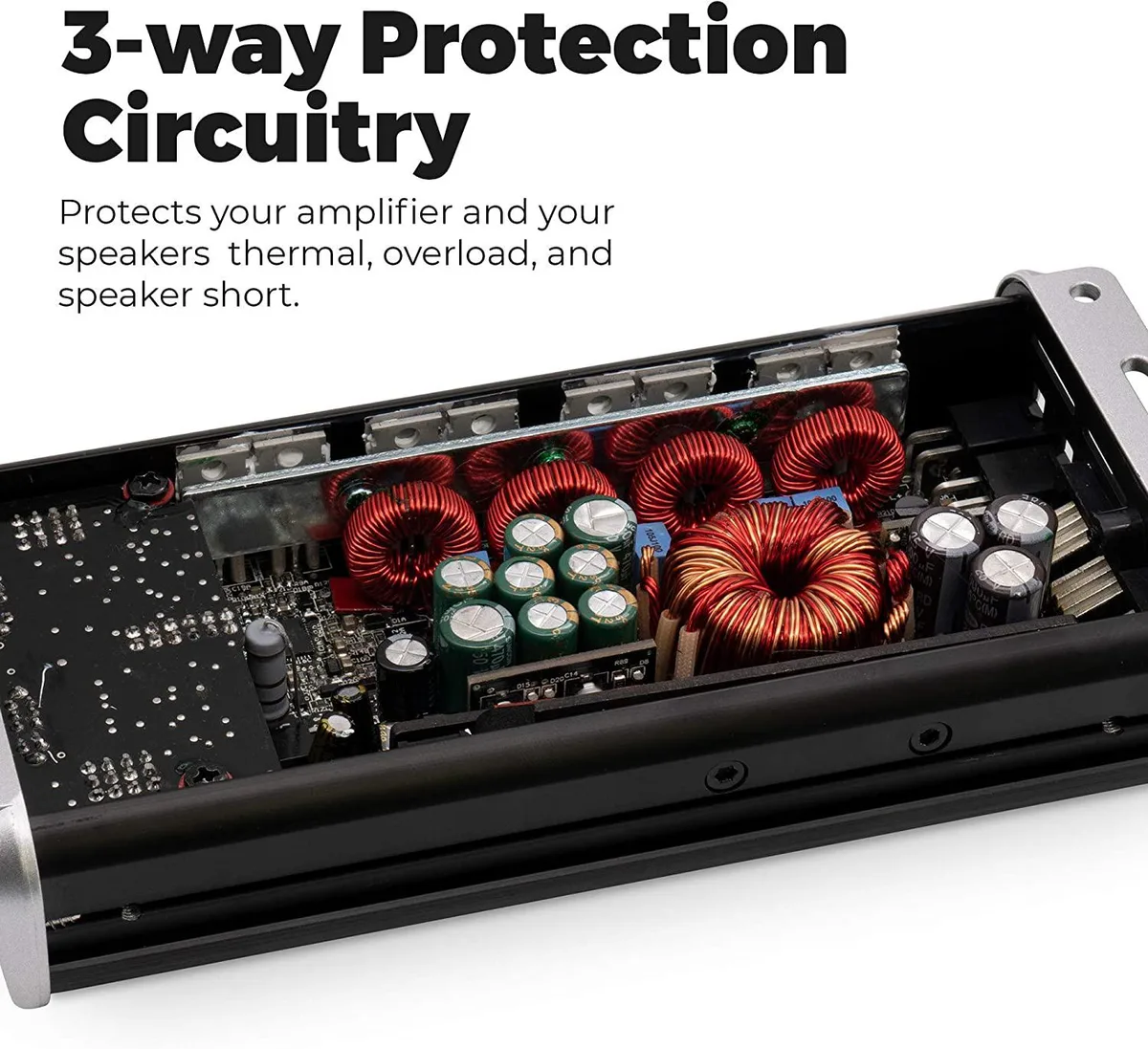

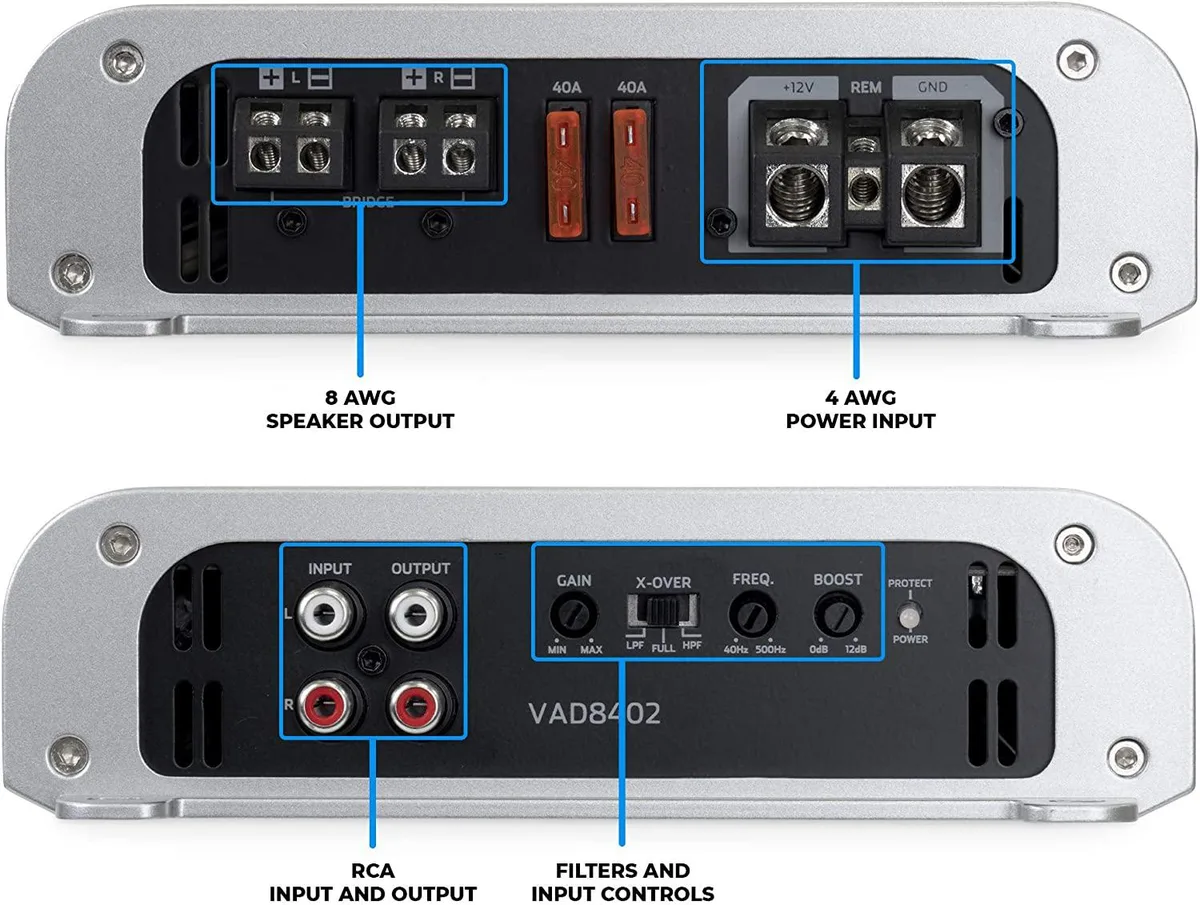

The conformally coated marine-grade circuit board and heavy-duty aluminum alloy heat-sink are designed to maintain thermal stability during extended high-output use. Three-way protection circuitry monitors operating conditions to prevent damage from overheating, short circuits and overloads. Platinum-plated RCA inputs and screw terminals provide reliable signal and power connections over long periods.

Highlights

  • 840 watts RMS bridged output for strong single-channel bass
  • 420 watts RMS per channel at two ohms for flexible speaker wiring
  • Marine-grade conformal coating protects circuitry in wet environments
  • Compact 9.2 by 7.2 by 2.0 inch chassis fits tight installs
  • Wired bass remote gives 0 to +12 dB boost at 45 Hz

Specifications

TypeAmplifiers

Questions about this item

Does the NVX VAD8402 ship with the bass remote and all wiring, or must I buy a power kit separately?

The amplifier includes a bass remote giving 0 to +12 dB boost at 45 Hz, platinum-plated RCA level inputs, platinum-plated screw terminals and preamp RCA outputs for daisy-chaining; power and ground cables, fuse holder and speaker wire are not included.

Should I run the VAD8402 at 4 ohms stereo, 2 ohms stereo or 4 ohms bridged for my subwoofer setup?

At 4 ohms each channel delivers 300 W RMS, at 2 ohms each channel delivers 420 W RMS, and bridged into a single 4-ohm load the amp produces 840 W RMS; choose the wiring that matches your subwoofer impedance and desired power.

What does the 840 W RMS bridged rating mean when the amp is installed in a 16 V vehicle system?

Bridged into 4 ohms the amplifier supplies 840 W RMS continuous power; the compact 9.2"L x 7.2"W x 2.0"H chassis with a heavy-duty aluminium alloy heatsink and conformally coated marine-grade circuit board is designed to sustain that output in a 16 V electrical system.
