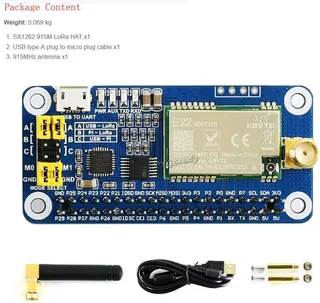

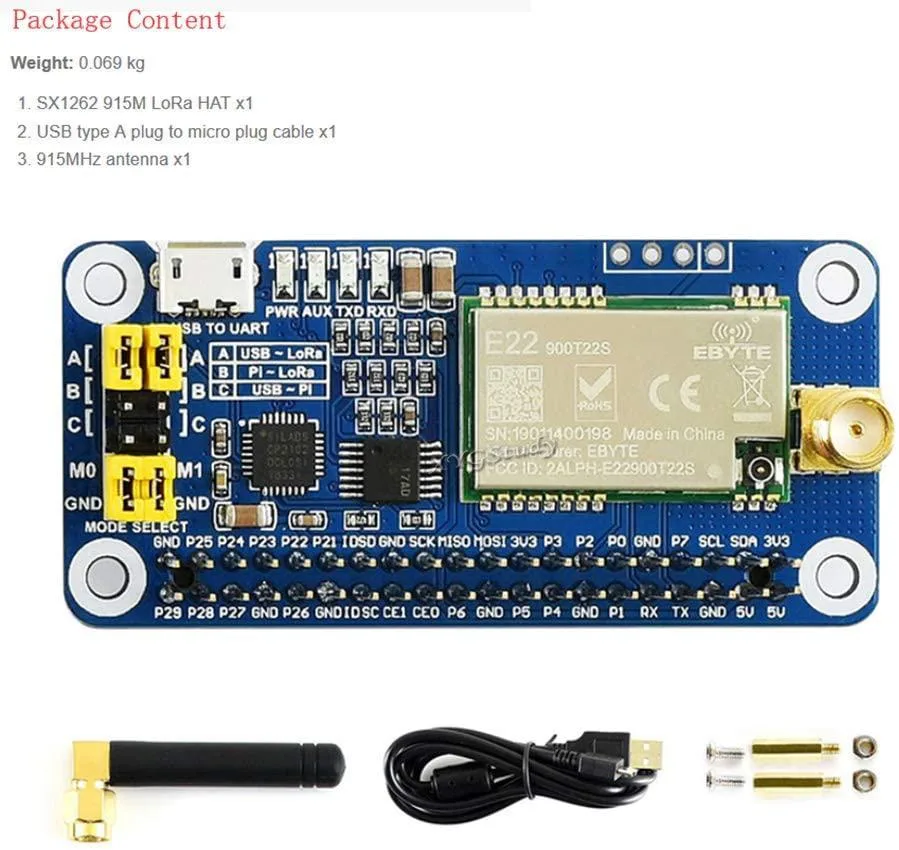

Green rectangular HAT board with 40-pin GPIO header, LoRa module, USB port and four LEDs

NuoTo

NuoTo SX1262 LoRa HAT 915MHz 40-pin Raspberry Pi

SKU CH-ZPCR-YB4GQ

Adds 915MHz LoRa wireless via 40-pin GPIO with CP2102 UART and 81 channels

  • CPU TypeOther
  • LoRa spread spectrum reaches up to 5 km range
  • 81 available channels improve interference resistance
  • 40-pin GPIO header fits Raspberry Pi series boards
  • Onboard CP2102 USB-to-UART enables serial debugging
  • UART interface connects Arduino or STM32 host boards

LoRa HAT for Raspberry Pi 40-pin GPIO

The NuoTo SX1262 LoRa HAT adds 915MHz long-range wireless to any Raspberry Pi board with a 40-pin header. It targets developers building remote sensor networks, industrial telemetry or smart-home gateways that need kilometre-scale links without cellular contracts. The board draws power directly from the Pi GPIO rail and exposes a UART path through an onboard CP2102 USB-to-UART bridge for host-side debugging.

Integrates via 40-pin header and UART

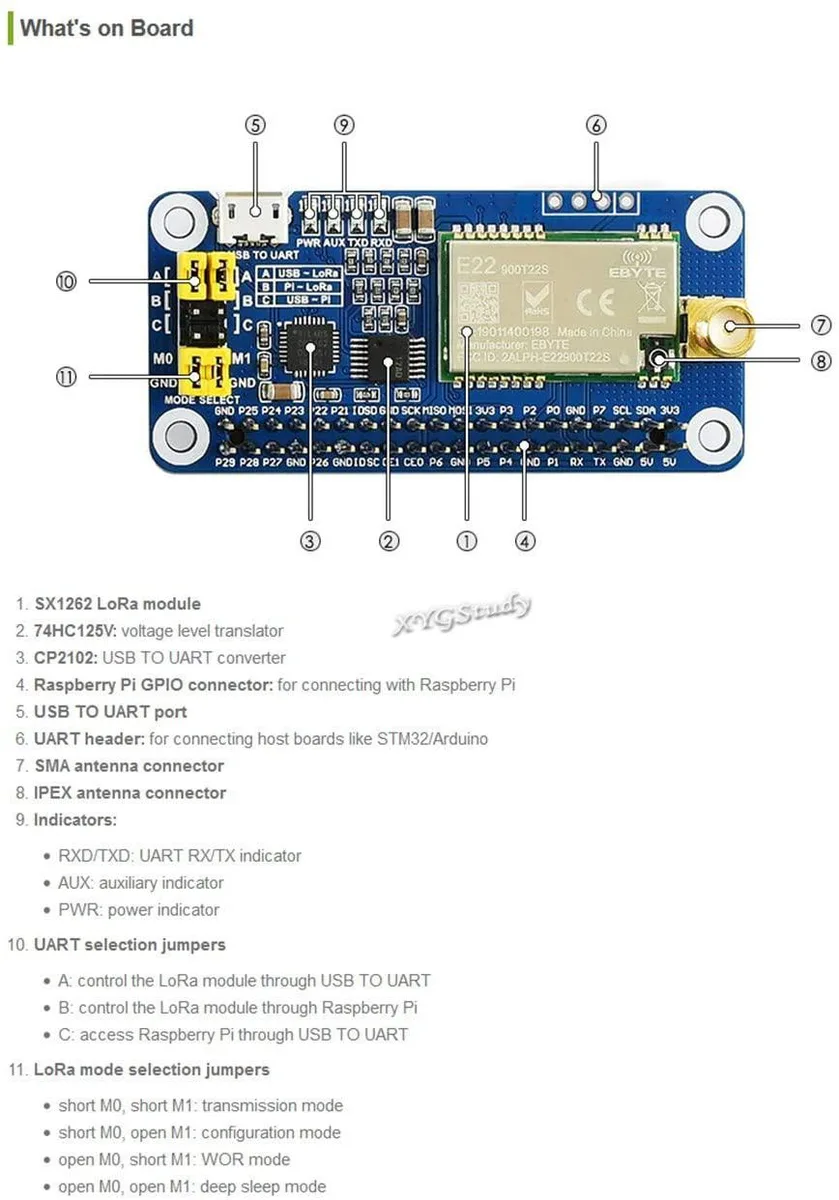

The HAT stacks on the Raspberry Pi 40-pin GPIO extension header, leaving the remaining pins accessible for other add-ons. An onboard CP2102 converter provides a USB serial console so firmware can be monitored without extra cables. A separate UART control interface breaks out for direct connection to Arduino or STM32 hosts, freeing the Pi’s own serial port for other duties.

81 channels, auto repeating and security features

The module offers 81 selectable channels and supports automatic multi-level repeating to extend range beyond a single hop. Wake-on-Radio and deep-sleep modes reduce draw for battery-powered nodes. A customisable communication key prevents retrieval, while listen-before-talk and RSSI reporting improve reliability in noisy environments. Wireless parameter configuration allows remote updates without physical access.

Highlights

  • LoRa spread spectrum reaches up to 5 km range
  • 81 available channels improve interference resistance
  • 40-pin GPIO header fits Raspberry Pi series boards
  • Onboard CP2102 USB-to-UART enables serial debugging
  • UART interface connects Arduino or STM32 host boards

Specifications

CPU TypeOther

Questions about this item

How many LoRa channels are available on the 915MHz band of this SX1262 HAT?

The module provides up to 81 available signal channels on the 915MHz frequency band for spread spectrum communication.

Does the onboard CP2102 USB-to-UART converter require an external power supply when the HAT runs continuously?

The CP2102 draws power directly from the Raspberry Pi 40-pin header, so no separate supply is needed for all-day operation.

Which host boards can connect to the UART control interface exposed on this HAT?

The UART interface is designed for direct connection to Arduino or STM32 host boards alongside Raspberry Pi series boards.
