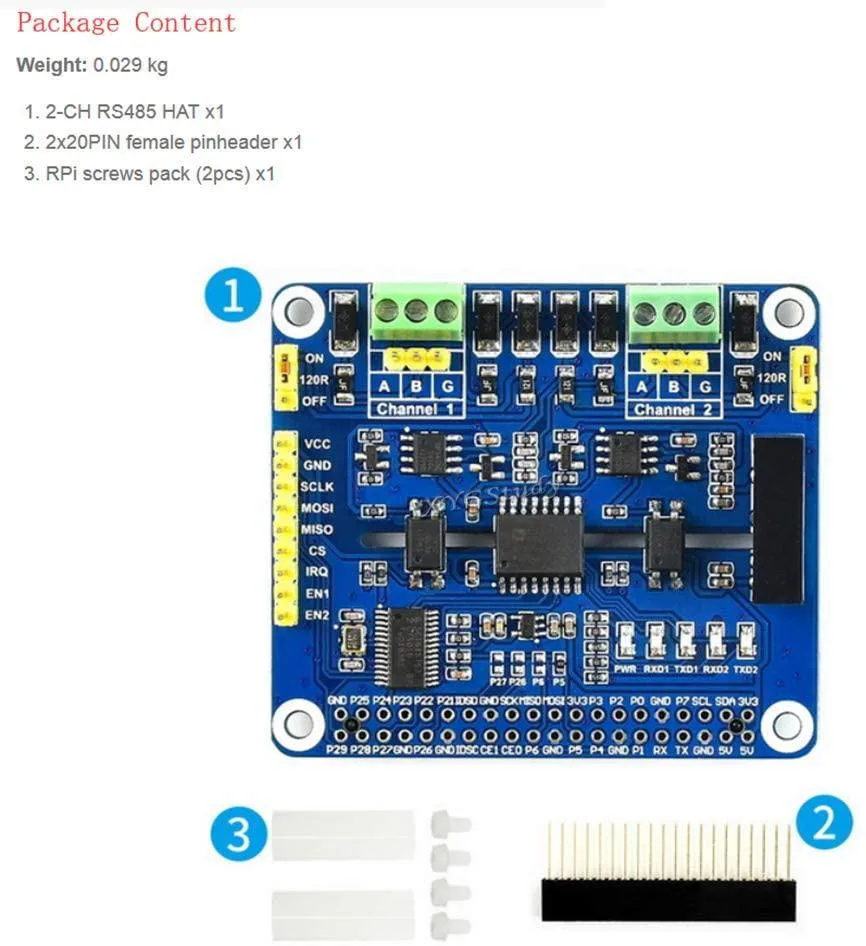

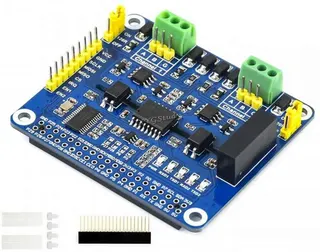

NuoTo 2-Channel Isolated RS485 HAT 40PIN SC16IS752+SP3485 921600bps

SKU CH-H8AR-2ND8S

Adds two isolated RS485 channels to a Raspberry Pi via the 40-pin header using an SC16IS752 and SP3485 chipset at up to 921600 bps with onboard TVS, fuse and diode protection

  • CPU TypeOther
  • Two isolated RS-485 channels for industrial automation
  • SC16IS752 and SP3485 chips enable SPI to RS-485 conversion
  • Data rate up to 921600bps for fast communication
  • 40-pin GPIO header fits Raspberry Pi series boards
  • TVS diode, auto-recovery fuse and protection diodes guard against surges

2-Channel Isolated RS485 HAT

This 2-channel isolated RS485 expansion HAT is designed for Raspberry Pi boards, using the SC16IS752+SP3485 chip combination to convert SPI signals to dual RS485 channels. It supports data rates up to 921600bps and includes onboard protection such as power isolation, ADI magnetic isolation, TVS diodes, and an auto-recovery fuse. The board targets developers and engineers building industrial automation or remote monitoring systems that require reliable serial communication.

Standard 40PIN GPIO header

The HAT mounts directly onto the standard Raspberry Pi 40PIN GPIO extension header, drawing power and SPI control signals from the host board. Onboard LEDs indicate power and transceiver status for quick diagnostics. A DIP switch configures automatic or manual transceiving modes, while broken-out SPI pins allow connection to alternative host controllers. No external power supply is required beyond what the Raspberry Pi provides through the header.

Upgrades single-channel or non-isolated adapters

This HAT replaces single-channel RS485 modules or non-isolated USB-to-RS485 dongles by adding a second isolated channel and hardware-level surge protection. The jump is worth it when a project needs simultaneous dual-channel Modbus or sensor networks with lightning-proof and anti-static safeguards. It is not suited for builds that require more than two RS485 ports or need CAN, Ethernet, or wireless interfaces instead.
