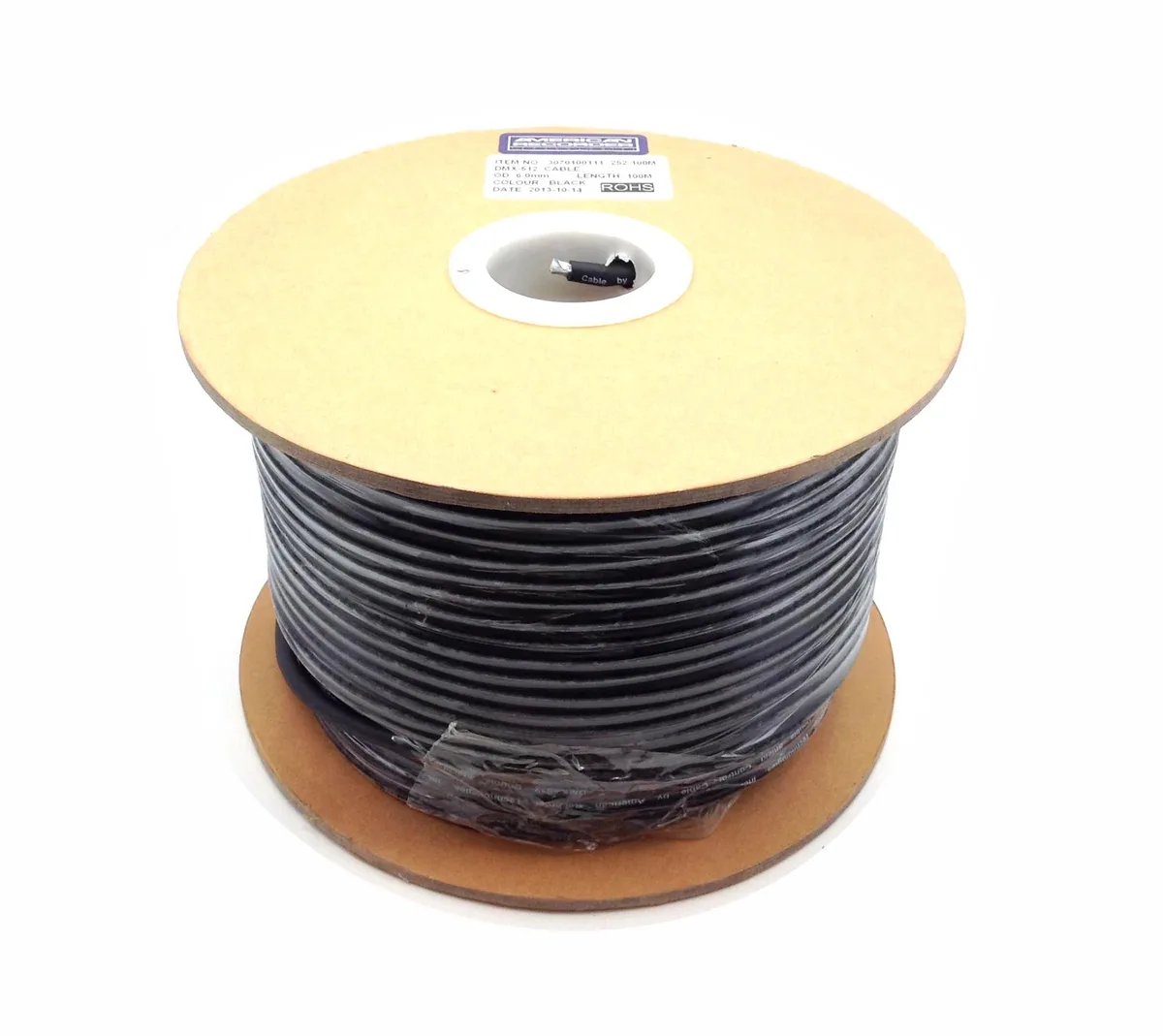

328 foot roll of black DMX cable with three conductors

North American Herb & Spice

North American Herb & Spice 3 Conductor DMX Cable 328 foot roll

SKU CH-AN83-7ZB4B

A 328-foot roll of 3-pin DMX lighting control cable with 110-ohm twisted-pair conductors and double shielding for reliable data transmission

  • TypeComponent Cables
  • 328 foot roll supports extended DMX lighting runs
  • 110 ohm twisted pair delivers absolute signal transfer
  • 20 strand bare copper conductors ensure no-loss data transmission
  • 100% foil plus aluminum braid provides double shield protection
  • Flexible cotton fill maintains structural integrity through repeated coiling

Professional DMX Lighting Control Cable

This 328 foot roll of 3-pin DMX cable is built for professional lighting control in theatrical, broadcast and live sound environments. It serves lighting technicians and installers who need reliable data transmission over long cable runs. The robust construction suits demanding applications where signal integrity cannot be compromised.

Sustained Signal Integrity Over Distance

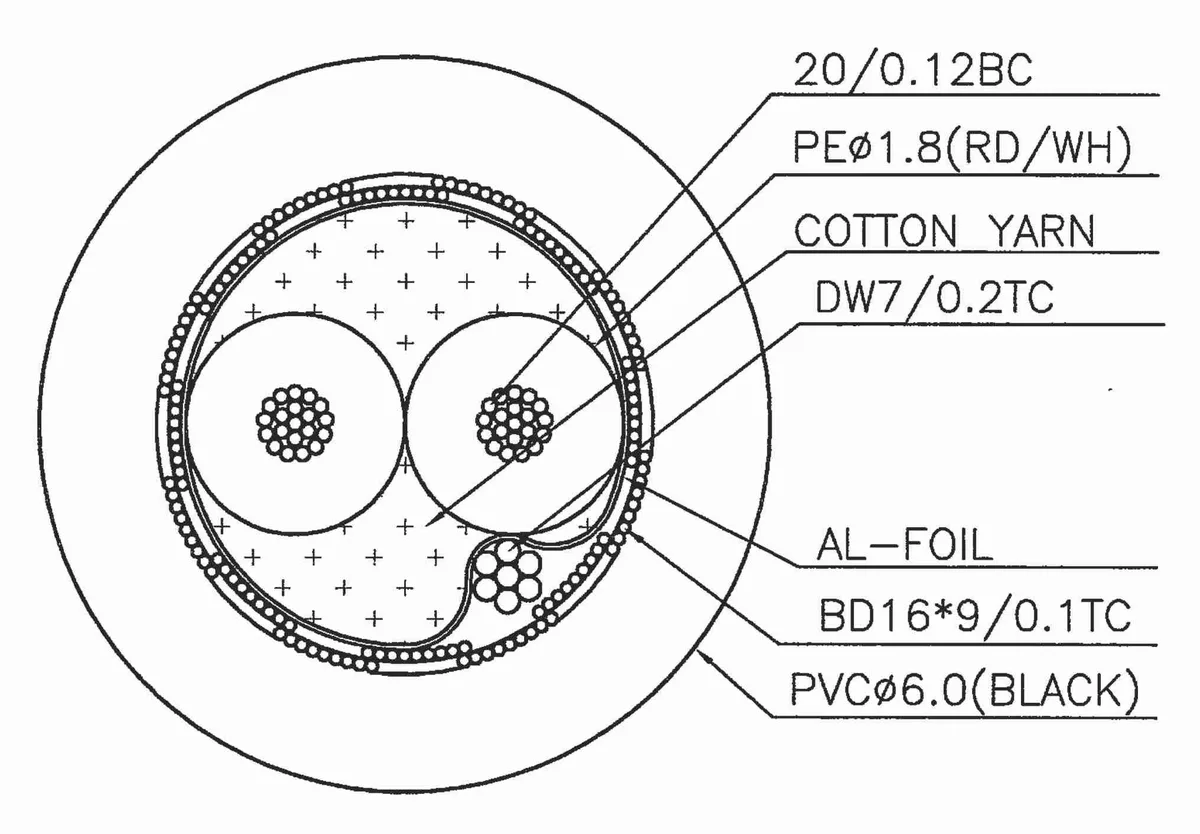

The cable uses digital 110 ohm twisted pairs with 20 strands of .12 awg bare copper conductors and a heavy-duty PE insulator. This design maintains absolute signal transfer and no-loss data transmission even across the full 328 foot length. Cotton fill preserves internal structural integrity during repeated coiling and uncoiling cycles. Flexible construction supports continuous professional deployment without performance degradation.

Double Shielding Against Interference

A 100% foil cover combined with an aluminum braided sleeve provides double shield protection against RF and EMI noise common in production environments. The assembly includes a drain wire for effective grounding. This shielding eliminates stray high and low frequency leakage that could disrupt lighting control signals. The cable finishes with a durable outer jacket for long-term reliability.

Highlights

  • 328 foot roll supports extended DMX lighting runs
  • 110 ohm twisted pair delivers absolute signal transfer
  • 20 strand bare copper conductors ensure no-loss data transmission
  • 100% foil plus aluminum braid provides double shield protection
  • Flexible cotton fill maintains structural integrity through repeated coiling

Specifications

TypeComponent Cables

Questions about this item

Does the 110 ohm twisted-pair design run hot or draw extra power on long 328 foot runs?

The cable is passive with 20-strand 0.12 AWG copper conductors and PE insulation, so it adds no heat or power draw during continuous DMX signal transmission.

What connectors do I need to terminate the 3-pin DMX ends on this 328 foot roll?

You will need compatible 3-pin XLR plugs or sockets to match the 3-pin DMX lighting control pinout used by your fixtures and controllers.

Will the double foil-and-braid shield prevent interference when this cable runs beside older analog audio multicores?

Yes, the 100% foil wrap plus aluminum braided sleeve with drain wire blocks RF and EMI leakage that can disrupt legacy analog signals in the same trunking.
