Clear box containing 120 black nylon T-tap connectors and male spade terminals

Nilight 50004 120 Pcs Quick Splice Wire Terminals T-Tap Kit

SKU CH-7H8H-4BRN7

Kit contains 60 self-stripping T-tap connectors and 60 matching male quick disconnects for 22-10 gauge automotive wiring

  • ColorBlack
  • Quickly tap existing wires with self‑stripping T‑Tap connectors
  • 120 pieces cover many marine, automotive and home projects
  • Thick tinned copper contacts deliver maximum conductivity
  • Secure plastic housing locks on wire and stays closed
  • Nylon male disconnects lock tightly to prevent sliding out

Quick Splice T-Tap Kit

The Nilight 50004 kit supplies 120 pieces including 60 self-stripping T-tap connectors and 60 matching nylon fully insulated male quick disconnects. It is aimed at installers and DIY users who need fast, solder-free taps into existing wiring for automotive, marine or general low-voltage projects.

Self-Stripping And Locking Hardware

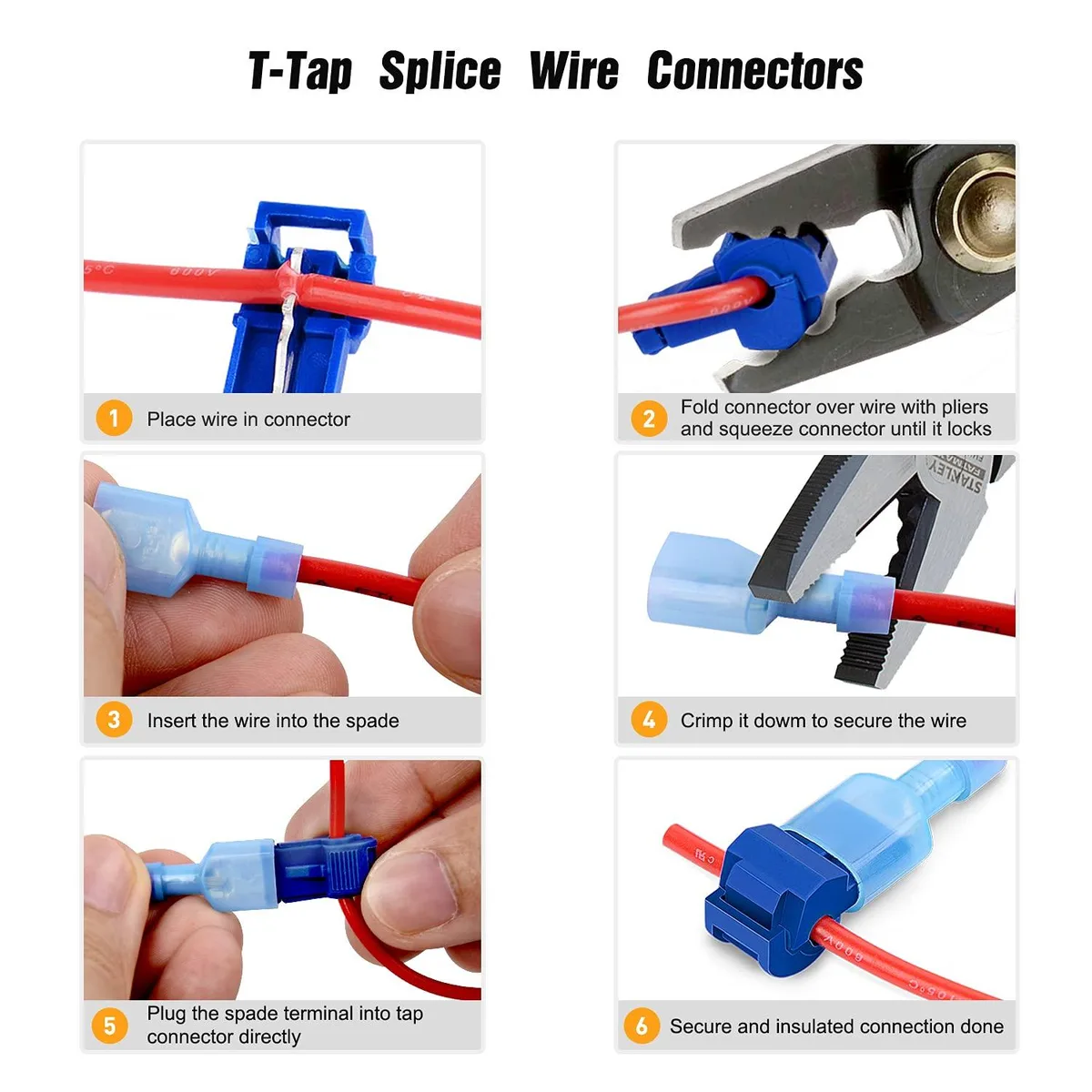

Each T-tap pierces the insulation without stripping tools and snaps shut to hold the wire securely. The male disconnects lock tightly onto the T-tap tabs to prevent accidental pull-out, while the nylon housings stay closed after installation. Thicker tinned copper contacts improve conductivity and reduce the risk of short circuits across all connections.

Wire Gauge Coverage And Current Limits

The kit covers three colour-coded ranges: red for 22-18 AWG (0.5-1.0 mm²), blue for 16-14 AWG (0.75-2.5 mm²) and yellow for 12-10 AWG (0.5-1.0 mm² on the T-tap side, 4-6 mm² on the male side). Male disconnect current ratings are 10 A, 15 A and 24 A respectively. It does not suit wires larger than 10 AWG or applications exceeding the stated per-terminal amp limits.

Highlights

  • Quickly tap existing wires with self‑stripping T‑Tap connectors
  • 120 pieces cover many marine, automotive and home projects
  • Thick tinned copper contacts deliver maximum conductivity
  • Secure plastic housing locks on wire and stays closed
  • Nylon male disconnects lock tightly to prevent sliding out

Specifications

ColorBlack

Questions about this item

Will the nylon-insulated male spade terminals need replacement after repeated connect-disconnect cycles?

The nylon fully insulated male spade terminals are designed to lock tightly on the T-Tap connectors to prevent sliding out, reducing wear from repeated mating cycles.

What wire-gauge limit is reached first when running the yellow T-Tap connectors at their 24 A rating continuously?

Yellow T-Tap connectors accept 12-10 gauge wire (4-6 mm²) and the matching male disconnects are rated for 24 A max current.

How much heat do the tinned copper contacts generate when the blue 16-14 gauge circuits carry 15 A all day?

Thicker tinned copper contacts provide maximum conductivity, which minimises resistive heating even at the 15 A rating for blue 16-14 gauge circuits.
