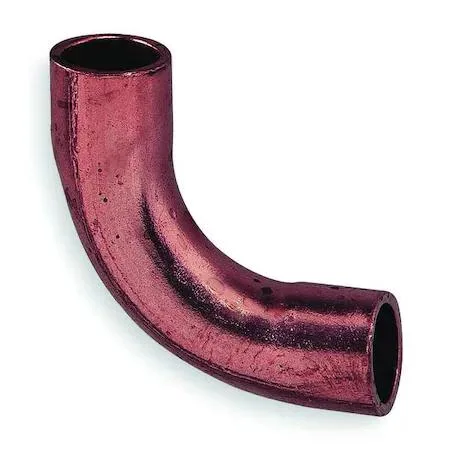

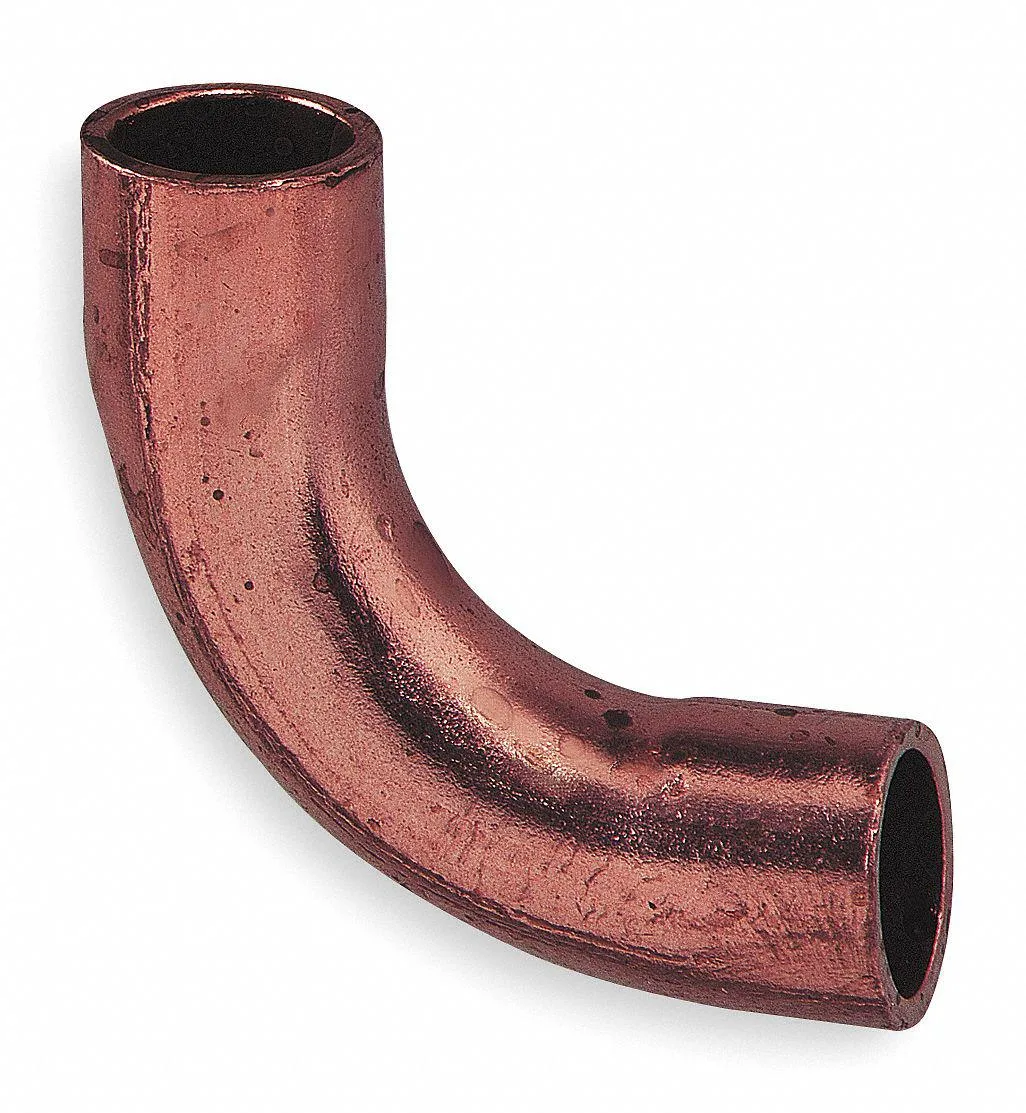

Copper 90-degree long-radius elbow, 5/8 inch tube size, smooth wrot finish

Nibco, Inc.

Nibco, Inc. U607LT 5/8 in 90 Degree Long Radius Copper Trap

SKU CH-DJ19-VTWXN MPN U607LT

A 5/8 in copper 90 degree long-radius elbow rated for 631 psi at 100 °F with a temperature range of -20 to 400 °F

  • TypeDrain Components
  • Long-radius 90° elbow enables smooth flow routing
  • Wrot copper construction resists corrosion across -20° to 400° F
  • C×C sweat connections simplify 5/8 in tube installation
  • ASME/ANSI B16.22 compliance ensures code-approved reliability
  • Rated 631 psi at 100° F for high-pressure confidence

5/8 in Copper 90 Degree Long Radius Elbow

This wrot copper elbow provides a 90 degree change of direction in copper piping systems. The long radius design promotes smoother flow characteristics compared to short radius alternatives. It is intended for plumbing installations that require a C x C sweat connection on 5/8 inch nominal tube. The fitting meets ASME/ANSI B 16.22 standards for wrought copper and copper alloy solder joint pressure fittings.

Pressure and temperature limits

The elbow is rated for a maximum working pressure of 631 psi at 100 degrees Fahrenheit. Its allowable operating temperature range extends from -20 degrees to 400 degrees Fahrenheit. These limits define the safe operating envelope for the fitting in hydronic heating, cooling, or potable water systems. Exceeding either the pressure or temperature rating can compromise joint integrity and lead to failure.

Installation compatibility checks

Verify that the existing piping uses 5/8 inch nominal copper tube with an outside diameter of 3/4 inch to match the C x C solder cups. Confirm that the system design pressure and temperature stay within the 631 psi at 100 degrees F rating and the -20 to 400 degrees F range. Ensure the installation complies with ASME/ANSI B 16.22 and local plumbing codes for solder joint fittings. This elbow is not suitable for systems requiring threaded, flanged, or press-fit connections.

Highlights

  • Long-radius 90° elbow enables smooth flow routing
  • Wrot copper construction resists corrosion across -20° to 400° F
  • C×C sweat connections simplify 5/8 in tube installation
  • ASME/ANSI B16.22 compliance ensures code-approved reliability
  • Rated 631 psi at 100° F for high-pressure confidence

Specifications

TypeDrain Components
BrandNibco
ModelU607LT 5/8

Questions about this item

What does the 90 degree long radius bend do for my copper tubing run?

The long radius elbow provides a smoother flow path than a short radius fitting, reducing turbulence and pressure drop in drainage or plumbing systems.

How does the 631 psi rating at 100 degrees F apply to a typical installation?

That is the maximum working pressure at the reference temperature; pressure capacity decreases as the system temperature rises toward the 400 degree F limit.

What does the ASME/ANSI B 16.22 standard mean for this C x C fitting?

It confirms the wrot copper elbow meets the industry standard for dimensions, tolerances and material quality for solder joint pressure fittings.
