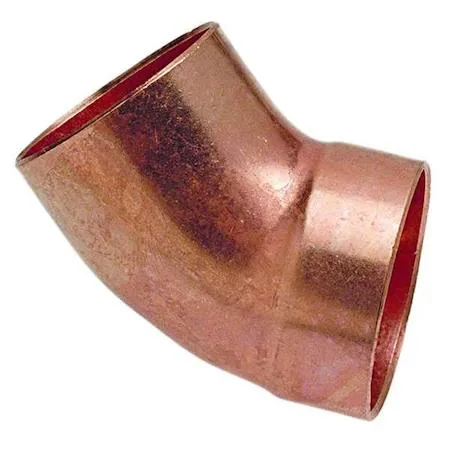

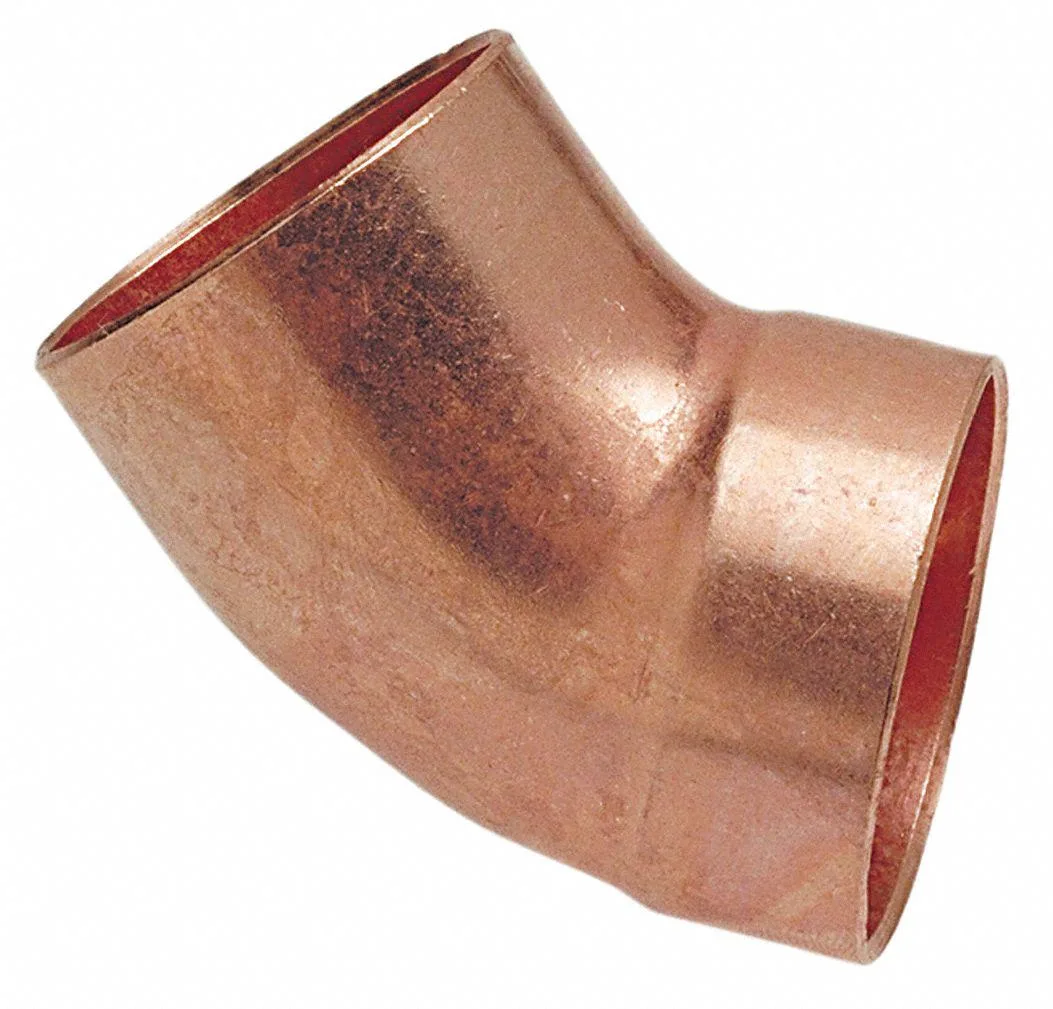

Copper 45 degree DWV street elbow, sweat fitting, 2 inch tube size

Nibco, Inc.

Nibco, Inc. 9062 Copper 45 Degree DWV Street Elbow

SKU CH-V5YM-R9PZW

Copper 45-degree DWV street elbow joins 2-inch tubes for air or potable water systems

  • 45-degree sweep reduces flow restriction in DWV systems
  • Wrot copper construction resists corrosion for potable water and air lines
  • Sweat cup-to-fitting connections create permanent leak-free joints
  • Rated for 400 °F maximum operating temperature in hot-water service
  • Manufactured to ASME B16.29 and ASTM B75 quality standards

2-inch Copper DWV Street Elbow

This 45-degree fitting connects a 2-inch copper tube to a 2-inch fitting hub in drain waste and vent systems. Made from wrought copper, it handles air and potable water applications up to 400 degrees Fahrenheit. The street configuration allows a direct transition without an extra coupling.

5 psi pressure limit defines DWV use

The ASME B16.29 and ASTM B75 standards restrict this elbow to a maximum operating pressure of 5 psi. It is therefore unsuitable for pressurised supply lines or high-head drainage. Installers must verify that the system design stays within this low-pressure envelope.

Replaces threaded or flanged 45-degree turns

Sweating this copper elbow eliminates the leak paths of threaded joints and the bulk of flanged connections in 2-inch DWV runs. The upgrade is worth it when a compact, permanent joint is preferred over mechanical fittings in gravity drainage.

Highlights

  • 45-degree sweep reduces flow restriction in DWV systems
  • Wrot copper construction resists corrosion for potable water and air lines
  • Sweat cup-to-fitting connections create permanent leak-free joints
  • Rated for 400 °F maximum operating temperature in hot-water service
  • Manufactured to ASME B16.29 and ASTM B75 quality standards

Specifications

BrandNIBCO

Questions about this item

Which fitting size matches my 2-inch copper DWV line?

The 9062 street elbow is made for 2-inch nominal copper tube, with both cup and fitting ends sized to 2 1/8-inch outer diameter.

What does the 5 psi pressure rating mean when the elbow is installed in a drain-waste-vent system?

It indicates the fitting is designed for low-pressure gravity drainage and venting, not for pressurised supply lines.

How does the ASME B16.29 standard affect the elbow's dimensions and joint compatibility?

The standard governs wrought-copper DWV fitting dimensions, ensuring the 45-degree sweep and cup depth match other compliant fittings for reliable solder joints.
