Tee drain trap in lead free cast brass with three connections

Nibco, Inc.

Nibco, Inc. 714LF-34 Tee Drain Trap 3/4 in 466 psi

SKU CH-JX4R-MSR7Q MPN 714LF-34

Lead-free cast DZR brass tee drain trap with C x FNPT x C connections, 3/4 inch tube size, 466 psi maximum pressure and -20 to 200 °F temperature range, certified to NSF/ANSI 61 Annex G

  • TypeDrain Components
  • MaterialHAWA
  • Lead-free cast DZR brass ensures safe potable water use
  • C x FNPT x C connections simplify 3/4 in tube installations
  • Rated to 466 psi for reliable high-pressure performance
  • Operates from -20 to 200 degrees F across diverse conditions
  • Certified to NSF/ANSI 61 Annex G for health compliance

Lead-Free Brass Tee for Drain Systems

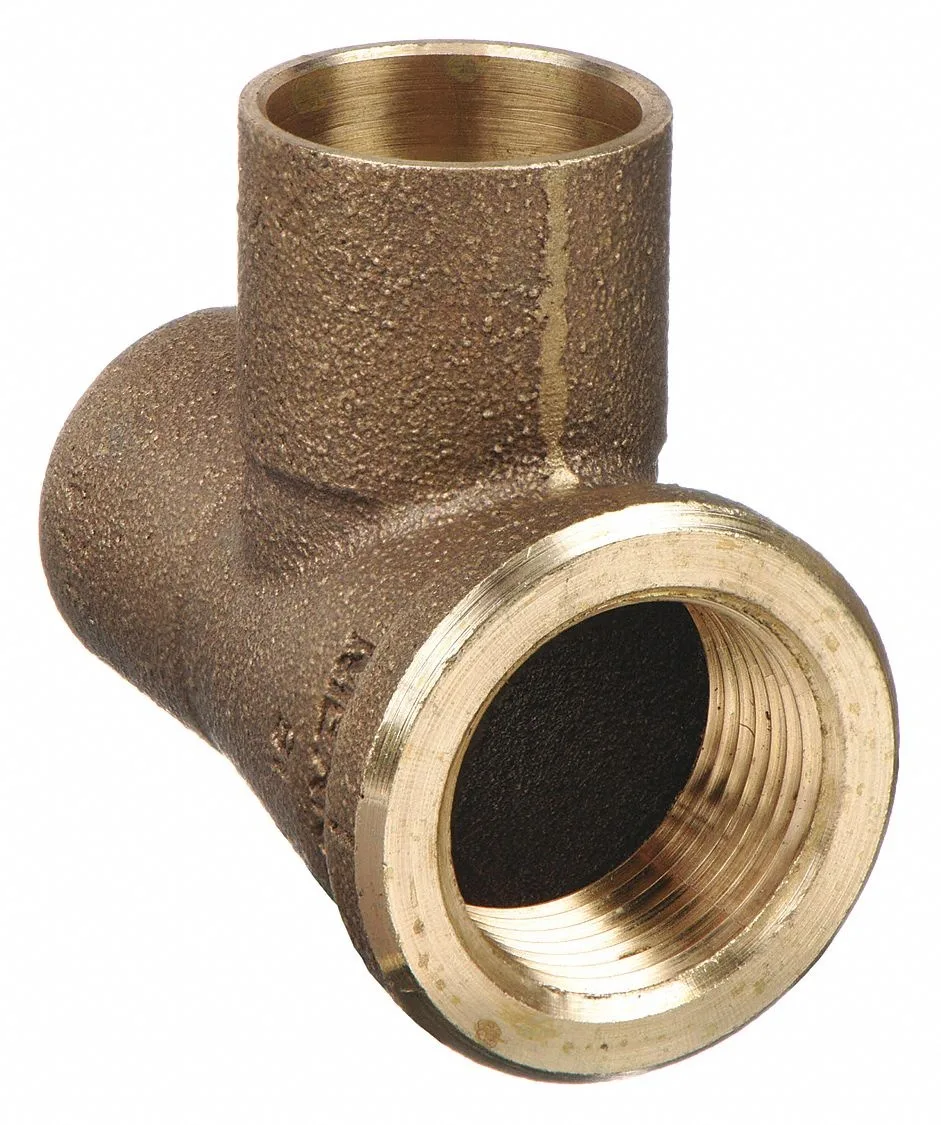

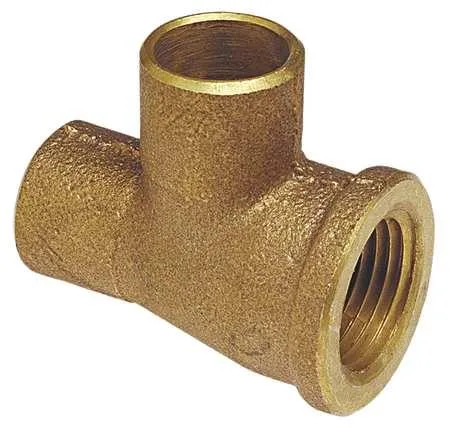

The Nibco 714LF-34 is a cast DZR brass tee designed for drain installations. Its lead-free construction meets NSF/ANSI 61 Annex G requirements for potable water contact. The fitting connects 3/4 inch tube and pipe sizes in a C x FNPT x C configuration.

Sustained Pressure and Temperature Rating

The component withstands a maximum pressure of 466 psi across its operating range. It performs continuously from -20 to 200 degrees Fahrenheit without degradation. This rating supports reliable service in both hot and cold drain applications under constant load.

Corrosion-Resistant Build and Threaded Connections

The HAWA brass material resists dezincification and corrosion in aggressive water conditions. Female NPT threads allow direct connection to standard pipe fittings without adapters. The 7/8 inch outside diameter on the tube ends ensures compatibility with common compression or flare nuts. Installers who need a sweat connection or a different pipe size cannot use this fitting.

Highlights

  • Lead-free cast DZR brass ensures safe potable water use
  • C x FNPT x C connections simplify 3/4 in tube installations
  • Rated to 466 psi for reliable high-pressure performance
  • Operates from -20 to 200 degrees F across diverse conditions
  • Certified to NSF/ANSI 61 Annex G for health compliance

Specifications

TypeDrain Components
MaterialHAWA
BrandNibco
Model714LF-34

Questions about this item

Does the 466 psi rating hold steady when the fitting runs at the 200 °F top of its temperature range?

The fitting is rated for 466 psi across the full -20 °F to 200 °F range, so the pressure limit does not drop at the highest temperature.

What pipe thread and tube size must the existing plumbing have to accept this tee without adapters?

It connects to 3/4 in pipe threads on the FNPT branch and 3/4 in tube (7/8 in OD) on the two C ends.

Will the lead-free DZR brass tee resist dezincification when joined to older copper supply lines?

Yes, the lead-free DZR brass body is designed to resist dezincification in potable water systems, making it compatible with existing copper piping.
