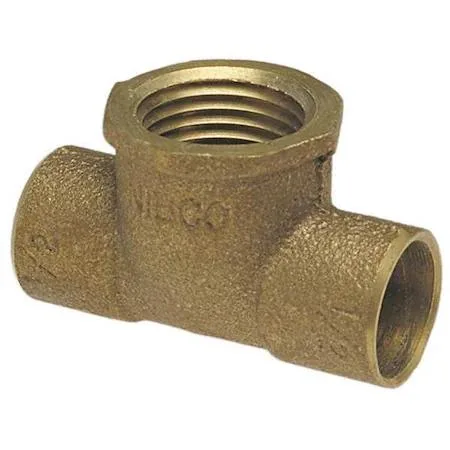

Bronze reducing tee, two 2 inch cup ends and one 3/4 inch FNPT branch

Nibco, Inc.

Nibco, Inc. 712R-LF Reducing Tee, Bronze, Cup 2", Cup 2", FNPT 3/4

SKU CH-QY88-2RKVP

A bronze reducing tee joins two 2-inch copper cups to a 3/4-inch FNPT branch, rated for 291 psi and 200 degrees F

  • Reduces 2 in copper lines to 3/4 in FNPT branch
  • Cast bronze body handles 291 psi working pressure
  • Rated for 200 °F maximum operating temperature
  • Lead-free alloy approved for potable water systems
  • Sweat cup ends enable direct copper tube soldering

2" Reducing Tee for Potable Water

This cast-bronze reducing tee connects two 2" copper sweat lines to a 3/4" FNPT branch. It is designed for potable water systems in residential and commercial plumbing installations.

Pressure and Temperature Limits

The fitting handles a maximum operating pressure of 291 psi and a maximum operating temperature of 200 degrees Fahrenheit. These ratings define the safe working envelope for the installed assembly.

Capacity and Headroom

The 2" run sides provide ample flow capacity for main supply lines while the 3/4" branch suits smaller fixture connections. The reducing configuration is not suited for applications requiring equal 2" outlets on all three ports.

Highlights

  • Reduces 2 in copper lines to 3/4 in FNPT branch
  • Cast bronze body handles 291 psi working pressure
  • Rated for 200 °F maximum operating temperature
  • Lead-free alloy approved for potable water systems
  • Sweat cup ends enable direct copper tube soldering

Specifications

BrandNibco

Questions about this item

Should I choose the 712R-LF reducing tee or a straight tee for my 2-inch copper line with a 3/4-inch branch?

Choose the 712R-LF reducing tee when you need to drop from a 2-inch copper main to a 3/4-inch threaded branch; a straight tee keeps all three outlets at the same size.

What does the 291 psi rating mean once the tee is installed in a potable water system?

The 291 psi maximum operating pressure is the highest sustained pressure the cast bronze body can safely handle at temperatures up to 200 degrees F in potable water service.

How do the cup and FNPT connections limit the pipe types I can join with this tee?

The two cup ends accept 2-inch copper tube (2 1/8-inch OD) for sweat soldering, while the FNPT end takes 3/4-inch male pipe threads, so you join copper main lines to a threaded branch or valve.
