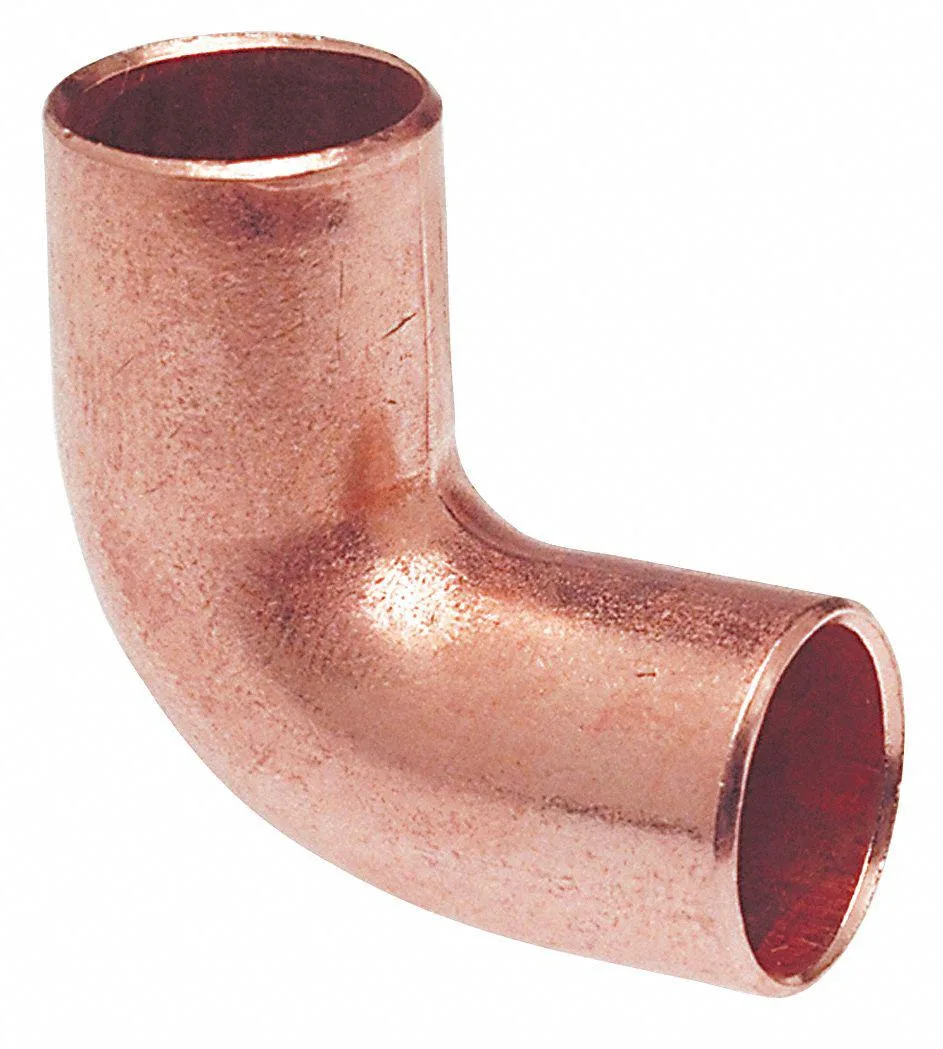

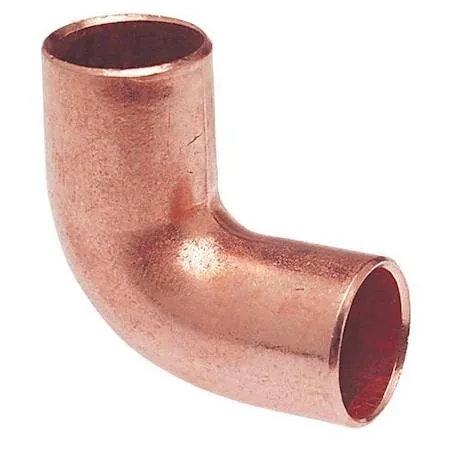

A copper 90-degree close rough elbow fitting with sweat connections on both ends

Nibco, Inc.

Nibco, Inc. 60722 2 in Copper 90 Degree Close Rough Elbow

SKU CH-N740-12G8A

A 90-degree close rough elbow joins two 2-inch copper tubes for air, gases or potable water at up to 291 psi and 400 degrees F

  • 90-degree close rough elbow enables tight-direction changes in copper piping
  • Wrot copper construction resists corrosion for air, gases and potable water systems
  • Sweat fitting ends on both sides create permanent leak-tight joints when soldered
  • Rated for 291 psi at 200 degrees Fahrenheit for demanding pressure applications
  • Withstands continuous operating temperatures up to 400 degrees Fahrenheit

Copper Sweat Fitting for 2 Inch Lines

This NIBCO 60722 elbow is a wrot copper sweat fitting designed to join two 2 inch copper tubes at a 90 degree angle. It serves plumbing installers routing air, gases or potable water in residential or commercial systems. The close rough profile keeps the joint compact where space is limited.

Dual FTG Ends Require Soldering

Both ends use an FTG connection type sized for 2 1/8 inch tube outer diameter, so each side slides into a coupling or another fitting rather than over bare tube. Installers must solder both joints; the fitting is not compatible with press, push or threaded connections.

Rated for 291 psi at 200 Degrees F

The fitting withstands a maximum operating pressure of 291 psi at 200 degrees Fahrenheit and a maximum operating temperature of 400 degrees Fahrenheit. Copper construction handles thermal cycling without deformation and adds no mechanical noise to the system.

Highlights

  • 90-degree close rough elbow enables tight-direction changes in copper piping
  • Wrot copper construction resists corrosion for air, gases and potable water systems
  • Sweat fitting ends on both sides create permanent leak-tight joints when soldered
  • Rated for 291 psi at 200 degrees Fahrenheit for demanding pressure applications
  • Withstands continuous operating temperatures up to 400 degrees Fahrenheit

Specifications

BrandNIBCO

Questions about this item

How does the 90-degree close rough elbow change flow direction in a 2-inch copper system?

It redirects flow 90 degrees within a compact radius, letting two 2-inch copper tubes join at a right angle without extra straight sections.

What do the FTG connections on both ends mean for installation?

Both ends are fitting-size sockets that accept 2-inch copper tube directly, so each joint is made with a single sweat solder connection.

What clearance is needed to fit the elbow between joists or inside a wall cavity?

The close-rough design keeps the centre-to-end dimension short, allowing the elbow to sit in tight stud bays or joist spaces where a long-radius elbow would not fit.
