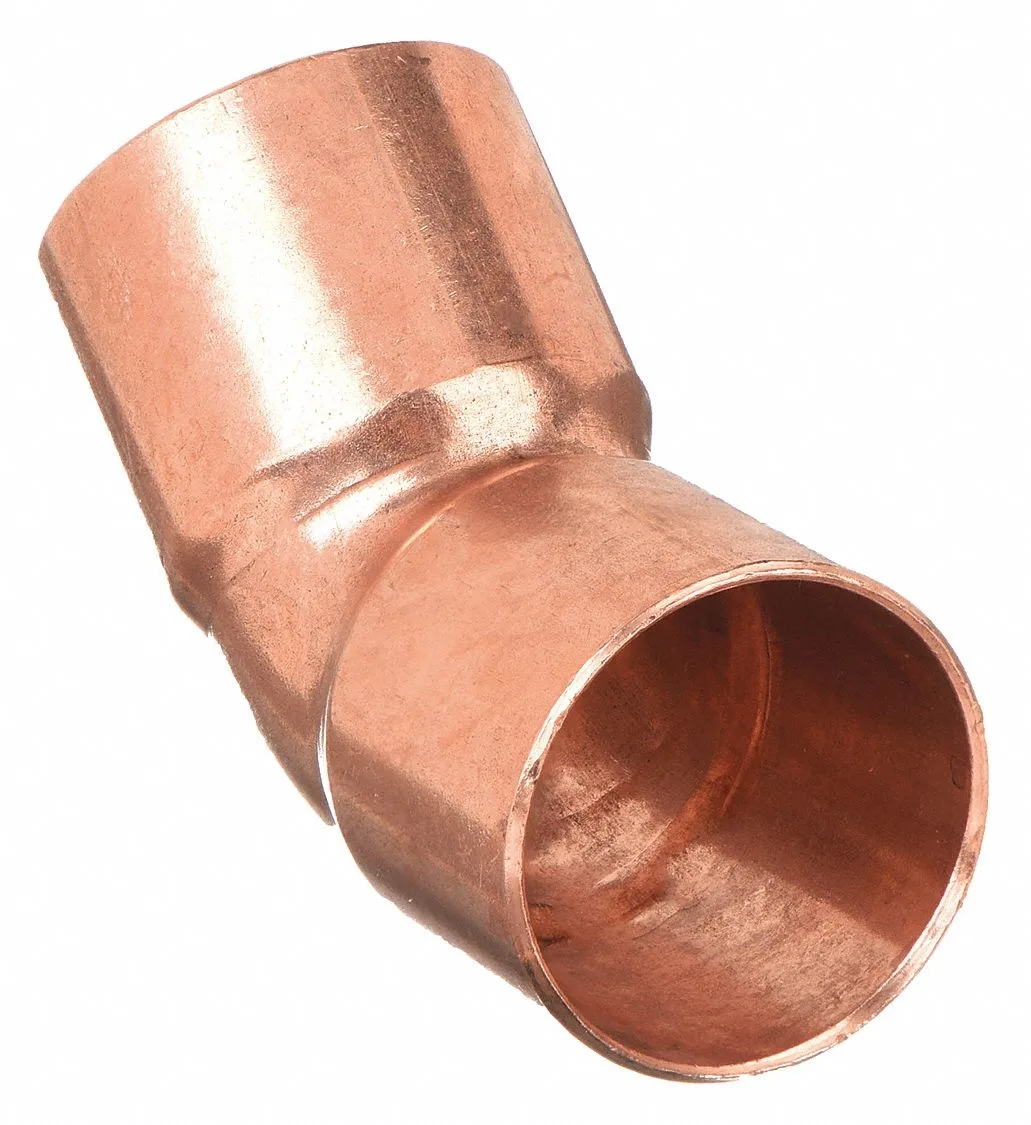

Copper 45-degree elbow fitting with cup connections, shiny metallic finish

Nibco, Inc.

Nibco, Inc. 606 45° Copper Elbow 4 in Cup × FTG

SKU CH-BNA1-6VJWE MPN 606

45-degree copper elbow joins 4-inch tubes for air, gas or potable water at 293 psi and 400 °F

  • TypeDrain Components
  • MaterialHAWA
  • 45° sweep eases flow direction changes in copper piping
  • Wrot copper construction resists corrosion for long service life
  • Rated to 293 psi at 100 °F for high-pressure confidence
  • Withstands temperatures up to 400 °F in demanding systems
  • Cup-to-cup ends simplify sweat connections on 4 in tube

45° Copper Elbow for 4 in Tubing

This wrot copper fitting joins two 4 in copper tubes at a 45 degree angle using cup connections on both ends. It is rated for air, gases and potable water systems. The fitting handles a maximum operating pressure of 293 psi at 100 degrees F and a maximum temperature of 400 degrees F.

Sweating the Joint

Clean the tube ends and fitting cups thoroughly before applying flux. Heat the joint evenly so solder flows by capillary action into both cups. Uneven heating or insufficient flux are the most common causes of leaks or voids in the connection.

Pressure and Temperature Limits

The 293 psi pressure rating applies at 100 degrees F; allowable pressure decreases as temperature rises toward the 400 degree F maximum. The fitting is not rated for service above that temperature or for pressures exceeding the stated limit at the corresponding temperature.

Highlights

  • 45° sweep eases flow direction changes in copper piping
  • Wrot copper construction resists corrosion for long service life
  • Rated to 293 psi at 100 °F for high-pressure confidence
  • Withstands temperatures up to 400 °F in demanding systems
  • Cup-to-cup ends simplify sweat connections on 4 in tube

Specifications

TypeDrain Components
MaterialHAWA
BrandNibco
Model606 4

Questions about this item

How can I confirm the 45-degree elbow is seated correctly after soldering?

Apply heat evenly around the cup until solder flows into the joint; a continuous silver ring at both 4-inch copper tube connections shows the 45-degree elbow is sealed.

What comes with the 606 elbow and what must I supply?

The box contains the single wrot copper 45-degree elbow; you must provide 4-inch copper tube, flux, lead-free solder, and a propane or MAPP torch for the sweat connections.

Which version of the 606 elbow should I choose for a 4-inch copper line?

Select the 606 model with 4-inch cup-by-copper-tube-size ends; it matches 4 1/8-inch tube OD and is rated for 293 psi at 100°F and 400°F maximum operating temperature.
