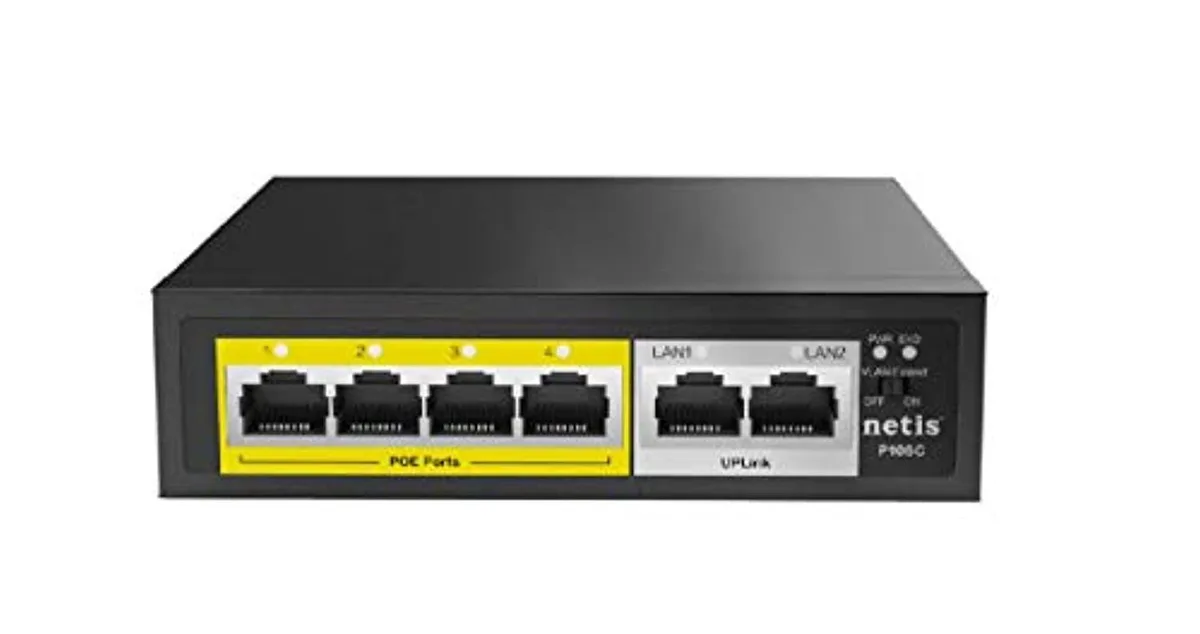

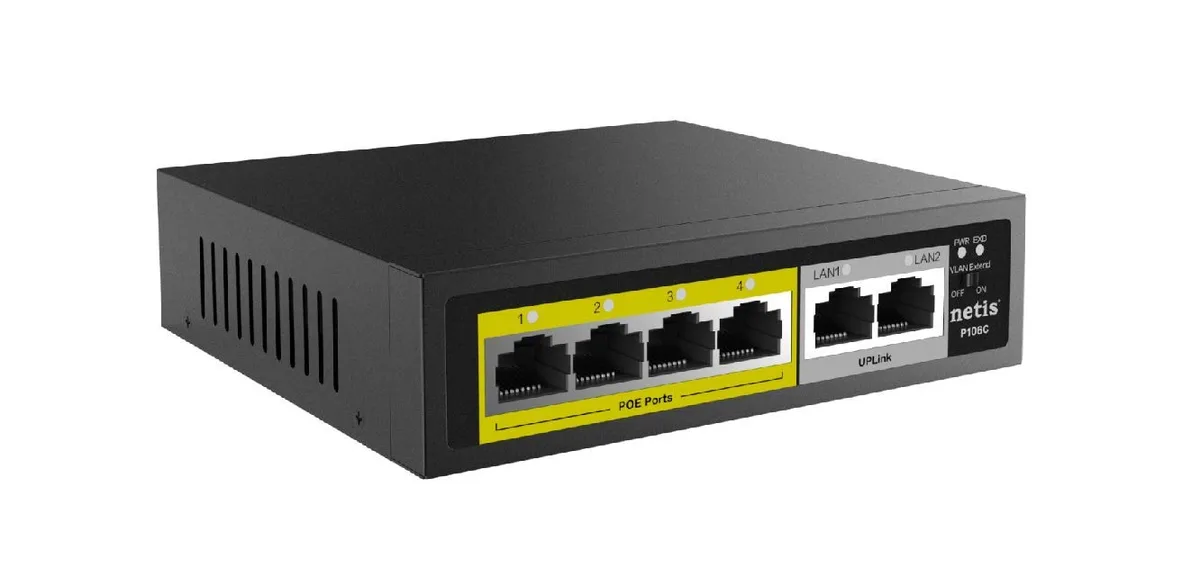

Black six-port Fast Ethernet PoE+ switch with six RJ45 ports

Netis Systems

Netis Systems P106C 6-port 100M Fast Ethernet PoE+ switch 65W handheld pcs accessory

SKU CH-0N38-QF82W MPN P106C

A six-port Fast Ethernet PoE+ switch delivering up to 30 W per port and a 65 W total budget for cameras or access points

  • ColorBlack
  • CompatibilityIEEE 802.3af/at Compliant
  • SpecificationsUp to 30W for each PoE port, 65W for all PoE ports; Fast Eth
  • FeaturesSupporting 802.3 Ethernet, 802.u Faster Ethernet, POE IEEE 8
  • Extend wired network with 6 × 10/100 Mbps adaptive RJ45 ports
  • Power up to 30W per PoE port, 65W total PoE budget
  • Two uplink ports designed for 4 security camera connections
  • 2G switching capacity with 2K MAC address table auto-learning
  • Up to 250m data transmission in extended mode with 4KV lightning protection

6-port 100M Fast Ethernet PoE+ switch

The Netis Systems P106C is a compact PoE+ switch with six 10/100 Mbps RJ45 ports. Ports one to four deliver up to 30W each, sharing a total budget of 65W for IEEE 802.3af/at powered devices. Two dedicated uplink ports connect the switch to an NVR or server. It suits installers deploying IP cameras or wireless access points in homes, shops or small offices.

Replaces non-PoE switches or injectors

This unit replaces a standard Fast Ethernet switch plus separate PoE injectors, reducing cabling and power outlets. The jump is worth it when you need to power up to four compliant devices over a single cable run. Extended mode pushes data up to 250 metres on ports one to four, while normal mode keeps standard distances. A 1.2G switching fabric handles the traffic.

Check your cabling and device power draw

Verify that your powered devices are IEEE 802.3af or 802.3at compliant and that their combined draw stays within the 65W budget. Ensure cable runs do not exceed 250 metres in extended mode. The switch uses an internal power supply, so confirm a mains socket is available at the install location. No configuration is required — just plug and play.

Highlights

  • Extend wired network with 6 × 10/100 Mbps adaptive RJ45 ports
  • Power up to 30W per PoE port, 65W total PoE budget
  • Two uplink ports designed for 4 security camera connections
  • 2G switching capacity with 2K MAC address table auto-learning
  • Up to 250m data transmission in extended mode with 4KV lightning protection

Specifications

BrandNetis
ModelP106C
ColorBlack
CompatibilityIEEE 802.3af/at Compliant
SpecificationsUp to 30W for each PoE port, 65W for all PoE ports; Fast Ethernet (100-Mbit/s) ; Normal switch mode/Extended mode ; Switching Fabric Capacity 1.2G
FeaturesSupporting 802.3 Ethernet, 802.u Faster Ethernet, POE IEEE 802.3af/at compliant Powered Device (PD), Modes: Normal switch mode/Extended mode, Two uplink ports are design for the set of 4 security camera, To upload your image or video onto server or NVR, Ports 1~4 features POE power supply capability, Auto MDI/MDIX crossover for all ports, Support full-duplex based on IEEE802.3x, Half-duplex based on Backpressure, Non-blocking wire-speed forwarding, MAC address auto-learning & auto-aging, Steel case, the total POE power budget of 65 W, Plug and play, Over-current, over-voltage, and sh
Shipping weight0.91 kg
Package size152 × 102 × 51 mm

Questions about this item

How many PoE+ ports does the P106C have and what is the total power budget?

The P106C provides four PoE+ ports with a total power budget of 65W, allowing up to 30W per port for connected devices such as IP cameras or wireless access points.

What is the correct way to connect the uplink ports to an NVR and which mode should be selected for long cable runs?

Connect the two uplink ports to your NVR or server using standard Ethernet cables; for cable runs up to 250m select Extended mode, otherwise leave the switch in Normal mode for standard 100m operation.

When should the internal power supply be checked or replaced to maintain reliable PoE delivery?

If connected PoE devices start to reboot or lose power unexpectedly, verify that the total draw of all four ports stays within the 65W budget and consider replacing the internal power supply if it can no longer sustain the rated output.
