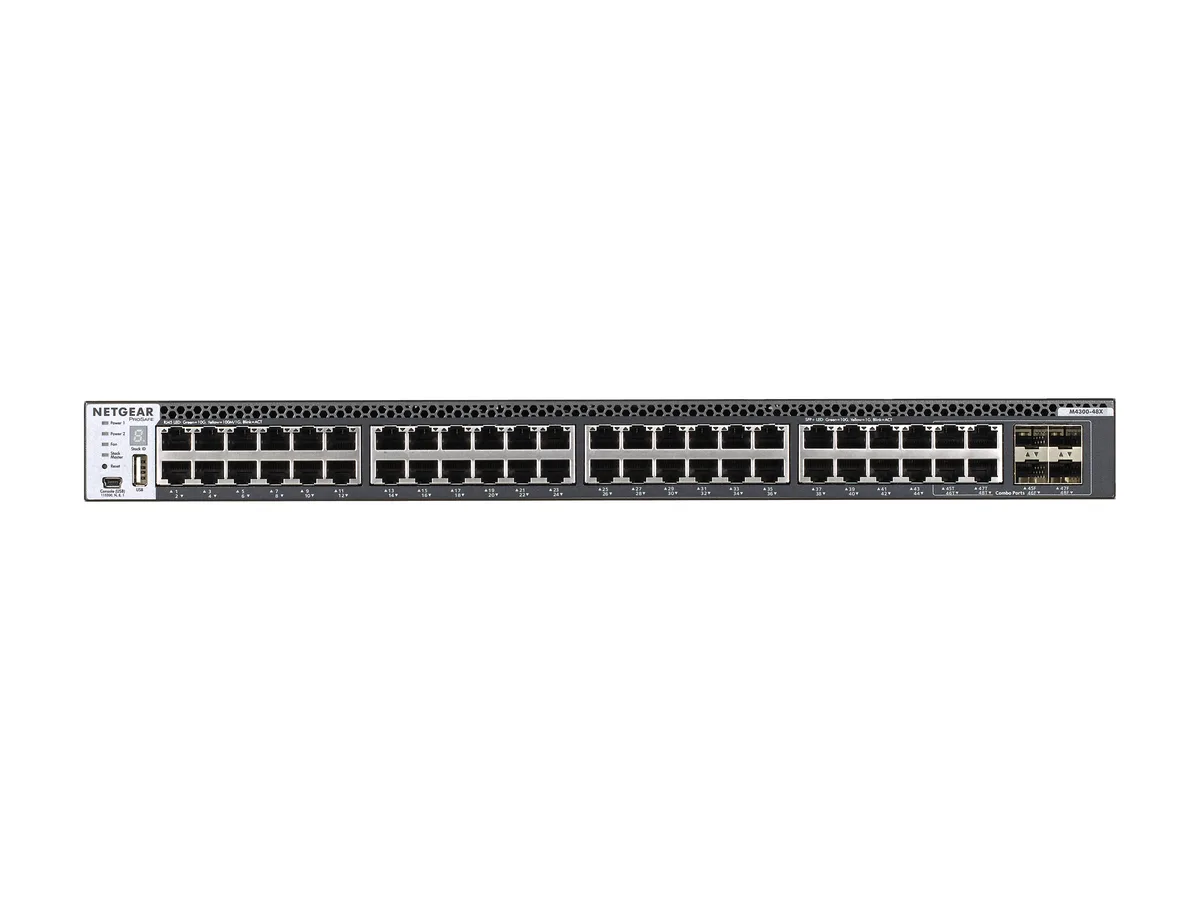

Black metal 1U rack-mount switch with 48 RJ45 ports and four SFP+ slots on the front

Netgear Inc.

Netgear Inc. XSM4348CS-100NES 48-port 10G network switch

SKU CH-D4KR-N1BTM MPN XSM4348CS-100NES

A managed, stackable Layer 4 switch with 48 RJ45 10G ports and 4 SFP+ uplinks, 960 Gbps non-blocking fabric, 56 MB buffer and redundant power supply support

  • FormatStackable
  • Network MediaMedia Type Supported: Twisted Pair Optical Fiber Ethernet Te
  • Network Management TypeManaged
  • Uplink PortsTotal Number of Network Ports: 48 Uplink Port: No Modular: Y
  • Primary Port CountTotal Number of Expansion Slots: 4.0 Expansion Slot Type: SF
  • Primary Ports48 x RJ45 + 4 x SFP+
  • 48 RJ45 ports deliver 10 Gigabit copper connectivity for dense server links
  • Four SFP+ slots add 10 Gigabit fibre uplinks for long-distance aggregation
  • 960 Gbps non-blocking fabric ensures full line-rate throughput across every port
  • Layer 4 switching with static and dynamic routing handles advanced traffic policies
  • Stackable design with hitless failover keeps the network running during master failure

48-port 10G stackable switch

The Netgear ProSafe XSM4348CS-100NES is a managed Layer 4 switch built for mid-size enterprise cores and SMB aggregation. It delivers 48 RJ45 10GBase-T ports and four SFP+ expansion slots in a single rack unit. Stackable design allows mixed 1G and 10G models to form a single virtual chassis with non-stop forwarding.

Thermals noise and power

Maximum power draw is rated at 237.2 W under full load. The chassis operates from 0 to 50 °C with up to 90 % relative humidity, non-condensing. Storage tolerances extend to –20 to 70 °C and 95 % humidity. Dual redundant modular power supplies and full-width airflow keep temperatures stable without external cooling assumptions.

960 Gbps non-blocking fabric

A 960 Gbps switching fabric provides line-rate throughput across all 48 ports. The 128K MAC table and 12 KB jumbo frame support handle heavy multicast and storage traffic. Buyers who need Power over Ethernet must choose a different model, as this unit does not supply PoE.

Highlights

  • 48 RJ45 ports deliver 10 Gigabit copper connectivity for dense server links
  • Four SFP+ slots add 10 Gigabit fibre uplinks for long-distance aggregation
  • 960 Gbps non-blocking fabric ensures full line-rate throughput across every port
  • Layer 4 switching with static and dynamic routing handles advanced traffic policies
  • Stackable design with hitless failover keeps the network running during master failure

Specifications

BrandNETGEAR
SeriesProSafe
ModelXSM4348CS-100NES
FormatStackable
Network MediaMedia Type Supported:
Twisted Pair
Optical Fiber
Ethernet Technology:
10 Gigabit Ethernet
Network Technology:
10GBase-T
10GBase-X
Network Management TypeManaged
Uplink PortsTotal Number of Network Ports:
48
Uplink Port:
No
Modular:
Yes
Stack Port:
Yes
Port/Expansion Slot Details:
48 x 10 Gigabit Ethernet Network
4 x 10 Gigabit Ethernet Expansion Slot
Primary Port CountTotal Number of Expansion Slots:
4.0
Expansion Slot Type:
SFP+
Shared SFP Slot:
No
Number of SFP+ Slots:
4
Primary Ports48 x RJ45 + 4 x SFP+
MAC Address Table128K
Jumbo Frames12KB
Buffer Memory56MB
ProtocolsTCP/IP
PoENo
Layer4
PowerPower Consumption:237.2W max
Dimensions1.73" x 17.32" x 13.58"
Weight14.44 lbs.
TemperatureOperating temperature: 0 degree to 50 degree C (32 degree to 122 degree F)
Storage temperature: –20 degree to 70 degree C (– 4 degree to 158 degree F)
HumidityOperating Humidity: 90% maximum relative humidity, non-condensing
Storage Humidity: 95% maximum relative humidity, non-condensing
Features48-port 10GBASE-T (RJ45)
4-port 10GBASE-X (SFP+) (shared)
960Gbps non-blocking fabric across 48 ports
Out-of-band 1G Ethernet Management port
Mini-USB and RJ45 RS232 console ports and USB storage port
Full L3 feature set and non-stop forwarding (NSF) stacking
Full width form factor with one-unit rack mount kit
Ships with one modular APS250W PSU in first power supply slot
Ship with a blank cover in the second power supply slot
Low acoustics (40.3dB @25 degree C / 77 degree F)
Package ContentsPower cord(s)
RJ45 straight-through wiring serial console cable to DB9
Mini-USB console cable
Rubber caps for the SFP+ sockets
Rubber footpads for tabletop installation
Installation guide
Resource CD with the following manuals and software:
Software setup manual
CLI manual
Software administration guide
Hardware installation guide
The driver for use with The Mini-USB console cable
Shipping weight7.89 kg
Package size572 × 439 × 89 mm

Questions about this item

How do I install the Netgear XSM4348CS-100NES in a rack, and what step is often missed?

Mount the 1.73" high chassis using the included full-width rack kit, then insert the two modular power supplies — the step often missed is fitting both units for redundancy before powering on.

What maintenance or replacement will the Netgear XSM4348CS-100NES need later?

The two hot-swap power supplies are the only field-replaceable parts; fans are internal and not user-serviceable, so plan to replace a PSU if a fault LED lights.

What limit appears first on the Netgear XSM4348CS-100NES under sustained heavy load?

The 237.2 W maximum power draw and 50 °C operating ceiling are reached before the 960 Gbps fabric or 56 MB buffer saturate, so cooling and PSU capacity set the practical ceiling.
