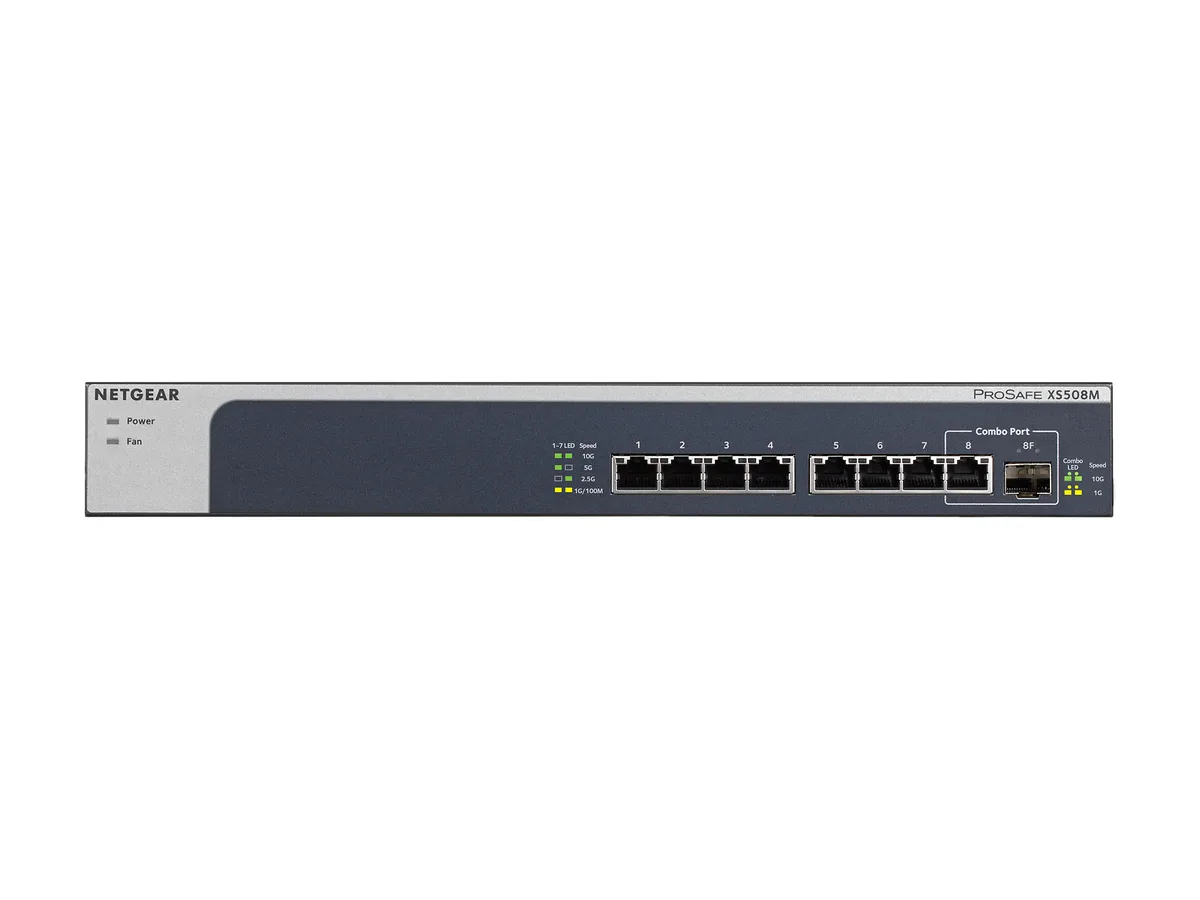

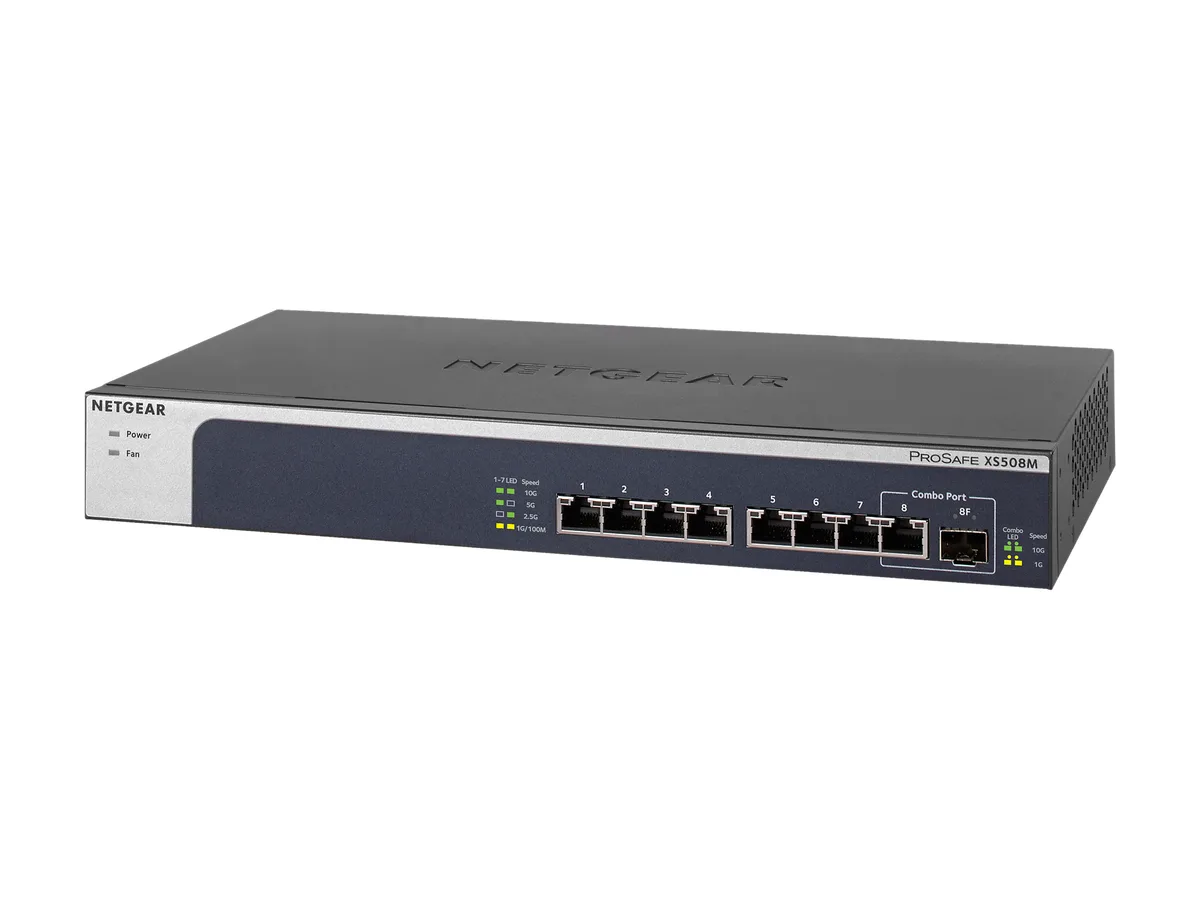

Silver metal 8-port 10G switch with SFP+ combo port and status LEDs

Netgear Inc.

Netgear Inc. XS508M-100NAS 8-port 10G Multi-Gig network switch

SKU CH-AP86-Q8EE3 MPN XS508M-100NAS

An unmanaged 8-port Multi-Gig switch with seven 10G copper ports and one 10G/1G SFP+ combo uplink, supporting 1G, 2.5G, 5G and 10G speeds

  • FormatRackmount / Desktop
  • StandardsIEEE 802.3 Ethernet IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000
  • Network Management TypeUnmanaged
  • Primary Ports7 x 10-Gig / Multi-Gig Copper Ports 1 x 10G / 1G SFP+ and Co
  • MAC Address Table2K
  • Switching MethodStore and Forward

Class 8 Ports 10G + Multi-Gig 1 x SFP+

Model XS508M

  • Eight copper ports auto-negotiate 1G 2.5G 5G 10G speeds
  • Combo SFP+ uplink adds 1G or 10G fiber flexibility
  • Unmanaged plug-and-play operation requires zero configuration
  • Silent fanless design suits desktop or rackmount placement
  • 39W maximum draw with Energy Efficient Ethernet compliance

8-port 10G Multi-Gig unmanaged switch

The Netgear XS508M-100NAS is an eight-port 10G Multi-Gig unmanaged switch built for desktop or rackmount use. It provides seven 10G Multi-Gig copper ports and one combo 10G/1G SFP+ uplink, all in a metal enclosure with a fixed internal power supply.

Small teams needing plug-and-play 10G

This switch suits small offices, creative studios or home labs that want instant 10G, 5G, 2.5G or 1G connectivity without configuration. It is not for networks that require PoE power delivery, managed features such as VLANs or link aggregation, or fibre-only uplinks beyond the single SFP+ slot.

One combo SFP+ uplink decides fibre reach

The single 10G/1G SFP+ combo port shares bandwidth with the last copper port, so fibre reach and transceiver choice are fixed by that one interface. If the installation needs more than one fibre uplink or dedicated copper ports alongside fibre, this model cannot meet the requirement.

Highlights

  • Eight copper ports auto-negotiate 1G 2.5G 5G 10G speeds
  • Combo SFP+ uplink adds 1G or 10G fiber flexibility
  • Unmanaged plug-and-play operation requires zero configuration
  • Silent fanless design suits desktop or rackmount placement
  • 39W maximum draw with Energy Efficient Ethernet compliance

Specifications

BrandNETGEAR
ModelXS508M-100NAS
FormatRackmount / Desktop
StandardsIEEE 802.3 Ethernet
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1p Class of Service
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3an 10GBASE-T
IEEE 802.3bz 5 Gbps and 2.5 Gbps Ethernet Over Copper Twisted Pair Cable
IEEE 802.3ae 10-Gigabit Ethernet Over Fiber
IEEE 802.3aq 10-Gigabit over Fiber (10GBASE-LRM)
IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
Network Management TypeUnmanaged
Primary Ports7 x 10-Gig / Multi-Gig Copper Ports
1 x 10G / 1G SFP+ and Copper (combo)
MAC Address Table2K
Switching MethodStore and Forward
Jumbo Frames9KB
Buffer Memory128KB
ProtocolsTCP/IP
PoENo
QoSYes
Layer2
LEDsPer port: Speed, Link, Activity
Per device: Power and Fan
PowerPower Supply: Fixed internal PSU, 100-240V AC, 50-60 Hz, 1A max Power cord localized to country of sale
Max power (worst case, all ports used, line-rate traffic) (Watts): 39W
Dimensions1.70" x 12.91" x 3.28"
Weight3.04 lbs.
TemperatureOperating Temperature: 0 ~ 50 degree Celsius (32 ~ 122 degree Fahrenheit)
Storage Temperature: -20 ~ 70 degree Celsius (-4 ~ 158 degree Fahrenheit)
HumidityOperating Humidity: 95% maximum relative humidity (RH), non-condensing
Storage Humidity: 95% maximum relative humidity (RH), non-condensing
Package ContentsMost flexible and cost-effective 8-port Auto-adapt Multi-Speed 10-Gigabit / Multi-Gigabit switch with 1 SFP+ 1G / 10G uplink
Ideal for small installations of 8 10-Gigabit / Multi-Gigabit devices - 1G / 2.5G / 5G / 10G (5G network cards, gamer PCs, desktop PCs, servers, NAS storage or AC Wave 2 Wireless Access Points)
Maximum performance Plug-and-play, automatic connectivity to your router or modem of 8 additional 10-Gigabit / Multi-Gigabit wired connections for your Home or Business
Silent operation, energy efficient and sturdy metal case for anywhere desktop or rackmount quality ins
Shipping weight2.17 kg
Package size462 × 229 × 84 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat does the XS508M-100NAS produce when every port runs at line rate all day?

Maximum draw is 39 W, so the switch dissipates roughly 39 watts of heat under full load.

Does the XS508M-100NAS need any special cables or modules to connect my 2.5 G and 5 G devices?

Standard Cat 5e or better copper patch cords work for every 1 G, 2.5 G, 5 G and 10 G copper port; the single SFP+ combo port accepts a 1 G or 10 G transceiver if you choose fibre.

Will my older 1 G NAS and 100 Mbps printer slow down the 10 G ports on this switch?

Each port auto-negotiates independently at 100 M, 1 G, 2.5 G, 5 G or 10 G, so legacy devices run at their own speed without affecting faster links.
