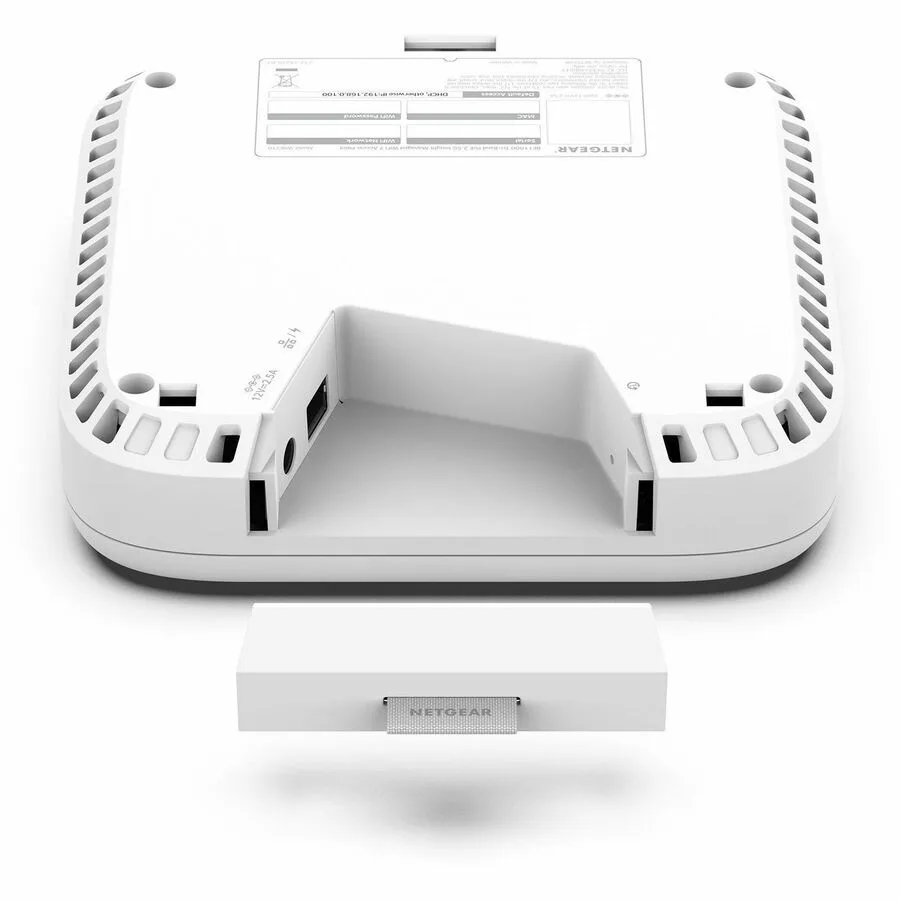

White square indoor access point with internal antennas

Netgear Inc.

Netgear Inc. WBE710-100NAS Wi-Fi 7 tri-band access point

SKU CH-9PG2-AZGHY MPN WBE710-100NAS

Tri-band Wi-Fi 7 access point with 9.4 Gbps aggregate throughput, 2.5 Gbps PoE+ port and cloud management for up to 600 users indoors

  • ColorWhite
  • # of Users600
  • StandardsIEEE 802.11b/g/n
  • WiFi GenerationWi-Fi 7
  • SecurityWiFi Protected Access (WPA2 WPA3), 802.11i MAC address filte
  • Frequency Band6GHz: 20/40/80/160/320MHz 5GHz: 20/40/80/160MHz 2.4GHz: 20/4

Model WBE710

  • Tri-band Wi-Fi 7 delivers up to 9.4Gbps aggregate throughput across 2.4, 5.0 and 6.0GHz bands
  • 6GHz band supports 320MHz channels for 5,765Mbps peak speed with OFDMA and BSS Coloring
  • Bidirectional MU-MIMO serves 37 clients per group for high-density environments up to 600 users
  • PoE+ power on a 2.5G Multi-Gig port enables flexible indoor ceiling or wall mounting
  • Enterprise security with WPA3, 802.1x RADIUS, VLANs and guest captive portal managed via Insight cloud

Tri-band Wi-Fi 7 access point

The Netgear WBE710-100NAS is a tri-band wireless access point supporting Wi-Fi 7 across 2.4 GHz, 5 GHz and 6 GHz bands. It delivers an aggregate theoretical throughput of up to 9.4 Gbps and supports up to 600 concurrent users. The unit is designed for indoor ceiling or wall mounting and includes a mounting kit in the box.

PoE+ powered with Insight cloud management

Installation is simplified by Power over Ethernet Plus, which supplies both data and power through a single 2.5 Gbps Ethernet cable. The access point is managed remotely via the NETGEAR Insight app or cloud portal, allowing configuration without on-site console access. Internal antennas mean no external antenna alignment is required during mounting.

Verify PoE+ switch capacity and 6 GHz client support

Before ordering, confirm that your network switch provides PoE+ (802.3at) power budget on the intended port. Ensure the structured cabling supports at least 2.5 Gbps speeds to avoid bottlenecks. Clients must support the 6 GHz band to use the highest-throughput channels; legacy devices will operate on 2.4 GHz or 5 GHz only.

Highlights

  • Tri-band Wi-Fi 7 delivers up to 9.4Gbps aggregate throughput across 2.4, 5.0 and 6.0GHz bands
  • 6GHz band supports 320MHz channels for 5,765Mbps peak speed with OFDMA and BSS Coloring
  • Bidirectional MU-MIMO serves 37 clients per group for high-density environments up to 600 users
  • PoE+ power on a 2.5G Multi-Gig port enables flexible indoor ceiling or wall mounting
  • Enterprise security with WPA3, 802.1x RADIUS, VLANs and guest captive portal managed via Insight cloud

Specifications

BrandNETGEAR
ModelWBE710
Part NumberWBE710-100NAS
ColorWhite
# of Users600
StandardsIEEE 802.11b/g/n
WiFi GenerationWi-Fi 7
SecurityWiFi Protected Access (WPA2 WPA3), 802.11i
MAC address filtering with access control
802.1x RADIUS support with EAP TLS, TTLS, PEAP
Neighbor AP detection
Block SSID Broadcast
VLAN Support
Guest Network/Captive Portal
Bandwidth management
Link Layer Discovery Protocol
Bandsteering
WiFi Protected Access® (WPA2, WPA3)
WPA2 and WPA3 Enterprise
Wireless access control to identify authorized wireless network devices
MAC address authentication
Access Control List (ACL)
Frequency Band6GHz: 20/40/80/160/320MHz
5GHz: 20/40/80/160MHz
2.4GHz: 20/40MHz
AntennaInternal Antenna
Mounting LocationIndoor
Operating RangeUp to 2,500 sq ft
MIMOBidirectional MU-MIMO: 37 per group
VLANYes
Power SupplyPoE+
FeaturesProduct Features
OFDM and OFDMA
BSS Coloring
Target Wake Time (TWT)
Maximum Wireless Theoretical Throughput: 9.4Gbps
Maximum Wireless Theoretical Throughput per Band: 6GHz: 5,765Mbps / 5GHz: 2,882Mbps / 2.4GHz: 688Mbps
Max Number of Users per Radio/Total: 200/600
Antenna Gain Internal 3.45/5.39/5.49 dBi (2.4GHz/5GHz/6GHz)
Power over Ethernet (PoE): 802.3at
PoE Power Consumption: 25W
Centralized Management: NETGEAR Insight Cloud. 1-year of Insight included
Secure Socket Layer (SSL)
Wireless Distribution System(WDS)
Repeater
Bridge Point-to-point/Multi-point
Simultaneous Bridge and Wir
Package ContentsWBE710 Insight Manageable Access Point
Wall/ceiling mount kit
Installation guide
Shipping weight1.18 kg
Package size193 × 191 × 76 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the WBE710 is delivering the 9.4 Gbit/s aggregate throughput after installation?

Check the NETGEAR Insight app or Cloud portal for real-time client counts, per-band throughput (6 GHz: 5,765 Mbps, 5 GHz: 2,882 Mbps, 2.4 GHz: 688 Mbps) and MU-MIMO group activity up to 37 per group.

What ships with the WBE710-100NAS and what must I supply separately?

The box contains the tri-band access point, a wall/ceiling mount kit and an installation guide; you must provide a PoE+ (802.3at) switch or injector and Ethernet cabling rated for 2.5 Gbit/s.

Which frequency-band configuration should I choose for a dense 600-user office?

Enable all three radios — 6 GHz at 320 MHz channels, 5 GHz at 160 MHz and 2.4 GHz at 40 MHz — to use the full 9.4 Gbit/s aggregate capacity across 6 streams.
