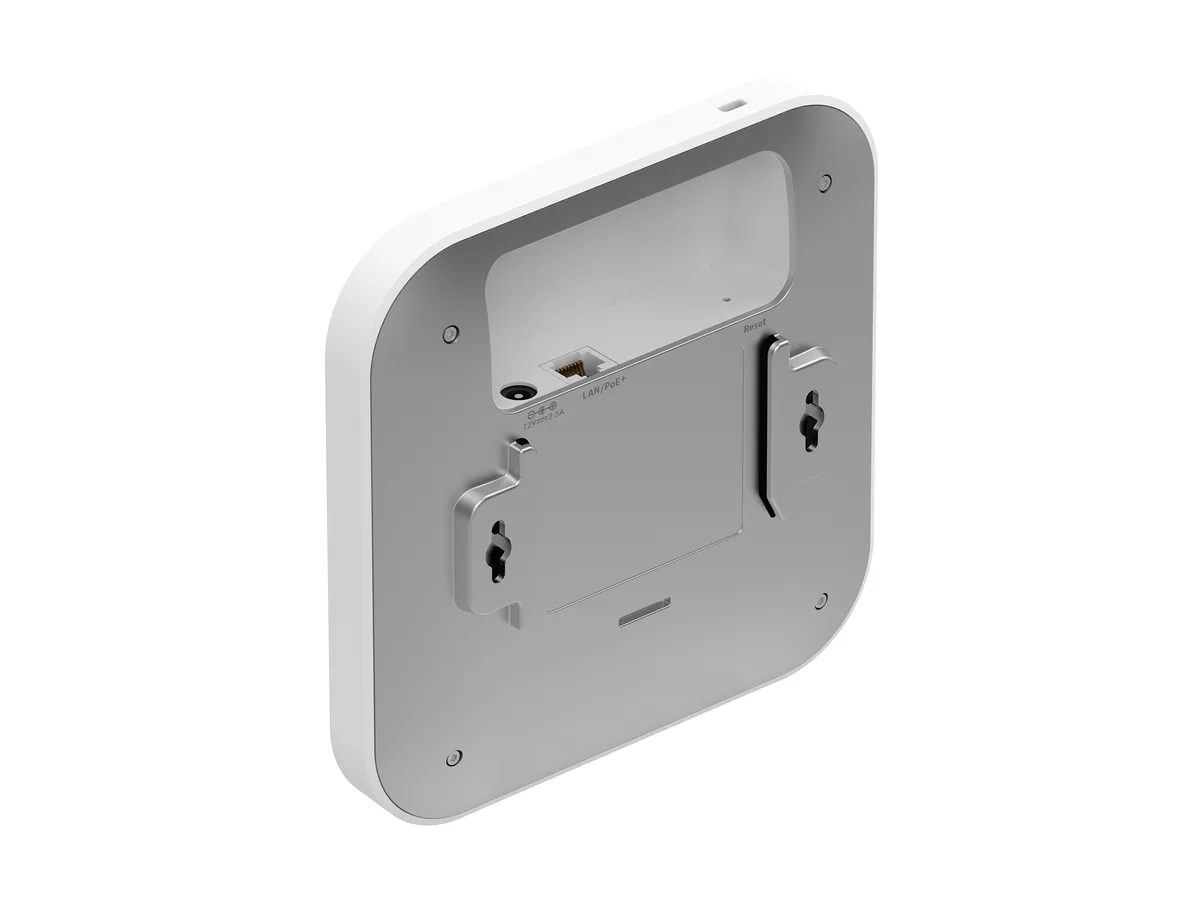

Square white indoor access point with smooth low-profile finish and recessed LED indicator

Netgear Inc.

Netgear Inc. WAX610-100NAS AX1800 access point

SKU CH-AG5V-HVR0R MPN WAX610-100NAS

Wi-Fi 6 dual-band access point delivering up to 1.8 Gbit/s across 2.4 GHz and 5 GHz, with a 2.5 Gbps PoE port and cloud management included

  • # of Users400
  • StandardsIEEE 802.11ax
  • WiFi GenerationWi-Fi 6
  • Wireless Data RatesAX1800 / Up to 1.8Gbps
  • SecurityWiFi Protected Access (WPA/WPA2/WPA3), 802.11i
  • Frequency Band2.4 GHz / 5 GHz

Class AX1800

Options WAX610

  • Wi‑Fi 6 delivers up to 1.8 Gbps combined wireless throughput
  • Dual‑band 2.4 GHz and 5 GHz operation covers up to 2,500 sq ft
  • 5 Gbps Ethernet port plus PoE simplifies high‑speed wiring
  • Insight cloud management with one‑year subscription enables remote monitoring
  • Supports up to 400 concurrent users with WPA3 security

Ideal for high-density Wi-Fi 6 deployments

The Netgear WAX610-100NAS is an indoor wireless access point built for business environments. It supports up to 400 concurrent users across 2.4 GHz and 5 GHz bands with AX1800 performance. Cloud management is handled through the included 1-Year Insight subscription.

Check PoE budget and switch ports before ordering

Your network switch must deliver at least 15.3W via PoE to power the unit without a separate adapter. Ensure you have a free 2.5G Ethernet port to utilise the multi-gigabit uplink; a 10/100/1000M port is also available for backward compatibility.

Insight subscription enables remote monitoring

The bundled 1-Year Insight licence activates cloud-based configuration, monitoring and firmware updates without an on-premise controller. Dual-band operation at up to 1.2Gbps on 5 GHz and 600Mbps on 2.4 GHz runs simultaneously, while internal antennas rated at 3.8 dBi and 4.5 dBi cover up to 2,500 sq ft.

Highlights

  • Wi‑Fi 6 delivers up to 1.8 Gbps combined wireless throughput
  • Dual‑band 2.4 GHz and 5 GHz operation covers up to 2,500 sq ft
  • 5 Gbps Ethernet port plus PoE simplifies high‑speed wiring
  • Insight cloud management with one‑year subscription enables remote monitoring
  • Supports up to 400 concurrent users with WPA3 security

Specifications

BrandNETGEAR
ModelWAX610-100NAS
# of Users400
StandardsIEEE 802.11ax
WiFi GenerationWi-Fi 6
Wireless Data RatesAX1800 / Up to 1.8Gbps
SecurityWiFi Protected Access (WPA/WPA2/WPA3), 802.11i
Frequency Band2.4 GHz / 5 GHz
AntennaInternal 3.8 / 4.5 dBi (2.4 GHz / 5 GHz)
Mounting LocationIndoor
Operating RangeUp to 2,500 sq ft
WAN Ports1 x 10/100/1000M; 1 x 2.5G
Power SupplyPoE Power Consumption: 15.3W
TemperatureOperating temperature 0° to 40°C (32° to 104°F)
Dimensions6.33" x 6.33" x 1.30"
Weight0.90 lb.
FeaturesInsight cloud remote monitoring and management: 1-Year Insight subscription included
WiFi 6 Dual Band AX1800 Access Point, up to 1.2Gbps in 5GHz band and 600Mbps in 2.4GHz
Multi-Gigabit Speed and PoE - Includes a 2.5 Gbps Ethernet port with PoE for high speed and easy wiring
Faster and more reliable WiFi due to higher throughput and more coverage with the use of both 2.4Ghz and 5Ghz band simultaneously.
Ideal for high density WiFi environments, supported by robust and seamless roaming between a large number of WAX610 and other NETGEAR Business WiFi APs
High Performance - Get 4 Stream
Shipping weight1.36 kg
Package size254 × 254 × 127 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the WAX610-100NAS include a PoE injector or must I buy one separately?

The access point draws up to 15.3W via PoE; a compatible PoE switch or injector is required and is not included in the box.

Should I choose the 2.4 GHz or 5 GHz band for the highest throughput on this AX1800 unit?

The 5 GHz radio delivers up to 1.2Gbps while the 2.4 GHz radio reaches 600Mbps, so 5 GHz provides the faster link.

What does the AX1800 rating mean for real-world speed on a 2.5G Ethernet backhaul?

AX1800 represents the combined 1.2Gbps (5 GHz) plus 600Mbps (2.4 GHz) PHY rates; actual throughput will be lower and is limited by the 2.5G wired uplink.
