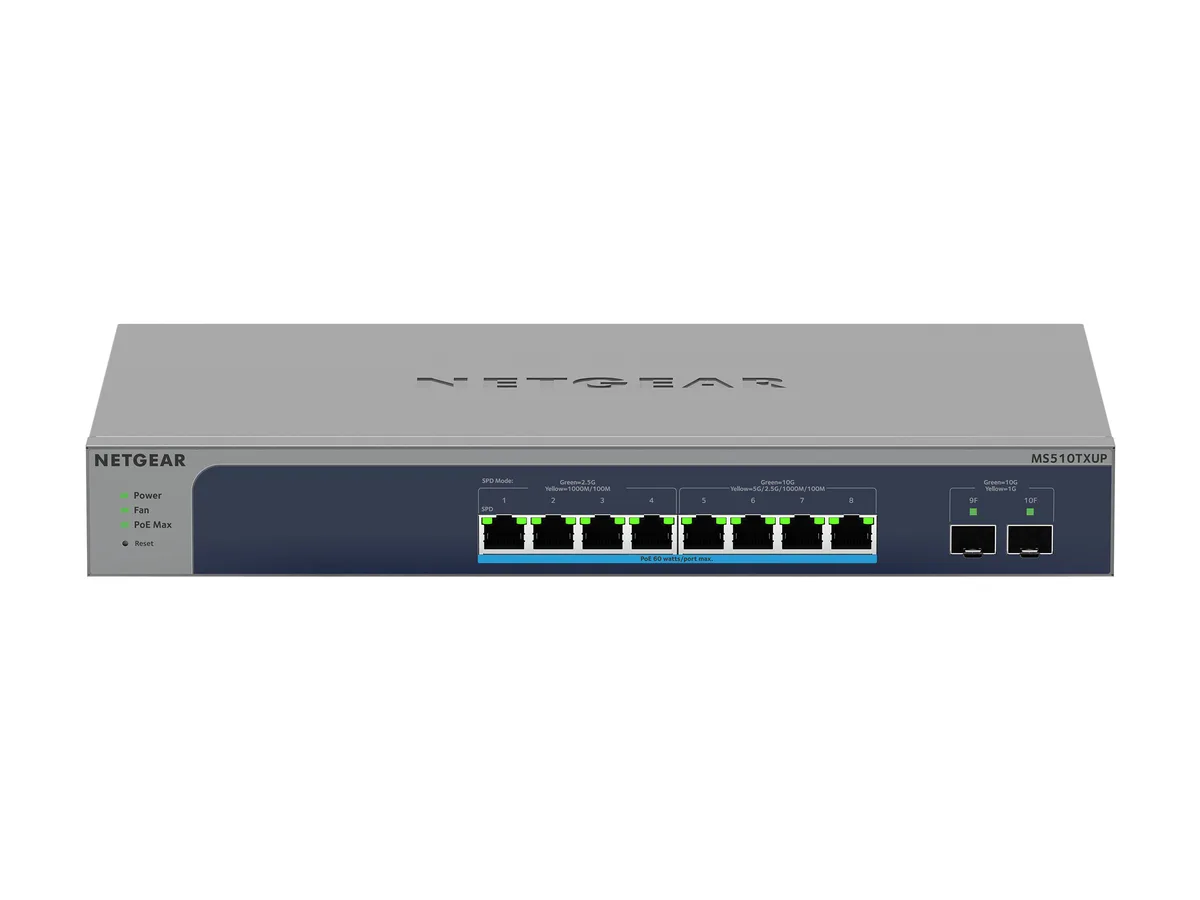

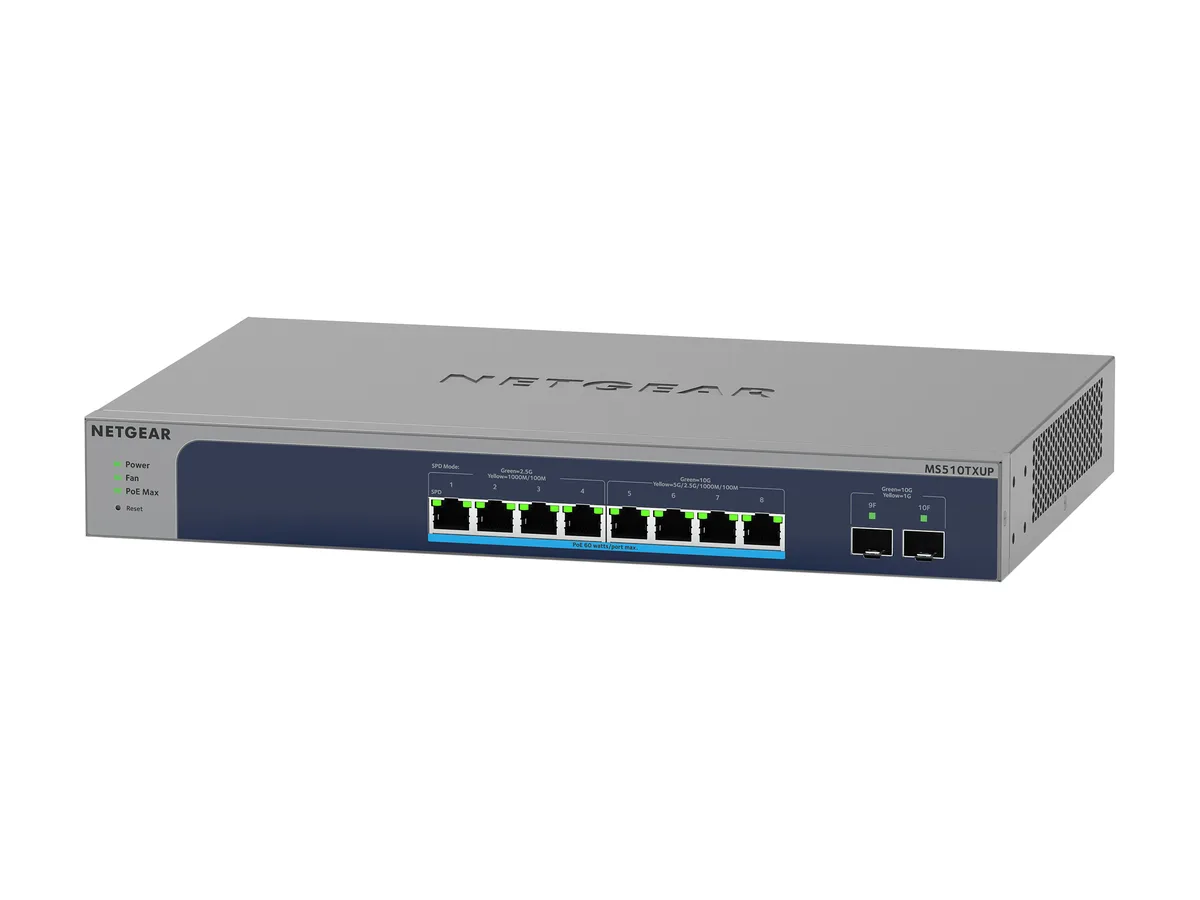

Silver metal rack-mount switch with eight RJ45 ports and two SFP+ cages

Netgear Inc.

Netgear Inc. MS510TXUP-100NAS 8-Port Multi-Gig/10G PoE++ Smart Switch

SKU CH-T5JT-J0PRW MPN MS510TXUP-100NAS

Eight-port smart switch with 2.5G and 10G PoE++ ports, 295W budget, and two 10G SFP+ uplinks

  • FormatRack-mountable Desktop
  • Network MediaMedia Type Supported: Twisted Pair Optical Fiber Ethernet Te
  • Network Management TypeSmart
  • Uplink PortsInterface/Ports Total Number of Network Ports: 8 Uplink Port
  • Primary Ports8 x RJ45 + 2 x SFP
  • Primary Port Speed10 Gbps
  • Connect devices at up to 10 Gbps with eight multi-gigabit ports
  • Power demanding endpoints with 60 W per port across 295 W total PoE++ budget
  • Add fibre uplinks using two 10 G SFP+ expansion slots
  • Manage VLANs, QoS and LACP through smart Layer 3 software with Insight remote access
  • Install on a desk or in a rack with included mounting hardware

Eight-port PoE++ switch for multi-gig networks

The Netgear MS510TXUP-100NAS provides eight RJ45 ports with PoE++ support and two 10G SFP+ uplinks. Four ports operate at 1G/2.5G while the other four reach 1G/2.5G/5G/10G, giving a mix of 2.5G and 10G copper connectivity. It is managed through a smart Layer 3 feature set including VLAN, QoS and LACP. This switch suits installers who need high-density power and multi-gig speeds in a single rack or desktop unit.

Mounting hardware and remote management included

The box contains all brackets for desktop or rack-mount installation, removing the need to source a separate kit. NETGEAR Insight cloud management allows configuration and monitoring from any location, while the local GUI and SNMP support integrate with NMS 300. These bundled tools mean the switch can be deployed and maintained without additional software licences or physical accessories.

295 W PoE budget across eight ports

The total power budget of 295 W is the figure that determines how many high-draw devices such as 802.3bt access points or PTZ cameras can run simultaneously. Each port can deliver up to 60 W, but the shared budget limits the combination of powered devices. Buyers who need more than 295 W of concurrent PoE power should look for a switch with a larger budget.

Highlights

  • Connect devices at up to 10 Gbps with eight multi-gigabit ports
  • Power demanding endpoints with 60 W per port across 295 W total PoE++ budget
  • Add fibre uplinks using two 10 G SFP+ expansion slots
  • Manage VLANs, QoS and LACP through smart Layer 3 software with Insight remote access
  • Install on a desk or in a rack with included mounting hardware

Specifications

BrandNETGEAR
Part NumberMS510TXUP-100NAS
FormatRack-mountable
Desktop
Network MediaMedia Type Supported:
Twisted Pair
Optical Fiber
Ethernet Technology:
2.5 Gigabit Ethernet
10 Gigabit Ethernet
Network Technology:
1000Base-T
1000Base-X
Network Management TypeSmart
Uplink PortsInterface/Ports
Total Number of Network Ports:
8
Uplink Port:
Yes
Modular:
Yes
Port/Expansion Slot Details:
4 x 2.5 Gigabit Ethernet PoE++
4 x 10 Gigabit Ethernet PoE++
2 x 10 Gigabit Ethernet Expansion Slot
I/O Expansions:
Total Number of Expansion Slots:
2.0
Expansion Slot Type:
SFP+
Number of SFP+ Slots:
2
Primary Ports8 x RJ45 + 2 x SFP
Primary Port Speed10 Gbps
Primary Port Type4 x 1G/2.5G 1000BASE-T RJ-45 Copper Ports
4 x 1G/2.5G/5G/10G 1000BASE-T RJ-45 Copper Ports
2 x 10G SFP+ Uplink
MAC Address Table32K
VLAN Support256 VLANs
Buffer Memory2MB
PoE8 Ports (60W/port), Total 295W
SNMPYes
QoSYes
LACPYes
Layer3
Port MirroringYes
LEDsPoE (RJ-45) Port:
Yes
PoE Budget:
295 W
Power Source:
Power Supply
Number of Power Supplies Installed:
1
Power Consumption:
380 W
CertificationEnvironmentally Friendly:
Yes
Environmental Certification:
China Environmental United Certification Center (CEC)
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Battery Directive
TemperatureOperating Temperature 0° to 50°C (32° to 122°F)
Storage Temperature –20° to 70°C (– 4° to 158°F)
Package ContentsMS510TXUP Ethernet Switch
Power Cord
Mounting Kit
Rubber Footpads For Tabletop Installation
Quick Installation Guide
Shipping weight2.51 kg
Package size330 × 206 × 43 mm

Questions about this item

How often will the internal power supply need replacement under continuous load?

The built-in power supply draws up to 380 W and is not user-serviceable; plan for a full unit swap if it fails after years of 24/7 operation.

Which limit appears first when all eight PoE++ ports run at 60 W each?

The 295 W total PoE budget caps combined draw, so you cannot sustain 60 W on every port simultaneously — some ports must share the budget.

How loud does the fan get when the switch passes traffic 24 hours a day?

Netgear describes a whisper-quiet design that reduces fan noise for office or home environments, even under sustained multi-gigabit throughput.
