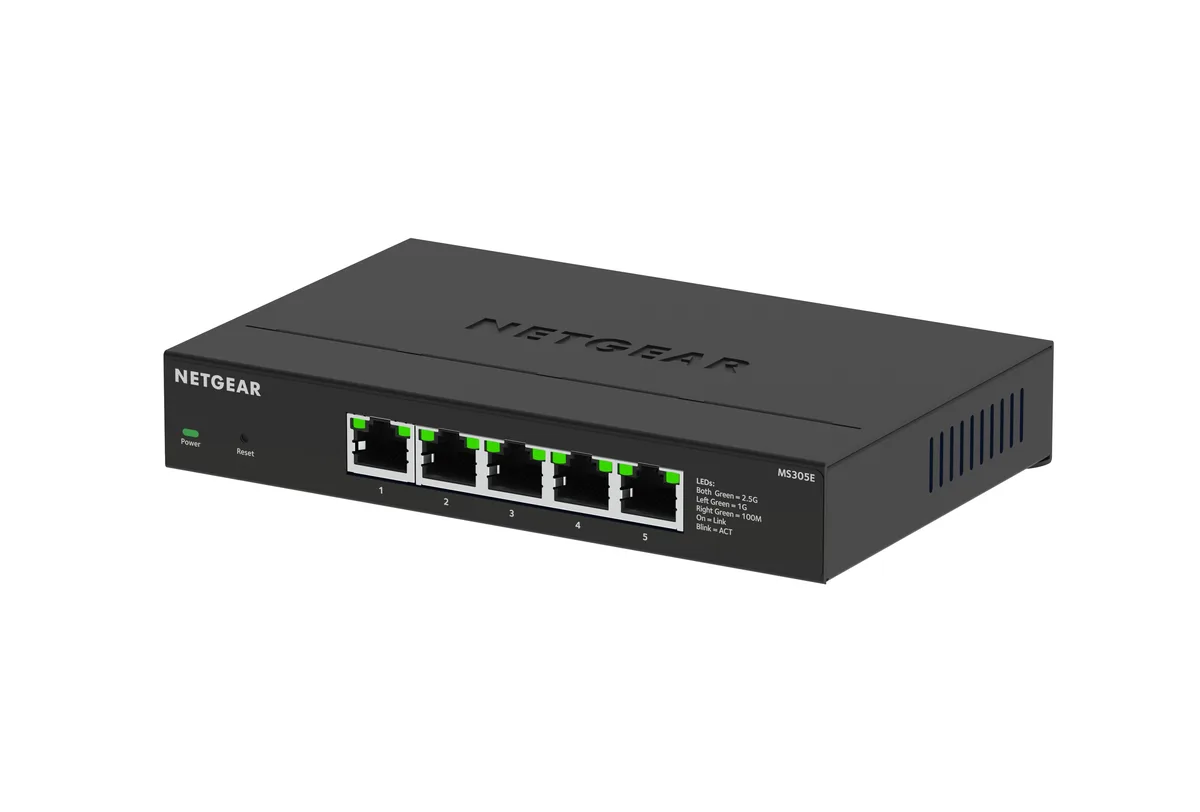

Compact metal desktop switch with five RJ45 ports

Netgear Inc.

Netgear Inc. MS305E-100NAS 5-port 2.5G network switch

SKU CH-VWTP-QDVN5 MPN MS305E-100NAS

Five-port 2.5G Ethernet switch with web-managed VLAN, QoS and loop detection in a silent metal case

  • StandardsNetworking Standards: IEEE 802.3 IEEE 802.3ab IEEE 802.3u IE
  • Network MediaMedia Type Supported: Twisted Pair Ethernet Technology: 2.5
  • Network Management TypeSmart
  • Primary Ports5 x RJ45
  • VLAN SupportYes
  • Jumbo FramesYes

Class 5-Port

Model MS305E

Type Easy Smart Managed Essentials

  • 5 × 2.5G ports deliver 25 Gbps non-blocking throughput for faster file transfers
  • Fanless metal chassis runs silently in offices or home labs
  • Easy Smart managed features add VLANs, QoS and IGMP snooping at unmanaged-switch pricing
  • Web browser GUI simplifies network monitoring and traffic prioritisation
  • IEEE 802.3az Energy Efficient Ethernet cuts power draw to 5.60 W during light traffic

Five 2.5G ports for small offices

The Netgear MS305E-100NAS is a 5-port 2.5 Gigabit Ethernet switch built for small offices and home offices that need faster wired links. It runs silent with a fanless metal case and draws 5.60 W from an external 12V 1.5A adapter. Smart management adds VLANs, QoS and jumbo frames without the complexity of a full Layer 3 stack.

Suits simple VLAN and QoS needs

Buyers who want basic traffic segmentation and prioritisation through a web browser will find the Plus feature set sufficient. Builders who need PoE to power cameras or access points should look elsewhere because this model supplies no Power over Ethernet. Networks that require Layer 3 routing or CLI access are also outside the intended scope.

2.5GBase-T on every RJ45

Each of the five RJ45 ports negotiates 2.5GBase-T down to 100 Mbps, giving a 25 Gbps non-blocking fabric. The 1 MB buffer absorbs bursts while Energy Efficient Ethernet cuts power on idle links. If your cabling or end devices only support 1 Gbps, the extra headroom goes unused.

Highlights

  • 5 × 2.5G ports deliver 25 Gbps non-blocking throughput for faster file transfers
  • Fanless metal chassis runs silently in offices or home labs
  • Easy Smart managed features add VLANs, QoS and IGMP snooping at unmanaged-switch pricing
  • Web browser GUI simplifies network monitoring and traffic prioritisation
  • IEEE 802.3az Energy Efficient Ethernet cuts power draw to 5.60 W during light traffic

Specifications

BrandNETGEAR
Part NumberMS305E-100NAS
StandardsNetworking Standards:
IEEE 802.3
IEEE 802.3ab
IEEE 802.3u
IEEE 802.1p
IEEE 802.1Q
IEEE 802.3x
IEEE 802.3bz
IEEE 802.3az
IEEE 802.3ad
Network MediaMedia Type Supported:
Twisted Pair
Ethernet Technology:
2.5 Gigabit Ethernet
Network Technology:
2.5GBase-T
Network Management TypeSmart
Primary Ports5 x RJ45
VLAN SupportYes
Jumbo FramesYes
Buffer Memory1MB
ProtocolsEEE 802.3 Ethernet
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
EEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.3x Full-duplex Flow Control
IEEE 802.3bz 2.5GBASE-T
IEEE 802.3az Energy Efficient Ethernet (deactivated by default)
IEEE 802.3ad Dynamic Link Aggregation (LACP)
PoENo
Layer3
PowerExternal (12V/1.5A)
Power Source:
Power Adapter
Power Consumption:
5.60 W
CertificationCE Class A (EN55032+EN55035)
UKCA Class A
FCC Part 15 Class A
ISED Class A
VCCI Class A
RCM
KC
BSMI
TemperatureOperating: 32°F to 104°F (0° to 40°C)
Storage: – 4° to 158°F (–20° to 70°C)
HumidityOperating: 95% maximum relative humidity (RH), non-condensing
Storage: 95% maximum relative humidity
Package ContentsMS305E Ethernet Switch
Power Adapter
Rubber Feet
Installation Guide
Shipping weight0.79 kg
Package size206 × 163 × 85 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the MS305E-100NAS draw and does it need a fan when running all day?

The switch consumes 5.60 W and uses a fanless metal case for silent operation.

What cables and devices must I already have to use the five 2.5G ports?

You need twisted-pair Ethernet cables and devices with RJ45 ports that support 2.5GBase-T, 1000BASE-T or 100BASE-T speeds.

Will the MS305E-100NAS work with my older 1G and 100M gear without extra setup?

Yes, each port auto-negotiates down to 1000BASE-T or 100BASE-T so legacy devices connect immediately.
