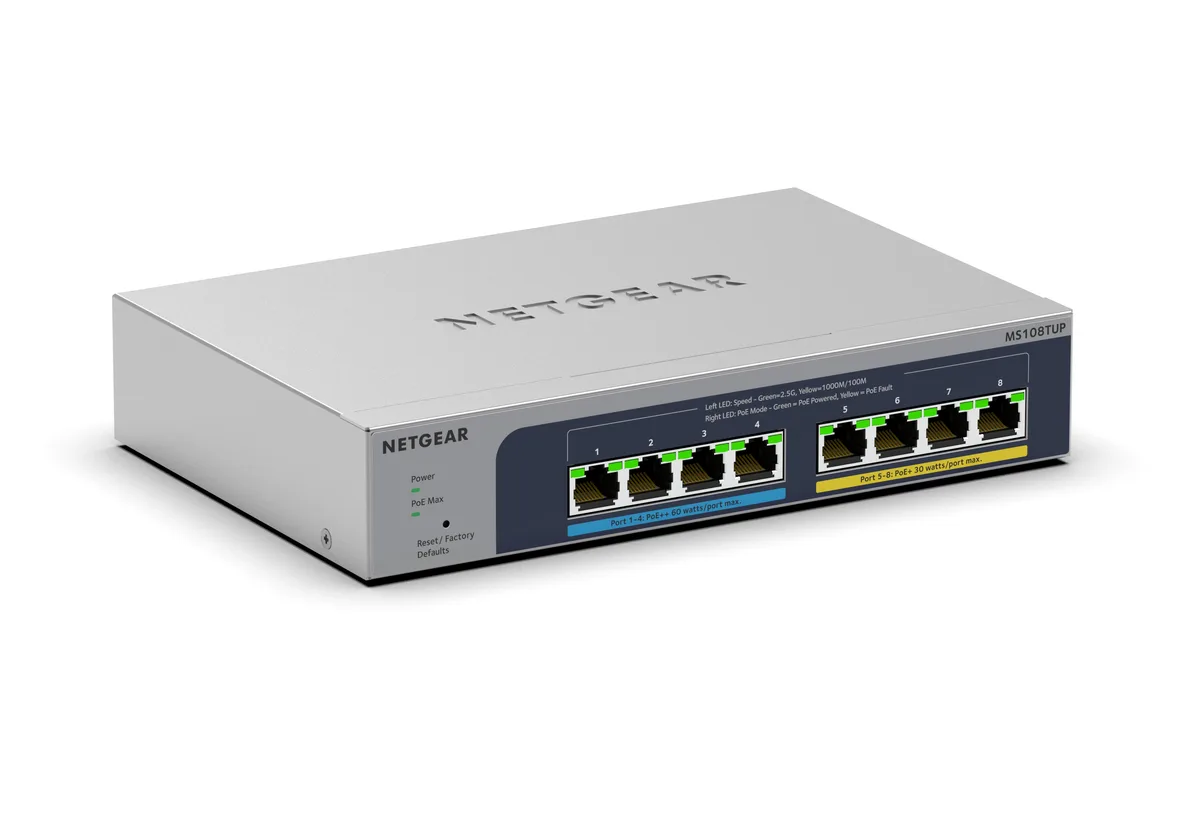

Compact metal desktop switch with eight RJ45 ports and power adapter

Netgear Inc.

Netgear Inc. MS108TUP-100NAS 8-port 2.5G PoE++ Smart network switch

SKU CH-FGQH-4RRWJ MPN MS108TUP-100NAS

Eight 2.5 GbE ports deliver 230 W PoE budget with four 60 W PoE++ ports, fanless desktop design and Layer 3 smart management

  • FormatDesktop Wall Mountable Compact
  • StandardsIEEE 802.3bt IEEE 802.3at IEEE 802.3az IEEE 802.1x IEEE 802.
  • Network MediaMedia Type Supported: Twisted Pair Ethernet Technology: 2.5
  • Network Management TypeSmart
  • Primary Ports8 x RJ45
  • PoEYes
  • 230 W PoE budget powers demanding devices
  • 8 ports at 2.5 Gbps for high-speed wired links
  • 4 ports deliver up to 60 W PoE++ each
  • Silent fanless design suits quiet workspaces
  • Smart L2/L3 features with Insight remote management

8-port 2.5G PoE++ Smart Switch

The Netgear MS108TUP-100NAS is an eight-port Multi-Gigabit Smart switch built for small offices that need 2.5 Gigabit Ethernet and high-density PoE. It delivers a 230 W PoE budget across four Ultra60 PoE++ ports rated to 60 W each and four PoE+ ports rated to 30 W each, powering access points, cameras and VoIP phones from a single compact desktop unit.

Installation and common issues

The switch ships with a power adapter, rubber feet and a wall-mount kit for desktop or wall placement. Its fanless design means silent operation but requires free airflow around the chassis; enclosing it in a tight cabinet can cause thermal throttling. Use quality Cat5e or better twisted-pair cabling to achieve 2.5GBase-T speeds, and enable PoE Self-Healing in the web GUI so unresponsive powered devices are rebooted automatically without manual intervention.

230 W PoE budget decides fit

The total 230 W budget is the single figure that determines whether this switch supports your deployment. Four ports at 60 W plus four ports at 30 W can exceed that limit if every device draws maximum power simultaneously, so calculate your actual load before buying. If your powered devices need more aggregate wattage, this model will not meet the requirement.

Highlights

  • 230 W PoE budget powers demanding devices
  • 8 ports at 2.5 Gbps for high-speed wired links
  • 4 ports deliver up to 60 W PoE++ each
  • Silent fanless design suits quiet workspaces
  • Smart L2/L3 features with Insight remote management

Specifications

BrandNETGEAR
SeriesSmart
Part NumberMS108TUP-100NAS
FormatDesktop
Wall Mountable
Compact
StandardsIEEE 802.3bt
IEEE 802.3at
IEEE 802.3az
IEEE 802.1x
IEEE 802.1Q
IEEE 802.1p
IEEE 802.3
IEEE 802.3bz
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3x
IEEE 802.3af
Network MediaMedia Type Supported:
Twisted Pair
Ethernet Technology:
2.5 Gigabit Ethernet
Network Technology:
2.5GBase-T
10/100/1000Base-T
Network Management TypeSmart
Primary Ports8 x RJ45
PoEYes
Layer3
PowerPoE (RJ-45) Port:
Yes
PoE Budget:
230 W
Power Source:
PoE++
Power Adapter
Package Contents8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Smart Switch
Power Adapter
Wall Installation Kit
Rubber Feet
Installation Guide
Shipping weight0.91 kg
Package size211 × 140 × 41 mm

Questions about this item

How can I verify the switch is operating correctly after connecting devices?

Check the front-panel LEDs for link and activity on each of the 8 RJ45 ports, confirm the web GUI shows all ports at 2.5G or 1G, and use the built-in cable test to validate twisted-pair integrity.

What ships in the box and what must I purchase separately?

The package includes the 8-port switch, power adapter, wall installation kit, rubber feet and installation guide; Ethernet cables and any PoE-powered devices such as access points or cameras are not included.

Which port group should I use for a device that needs 60 W versus one that needs 30 W?

Ports 1 to 4 deliver up to 60 W each under IEEE 802.3bt, while ports 5 to 8 provide up to 30 W each under IEEE 802.3at, so connect 60 W devices to the first four ports.
