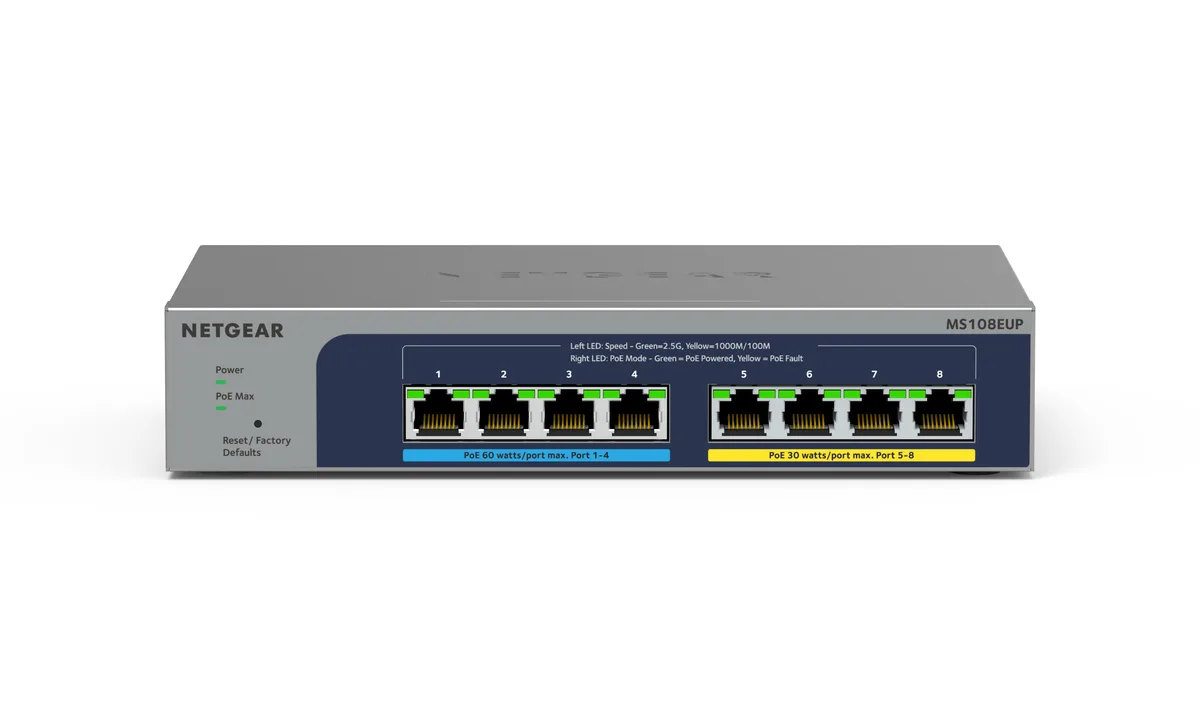

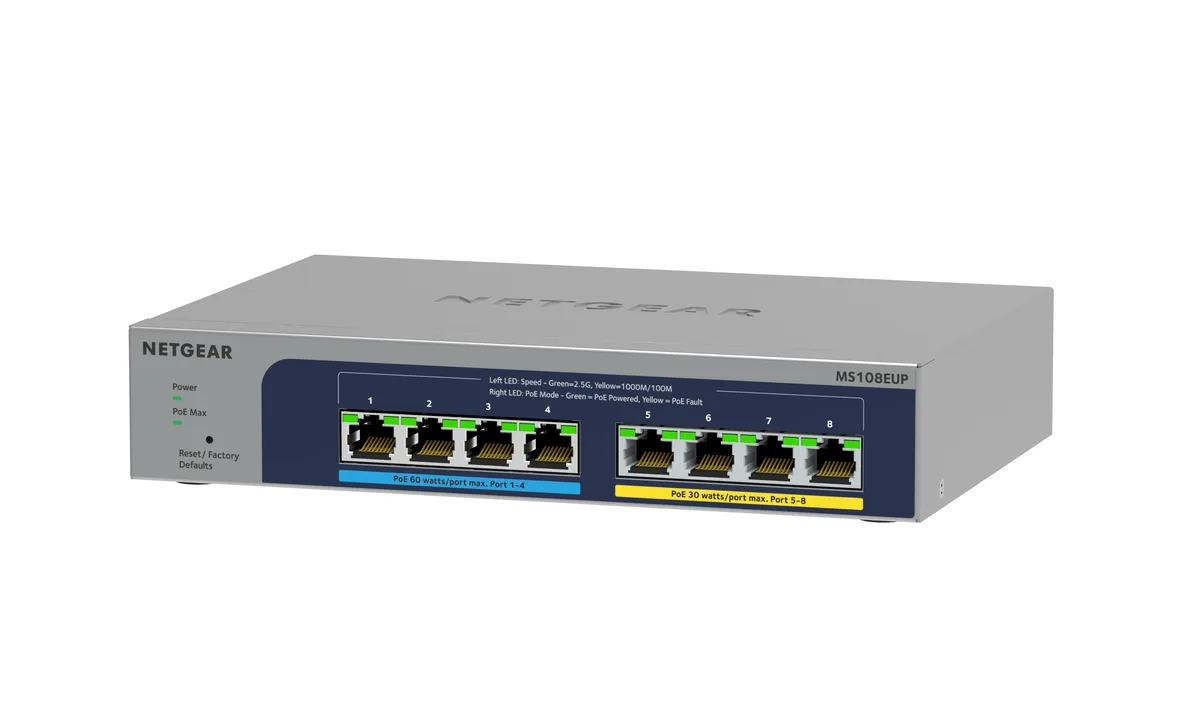

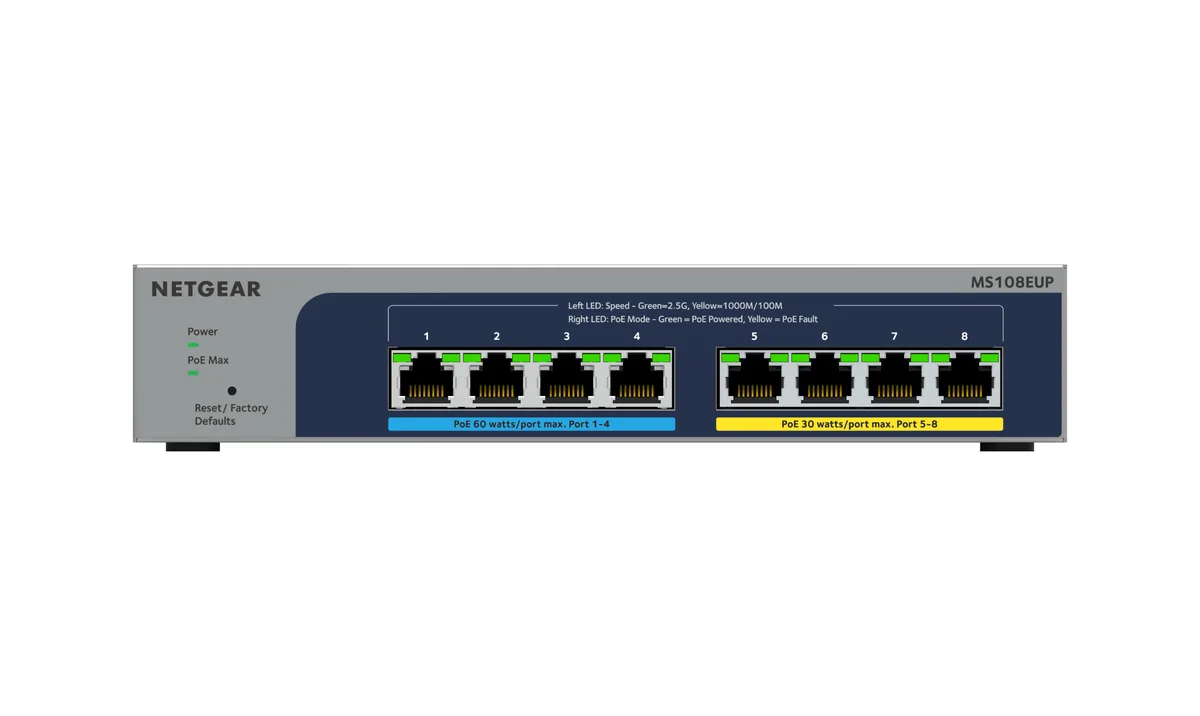

Compact silver metal box with eight RJ45 ports and status LEDs

Netgear Inc.

Netgear Inc. MS108EUP-100NAS 8-port 2.5G PoE++ network switch

SKU CH-HX6B-JXJ0V MPN MS108EUP-100NAS

An 8-port 2.5G Easy Smart managed switch with four Ultra60 PoE++ and four PoE+ ports delivering 230W total, fanless silent operation, and VLAN, QoS and LACP support for business networks

  • FormatWall Mountable Desktop
  • StandardsIEEE 802.3 IEEE 802.3ab IEEE 802.3u IEEE 802.1p IEEE 802.3az
  • Network MediaMedia Type Supported: Twisted Pair Ethernet Technology: 2.5
  • Network Management TypeSmart
  • Primary Ports8 x RJ45
  • Primary Port Speed2.5 Gbps

Model MS108EUP

  • 8 ports deliver dedicated 2.5 Gbps bandwidth each for high-speed connectivity
  • 230 W total PoE budget powers devices with a single cable
  • Fanless design ensures silent operation in noise-sensitive spaces
  • Easy Smart management adds VLAN QoS and LACP without complexity
  • Wall-mount or desktop installation fits any workspace

8-Port 2.5G PoE++ Switch

The Netgear MS108EUP-100NAS is an eight-port 2.5 Gigabit Easy Smart managed switch with 230W total PoE budget. Four ports deliver up to 60W each under 802.3bt while the remaining four provide 30W per port under 802.3at. Fanless operation ensures silent deployment in noise-sensitive areas.

Installers needing multi-gig PoE++ density

Suits networks connecting 2.5G endpoints such as Wi-Fi access points, PTZ cameras or VoIP phones that draw up to 60W per device. VLAN, QoS, LACP and port mirroring give managed flexibility without full CLI complexity. Not for buyers who need 10G uplinks, stacking or layer 3 routing features.

230W PoE budget across eight ports

The single figure that decides fit is the 230W power budget shared across all eight RJ45 ports. Count your powered devices and their class; if the total draw stays within 230W this switch powers them all with one cable each.

Highlights

  • 8 ports deliver dedicated 2.5 Gbps bandwidth each for high-speed connectivity
  • 230 W total PoE budget powers devices with a single cable
  • Fanless design ensures silent operation in noise-sensitive spaces
  • Easy Smart management adds VLAN QoS and LACP without complexity
  • Wall-mount or desktop installation fits any workspace

Specifications

BrandNETGEAR
Part NumberMS108EUP-100NAS
FormatWall Mountable
Desktop
StandardsIEEE 802.3
IEEE 802.3ab
IEEE 802.3u
IEEE 802.1p
IEEE 802.3az
IEEE 802.3ad
IEEE 802.1Q
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt
Network MediaMedia Type Supported:
Twisted Pair
Ethernet Technology:
2.5 Gigabit Ethernet
Network Technology:
2.5GBase-T
Network Management TypeSmart
Primary Ports8 x RJ45
Primary Port Speed2.5 Gbps
Primary Port Type8 x 1G/2.5G Ethernet RJ-45 copper ports (100M/1G/2.5G) - 1000BASE-T
MAC Address Table16K
VLAN SupportYes
Jumbo Frames12KB
Buffer Memory1.5MB
ProtocolsIEEE 802.3 Ethernet
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-T
IEEE 802.1p Class of Service
IEEE 802.3az Energy Efficient Ethernet (deactivated by default)
IEEE 802.3ad Dynamic Link Aggregation (LACP)
IEEE 802.1Q VLAN Tagging
IEEE 802.3x Full-duplex Flow Control
IEEE 802.3af PoE
IEEE 802.3at PoE+
IEEE 802.3bt PoE++
PoEYes
QoSYes
LACPYes
Layer3
Port MirroringYes
LEDsPer port: Speed, Link, Activity, PoE
Per device: Power, PoE Max
PowerPoE (RJ-45) Port:
Yes
PoE Budget:
230 W
Power Source:
Power Adapter
Number of Power Supplies Installed:
1
Dimensions8.27" x 5.51" x 1.58"
Weight1.98 lbs.
TemperatureOperating Temperature: 32° to 104°F (0° to 40°C)
Storage Temperature: -4° to 158°F (-20° to 70°C)
HumidityOperating Humidity (relative): 90% maximum relative humidity (RH), non-condensing
Storage Humidity (relative): 95% maximum relative humidity (RH), non-condensing
Package Contents8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch
Power Adapter (Power Cable Varies by Region)
Wall Installation Kit
Rubber Feet
Installation Guide
Shipping weight0.90 kg
Package size210 × 140 × 40 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much bandwidth does each 2.5 Gbps port deliver under load?

Each of the eight RJ45 ports provides dedicated, non-blocking 2.5 Gbps throughput, so every connected device can sustain its full rated speed simultaneously.

What does the 230 W PoE budget actually power across the eight ports?

Ports 1–4 supply up to 60 W each under the 802.3bt PoE++ standard, while ports 5–8 deliver up to 30 W each under 802.3at PoE+, giving a combined 230 W budget for cameras, access points and other powered devices.

What mounting hardware is included for wall or rack installation?

The switch ships with brackets and screws for both desktop placement and wall or rack mounting, and its fanless design keeps operation silent in any orientation.
