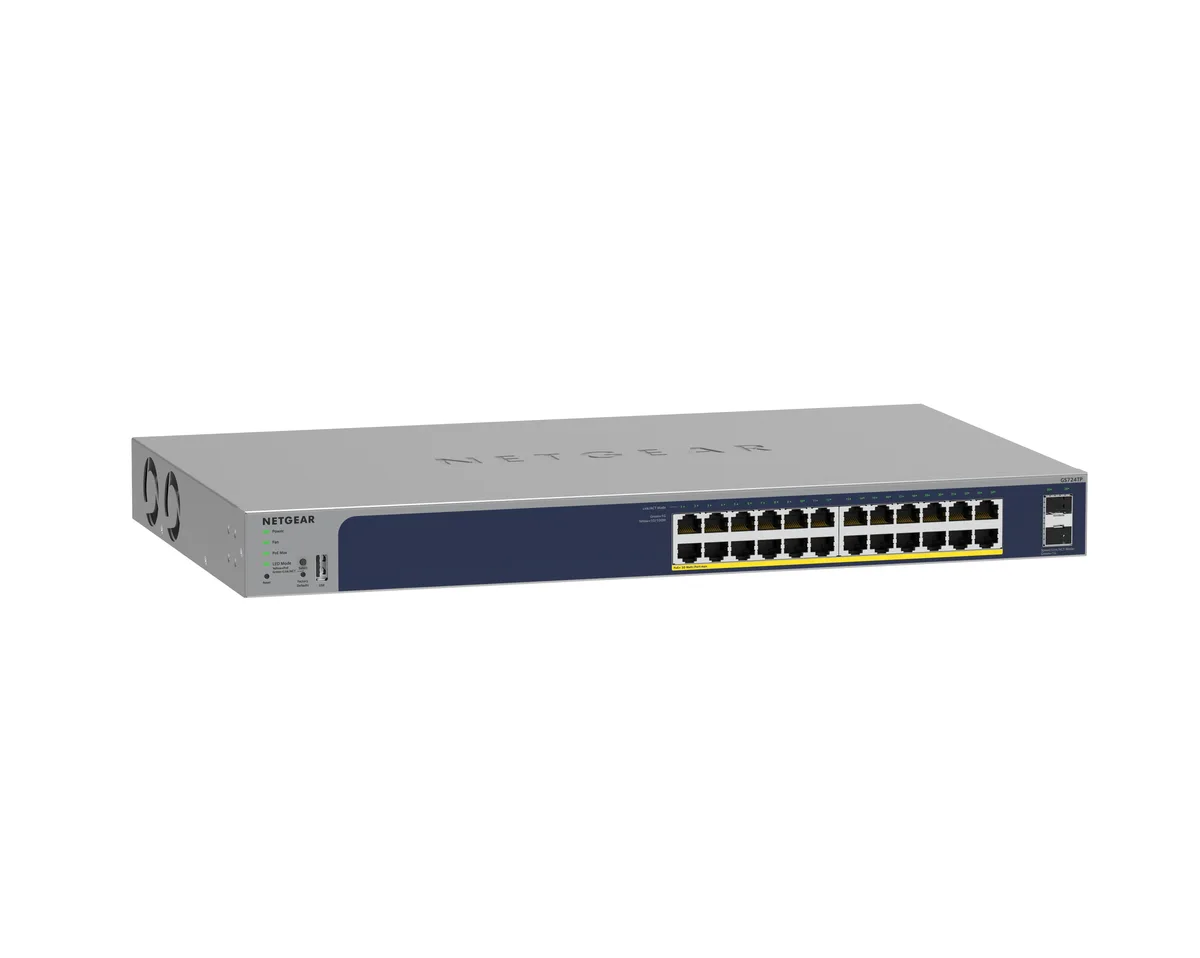

Silver rack-mountable 24-port Gigabit PoE+ switch with two SFP uplink ports

Netgear Inc.

Netgear Inc. GS724TP-300NAS 24-port PoE+ network switch 190W

SKU CH-FCRQ-BCP3R MPN GS724TP-300NAS

24 PoE+ Gigabit ports deliver 190 W to power devices, plus two SFP uplinks and 52 Gbps non-blocking switching for SMB networks

  • FormatRack-mountable Desktop
  • StandardsIEEE 802.1x IEEE 802.1p IEEE 802.3az IEEE 802.3 IEEE 802.11a
  • Network MediaMedia Type Supported: Twisted Pair Optical Fiber Ethernet Te
  • Network Management TypeSmart
  • Primary Ports24 x RJ45 + 2 x SFP
  • SecurityNetwork Security IEEE 802.1x Guest VLAN RADIUS-based VLAN as
  • 24 PoE+ Gigabit ports power high-demand devices with 190W budget
  • 2 dedicated SFP fiber uplinks extend network reach over optical fiber
  • Non-blocking 52Gbps switching handles heavy traffic without bottlenecks
  • Advanced VLAN and ACL security segments traffic and enforces granular access control
  • Flexible rack-mount or desktop format fits diverse installation environments

24-Port PoE+ Switch with 190W Budget

The Netgear GS724TP-300NAS is a 26-port Gigabit smart switch designed for small to medium businesses that need to power access points, IP cameras or VoIP phones over Ethernet. It provides 24 PoE+ RJ45 ports sharing a 190W power budget plus two dedicated SFP fiber uplinks. The rack-mountable chassis includes a mounting kit and rubber footpads for desktop use. Management is handled through a web browser GUI with optional Insight cloud monitoring.

Suits PoE deployments under 190W.

This switch fits networks where the total PoE draw stays within the 190W budget across all 24 ports. It supports IEEE 802.3at and 802.3af standards, VLAN segmentation, L2/L3/L4 ACLs and 802.1x port authentication for segmented, secure networks. Advanced per-port PoE controls allow remote power cycling and scheduling. Buyers whose devices require more than 190W combined, or who need 10G uplinks, should consider a model with a larger PoE budget or faster uplink interfaces.

190W PoE budget is the deciding limit

The single specification that determines whether this switch fits your installation is the 190W total PoE power budget shared across the 24 RJ45 ports. Every powered device adds to that total; if the sum of your endpoints exceeds 190W, the switch cannot supply enough power. Non-blocking throughput of 52Gbps, an 800MHz ARM processor with 512MB RAM and a 1.5MB packet buffer handle forwarding, but the PoE budget remains the hard constraint for powered device deployments.

Highlights

  • 24 PoE+ Gigabit ports power high-demand devices with 190W budget
  • 2 dedicated SFP fiber uplinks extend network reach over optical fiber
  • Non-blocking 52Gbps switching handles heavy traffic without bottlenecks
  • Advanced VLAN and ACL security segments traffic and enforces granular access control
  • Flexible rack-mount or desktop format fits diverse installation environments

Specifications

BrandNETGEAR
Part NumberGS724TP-300NAS
FormatRack-mountable
Desktop
StandardsIEEE 802.1x
IEEE 802.1p
IEEE 802.3az
IEEE 802.3
IEEE 802.11ac
IEEE 802.3at
IEEE 802.3af
IEEE 802.1Q
IEEE 802.3ad
IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
Network MediaMedia Type Supported:
Twisted Pair
Optical Fiber
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
1000Base-X
Network Management TypeSmart
Primary Ports24 x RJ45 + 2 x SFP
SecurityNetwork Security
IEEE 802.1x
Guest VLAN
RADIUS-based VLAN assignment via .1x
MAC-based .1x
RADIUS accounting
Access Control Lists (ACLs): L2 / L3 / L4 ingress
IP-based ACLs (IPv4 and IPv6)
MAC-based ACLs
TCP/UDP-based ACLs
MAC lockdown
MAC lockdown by the number of MACs
Control MAC # Dynamic learned entries: 16,384
Control MAC # Static entries: 256
IEEE 802.1x RADIUS port access authentication
Port-based security by locked MAC addresses
Broadcast, multicast, unknown unicast storm control
Protected ports
DoS attacks prevention
PoEYes
QoSPort-based rate limiting: Yes egress
Port-based QoS
Support for IPv6 fields
DiffServ QoS: Yes ingress
IEEE 802.1p COS
Destination MAC and IP
IPv4 and IPv6 DSCP
TCP/UDP-based
Weighted Round Robin (WRR)
Strict priority queue technology
Auto-VoIP VLAN / Auto-Voice VLAN: Yes, manual or automatic assigment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters
Layer4
Layer 2 FeaturesL2 Services - VLANs
IEEE 802.1Q VLAN tagging
Management VLAN: Configurable
L2 Services - Availability
Broadcast, multicast, unknown unicast storm control
IEEE 802.3ad - LAGs (LACP)
IEEE 802.3x (full duplex and flow control)
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
L2 Services - Multicast Filtering
IGMP snooping (v1, v2, and v3)
IGMP snooping querier
Block unknown multicast
Multicast groups 512
PoE Power Budget190W
PowerInternal Power Supply
PoE (RJ-45) Port:
Yes
PoE Budget:
190 W
Power Source:
Power Supply
Power Consumption:
228.53 W
CertificationEnergy Efficiency Compliance:
Energy-related Products Directive (ErP)
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
FeaturesPerformance Specification:
CPU: 800MHz ARM A55 Single Core, 512MB RAM 64MB SPI FLASH
Packet buffer memory (Dynamically shared across only used ports): 1.5MB
Forwarding modes: Store-and-forward
Bandwidth (non-blocking, full duplex): 52 Gbps
Priority queues: 8
Priority queuing: Weighted Round Robin (WRR) or Strict Priority
MAC Address database size (48-bit MAC addresses): 8K
Multicast groups: 512
Number of VLANs: 256
Number of DHCP snooping bindings: 256
Access Control Lists (ACLs): 100 shared for MAC, IP and IPv6 ACLs (ingress)
Packet forwarding rate (64 byte packet size) (Mfps or Mpp
Package ContentsSmart GS724TP Ethernet Switch
Power Cord
Mounting Kit
Rubber Footpads for Tabletop Installation
Installation Guide
Shipping weight3.16 kg
Package size439 × 257 × 43 mm

Questions about this item

How do I mount the GS724TP-300NAS in a rack and what step is often missed?

Use the supplied mounting kit to secure the 24-port PoE+ switch in a standard 19-inch rack; the step often missed is also attaching the rubber footpads if you later move it to a desktop.

Which component will need replacement first under continuous PoE load?

The internal power supply delivering the 190W PoE budget and 228.53W total consumption is the first component likely to require replacement after extended high-load operation.

What throughput limit appears first when all 24 PoE+ ports and both SFP uplinks run at full speed?

The 52Gbps non-blocking fabric ceiling is the first limit reached when every Gigabit RJ45 and SFP port is saturated simultaneously.
