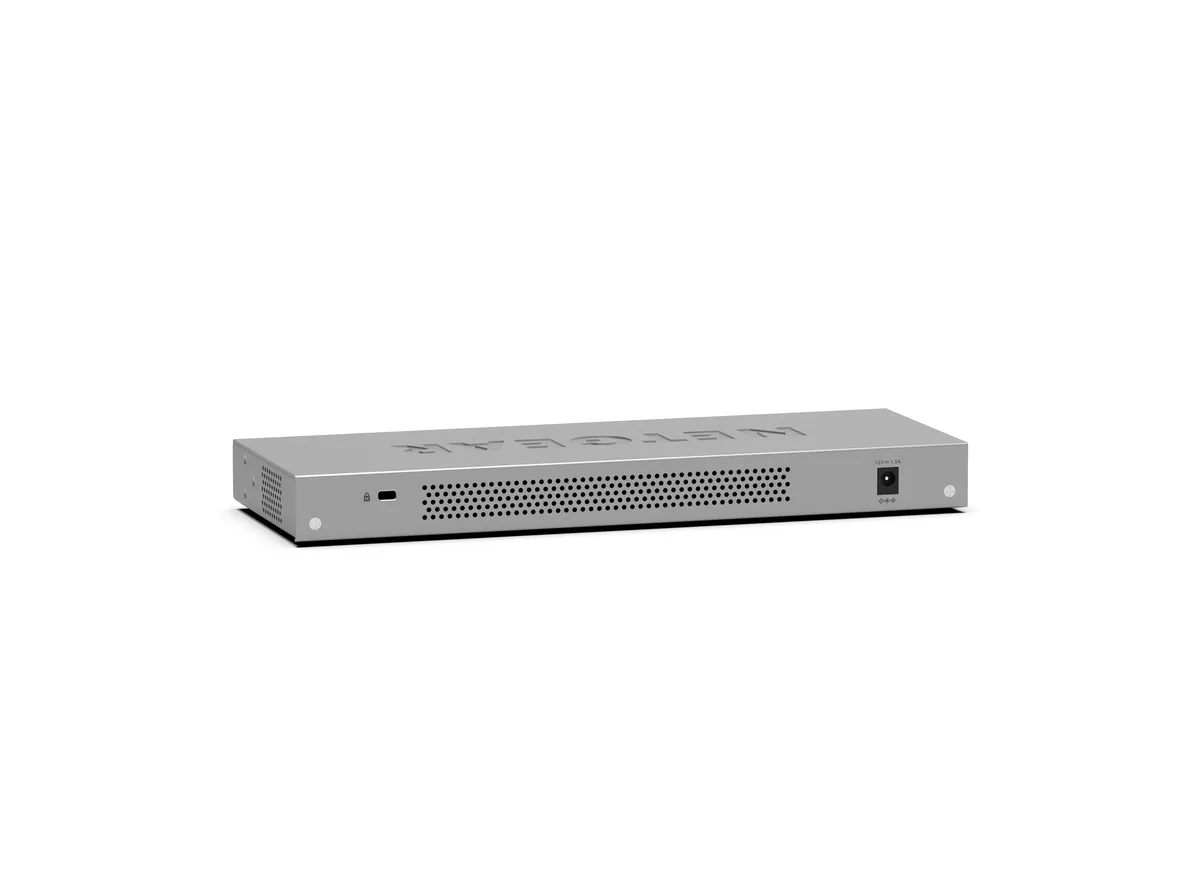

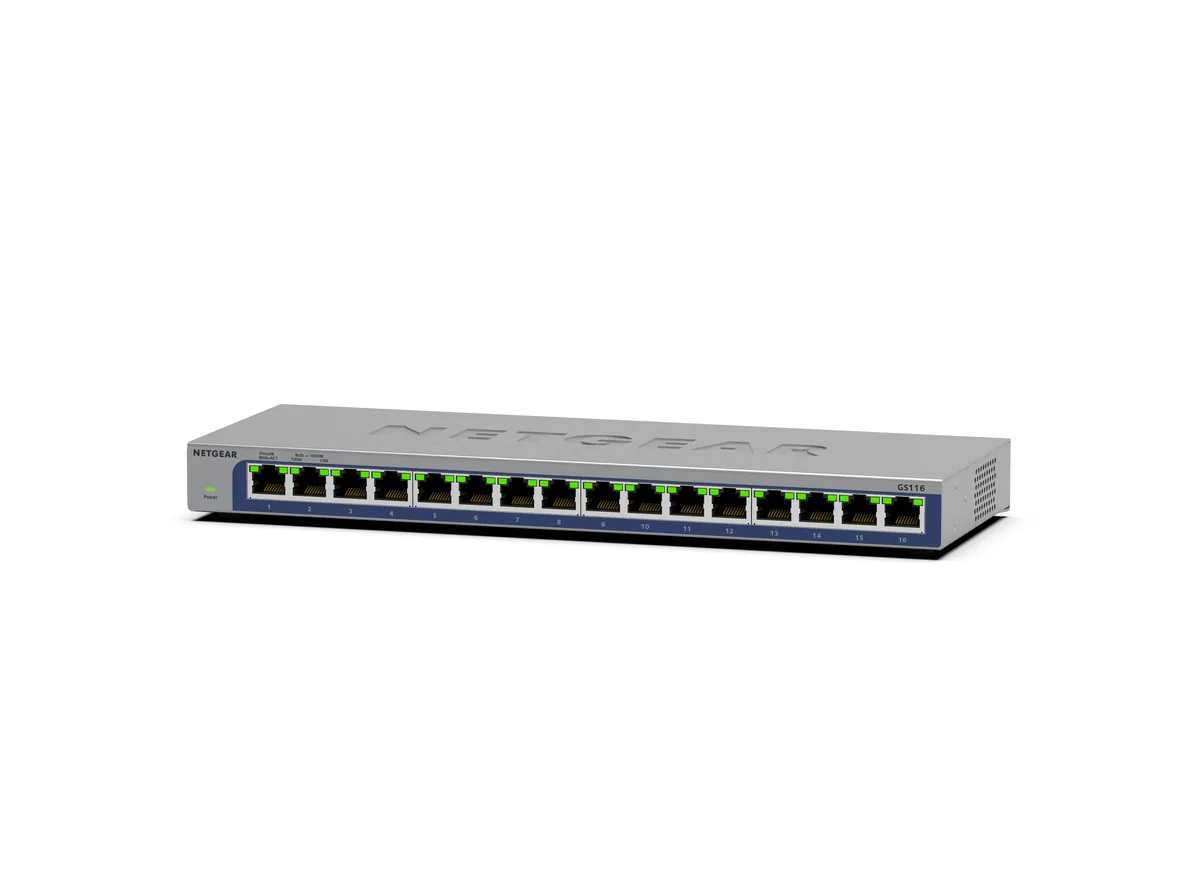

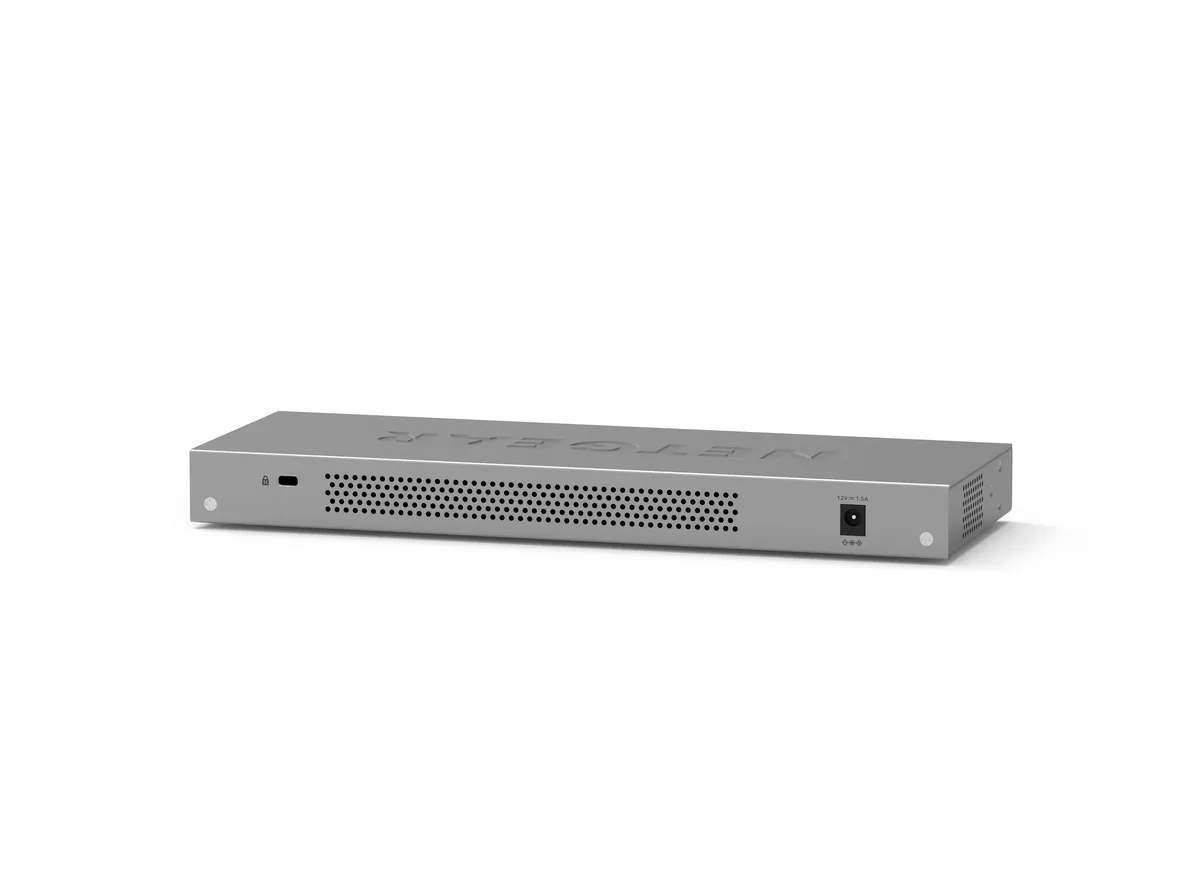

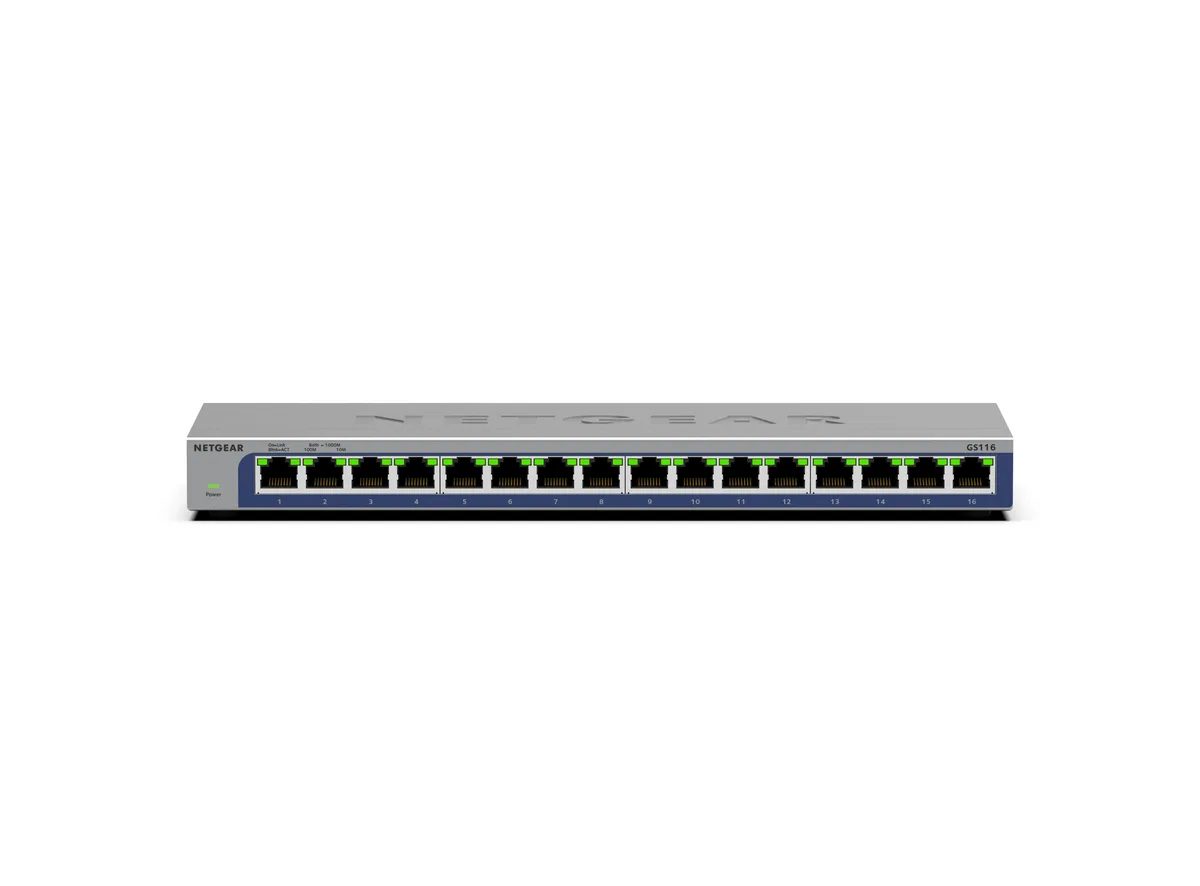

Netgear GS116 16-port Gigabit desktop switch, metal case, fanless

Netgear Inc.

Netgear Inc. GS116-300NAS 16-Port Gigabit network switch

SKU CH-T2H9-FBXS1 MPN GS116-300NAS

A 16-port unmanaged Gigabit desktop switch with plug-and-play setup, fanless metal housing and energy-efficient IEEE 802.3az operation

  • FormatDesktop Wall Mountable Compact
  • StandardsIEEE 802.3az IEEE 802.1p IEEE 802.3 IEEE 802.3u IEEE 802.3ab
  • Network MediaMedia Type Supported: Twisted Pair Ethernet Technology: Giga
  • Network Management TypeUnmanaged
  • Uplink InterfaceTotal Number of Network Ports: 16 Network (RJ-45): Yes Port/
  • Primary Ports16 x RJ45
  • Plug-and-play setup with automatic speed detection and no configuration needed
  • 16 Gigabit RJ45 ports deliver up to 2000Mbps full-duplex throughput each
  • IEEE 802.1p and DSCP QoS prioritise voice and video traffic
  • Fanless design and IEEE 802.3az cut power use to 8.10 W
  • Sturdy metal case includes wall-mount kit and rubber feet for flexible placement

16-Port Gigabit Switch

The Netgear GS116-300NAS is an unmanaged desktop switch with sixteen RJ45 ports that auto-negotiate 10, 100 or 1000 Mbps speeds. It requires no software configuration and operates silently without a fan. The metal enclosure can sit on a desk or be attached to a wall using the included kit.

Upgrade from Slower Hubs

This switch replaces older 10/100 equipment or basic hubs that cannot deliver full duplex throughput. The jump is worth it when connected devices support Gigabit Ethernet and need consistent wire-speed performance. It also adds IEEE 802.1p and DSCP QoS so voice and video traffic receives priority over bulk data.

Non-Blocking Throughput Headroom

Each port handles up to 2000 Mbps in full duplex mode and the fabric forwards at non-blocking rates across all sixteen ports simultaneously. Power draw stays at 8.10 W under typical load thanks to IEEE 802.3az Energy Efficient Ethernet. The unit has no PoE capability, so devices requiring power over Ethernet will need separate injectors or a PoE switch.

Highlights

  • Plug-and-play setup with automatic speed detection and no configuration needed
  • 16 Gigabit RJ45 ports deliver up to 2000Mbps full-duplex throughput each
  • IEEE 802.1p and DSCP QoS prioritise voice and video traffic
  • Fanless design and IEEE 802.3az cut power use to 8.10 W
  • Sturdy metal case includes wall-mount kit and rubber feet for flexible placement

Specifications

BrandNETGEAR
Part NumberGS116-300NAS
FormatDesktop
Wall Mountable
Compact
StandardsIEEE 802.3az
IEEE 802.1p
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
Network MediaMedia Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Network Management TypeUnmanaged
Uplink InterfaceTotal Number of Network Ports:
16
Network (RJ-45):
Yes
Port/Expansion Slot Details:
16 x Gigabit Ethernet Network
Primary Ports16 x RJ45
PoENo
Layer2
PowerInput Voltage:
12 V DC
Power Source:
Power Adapter
DC
Power Consumption:
8.10 W
FeaturesFeatures:
Energy Efficient
Fanless
Plug and Play
Package Contents16-Port Gigabit Ethernet Unmanaged Switches
Power Adapter
Wall Mount Kit And Rubber Feet
Installation Guide
Shipping weight1.36 kg
Package size351 × 196 × 79 mm

Questions about this item

What clearance does the GS116-300NAS need for its 16 RJ45 ports and wall-mount brackets?

The desktop metal case measures compact with 16 front-facing RJ45 ports; the included wall-mount kit adds brackets that require a flat vertical surface and enough depth for cable bend radius.

Which step do installers most often skip when setting up this unmanaged switch?

Connecting the 12 V DC power adapter before plugging in any network cables; the switch has no on/off switch, so it powers on instantly once the adapter is seated.

What component will need attention first during long-term use of the GS116-300NAS?

The external 12 V DC power adapter is the only field-replaceable part; the fanless chassis has no filters or moving parts to service.
