Compact white wall-plug WiFi 6 mesh extender with internal antennas and Ethernet ports

Netgear Inc.

Netgear Inc. EAX12-100NAS AX1600 4-Stream WiFi 6 wireless range extender

SKU CH-C9J6-8ED0B MPN EAX12-100NAS

Extends WiFi 6 coverage up to 1.6 Gbps with four streams, a 2.5 GbE port and mesh roaming for 15-plus devices

  • StandardsAX1600 WiFi: IEEE® 802.11b/g/n/ax 2.4GHz 0.4Gbps IEEE® 802.1
  • Frequency Band2.412 GHz - 2.462 GHz
  • Wireless Data RatesUp to 1.2Gbps
  • AntennaInternal Antenna
  • InterfaceEthernet Port
  • PortsLAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 LAN: 1 x 1G/

Model AX1600 (EAX12)

Speed Up to 1.6 Gbps

  • Faster 4K streaming and gaming with WiFi 6 speeds up to 1.6Gbps
  • Stronger signals reach every corner adding up to 1200 sq. ft. coverage
  • One WiFi name and smart roaming gives seamless mesh connectivity throughout the home
  • Four simultaneous WiFi streams handle 15+ devices for smooth 4K/8K UHD streaming
  • Dual-core 880MHz processor delivers up to 1.5X performance over WiFi 5 extenders

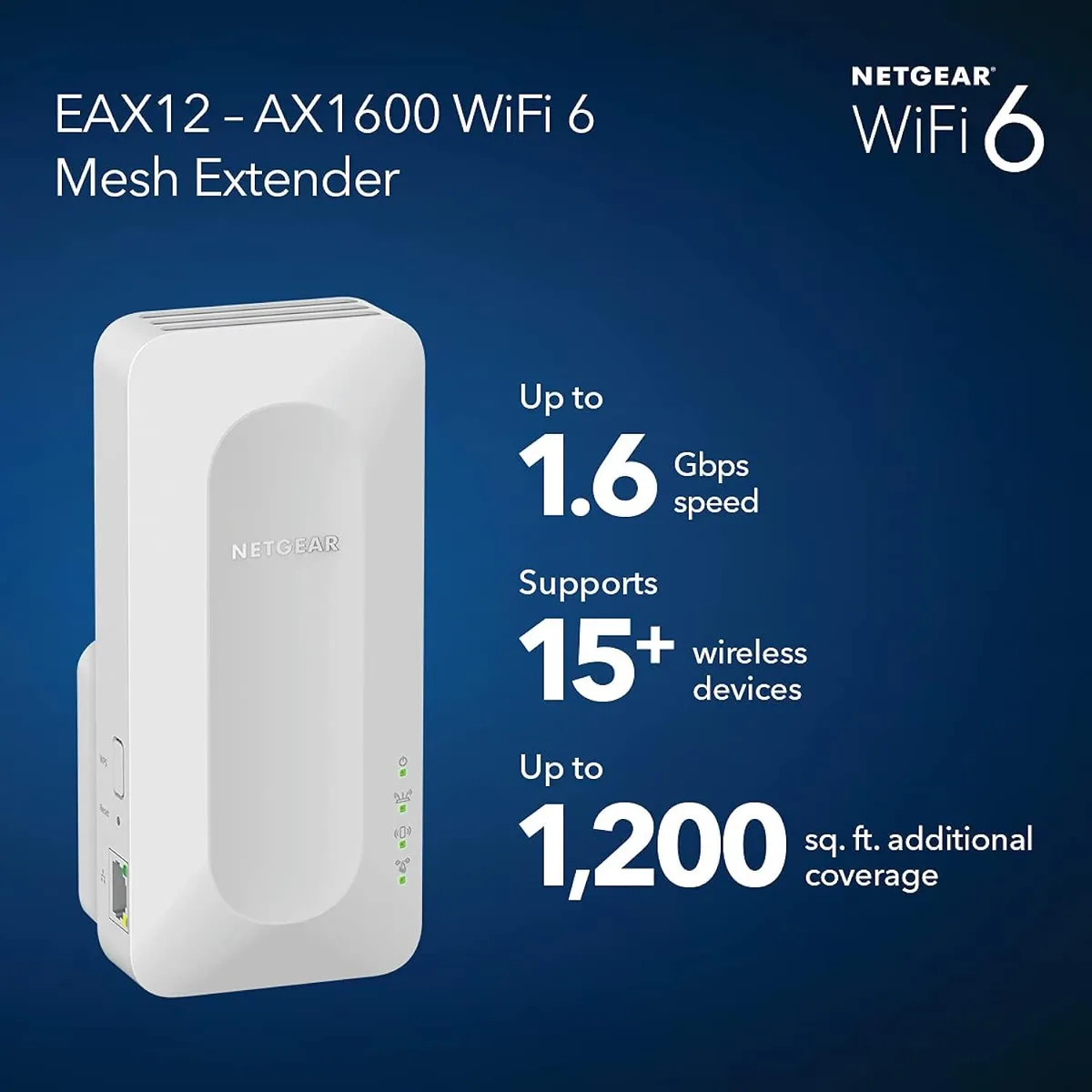

AX1600 4-Stream WiFi 6 Mesh Extender

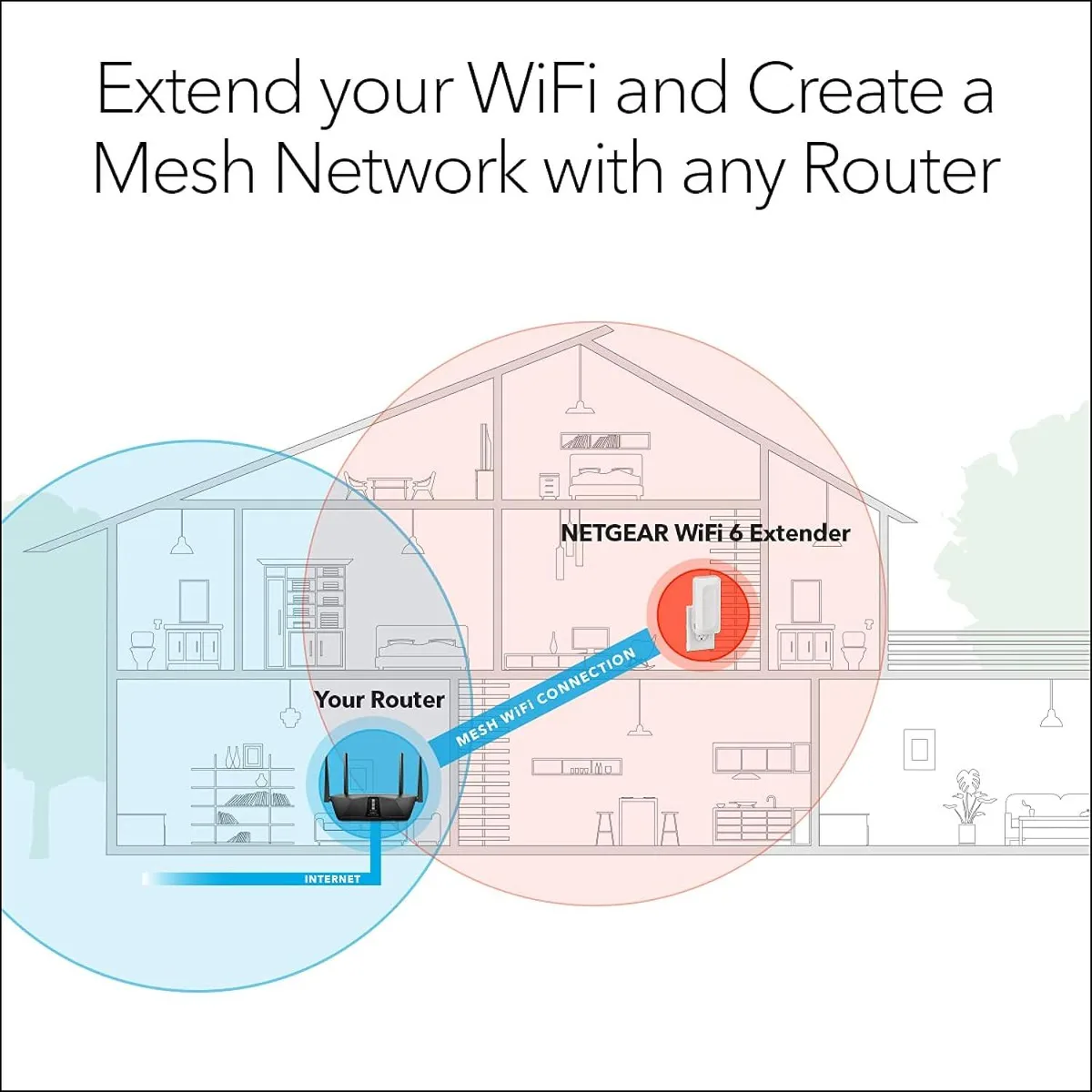

The Netgear EAX12-100NAS is a wall-plug wireless range extender that adds WiFi 6 coverage to an existing router or gateway. It supports up to 15 wireless devices across a 2.4 GHz band rated at .4 Gbps and a 5 GHz band rated at 1.2 Gbps. The unit includes an 880 MHz dual-core processor, internal antennas, one multi-gig Ethernet port, four gigabit LAN ports, one gigabit WAN port, and two USB 3.0 ports. It is suited for households that want mesh roaming under a single network name without replacing their current router.

Practical limits of AX1600 dual-band WiFi 6

The extender reaches a combined wireless data rate of 1.6 Gbps, but the 2.4 GHz radio is capped at .4 Gbps while the 5 GHz radio tops out at 1.2 Gbps. Real-world throughput will be lower due to interference, building materials, and the half-duplex nature of wireless repeaters. The multi-gig port accepts 1 G, 2.5 G, or 5 G wired links, yet the four LAN ports and the WAN port are limited to 1 Gbps. OFDMA and MU-MIMO help serve multiple clients, but total airtime is shared across all connected devices on each band.

Upgrade from WiFi 5 extenders and when it matters

The EAX12 delivers up to 1.5 times the performance of a WiFi 5 (802.11ac) extender, making the jump worthwhile for homes with heavy 4K streaming, gaming traffic, or many simultaneous IoT devices. It adds up to 1,200 sq. ft. of coverage and enables seamless roaming with the host router. Buyers who need more than one multi-gig uplink, dedicated backhaul radios, or tri-band operation should look elsewhere, as this model provides a single 5 GHz radio and a single 2.4 GHz radio only.

Highlights

  • Faster 4K streaming and gaming with WiFi 6 speeds up to 1.6Gbps
  • Stronger signals reach every corner adding up to 1200 sq. ft. coverage
  • One WiFi name and smart roaming gives seamless mesh connectivity throughout the home
  • Four simultaneous WiFi streams handle 15+ devices for smooth 4K/8K UHD streaming
  • Dual-core 880MHz processor delivers up to 1.5X performance over WiFi 5 extenders

Specifications

BrandNETGEAR
ModelEAX12-100NAS
StandardsAX1600 WiFi:
IEEE® 802.11b/g/n/ax 2.4GHz 0.4Gbps
IEEE® 802.11a/n/ac/ax 5GHz 1.2Gbps
IEEE® 802.11k
Frequency Band2.412 GHz - 2.462 GHz
Wireless Data RatesUp to 1.2Gbps
AntennaInternal Antenna
InterfaceEthernet Port
PortsLAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
LAN: 1 x 1G/2.5G/5G Multi-Gig Ethernet - RJ-45
WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
USB 3.0: 2 x 9 pin USB Type A
System Requirements2.4 and/or 5GHz 802.11 a/b/g/n/ac/ax WiFi router or gateway
Microsoft®, Internet Explorer® 8.0, Firefox® 20, Safari® 5.1, or Google Chrome® 25.0 browsers or higher
FeaturesVPN support, IPv6 support, parental control, firmware upgradable, DDos attack prevention, Port Aggregation Protocol (PAgP) support, ReadySHARE, Beamforming+, Link Aggregation, ReadyCLOUD, LED on/off button, guest access, Circle Smart Parental Controls, 8x8 MU-MIMO technology, NETGEAR Armor
Ease of Use:
Nighthawk® App—Easily set up your extender and get more out of your WiFi
WiFi 6 supports all current WiFi devices: Backward compatible with WiFi 5, WiFi 4 and earlier generation WiFi devices
Push 'N' Connect using WPS
Package ContentsAX1600 4-Stream WiFi Mesh Extender (EAX12)
Quick start guide
Shipping weight2.27 kg
Package size356 × 330 × 127 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the AX1600 model for my WiFi 6 network?

The AX1600 designation means combined speeds up to 1.6Gbps across 4 streams, with 1.2Gbps on 5GHz and .4Gbps on 2.4GHz. It supports 15+ devices and adds up to 1,200 sq. ft. of coverage.

What does the 1.6Gbps figure mean for daily use?

That is the total theoretical throughput across both bands. Real-world speeds depend on your router, walls and interference, but the 880MHz dual-core processor and OFDMA help sustain 4K UHD streaming and gaming on multiple devices.

How fast is the wired connection on the 2.5G Multi-Gig port?

The extender includes one 1G/2.5G/5G Multi-Gig Ethernet port plus four Gigabit LAN ports and one Gigabit WAN port. The Multi-Gig port caps at 2.5Gbps when linked to a compatible router or switch, giving wired devices faster access than standard Gigabit.
