White vertical tower modem router with coaxial port and multiple ethernet ports

Netgear Inc.

Netgear Inc. CAX80-100NAS DOCSIS 3.1 Wi-Fi 6 modem

SKU CH-Q3ZP-HA1B0 MPN CAX80-100NAS

A DOCSIS 3.1 cable modem with built-in Wi-Fi 6 router delivering up to 6Gbps wireless speeds and a 2.5Gbps Ethernet port

  • TypeCable Modem
  • Cable InterfaceCATV-Coaxial connector, female
  • Ethernet Ports4 x 1 Gbps + 1 x 2.5 Gbps
  • Telephony Ports0
  • USB Ports1
  • StandardsDOCSIS 3.1

Model CAX80

Speed Up to 6 Gbps

  • Wi-Fi 6 AX6000 delivers up to 6Gbps wireless speed
  • DOCSIS 3.1 with 2 OFDM channels enables multi-gigabit internet
  • 5 Gbps Ethernet port plus link aggregation supports 2Gbps wired throughput
  • Dual-core 1.5GHz processor handles heavy LAN and WAN traffic
  • Four 1 Gbps ports plus USB 3.0 connect wired devices and storage

Nighthawk AX6000 two-in-one gateway

The Netgear CAX80-100NAS combines a DOCSIS 3.1 cable modem with a Wi-Fi 6 router in a single unit. It replaces a separate modem and router for subscribers who want to stop paying monthly rental fees. The device connects to the provider through a standard coaxial cable and distributes service over wireless and wired links.

Upgrade from DOCSIS 3.0 hardware

Moving from a first-generation DOCSIS 3.0 modem to this DOCSIS 3.1 model can deliver up to 2.5 times faster internet speeds and 10 times faster download performance. The jump is worth it when your provider offers multi-gigabit tiers that older hardware cannot fully utilise. The 2.5 Gbps Ethernet port and dual-port aggregation let you reach up to 2 Gbps wired throughput for compatible clients.

AX6000 wireless capacity and headroom

The dual-band Wi-Fi 6 radio provides 1.2 Gbps on the 2.4 GHz band and 4.8 Gbps on the 5 GHz band using 4x4 streams and 1024-QAM. OFDMA uplink and downlink improve efficiency when many devices are active simultaneously. A 1.5 GHz dual-core processor manages the combined traffic load. The single USB 3.0 port adds basic network storage or printer sharing, while four gigabit ports serve additional wired endpoints.

Highlights

  • Wi-Fi 6 AX6000 delivers up to 6Gbps wireless speed
  • DOCSIS 3.1 with 2 OFDM channels enables multi-gigabit internet
  • 5 Gbps Ethernet port plus link aggregation supports 2Gbps wired throughput
  • Dual-core 1.5GHz processor handles heavy LAN and WAN traffic
  • Four 1 Gbps ports plus USB 3.0 connect wired devices and storage

Specifications

BrandNETGEAR
SeriesNighthawk
Part NumberCAX80-100NAS
TypeCable Modem
Cable InterfaceCATV-Coaxial connector, female
Ethernet Ports4 x 1 Gbps + 1 x 2.5 Gbps
Telephony Ports0
USB Ports1
StandardsDOCSIS 3.1
Wi-Fi GenerationWi-Fi 6 (802.11ax)
Wireless StandardAX6000
FeaturesTechnical Specifications:
Wi-Fi Generation: Wi-Fi 6
Built-in high-speed DOCSIS® 3.1 Cable Modem compatible with 32x8DOCSIS® 3.0
2 OFDM downstream and 2 OFDMA upstream DOCSIS channels for faster, more clear data streaming
802.11ax Dual Band WiFi (AX6000): 2.4GHz AX: 4x4 (Tx/Rx) 1024-QAM 40MHz, up to 1.2Gbps & 5GHz AX: 4x4 (Tx/Rx) 1024-QAM 160MHz, up to 4.8Gbps
Backwards compatible with 802.11a/b/g/n/ac WiFi
Uplink & Downlink OFDMA—Improved capacity and efficiency
Powerful dual-core 1.5GHz processor
2.5G multi-Gig Ethernet LAN port
Four (4) Gigabit Ethernet LAN ports: Dual Gigabit Ethe

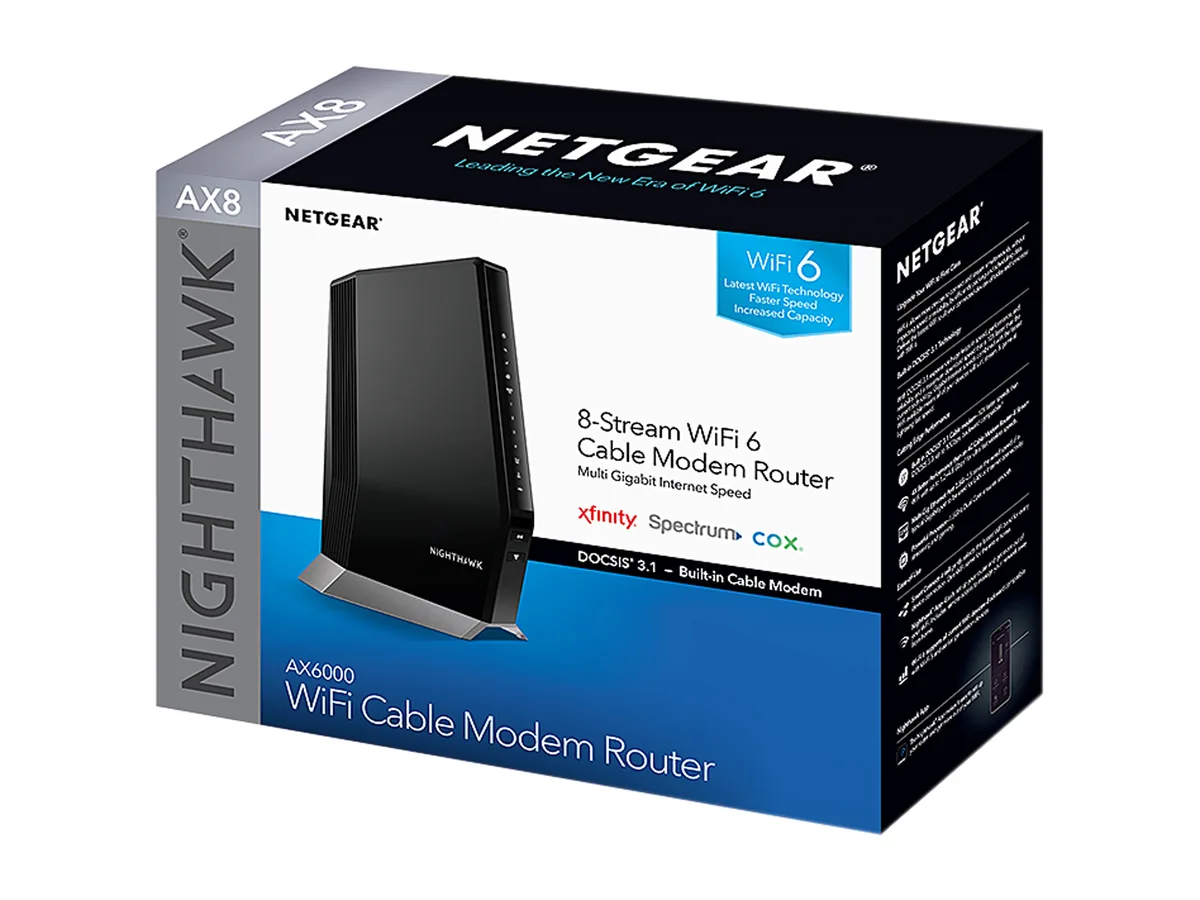

Package ContentsNighthawk® AX8/8 Stream WiFi 6 Cable Modem Router
Ethernet cable
Quick start guide
Power adapter
Shipping weight2.04 kg
Package size318 × 260 × 133 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What type of coaxial cable connector does the CAX80-100NAS use for the cable line?

It uses a standard female CATV coaxial connector, the same F-type thread used by virtually all North American cable providers.

During setup, which step do users most often miss that prevents the modem from coming online?

After connecting the coaxial cable and power, you must call your ISP and give them the MAC address printed on the label so they can provision the DOCSIS 3.1 modem on their network.

Which component will need attention first if the CAX80-100NAS loses power during a storm?

The external power adapter is the only field-replaceable part; the internal dual-core 1.5GHz processor and DOCSIS 3.1 circuitry have no user-serviceable components.
