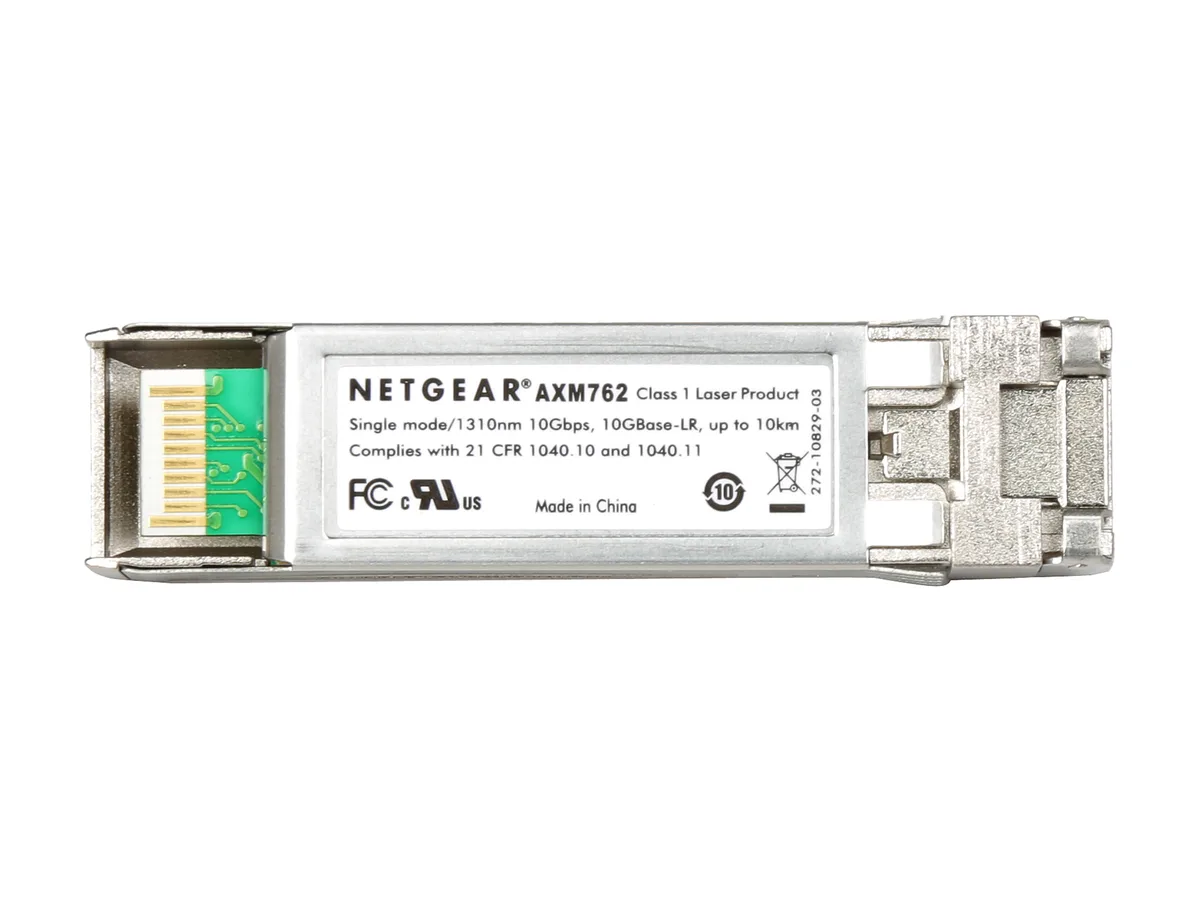

Small rectangular SFP+ transceiver module with silver metal housing and black LC connector port visible

Netgear Inc.

Netgear Inc. AXM762-10000S SFP transceiver 10GBase-LR 1310nm

SKU CH-EY5S-B2HW2 MPN AXM762-10000S

Connects 10 Gigabit Ethernet over single-mode fiber up to 10 km using LC duplex connectors at 1310 nm wavelength

  • Device TypeTransceiver
  • StandardsIEEE 802.3ae 10GBase-LR
  • Wavelength1310nm
  • Ports1 x 10GBase-LR
  • TemperatureOperating Temperature 32 -158º F (0 - 70ºC) Storage Temperat
  • HumidityOperative relative humidity 85% @ (25ºC)
  • 10 Gbit/s full-duplex throughput on single-mode fibre
  • IEEE 802.3ae 10GBase-LR standard compliance
  • Hot-swappable SFP+ module recognised automatically by managed switches
  • 2 m to 10 km reach over 9/125 µm cable at 1310 nm wavelength

NETGEAR 10GBase-LR SFP Transceiver

The NETGEAR AXM762-10000S is a hot-swappable SFP+ transceiver designed for 10 Gigabit Ethernet links over single-mode fibre. It operates at a 1310nm wavelength and uses LC connectors for 9/125µm cable. The module draws less than 1.5W and is automatically recognised by compatible NETGEAR managed switches.

IEEE 802.3ae 10GBase-LR Standard

This transceiver complies with the IEEE 802.3ae 10GBase-LR standard, supporting a maximum data rate of 10 Gbit/s. The specified operating distance ranges from 2m to 10km on 9/125µm single-mode fibre. It functions within an operating temperature range of 0 to 70ºC and meets UL 1950 and CSA 22.2 No. 950 safety certifications.

For Single-Mode Fibre Links Up to 10km

Network engineers extending 10G connections between buildings or across campus environments will find this module suitable. It is not intended for multimode fibre installations or shorter-reach direct-attach copper cabling. Buyers needing longer distances beyond 10km or different wavelength requirements should consider alternative transceiver types.

Highlights

  • 10 Gbit/s full-duplex throughput on single-mode fibre
  • IEEE 802.3ae 10GBase-LR standard compliance
  • Hot-swappable SFP+ module recognised automatically by managed switches
  • 2 m to 10 km reach over 9/125 µm cable at 1310 nm wavelength

Specifications

BrandNetgear
ModelAXM762
Device TypeTransceiver
StandardsIEEE 802.3ae 10GBase-LR
Wavelength1310nm
Ports1 x 10GBase-LR
TemperatureOperating Temperature
32 -158º F (0 - 70ºC)
Storage Temperature
32 -185 ºF (0 - 85ºC)
HumidityOperative relative humidity
85% @ (25ºC)
FeatureOperating Distance
2m - 10km for 9/125 um SMF
Connectors
LC for 9um/125um single mode cable
Power Consumption
<1.5w
MTBF
4,986,536 hr (569 years)
Safety Certification
UL 1950 CSA 22.2 No. 950
Environmental Compliance
RoHS
Dimensions0.46” x 0.53” x 2.19”
(11.9 mm x 13.7 mm x 55.7 mm)
Weight19.2g
DisclaimerLaser Safety Warning
This is a Class 1 laser product.
Warning: Because invisible laser radiation may be emitted from aperture of the port when no fiber cable is connected, avoid exposure to laser radiation and do not stare into the open aperture.
Shipping weight0.30 kg
Package size180 × 140 × 43 mm

Questions about this item

What does the 10 Gbit/s rate mean when the transceiver is installed in a switch?

It delivers full-duplex 10 Gbps Ethernet traffic on a single-mode fiber link up to 10 km, and the switch auto-detects the module on insertion.

Which standard governs the 1310 nm LR interface and what distance does it support?

IEEE 802.3ae 10GBase-LR defines the 1310 nm long-reach interface for 9/125 µm single-mode fiber from 2 m to 10 km.

What physical slot and cable connector does this module need?

It fits a standard SFP+ cage and uses an LC duplex connector for 9 µm/125 µm single-mode fiber.
