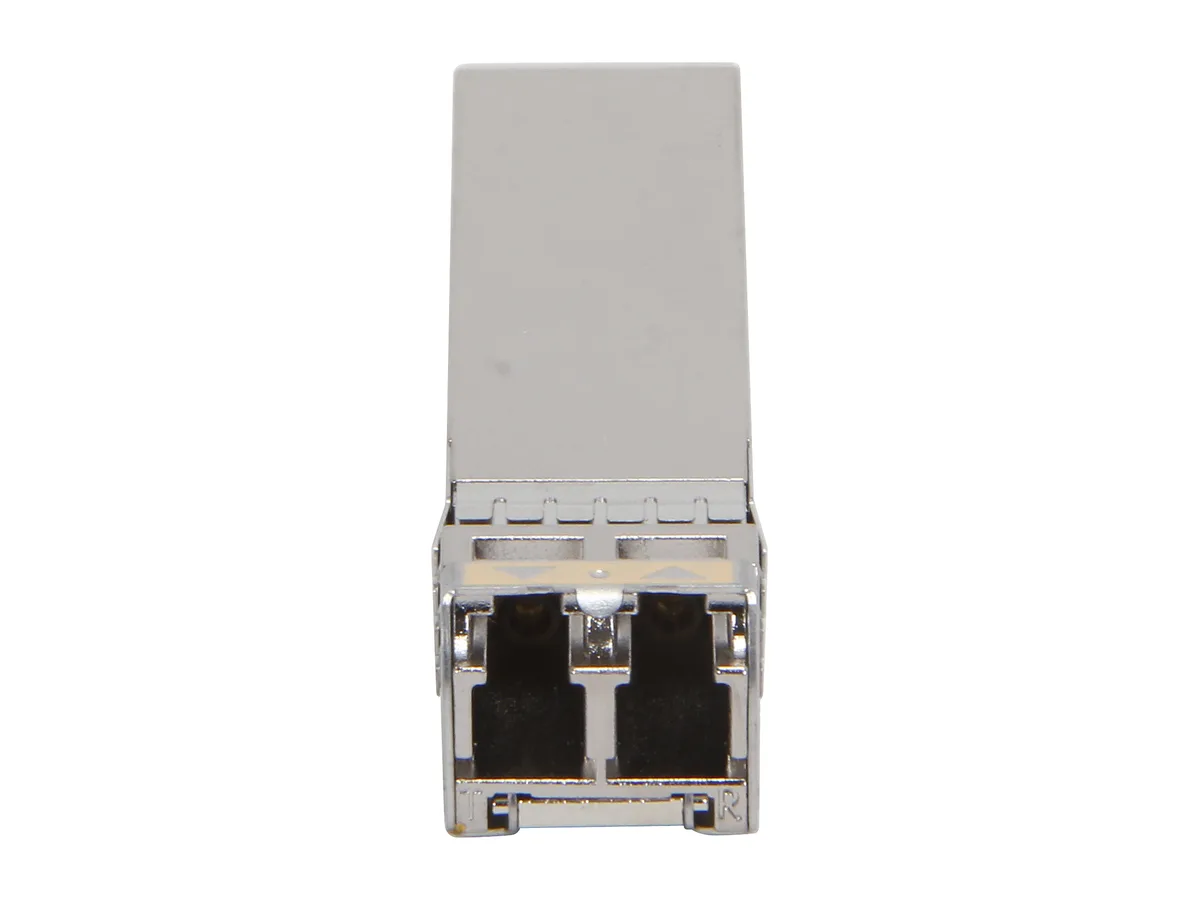

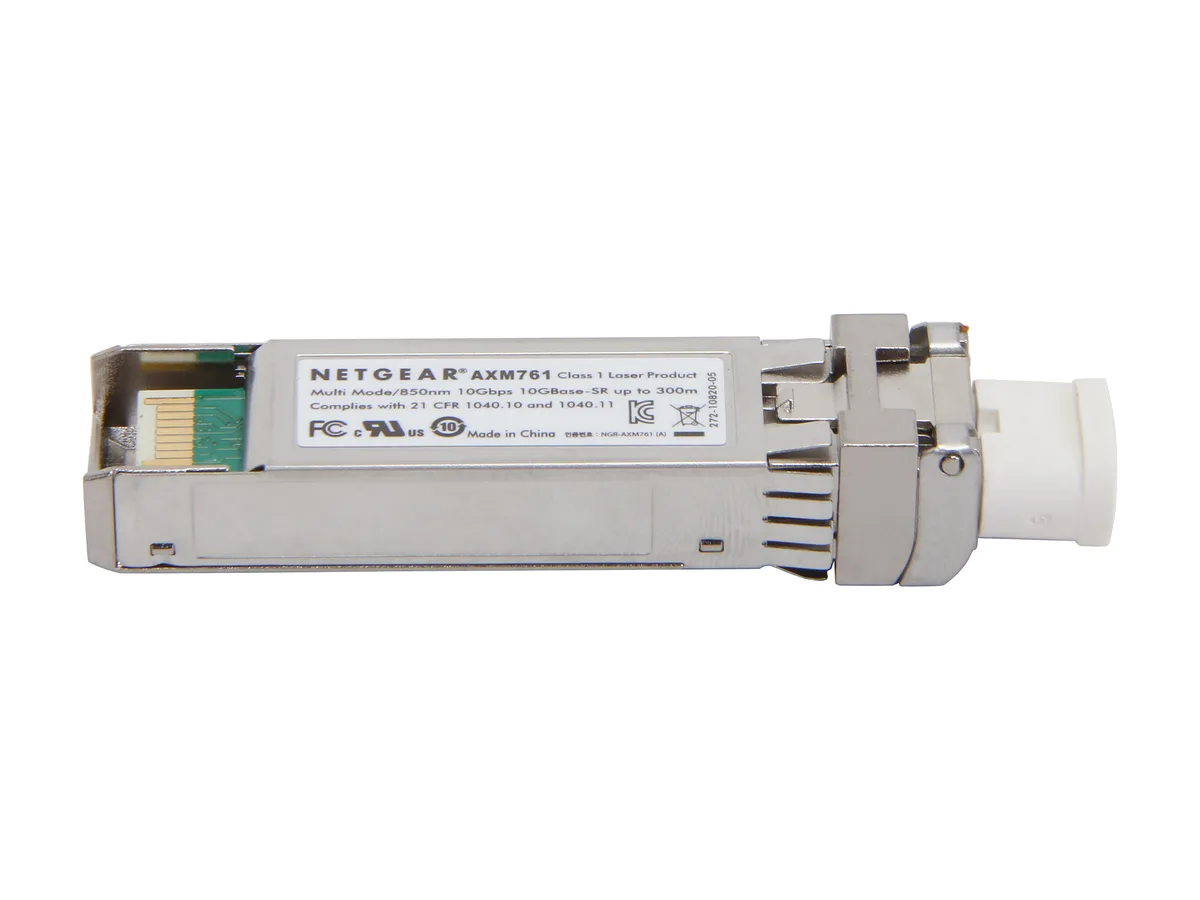

Small metallic SFP+ transceiver module with LC duplex port and side label

Netgear Inc.

Netgear Inc. AXM761-10000S 10GBase-SR SFP transceiver

SKU CH-0FMX-V2AC3 MPN AXM761-10000S

A 10 Gbps SFP+ transceiver for multimode fiber up to 300 m with an LC connector

  • Device TypeTransceiver
  • StandardsIEEE 802.3ae 10GBase-SR
  • Wavelength850nm
  • TemperatureOperating temperature 32 -158º F (0 - 70ºC) Storage Temperat
  • HumidityOperative relative temperature 85% @ (25ºC)
  • FeatureOperating Distance 2- 300 m for 50/125 um MMF 2- 33 m for 62
  • 10 Gbps short-reach fiber link up to 300 m
  • SFP+ module uses 850 nm wavelength on multimode fiber
  • LC duplex connector fits standard patch cables
  • Power draw below 1.0 W keeps switch thermals low
  • MTBF rated 4,986,536 hours for long service life

SFP+ 10GBase-SR Transceiver

The Netgear AXM761-10000S is a 10 Gigabit Ethernet SFP+ transceiver built for short-reach multimode fibre links. It adds 10GBase-SR connectivity to compatible Netgear ProSafe switches and modules equipped with SFP+ ports. The module operates at an 850 nm wavelength with LC duplex connectors. It is designed for data networking environments requiring 10 Gbps throughput over optical fibre.

Suits OM3/OM4 runs up to 300 metres

This transceiver supports distances up to 300 metres on 50/125 µm OM3 or OM4 multimode fibre and 33 metres on 62.5/125 µm multimode fibre. It fits network builds that need 10 Gbps links within a rack, row or building floor using existing multimode cabling. It is not suited for single-mode fibre infrastructure or links exceeding the stated multimode reach. Buyers needing longer distances or single-mode compatibility must select a different module type.

IEEE 802.3ae 10GBase-SR compliance

The module meets the IEEE 802.3ae 10GBase-SR standard, guaranteeing interoperability with other compliant SFP+ ports at 10 Gbps. It draws under 1.0 W and operates from 0 to 70 °C with a rated MTBF of 4,986,536 hours. The LC connector and 850 nm wavelength are fixed by the standard. Verify that the host switch port supports 10GBase-SR before purchase.

Highlights

  • 10 Gbps short-reach fiber link up to 300 m
  • SFP+ module uses 850 nm wavelength on multimode fiber
  • LC duplex connector fits standard patch cables
  • Power draw below 1.0 W keeps switch thermals low
  • MTBF rated 4,986,536 hours for long service life

Specifications

BrandNetgear
ModelAXM761
Device TypeTransceiver
StandardsIEEE 802.3ae 10GBase-SR
Wavelength850nm
TemperatureOperating temperature
32 -158º F (0 - 70ºC)
Storage Temperature
32 -185 ºF (0 - 85ºC)
HumidityOperative relative temperature
85% @ (25ºC)
FeatureOperating Distance
2- 300 m for 50/125 um MMF
2- 33 m for 62.5/125 um MMF
Connectors
LC
Power Consumption
<1.0w
MTBF
4,986,536 hr (569 years)
Safety Certification
UL 1950 CSA 22.2 No. 950
Environmental Compliance
RoHS
Dimensions0.46” x 0.53” x 2.19” (11.9 mm x 13.7 mm x 55.7 mm)
Weight17.1g
DisclaimerLaser Safety Warning
This is a Class 1 laser product.
Warning: Because invisible laser radiation may be emitted from aperture of the port when no fiber cable is connected, avoid exposure to laser radiation and do not stare into the open aperture.
Shipping weight0.10 kg
Package size178 × 132 × 46 mm

Questions about this item

How do I verify the AXM761 is working after inserting it into my GSM7352S switch?

Check the switch port LEDs for a solid link light and confirm the interface shows 10 Gbps with no errors in the management console.

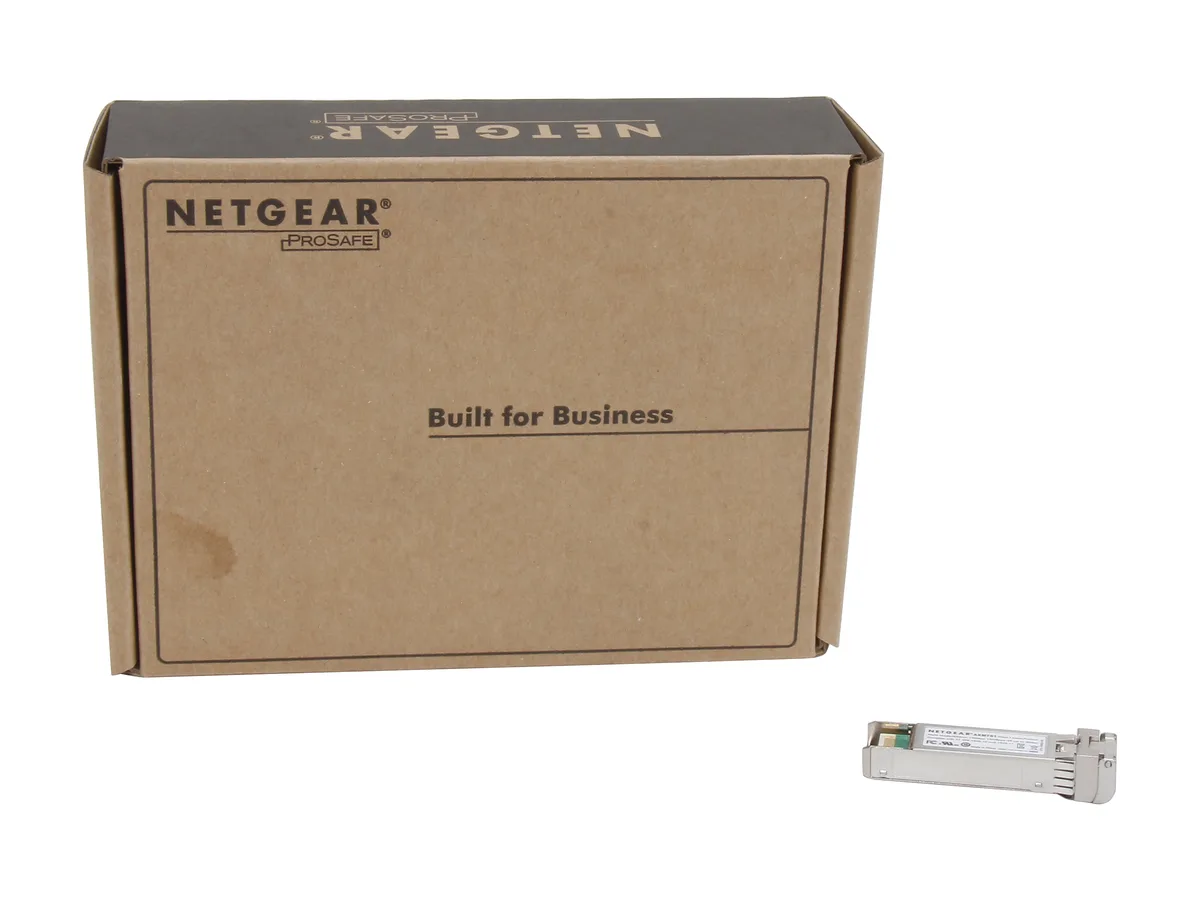

What comes in the box with the AXM761 and what must I buy separately?

The transceiver ships alone; you must purchase LC duplex patch cables and 50/125 µm OM3 or OM4 multimode fiber separately.

Which fiber type should I choose for the 300 m reach this module supports?

Use 50/125 µm OM3 or OM4 multimode fiber to achieve the full 300 m distance; 62.5/125 µm fiber is limited to 33 m.
