Small silver SFP transceiver module with LC connector and bail latch

Netgear Inc.

Netgear Inc. AGM732FNA 1G SFP transceiver 10km LC

SKU CH-BDQN-2CN6T MPN AGM732FNA

Adds a single-mode fiber uplink to compatible managed switches, reaching 10 km at 1 Gbps over an LC connector

  • Device TypeTransceiver
  • StandardsIEEE 802.3z, 1000Base-LX
  • ProtocolsTCP/IP
  • Ports1000Base-LX
  • TemperatureStorage temperature –40–185ºF (–40–85ºC) Case operating temp
  • HumidityOperative relative humidity 85% at 77ºF (25ºC)
  • Full-duplex 1 Gbps Ethernet on NETGEAR managed switches
  • Drives Gigabit Ethernet up to 10 km over single-mode fiber
  • Plug-and-play auto-detection in any SFP GBIC slot
  • Certified to UL 60950-1 and CSA-C22.2 No.60950-1 safety standards
  • Operates from –5 °C to 70 °C case temperature

Netgear AGM732F 1G SFP transceiver

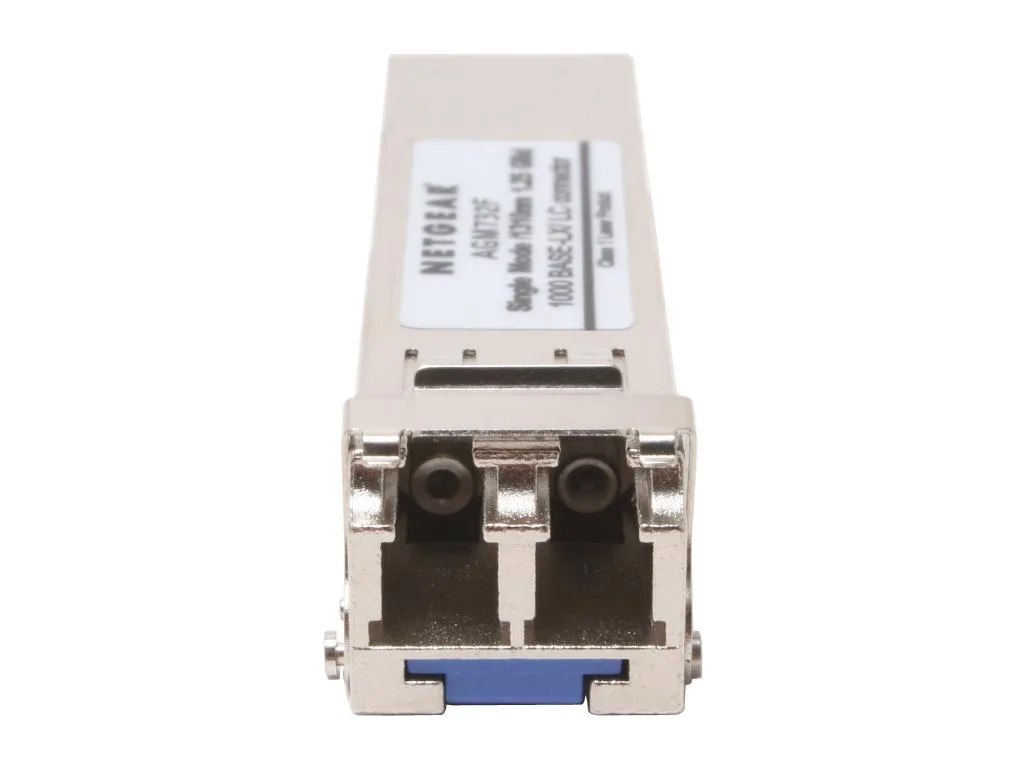

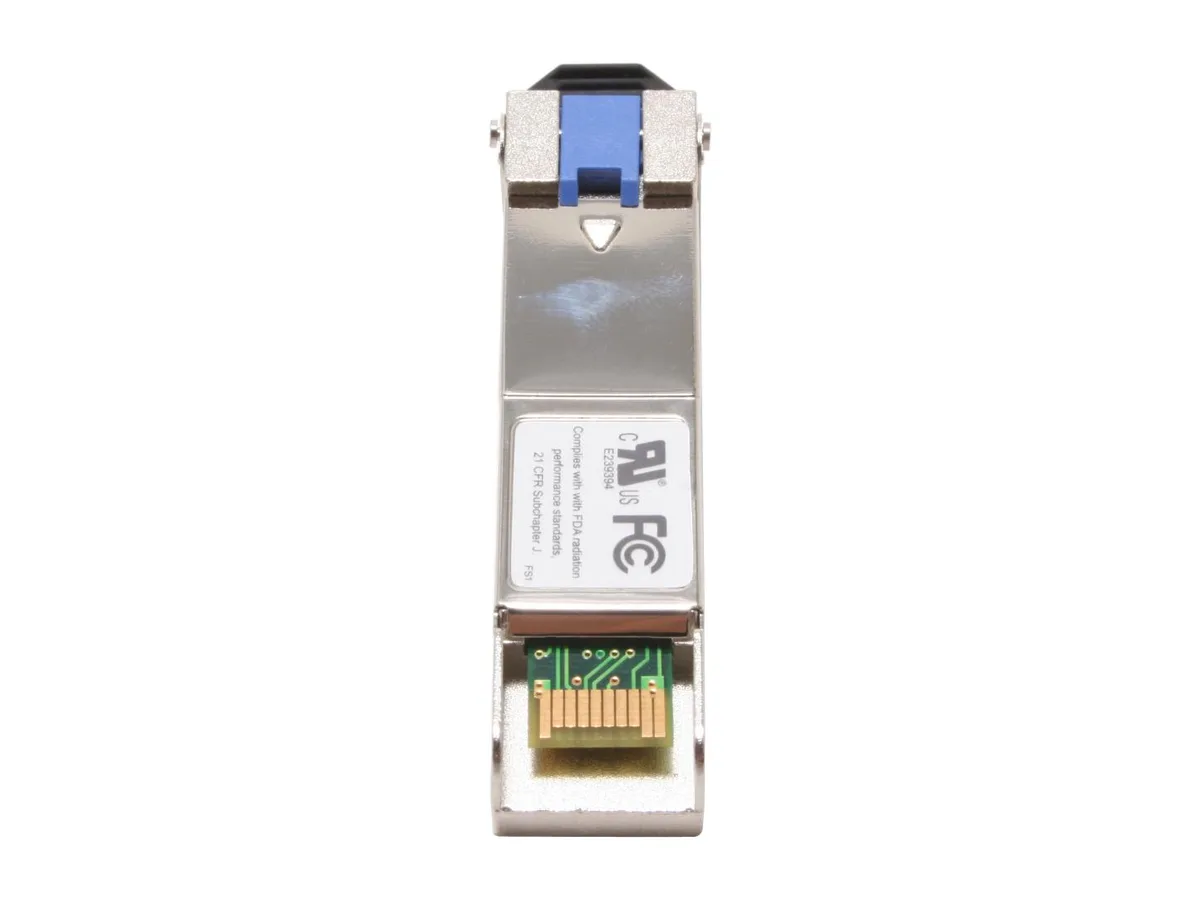

The Netgear AGM732F is a small form-factor pluggable transceiver built for NETGEAR managed and smart switches. It delivers full-duplex 1000Mbps Ethernet over single-mode fibre using an LC connector. The module operates at distances up to 10 km with 9/125µm cabling and consumes 1.1W of power.

Automatic detection and LC single-mode support

The transceiver automatically identifies itself when inserted into a compatible SFP slot, removing the need for manual configuration. Its LC interface is designed specifically for 9/125µm single-mode fibre, enabling long-haul links up to 6.2 miles. Safety certifications include UL 60950-1 and CSA-C22.2 No.60950-1 with RoHS compliance.

Hot-plug installation with laser safety note

Installation is a simple hot-plug action into any SFP GBIC compliant port on supported switches such as the GSM7324, GSM7312, GSM7224, FSM7326 or PL7326. The only common issue is the invisible laser radiation warning: never stare into an open aperture when a cable is not connected. Operating temperature ranges from –5 °C to 70 °C.

Highlights

  • Full-duplex 1 Gbps Ethernet on NETGEAR managed switches
  • Drives Gigabit Ethernet up to 10 km over single-mode fiber
  • Plug-and-play auto-detection in any SFP GBIC slot
  • Certified to UL 60950-1 and CSA-C22.2 No.60950-1 safety standards
  • Operates from –5 °C to 70 °C case temperature

Specifications

BrandNetgear
ModelAGM732F
Device TypeTransceiver
StandardsIEEE 802.3z, 1000Base-LX
ProtocolsTCP/IP
Ports1000Base-LX
TemperatureStorage temperature
–40–185ºF (–40–85ºC)
Case operating temperature
23–158ºF (–5–70ºC)
HumidityOperative relative humidity
85% at 77ºF (25ºC)
FeatureConnectors
LC for 9/125µm cable
Operating distance single mode fiber (SMF)
6 mi (10 km)
Power Consumption
1.1W
MTBF
>10 years
Safety certification
UL 60950-1, CSA-C22.2 No.60950-1
Environmental compliance
RoHS
Dimensions2.26 x 0.53 x 0.33 in (57.4 x 13.4 x 8.5 mm)
Weight0.56 oz (16.0 g)
DisclaimerWARNING: Because invisible laser radiation might be emitted from the aperture of the port when no fiber cable is connected, avoid exposure to laser radiation and do not stare into open apertures.
Shipping weight0.11 kg
Package size178 × 130 × 46 mm

Questions about this item

Will the LC connector or single-mode fiber need periodic replacement after years of use?

The LC connector is rated for the module's operating temperature range of 23–158°F and 85% humidity at 77°F, with an MTBF exceeding 10 years under normal conditions.

What limits continuous operation first — temperature, power draw or link stability?

Case operating temperature reaches 158°F (70°C) before the 1.1W power draw becomes a thermal concern in a managed switch chassis.

How much heat and noise does the module add when running 24/7 in a switch?

At 1.1W consumption it produces minimal heat within the 23–158°F operating range and has no moving parts, so it adds no audible noise.
