NEC NP23LP business projector
A 4000 ANSI lumen WXGA 3LCD projector with 1.7× manual zoom, dual HDMI, RJ45 networking and a 16 W mono speaker
- TypeLCD
- Brightness4000 ANSI
- Native Resolution1280 x 800
- Aspect Ratio16:10
- Contrast Ratio4000:1
- Display Size25.00" to 300.00"
- Bright images in lit rooms with 4000 ANSI lumens
- WXGA 1280 x 800 resolution for wide-format presentations
- Flexible placement from 3.8' to 28.7' throw distance
- Quiet 30 dB operation in Eco mode for meetings
- 16 W mono speaker handles audio without extras
Business projector for meeting rooms
The NEC P401W is a 3LCD projector built for business presentations in meeting rooms and classrooms. It delivers 4000 ANSI lumens brightness at a native WXGA resolution of 1280 x 800. The unit includes built-in 16.0 watt mono speakers and supports ceiling, rear and table-top mounting options.
Limits of the 3LCD standard throw lens
The fixed 1.7x manual zoom lens provides a throw ratio range of 1.36 : 1 to 2.26 : 1. This requires a projection distance between 3.8 and 28.7 feet to achieve image sizes from 25.00 to 300.00 inches. The contrast ratio is rated at 4000:1 and audible noise reaches 36 dB in normal mode or 30 dB in Eco mode.
Check your installation before ordering
Verify that your room depth accommodates the required throw distance for your desired screen size. Confirm the available input sources match the HDMI, VGA, composite, S-Video or network connections provided. Ensure the 325 watt power draw is compatible with your local 100V to 240V supply and that the 9.0 lb weight suits your mounting hardware.
Highlights
- Bright images in lit rooms with 4000 ANSI lumens
- WXGA 1280 x 800 resolution for wide-format presentations
- Flexible placement from 3.8' to 28.7' throw distance
- Quiet 30 dB operation in Eco mode for meetings
- 16 W mono speaker handles audio without extras
Specifications
| Model | NEC P401W |
|---|---|
| Type | LCD |
| Brightness | 4000 ANSI |
| Native Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 4000:1 |
| Display Size | 25.00" to 300.00" |
| Throw Distance | 3.8' - 28.7' |
| Lamp Life | 4000 |
| Network Connectors | RJ45 |
| Built-in Speakers | Yes |
Questions about this item
Which lamp model matches the NP23LP projector?
The NP23LP is a 240W AC replacement lamp designed for the NEC P401W projector, rated for 4000 hours in normal mode and 6000 hours in Eco mode.
What does the 4000 ANSI lumens rating mean in daily use?
At 4000 ANSI lumens the P401W produces a bright WXGA image up to 300 inches diagonal, suitable for lit meeting rooms and classrooms without blackout blinds.
Which video inputs does the HDMI interface support on this model?

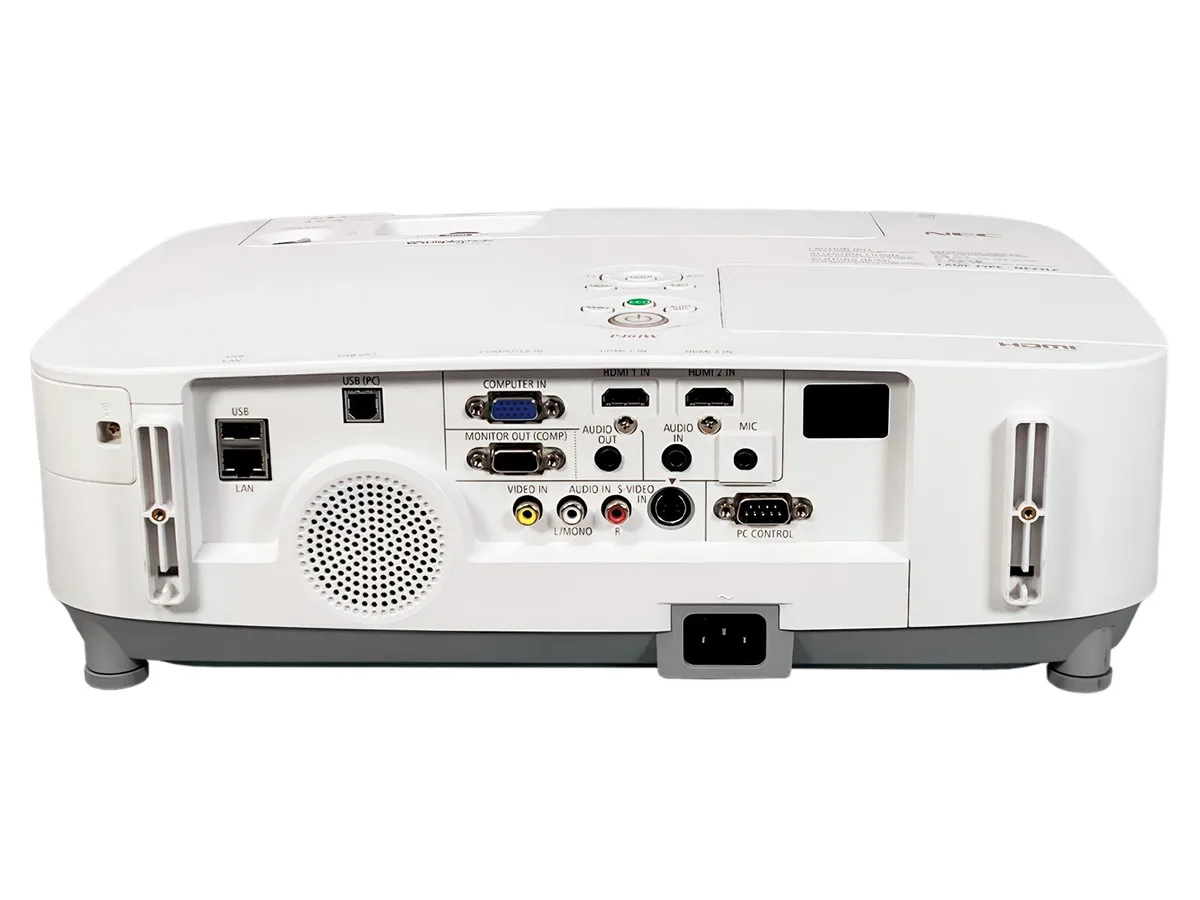

Two HDMI ports accept 720p, 1080i, 576i, 576p, 480p and 480i signals alongside VGA, S-Video, composite and network connections.
