Black PCB board with 12 ATX 2x3 pin connectors and LED voltage display

myVolts

myVolts PSU Board 12 ATX 2x3 Pin LED Display 1200W

SKU CH-D036-098KT

Delivers up to 1200 W at 12 V through twelve ATX 2x3-pin connectors with a real-time LED voltage readout for compatible server PSUs

  • TypeAT
  • 1200W maximum output powers demanding mining rigs
  • Real-time LED voltage display monitors supply health
  • 12 ATX 2x3-pin connectors support multiple graphics cards
  • Compatible with DPS-800GB A, DPS-1200FB A and other listed units
  • Simple installation requires no complex configuration

PSU Board for Mining Rigs

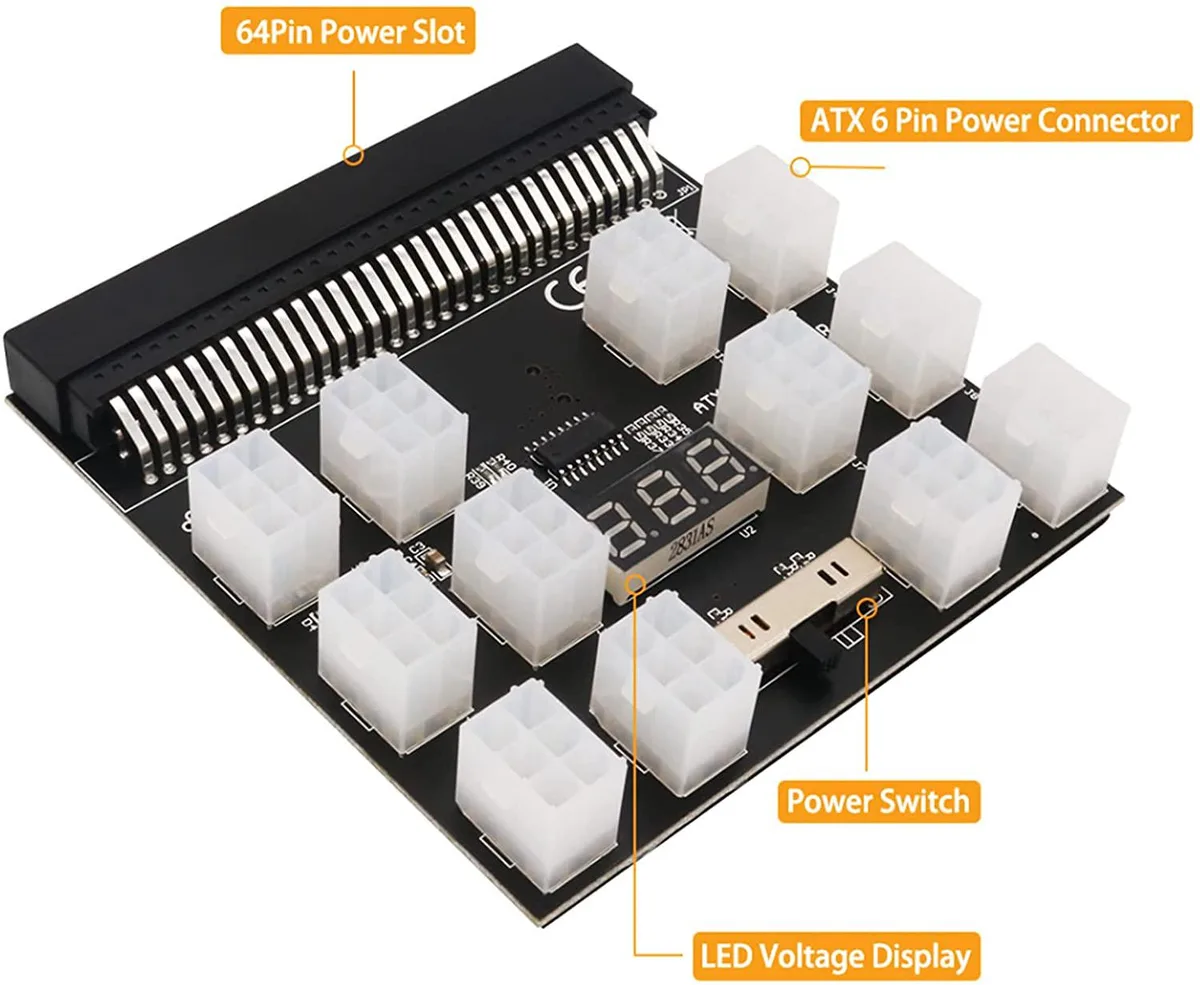

The myVolts PSU Board 12 converts server-grade power supplies into mining-ready 12 V sources. It accepts compatible DPS and PS units and distributes power through twelve ATX 2x3 pin connectors. An integrated LED display shows the main rail voltage in real time. The board is intended for builders running multiple graphics cards from a single high-wattage supply.

Build Integration

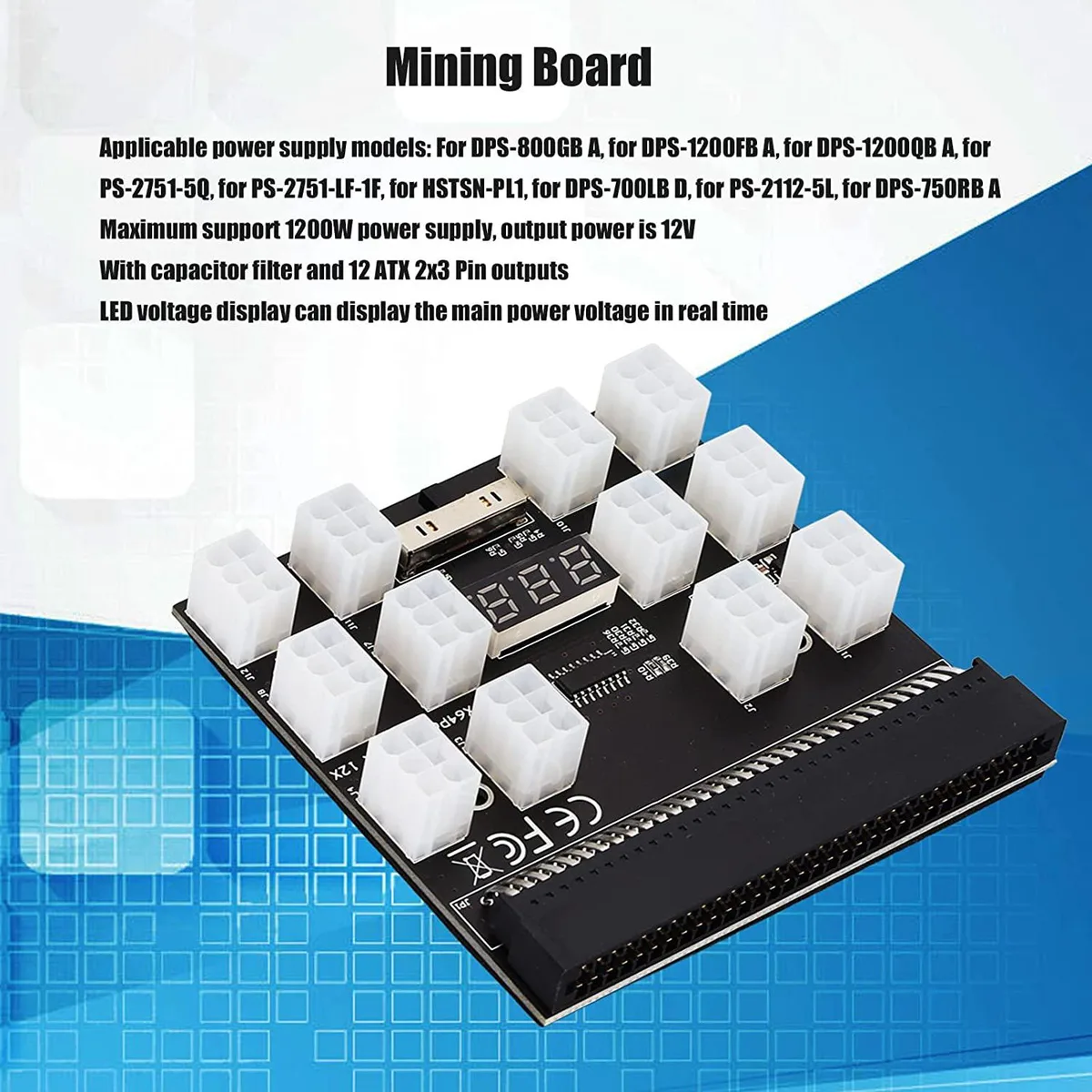

The PCB mounts directly onto supported power supplies including DPS-800GB A, DPS-1200FB A, DPS-1200QB A, PS-2751-5Q, PS-2751-LF-1F, HSTSN-PL1, DPS-700LB D, PS-2112-5L and DPS-750RB A. No extra wiring harnesses or adapter cables are required beyond the ATX 2x3 pin leads. The design frees up internal case space by eliminating the need for multiple discrete PSUs. Builders who need more than twelve 2x3 pin outputs or who rely on power supplies not listed above will need a different distribution solution.

Bundled Accessories

The package contains only the PSU board itself; ATX 2x3 pin power cords are not included. Users must supply their own cables to connect graphics cards or risers. The LED voltage display requires no separate software or driver installation and operates immediately on power-up. There are no additional mounting brackets, screws or configuration tools in the box.

Highlights

  • 1200W maximum output powers demanding mining rigs
  • Real-time LED voltage display monitors supply health
  • 12 ATX 2x3-pin connectors support multiple graphics cards
  • Compatible with DPS-800GB A, DPS-1200FB A and other listed units
  • Simple installation requires no complex configuration

Specifications

TypeAT

Questions about this item

What limits sustained 1200W output on this PSU board?

The board is rated for 1200W at 12V output, so the first limit under sustained load is the 1200W maximum power rating of the board itself.

How hot or loud does the board get when running all day?

The board has no fan or cooling of its own; noise and heat depend entirely on the host power supply such as a DPS-1200FB A or DPS-800GB A that you install it on.

Which power supply must I already own for this board to work?

You need a compatible server PSU such as DPS-1200FB A, DPS-1200QB A, DPS-800GB A, DPS-750RB A, DPS-700LB D, PS-2751-5Q, PS-2751-LF-1F, HSTSN-PL1 or PS-2112-5L.
