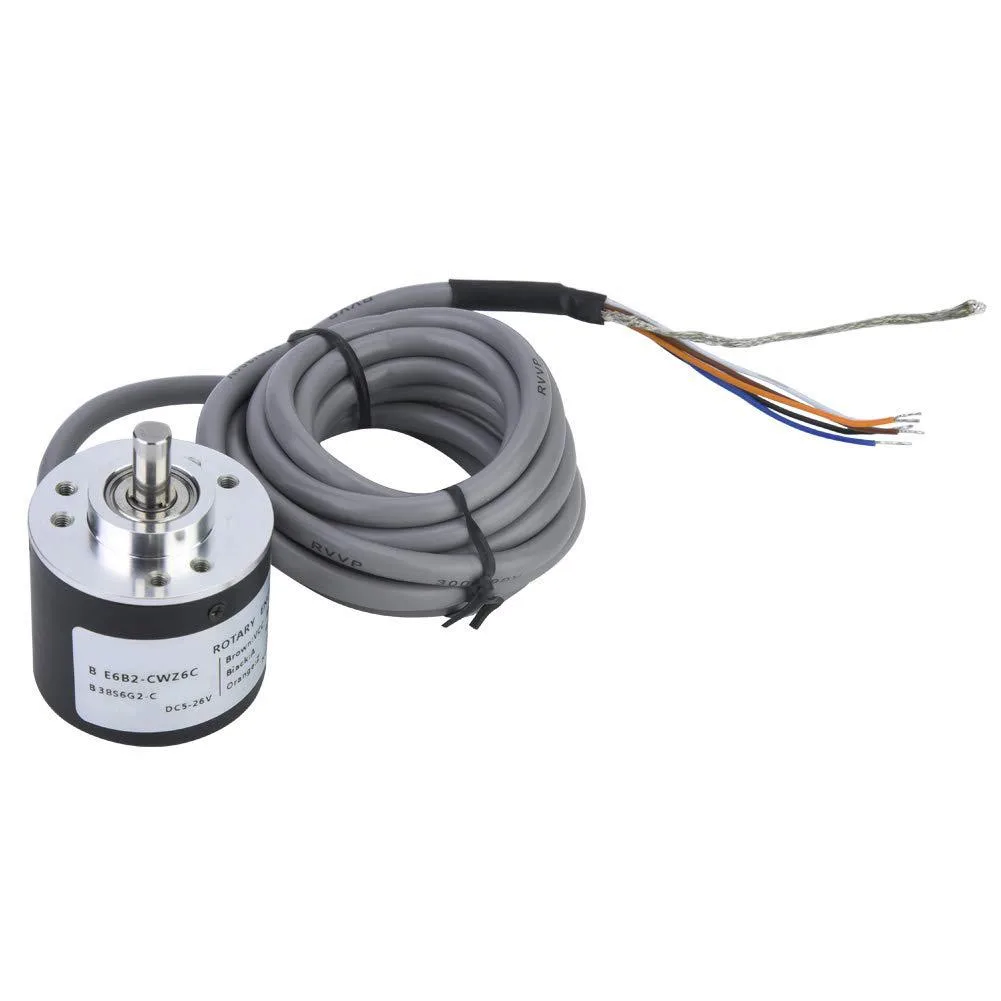

Cylindrical 38mm incremental encoder with metal shell and stainless spindle

myVolts

myVolts E6B2-CWZ6C Incremental Encoder Transducer 38mm 600P/R

SKU CH-ZQCJ-R26S5 MPN E6B2-CWZ6C

38 mm incremental encoder delivering 600 pulses per revolution with DC 5–26 V supply, multiple output modes and built-in short-circuit plus reverse-wiring protection

  • TypeAT
  • Reliable position feedback with 600 pulses per revolution
  • Protected against wiring errors with reverse polarity and short-circuit safeguards
  • Durable stainless-steel spindle and metal housing resist shock and wear
  • Compact 38 mm diameter fits tight machine spaces
  • Wide 5–26 V DC supply range suits varied control systems

Compact 38 mm Incremental Encoder

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder built for motion-control systems that need reliable position feedback. Its metal shell and stainless-steel spindle suit industrial equipment where vibration and shock are routine.

DC 5–26 V Open-Collector Interface Limits

The encoder operates from a DC 5–26 V supply with open-collector output, so the control input must stay within that voltage window. Axial loads above 30 N or thrust loads above 20 N will exceed the mechanical rating and can shorten spindle life.

600 Pulses Per Revolution Resolution

This unit ships configured at 600 pulses per revolution, a fixed resolution that determines the smallest angular step the controller can detect. Applications needing finer or coarser granularity must select a different pulse-count variant from the available range.

Highlights

  • Reliable position feedback with 600 pulses per revolution
  • Protected against wiring errors with reverse polarity and short-circuit safeguards
  • Durable stainless-steel spindle and metal housing resist shock and wear
  • Compact 38 mm diameter fits tight machine spaces
  • Wide 5–26 V DC supply range suits varied control systems

Specifications

TypeAT

Questions about this item

Should I choose the 600 P/R version or a different resolution for my application?

The 600 P/R model provides 600 pulses per revolution. Other optional resolutions include 100, 200, 300, 360, 400, 500, 1000, 1024, 1200, 2000, 2500, 3600, and 5000 P/R. Select the resolution that matches your controller's required pulse count per turn.

What does the 600 P/R rating mean when the encoder is installed in my machine?

The encoder outputs 600 pulses on each A and B channel for every full 360-degree rotation of the 6 mm shaft, allowing your controller to resolve position to 1/600 of a turn. The Z phase gives one index pulse per revolution for homing.

Which output interface does the E6B2-CWZ6C use and what voltage range does it support?

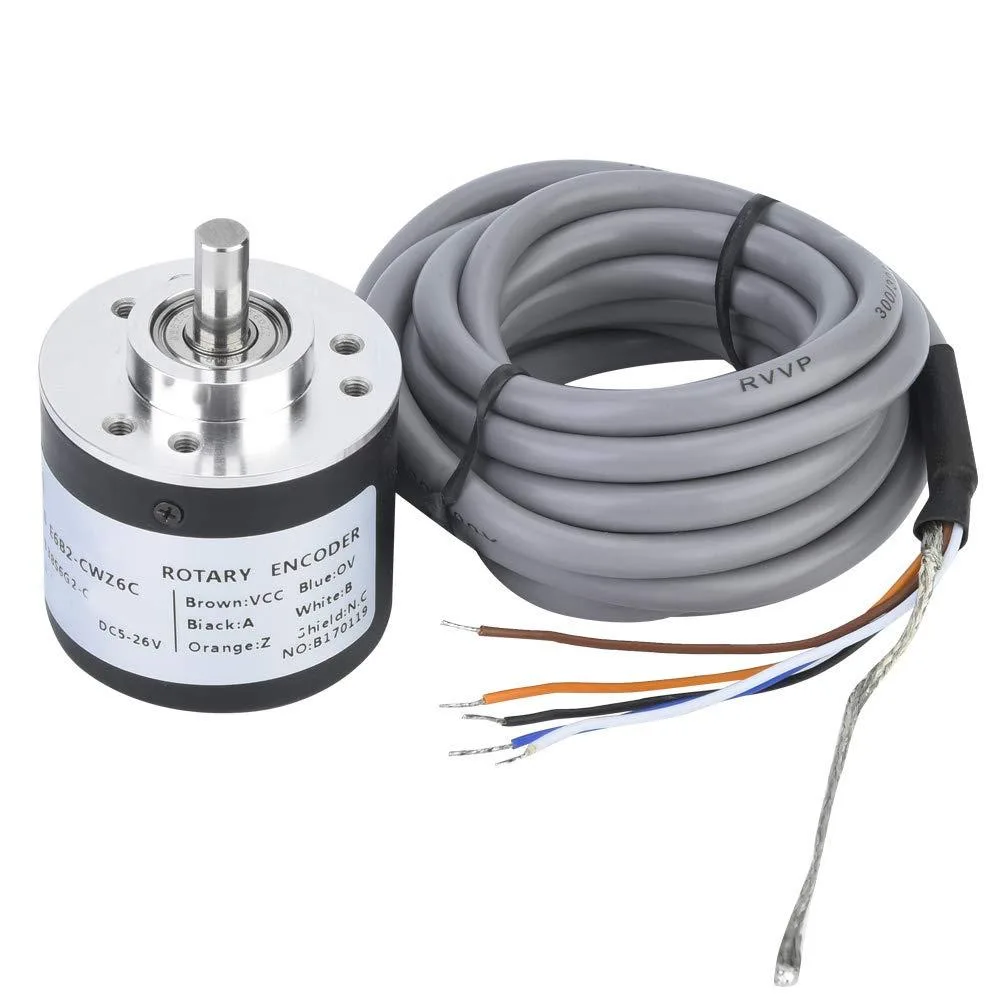

It provides voltage, collector, complementary, push-pull, long-line drive, differential, and fork outputs. The open-collector version operates on DC 5 to 26 V, with brown wire for positive and blue wire for 0 V.
