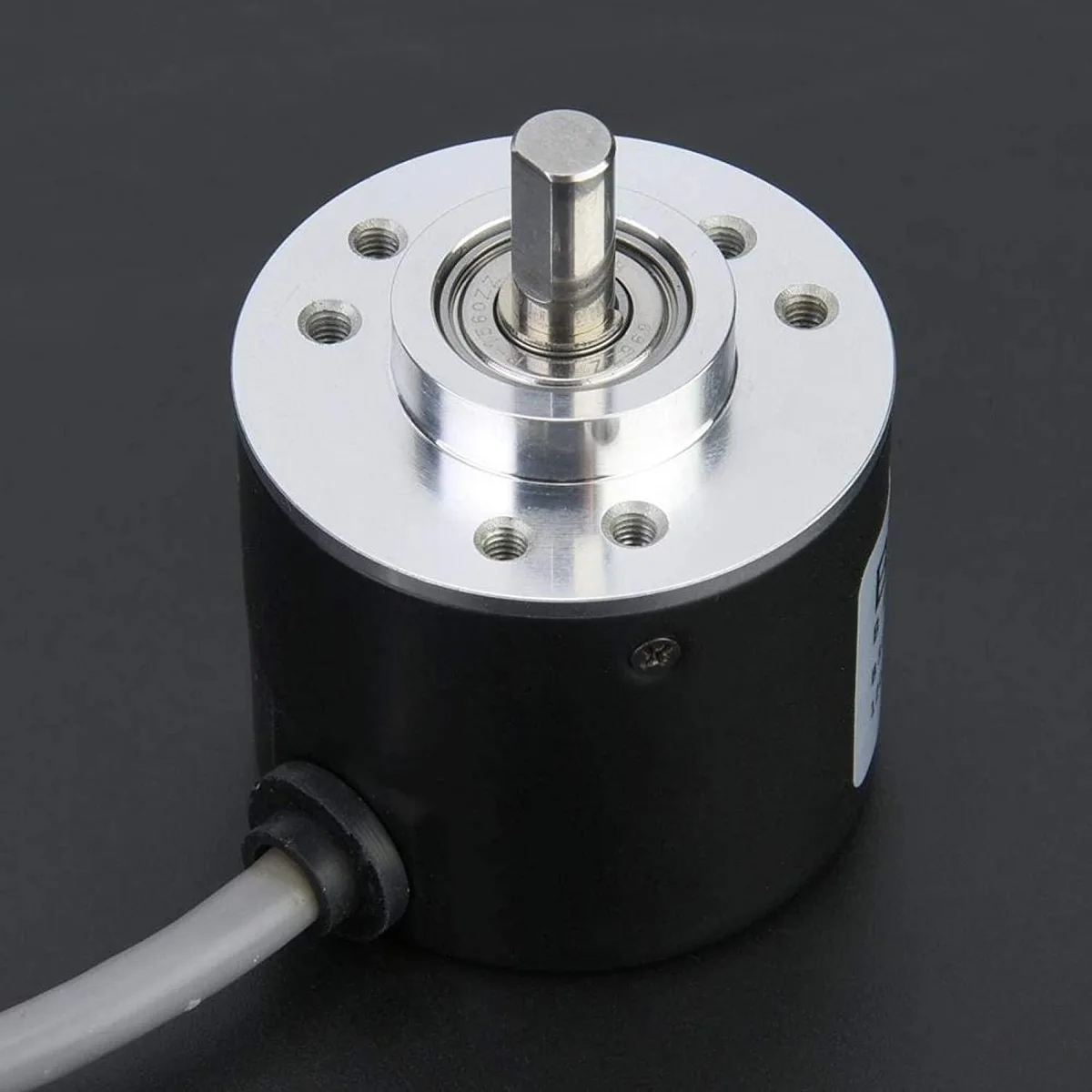

Cylindrical incremental encoder 38mm diameter metal body 2m cable 360P/R

myVolts

myVolts E6B2-CWZ6C incremental encoder transducer 38mm 360P/R 2m cable

SKU CH-VN4T-T6DXX MPN E6B2-CWZ6C

38 mm incremental encoder with 360 pulses per revolution, DC 5–26 V supply, stainless steel spindle, ASIC anti‑interference, short‑circuit and reverse‑polarity protection, 2 m cable

  • TypeAT
  • Precise positioning with 360 pulses per rotation
  • Reliable operation from internal ASIC devices
  • Durable stainless steel spindle resists impact
  • Protected against wiring errors and short circuits
  • Compact 38 mm diameter fits tight spaces

38 mm incremental encoder for motion control

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder built for position and speed feedback in automation systems. It delivers 360 pulses per revolution with A, B and Z phase outputs. The unit operates on a DC 5–26 V supply and suits engineers integrating rotary sensing into compact machinery.

Thermals, noise and power draw

The encoder draws power from a 5–26 V DC source with open-collector output and includes reverse-wiring and load short-circuit protection. Its all-metal shell and stainless-steel spindle dissipate heat passively without a fan, so acoustic emission is negligible. The 2 m cable keeps wiring tidy in tight cabinets.

Sustained-load behaviour

Under continuous rotation the device maintains rated axial loads of 30 N and thrust loads of 20 N while preserving signal integrity through internal ASIC circuitry. The robust alloy housing resists impact and vibration during long duty cycles. Optional resolutions up to 5000 P/R are available if the application demands finer granularity.

Highlights

  • Precise positioning with 360 pulses per rotation
  • Reliable operation from internal ASIC devices
  • Durable stainless steel spindle resists impact
  • Protected against wiring errors and short circuits
  • Compact 38 mm diameter fits tight spaces

Specifications

TypeAT

Questions about this item

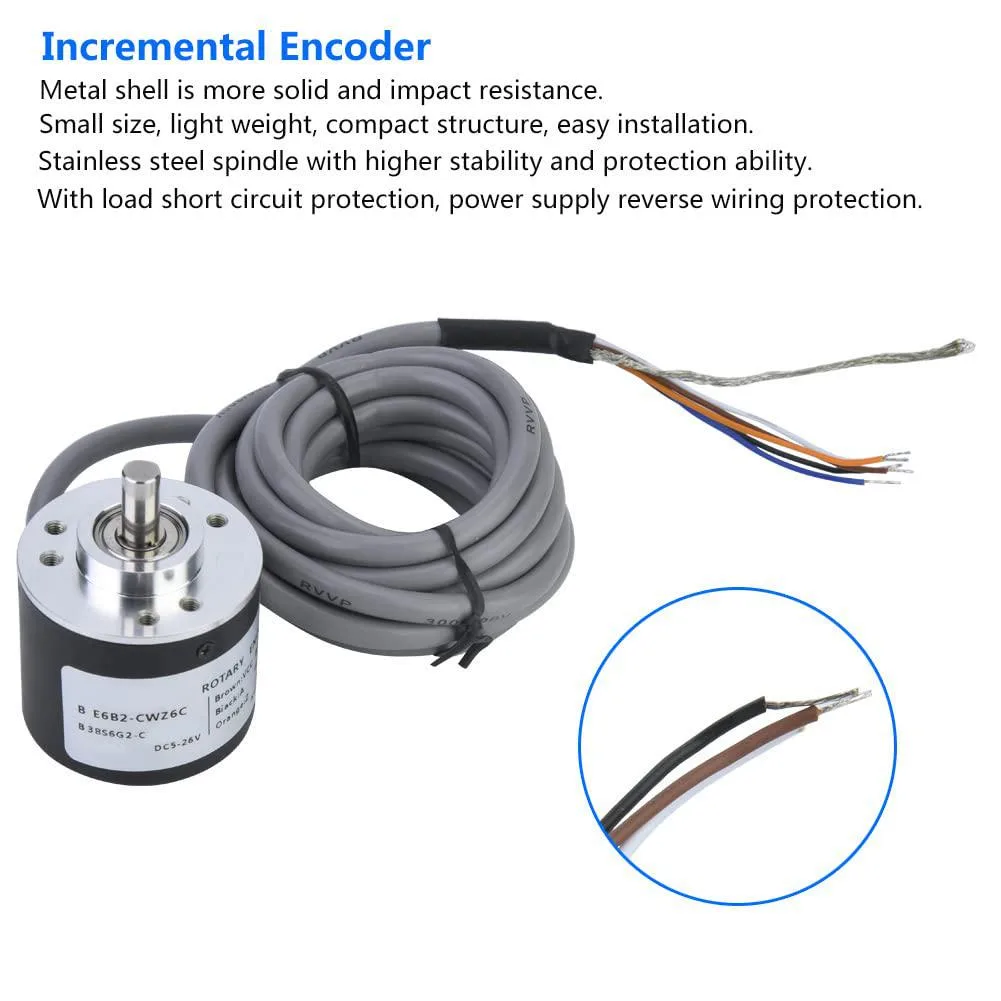

How do I wire the 2 m cable on the E6B2-CWZ6C and which colour do installers often mix up?

Brown is DC5-26 V positive, blue is 0 V negative, black is A phase, white is B phase, orange is Z phase, and shield goes to ground; the brown and blue pair is the one most often reversed.

What wear items on the 38 mm encoder will need replacement after extended use?

The stainless-steel spindle and the two internal bearings carry the 30 N radial and 20 N axial load ratings; they are the only mechanical parts that wear.

At what cable length does signal degradation appear first on the 360 P/R open-collector output?

The factory cable is 2 m; open-collector signals typically show edge rounding and voltage drop beyond 10 m, so the 2 m lead stays well within the clean range.
