myVolts E6B2-CWZ6C Incremental Encoder Transducer 38mm 300P/R 2m Cable
38 mm incremental encoder delivering 300 pulses per revolution with a 2 m cable and DC 5 – 26 V supply range
- TypeAT
- Precise positioning with 300 pulses per revolution
- Reliable operation via internal ASIC anti-interference design
- Durable stainless steel spindle resists 30 N radial load
- Protected against wiring errors with reverse polarity safeguard
- Flexible 5–26 V DC supply fits various systems
38 mm Incremental Encoder for Motion Control
The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder built for position and speed feedback in automation systems. It suits engineers integrating rotary sensing into motor drives, conveyor lines or test rigs where a compact, shaft-mounted transducer is required.

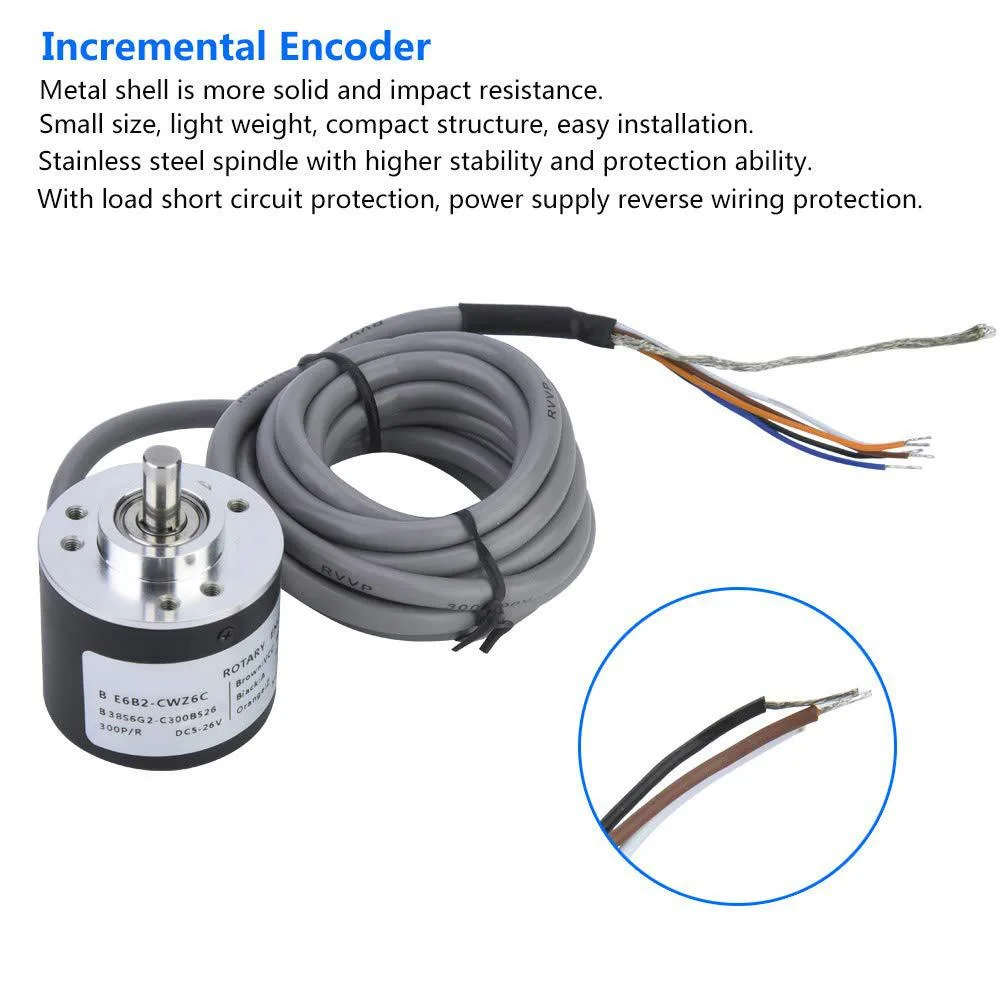

Stainless Spindle and Metal Shell with 2 m Cable
A stainless steel spindle and alloy shell give impact resistance and stable rotation under 30 N radial or 20 N axial loads. The fixed 2 m cable uses colour-coded wires — brown for DC 5–26 V, blue for 0 V, black for signal — and the housing includes reverse-wiring and load short-circuit protection for simpler wiring.

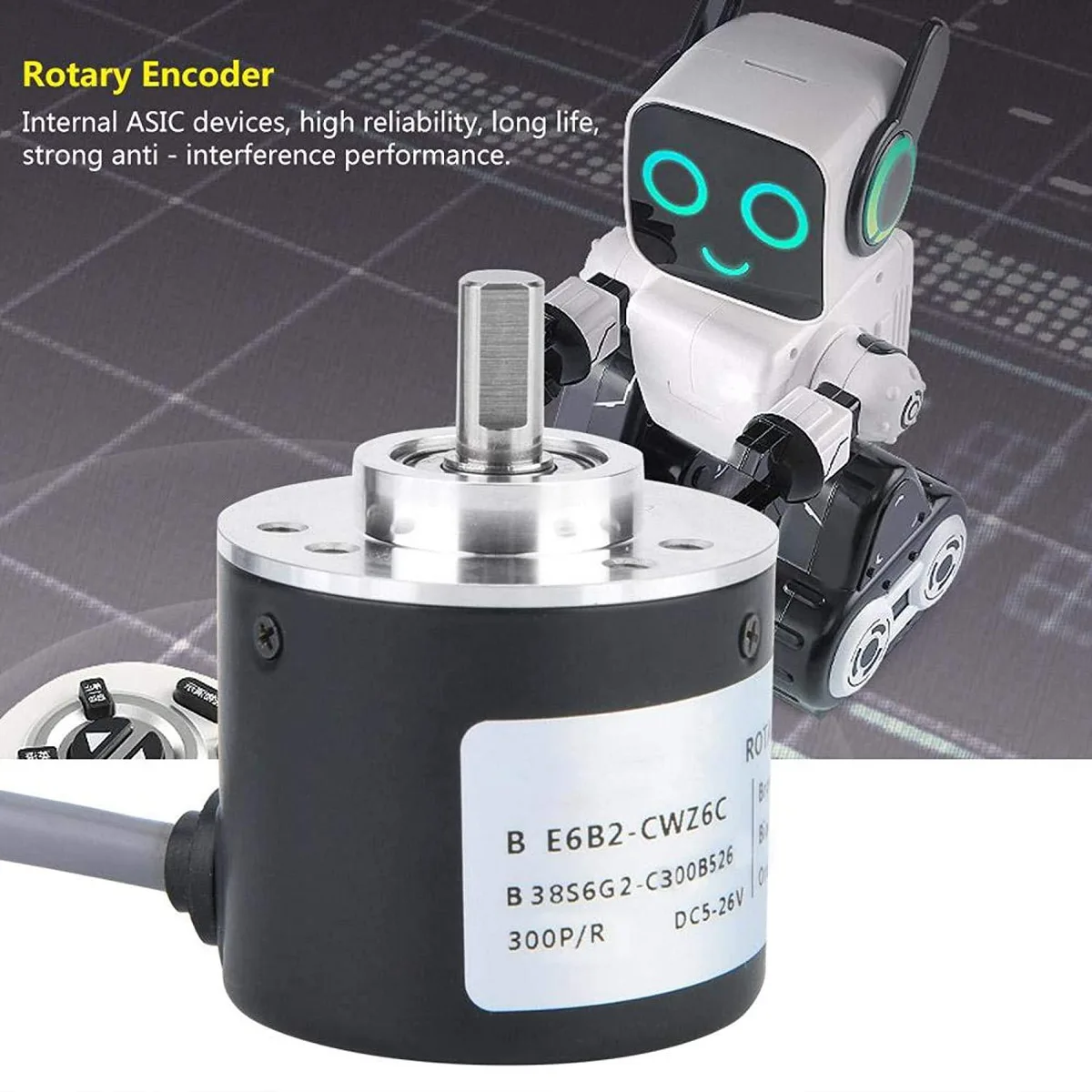

ASIC Design for Noise Immunity and Low Power
Internal ASIC circuitry provides strong anti-interference performance across complementary, push-pull, differential and other output modes. The encoder draws power from a 5–26 V DC supply and delivers A, B and Z phase pulses at resolutions from 100 to 5000 P/R without active cooling or additional filtering.
Highlights
- Precise positioning with 300 pulses per revolution
- Reliable operation via internal ASIC anti-interference design
- Durable stainless steel spindle resists 30 N radial load
- Protected against wiring errors with reverse polarity safeguard
- Flexible 5–26 V DC supply fits various systems
Specifications
| Type | AT |
|---|
Questions about this item
What input voltage range does the open-collector output type support?
The open-collector output type operates on DC 5 to 26 V as stated in the specifications.
What are the shaft diameter and maximum radial load for mounting?
The thrust shaft diameter is 6 mm and the radial shaft loading limit is 30 N.
Which wires are power and ground in the 2 m cable?
Brown is DC 5–26 V positive and blue is 0 V negative according to the wiring method.
