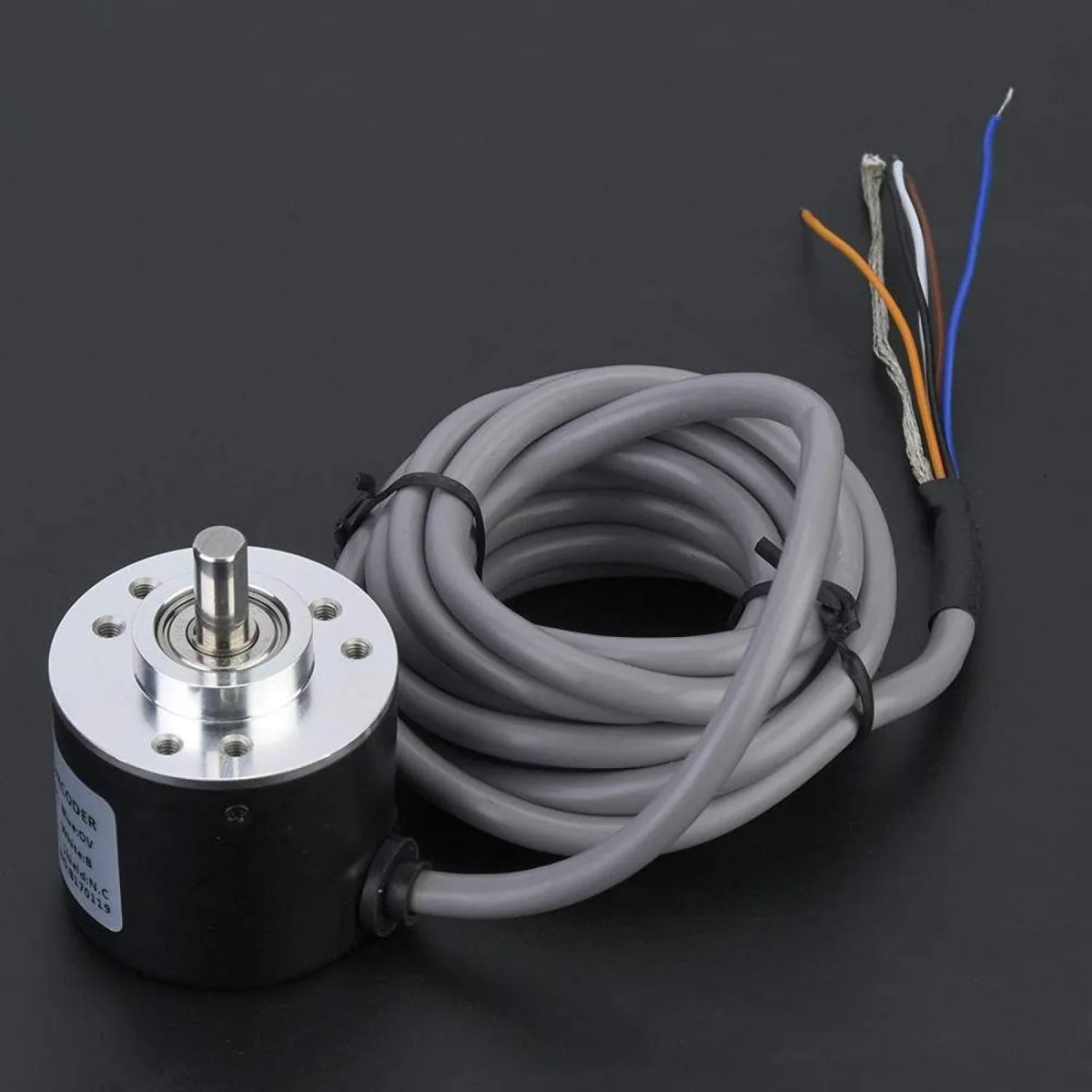

Cylindrical 38 mm encoder with metal body and 2 m cable

myVolts

myVolts E6B2-CWZ6C Incremental Encoder Transducer 38mm 2m 200P/R

SKU CH-RGGC-YCTRG MPN E6B2-CWZ6C

38 mm incremental encoder delivering 200 pulses per revolution with DC 5–26 V supply and 2 m cable

  • TypeAT
  • Reliable operation from internal ASIC devices with strong anti-interference performance
  • Durable stainless steel spindle and metal shell resist impact and wear
  • Flexible wiring with 2 m cable suits compact installations
  • Safe power handling via reverse wiring and short circuit protection
  • Precise 200 pulses per revolution resolution for accurate position feedback

38mm Incremental Encoder for Motion Control

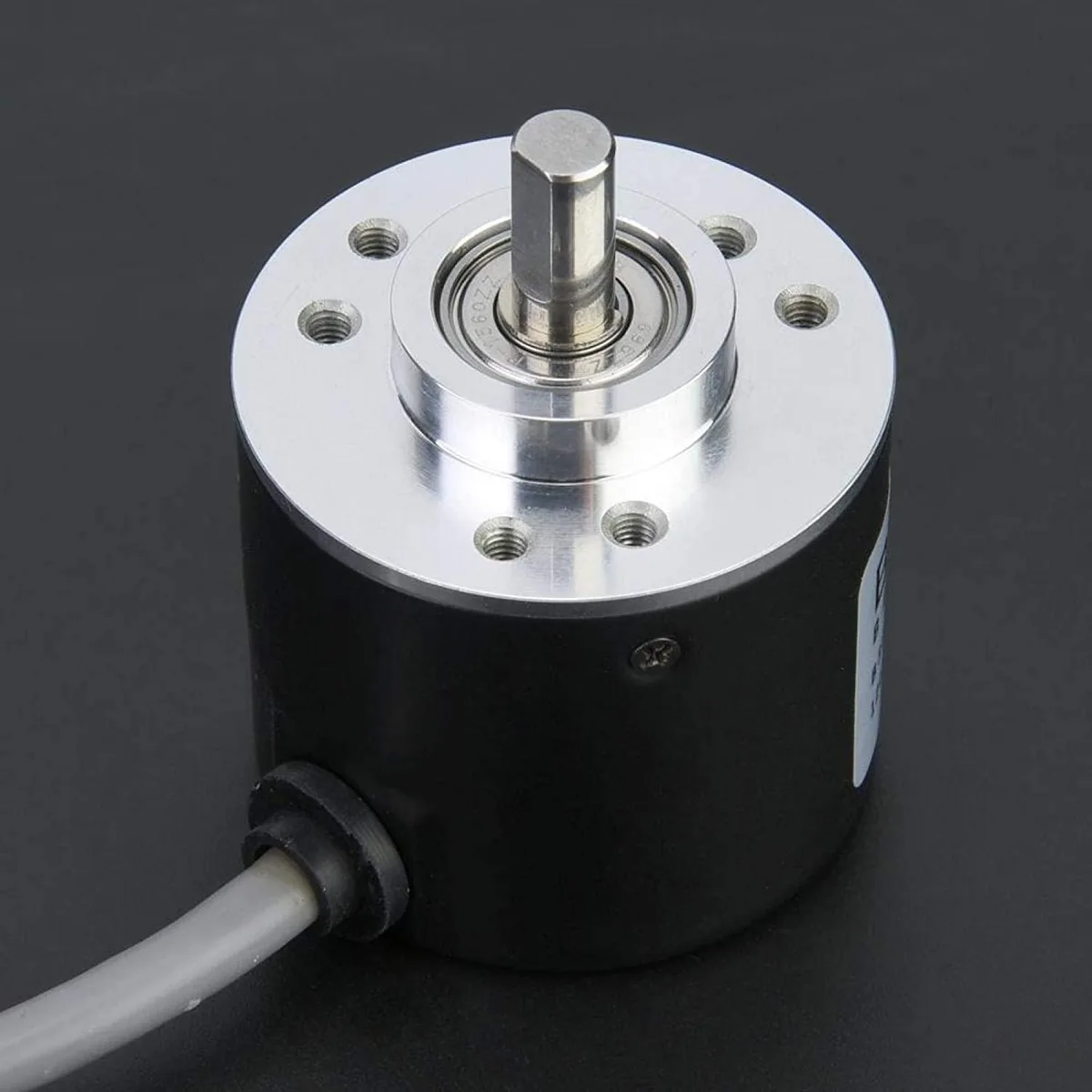

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder designed for position and speed feedback in automation systems. It suits engineers who need a compact, metal-housed transducer with a 6 mm stainless steel spindle for direct coupling to motor shafts or lead screws.

Simple Wiring with Built-In Protection

A 2 m pre-wired cable uses colour-coded conductors: brown for DC 5–26 V supply, blue for 0 V, and black for signal output. The internal ASIC provides load short-circuit protection and power-supply reverse-wiring protection, so incorrect hook-up during commissioning will not damage the device.

Stable Output Under Continuous Rotation

The encoder delivers 200 pulses per revolution across A, B and Z phases with selectable voltage, collector, complementary, push-pull, long-line drive, differential or fork output modes. Rated for 30 N radial and 20 N axial shaft loads, the alloy shell and aluminium body maintain signal integrity during sustained operation without overheating or mechanical drift.

Highlights

  • Reliable operation from internal ASIC devices with strong anti-interference performance
  • Durable stainless steel spindle and metal shell resist impact and wear
  • Flexible wiring with 2 m cable suits compact installations
  • Safe power handling via reverse wiring and short circuit protection
  • Precise 200 pulses per revolution resolution for accurate position feedback

Specifications

TypeAT

Questions about this item

How can I confirm the encoder is working correctly after wiring the brown, blue and black leads?

Apply 5 to 26 V DC between the brown and blue wires, rotate the 6 mm shaft and verify clean A, B and Z pulses on an oscilloscope or counter.

What comes in the box and what must I source separately?

The encoder with its 2 m cable is supplied; mounting hardware, mating connector and DC power supply are not included.

Which resolution should I select for my application?

Choose from the optional pulse counts — 100, 200, 300, 360, 400, 500, 600, 1000, 1024, 1200, 2000, 2500, 3600 or 5000 P/R — to match the positioning accuracy you need.
