myVolts E6B2-CWZ6C Incremental Encoder Transducer 38mm 2m 1000P/R
38 mm incremental encoder delivers 1000 pulses per revolution with 2 m cable, DC 5–26 V supply, and built-in short-circuit plus reverse-wiring protection
- TypeAT
- Precise positioning with 1000 pulses per revolution
- Reliable operation from DC 5 to 26 V supply
- Strong anti-interference performance from internal ASIC devices
- Protected against reverse wiring and output short circuits
- Compact 38 mm diameter with 2 m cable for easy fit
Compact 38 mm Incremental Encoder

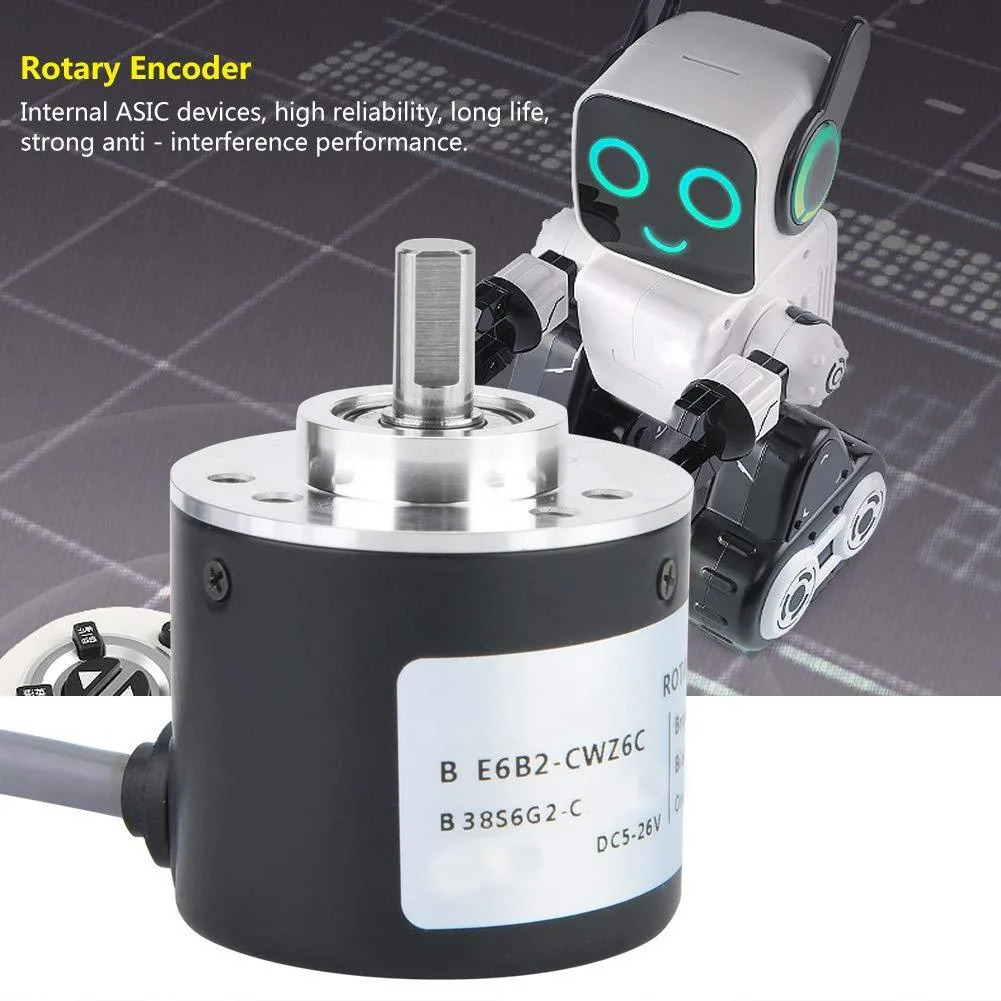

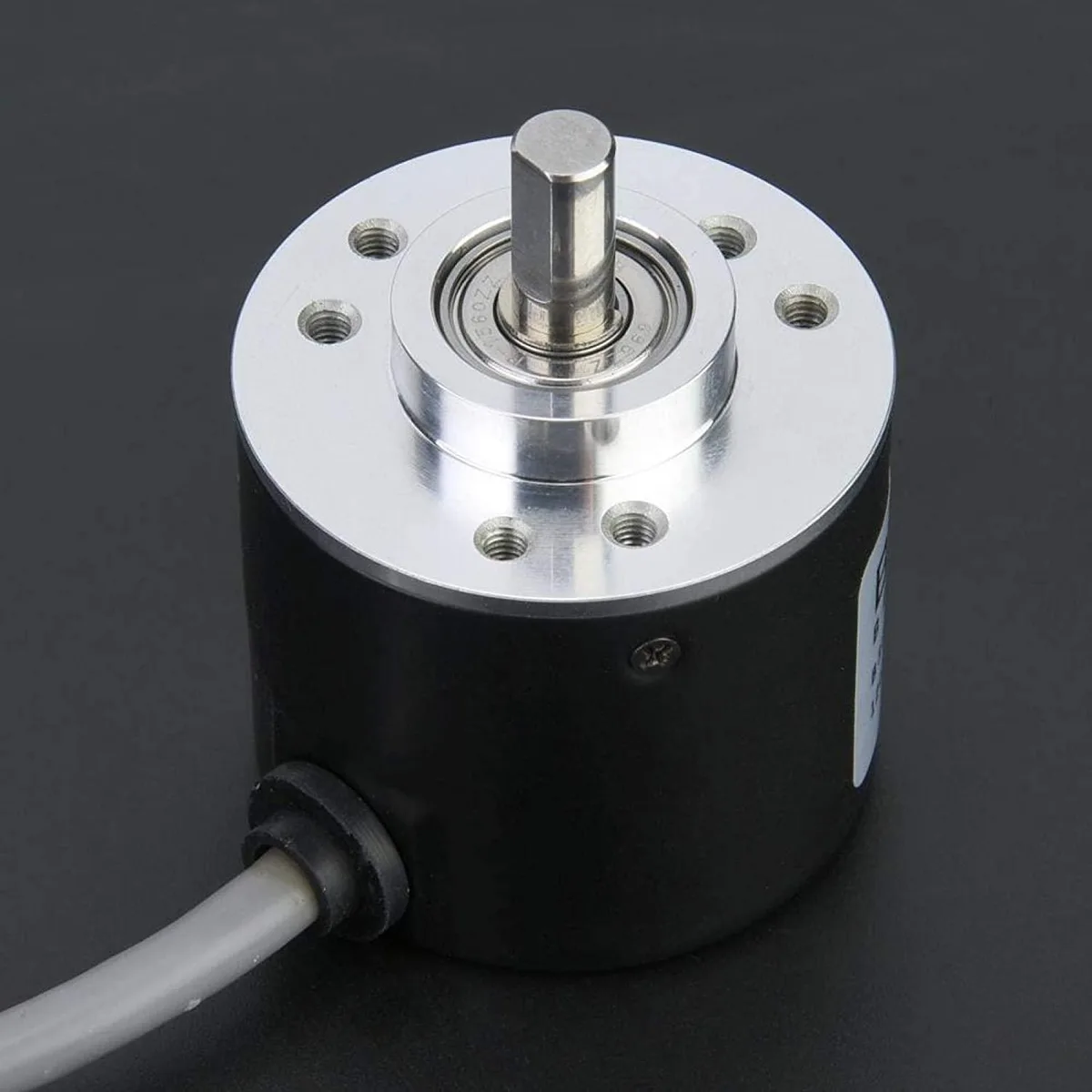

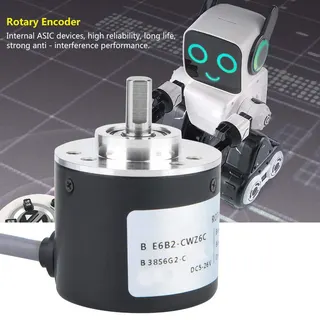

The myVolts E6B2-CWZ6C is a new incremental encoder transducer with a 38 mm outer diameter and a 2 m cable. It delivers 1000 pulses per revolution and operates on a DC 5–26 V supply. The stainless steel spindle and metal shell provide mechanical strength for industrial positioning tasks. Internal ASIC circuitry gives strong anti-interference performance.
Suits precision motion control.
This encoder suits automation engineers who need reliable A, B and Z phase feedback with multiple output modes including voltage, collector and differential. Built-in short-circuit and reverse-wiring protection simplifies integration. Buyers who require resolutions above 1000 P/R should consider other models from the available range.
Resolution fixed at 1000 P/R
The single specification that decides fit is the fixed 1000 pulses per revolution resolution. The unit does not support the optional 100–5000 P/R settings listed in the series datasheet. Verify that 1000 P/R matches your controller requirements before ordering.
Highlights
- Precise positioning with 1000 pulses per revolution
- Reliable operation from DC 5 to 26 V supply
- Strong anti-interference performance from internal ASIC devices
- Protected against reverse wiring and output short circuits
- Compact 38 mm diameter with 2 m cable for easy fit
Specifications
| Type | AT |
|---|
Questions about this item
How much heat or noise does the E6B2-CWZ6C generate when running continuously at 26 V?
The encoder draws low current from a DC 5–26 V supply and has no moving fan; heat and audible noise are negligible during all-day operation.
What must I already have to install and run this 38 mm encoder?
You need a DC 5–26 V power source, a controller that accepts A/B/Z incremental signals, and a 6 mm shaft coupling or mounting bracket for the 38 mm body.
Will the 1000 P/R output work with an older PLC that only accepts open-collector A/B phases?
Yes — the encoder provides open-collector A, B and Z phases, so it connects directly to legacy PLC inputs without extra conversion hardware.
