myVolts E6B2-CWZ6C Incremental Encoder Transducer 38mm 200P/R 2m Cable
A 38 mm incremental encoder with 200 pulses per rotation, 2 m cable and DC 5–26 V supply with reverse-wiring and short-circuit protection
- TypeAT
- Reliable operation from internal ASIC devices with strong anti-interference performance
- Durable stainless steel spindle and metal shell resist impact and wear
- Compact 38 mm diameter design simplifies installation in tight spaces
- Built-in short-circuit and reverse-wiring protection safeguards the power supply
- Flexible 2 m cable and DC 5–26 V input suit varied wiring layouts
38 mm incremental encoder for motion feedback

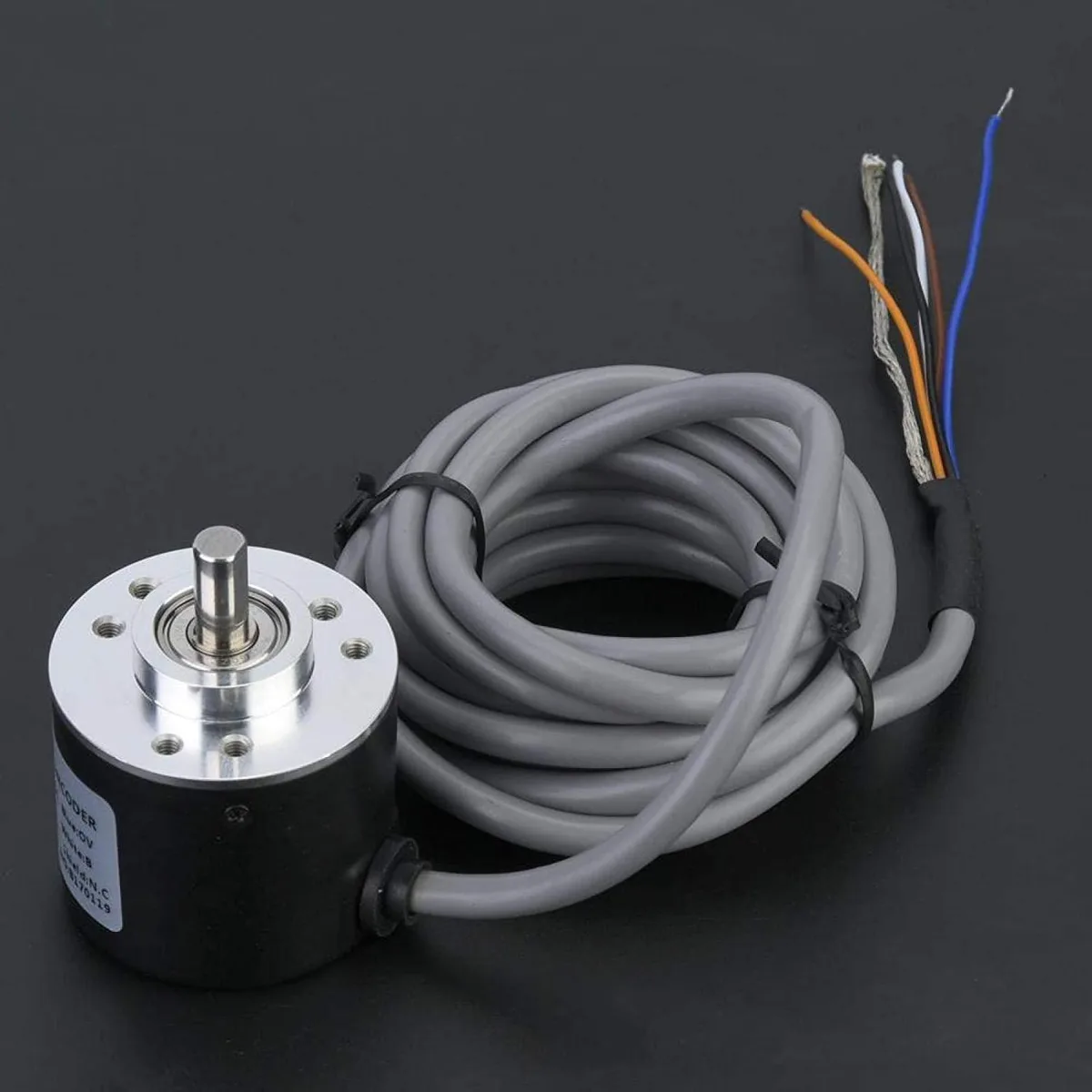

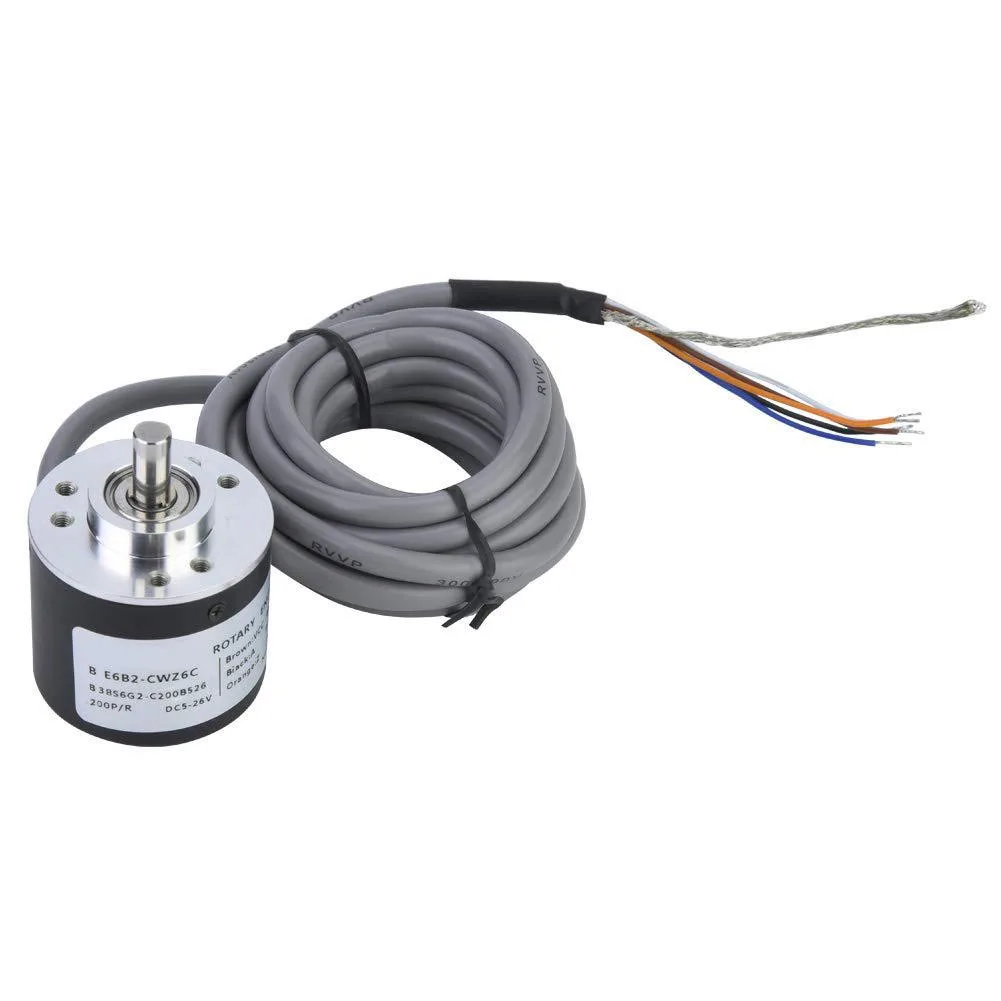

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder that delivers 200 pulses per revolution. It operates on a DC 5 to 26 V supply and provides A, B and Z phase outputs through a 2 m cable. The aluminium body and alloy shell house internal ASIC devices for reliability and anti‑interference performance.
Suits CNC, robotics and servo loops needing 200
Engineers who require a compact encoder with stainless steel spindle and metal housing for impact resistance will find it suitable. The unit handles axial loads up to 30 N and thrust loads up to 20 N. Buyers who need a different pulse count per revolution or a hollow‑shaft design should look at alternative models.
Simple shaft mounting with colour‑coded 2 m leads
The encoder mounts directly onto a 6 mm shaft and the cable uses brown for positive supply, blue for ground and black for signal lines. Built‑in short‑circuit and reverse‑polarity protection reduce wiring mistakes. Ensure the mounting surface is aligned to avoid excess radial force on the spindle.
Highlights
- Reliable operation from internal ASIC devices with strong anti-interference performance
- Durable stainless steel spindle and metal shell resist impact and wear
- Compact 38 mm diameter design simplifies installation in tight spaces
- Built-in short-circuit and reverse-wiring protection safeguards the power supply
- Flexible 2 m cable and DC 5–26 V input suit varied wiring layouts
Specifications
| Type | AT |
|---|
Questions about this item
What DC voltage range must my power supply provide for the E6B2-CWZ6C encoder?
The encoder operates from DC 5 V to 26 V with open-collector output, so any supply within that range is suitable.
Will the 6 mm stainless spindle fit the 30 N radial and 20 N axial loads of my existing shaft?
Yes, the encoder's stainless spindle is rated for 30 N radial and 20 N thrust loading, matching those limits.
How do I confirm the 200 P/R resolution is active after wiring the brown, blue and black leads?
Rotate the shaft once and count 200 pulses on the A or B channel; the Z channel should give one index pulse per revolution.
