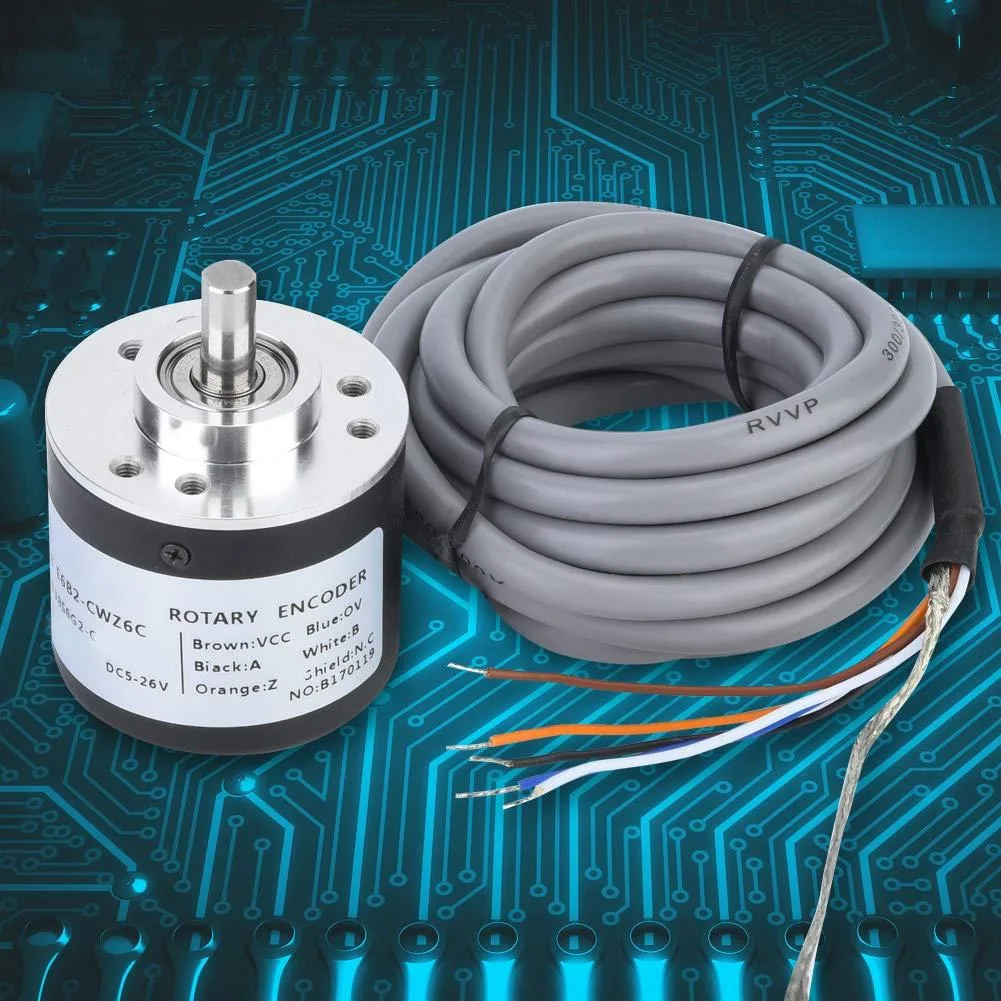

Small cylindrical metal encoder with stainless spindle and two-metre cable

myVolts

myVolts E6B2-CWZ6C Incremental Encoder Transducer 38mm 1024P/R 2m Cable

SKU CH-326C-S7W54 MPN E6B2-CWZ6C

Incremental encoder with 38mm diameter, 1024 pulses per revolution, and 2m cable for DC5-26V systems

  • TypeAT
  • High resolution 1024 pulses per revolution enables precise position feedback
  • DC 5 to 26 V supply range suits varied industrial power systems
  • Stainless steel spindle and metal housing resist shock and radial loads up to 30 N
  • Built-in ASIC circuitry delivers strong anti-interference performance for reliable signals
  • Two-metre cable with multiple output options simplifies installation in compact spaces

Compact Incremental Encoder 38mm 1024P/R

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder delivering 1024 pulses per revolution. It suits motion-control systems that need precise position feedback with open-collector, voltage, complementary, push-pull, differential or long-line drive outputs. The two-metre cable simplifies wiring in tight cabinets.

Verify Voltage and Shaft Load Before Installing

Confirm your controller accepts a DC 5–26 V supply and can sink the chosen output mode. The 6 mm thrust shaft handles 30 N radial and 20 N axial loads, so check that your coupling and mounting arrangement stay within those limits. Ensure the brown and blue leads match your power rails before applying voltage.

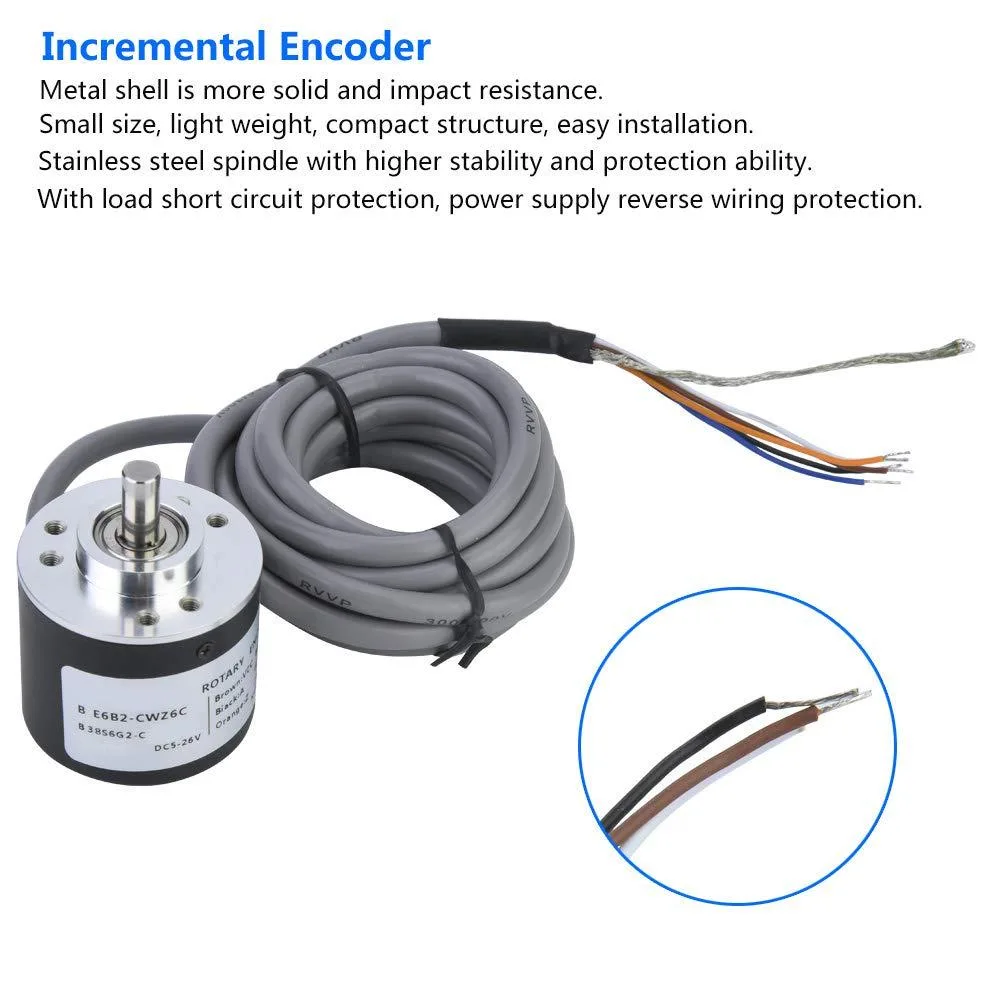

Metal Housing With Protected Outputs

An alloy shell and aluminium body give impact resistance while keeping the unit light. The stainless-steel spindle adds stability against vibration. Built-in short-circuit and reverse-polarity protection guard the ASIC electronics during commissioning and daily operation. The 2 m pigtail allows direct termination without extra connectors.

Highlights

  • High resolution 1024 pulses per revolution enables precise position feedback
  • DC 5 to 26 V supply range suits varied industrial power systems
  • Stainless steel spindle and metal housing resist shock and radial loads up to 30 N
  • Built-in ASIC circuitry delivers strong anti-interference performance for reliable signals
  • Two-metre cable with multiple output options simplifies installation in compact spaces

Specifications

TypeAT

Questions about this item

What comes in the box with the E6B2-CWZ6C encoder and what must I source separately?

The encoder ships with a 2 m cable pre-wired for brown positive, blue negative and black A-phase leads. Mounting hardware, couplings or a 5–26 V DC supply are not included.

The spec lists many pulse counts — how do I pick the right resolution for myVolts E6B2-CWZ6C?

This unit is the 1024 pulses-per-revolution version; choose it when your controller expects 1024 P/R. Other counts from 100 to 5000 P/R are separate order codes.

What does the 1024 P/R rating mean once the encoder is mounted on a 6 mm shaft?

Each revolution of the 6 mm stainless spindle delivers 1024 A/B quadrature cycles plus one Z index pulse, compatible with 5–26 V DC open-collector inputs.
