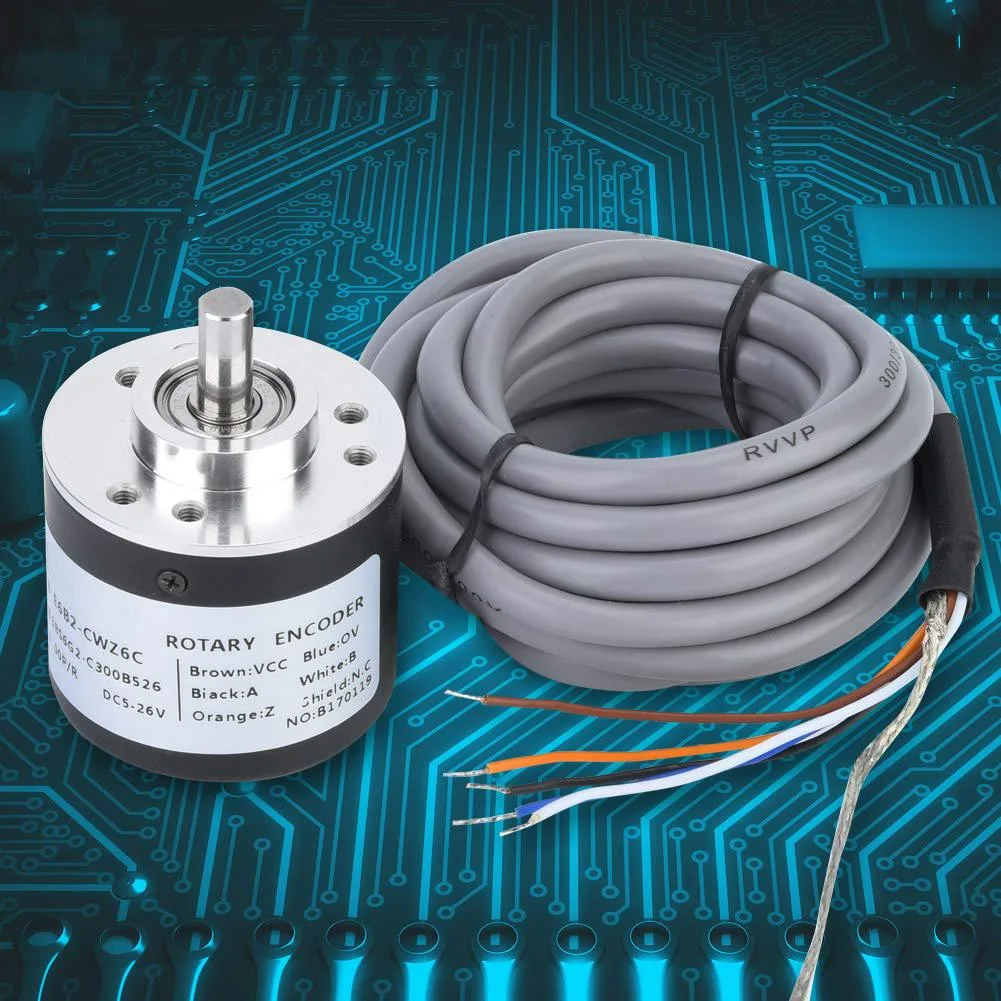

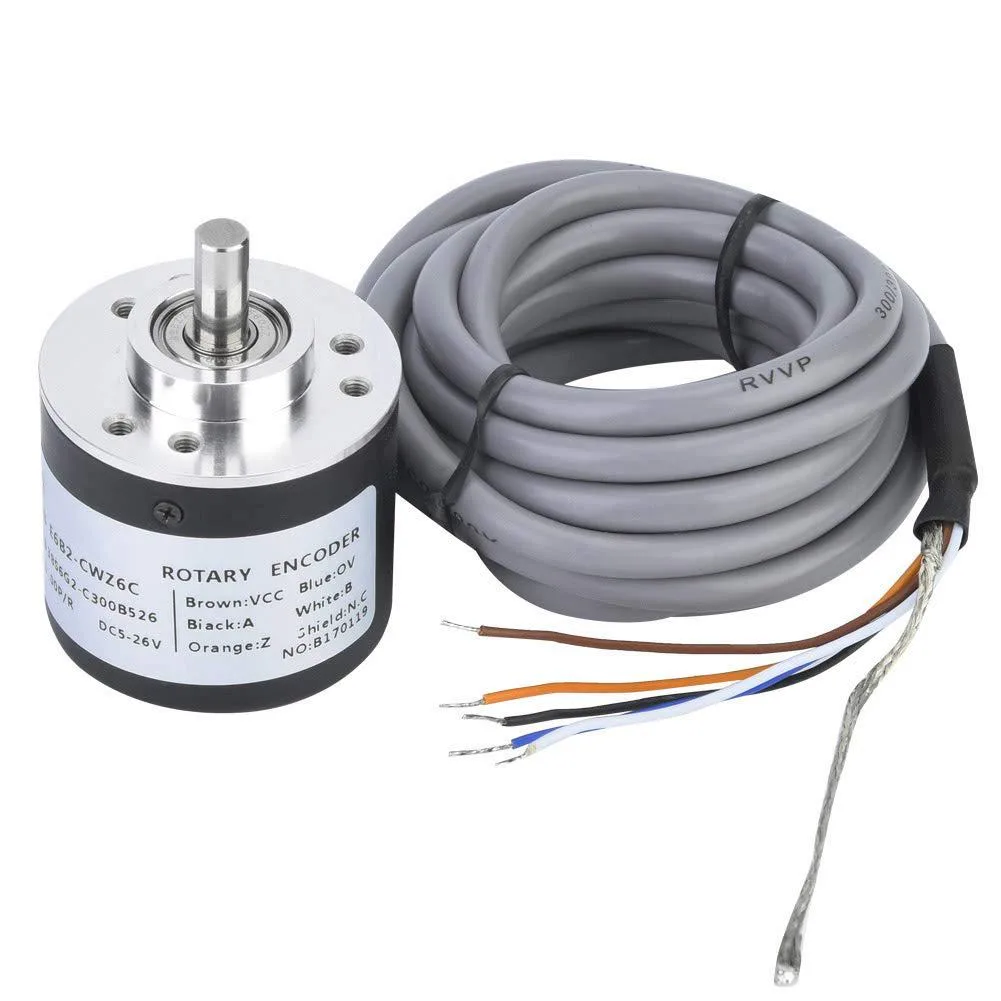

Small metal incremental encoder with 38mm alloy shell, 6mm stainless spindle, 2m cable, 300 pulses per revolution

myVolts

myVolts E6B2-CWZ6C Incremental Encoder Semiconductor 38mm 300P/R

SKU CH-4YMA-BPGC9 MPN E6B2-CWZ6C

38 mm incremental encoder with 300 pulses per revolution, DC 5-26 V supply, multiple output modes, short-circuit and reverse-wiring protection, stainless steel spindle and metal housing

  • TypeAT
  • 38mm diameter enables compact integration in tight spaces
  • 300 pulses per revolution provides precise position feedback
  • DC5-26V input range suits diverse power supplies
  • stainless steel spindle with metal shell resists impact and wear
  • ASIC design delivers strong anti-interference and long life

Industrial Incremental Encoder 38mm

The myVolts E6B2-CWZ6C is a general-purpose incremental encoder built for motion-control systems that need reliable position feedback. Its metal housing and stainless-steel spindle suit machinery exposed to vibration or impact. Engineers integrating servo loops or conveyor indexing will find the 38 mm body compact enough for tight mounts.

Resolution 300 Pulses Per Revolution

This specific unit delivers 300 pulses per revolution, a fixed resolution that determines the smallest angular step your controller can detect. The encoder operates on a DC 5–26 V supply with open-collector output and provides A, B and Z phase signals. Select this resolution only if your application’s accuracy requirements match 300 P/R exactly.

Two-Metre Cable and Protection Features

A 2 m pre-wired cable with colour-coded leads simplifies wiring to the controller cabinet. Built-in load short-circuit protection and power-supply reverse-polarity protection reduce the risk of damage during installation or maintenance. The package contains only the encoder and its cable; no mounting brackets, couplings or configuration software are included. Buyers who need a different pulse count, a hollow shaft or a field-bus interface must choose another model.

Highlights

  • 38mm diameter enables compact integration in tight spaces
  • 300 pulses per revolution provides precise position feedback
  • DC5-26V input range suits diverse power supplies
  • stainless steel spindle with metal shell resists impact and wear
  • ASIC design delivers strong anti-interference and long life

Specifications

TypeAT

Questions about this item

What does 300 pulses per revolution mean for position tracking in my machine?

Each full shaft turn produces 300 output pulses, giving a discrete position step every 1.2 degrees for speed or distance feedback.

How does the DC5–26 V open-collector interface limit wiring length and noise immunity?

The open-collector output works with 5 to 26 V supplies and the built-in ASIC plus reverse-wiring protection maintains signal integrity over the standard 2 m cable.

Will the 38 mm diameter body and 6 mm shaft fit my existing mounting plate?

The encoder housing is 38 mm across with a 6 mm stainless-steel shaft rated for 30 N radial and 20 N axial loads, suited to standard small-frame mounts.
