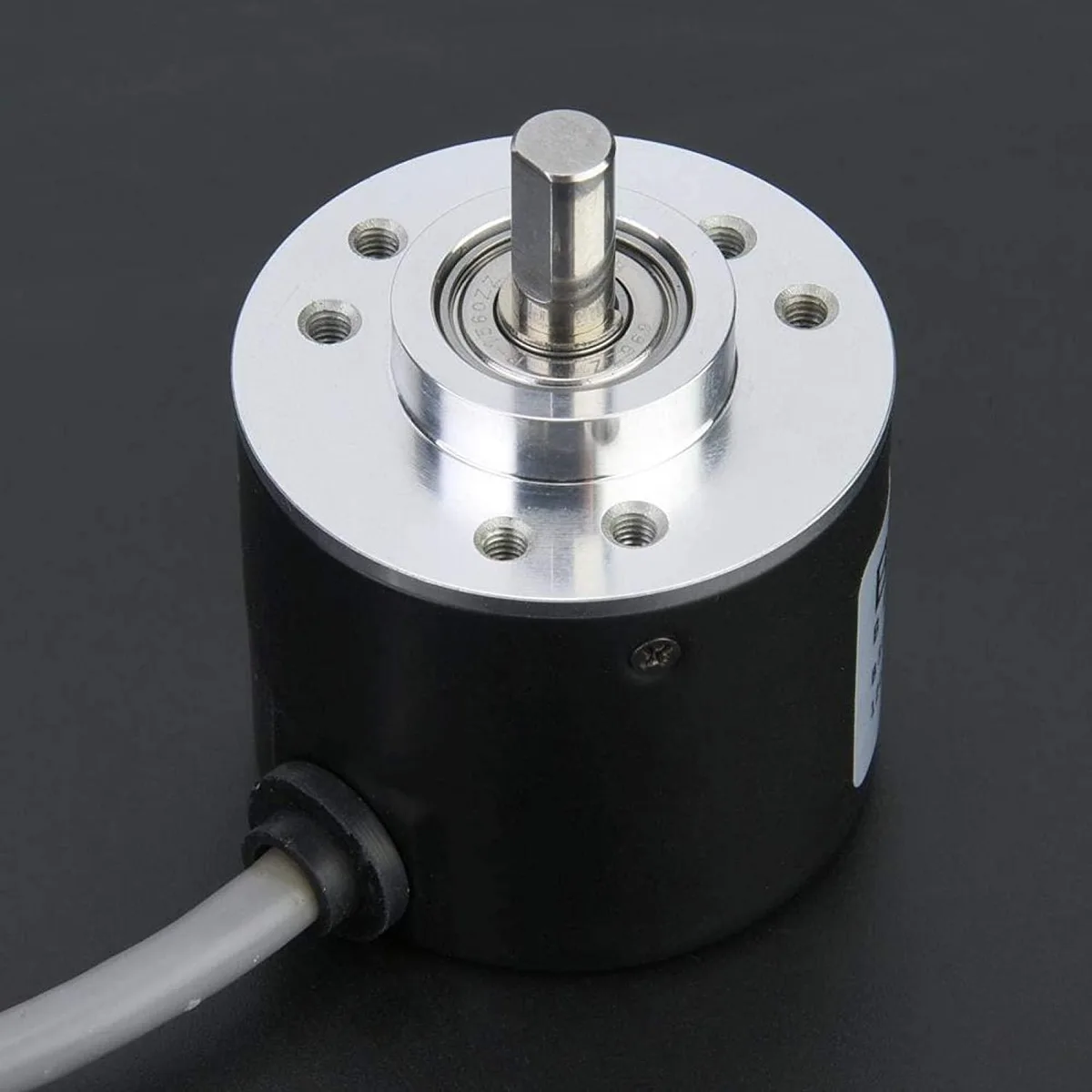

Small cylindrical encoder with metal shell and stainless spindle, 38mm diameter, 2m cable visible

myVolts

myVolts E6B2-CWZ6C Incremental Encoder Semiconductor 38mm 2500P/R

SKU CH-7BY6-S1CNP MPN E6B2-CWZ6C

A 38 mm incremental encoder with 2500 pulses per revolution, DC 5 to 26 V supply, stainless steel spindle, metal housing, ASIC internals, short-circuit and reverse-wiring protection

  • TypeAT
  • 38 mm diameter enables compact machine integration
  • 2500 pulses per revolution deliver precise position feedback
  • Internal ASIC design provides strong anti‑interference performance
  • Stainless steel spindle and metal shell withstand 30 N radial and 20 N axial loads
  • DC 5‑26 V supply with reverse‑wiring and short‑circuit protection

Industrial Position Encoder

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder built for motion-control systems that require precise shaft-angle feedback. Its stainless-steel spindle and alloy housing suit machine-tool, robotics and automation installations where mechanical durability matters.

Thermals and Electrical Protection

The unit operates from a DC 5 to 26 V supply with open-collector output and includes on-board reverse-polarity and load short-circuit protection. Internal ASIC circuitry maintains signal integrity in electrically noisy environments without requiring external filtering components.

Sustained-Load Behaviour

Rated for 30 N radial and 20 N axial shaft loading, the encoder maintains specified resolution up to 2500 pulses per revolution during continuous rotation. Six selectable output modes — voltage, collector, complementary, push-pull, long-line driver and differential — preserve signal quality over the standard 2 m cable run.

Highlights

  • 38 mm diameter enables compact machine integration
  • 2500 pulses per revolution deliver precise position feedback
  • Internal ASIC design provides strong anti‑interference performance
  • Stainless steel spindle and metal shell withstand 30 N radial and 20 N axial loads
  • DC 5‑26 V supply with reverse‑wiring and short‑circuit protection

Specifications

TypeAT

Questions about this item

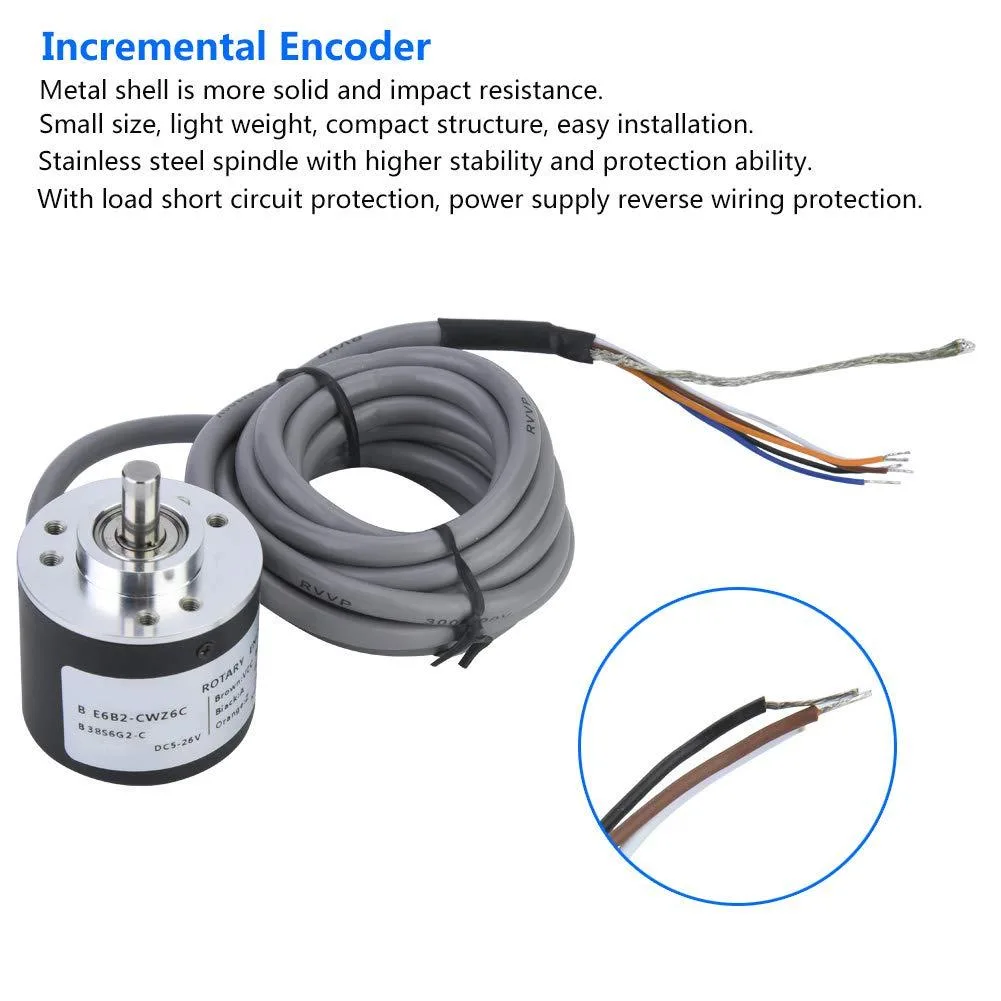

How do I wire the 2 m cable of the E6B2-CWZ6C and which step is often missed?

Connect brown to DC 5-26 V, blue to 0 V, black to A phase, white to B phase, orange to Z phase and shield to ground; the step often missed is verifying the supply stays within 5-26 V before powering up.

What maintenance or replacement will the 6 mm stainless spindle and metal shell need later?

The stainless spindle and alloy shell are built for long life with strong impact resistance; no routine maintenance is required, but if axial load exceeds 30 N or thrust exceeds 20 N the bearings can wear and the encoder would need replacement.

What limit appears first when the encoder runs continuously at 2500 pulses per revolution?

The 30 N radial and 20 N axial load ratings are the first limits under sustained operation; exceeding either will degrade the stainless spindle bearings before the ASIC or 5-26 V supply range becomes an issue.
