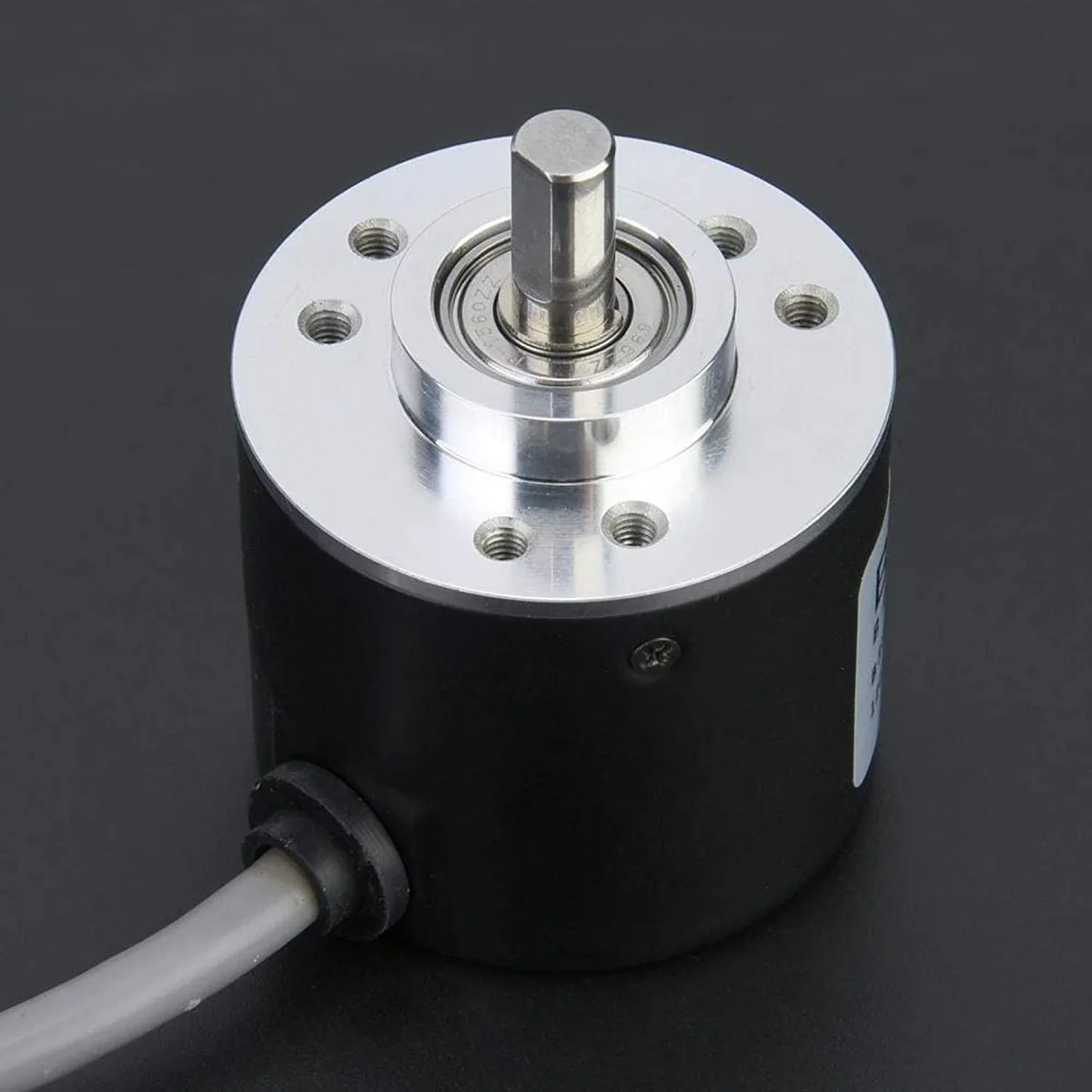

Compact 38 mm incremental encoder with 6 mm stainless spindle and 2 m cable

myVolts

myVolts E6B2-CWZ6C Incremental Encoder 38mm 6mm 2m 100P/R Semiconductor

SKU CH-3EF7-ZYYKX MPN E6B2-CWZ6C

A 38 mm incremental encoder with a 6 mm stainless spindle, 2 m cable and 100 pulses per revolution, offering DC 5–26 V operation.

  • TypeAT
  • Compact 38 mm diameter fits tight machine spaces
  • 100 pulses per revolution gives precise position feedback
  • Stainless steel spindle and metal shell resist shock and wear
  • Internal ASIC design delivers strong anti-interference reliability
  • DC 5–26 V supply with reverse-wiring and short-circuit protection

Incremental encoder for motion control

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder designed for position and speed feedback in automation systems. It operates on a DC 5 V to 26 V supply with open-collector output and provides A, B and Z phase signals through a 2 m cable. The unit uses internal ASIC devices for high reliability and strong anti-interference performance in industrial environments.

Suited for compact shafts needing 100 P/R resolution

This encoder fits a 6 mm thrust shaft and handles 30 N radial and 20 N axial loads, making it suitable for small motors and tight mounting spaces. The stainless-steel spindle and metal shell resist impact and vibration. It is not for applications requiring a different pulse count per revolution, a hollow-shaft format, or a larger diameter body.

Resolution fixed at 100 pulses per revolution

The specific model supplied delivers 100 P/R, which determines the granularity of positional feedback. Other pulse counts from 200 to 5000 P/R exist as optional variants but are not the item described here. Select this part only when 100 P/R matches the controller’s required scaling.

Highlights

  • Compact 38 mm diameter fits tight machine spaces
  • 100 pulses per revolution gives precise position feedback
  • Stainless steel spindle and metal shell resist shock and wear
  • Internal ASIC design delivers strong anti-interference reliability
  • DC 5–26 V supply with reverse-wiring and short-circuit protection

Specifications

TypeAT

Questions about this item

Will the 38mm encoder fit the 6mm shaft on my existing motor?

Yes, the thrust shaft diameter is 6mm and the outer diameter is 38mm, matching those dimensions.

How can I verify the 100P/R output is working after wiring?

Rotate the shaft and measure A, B, Z phase pulses; you should see 100 pulses per full revolution on each channel.

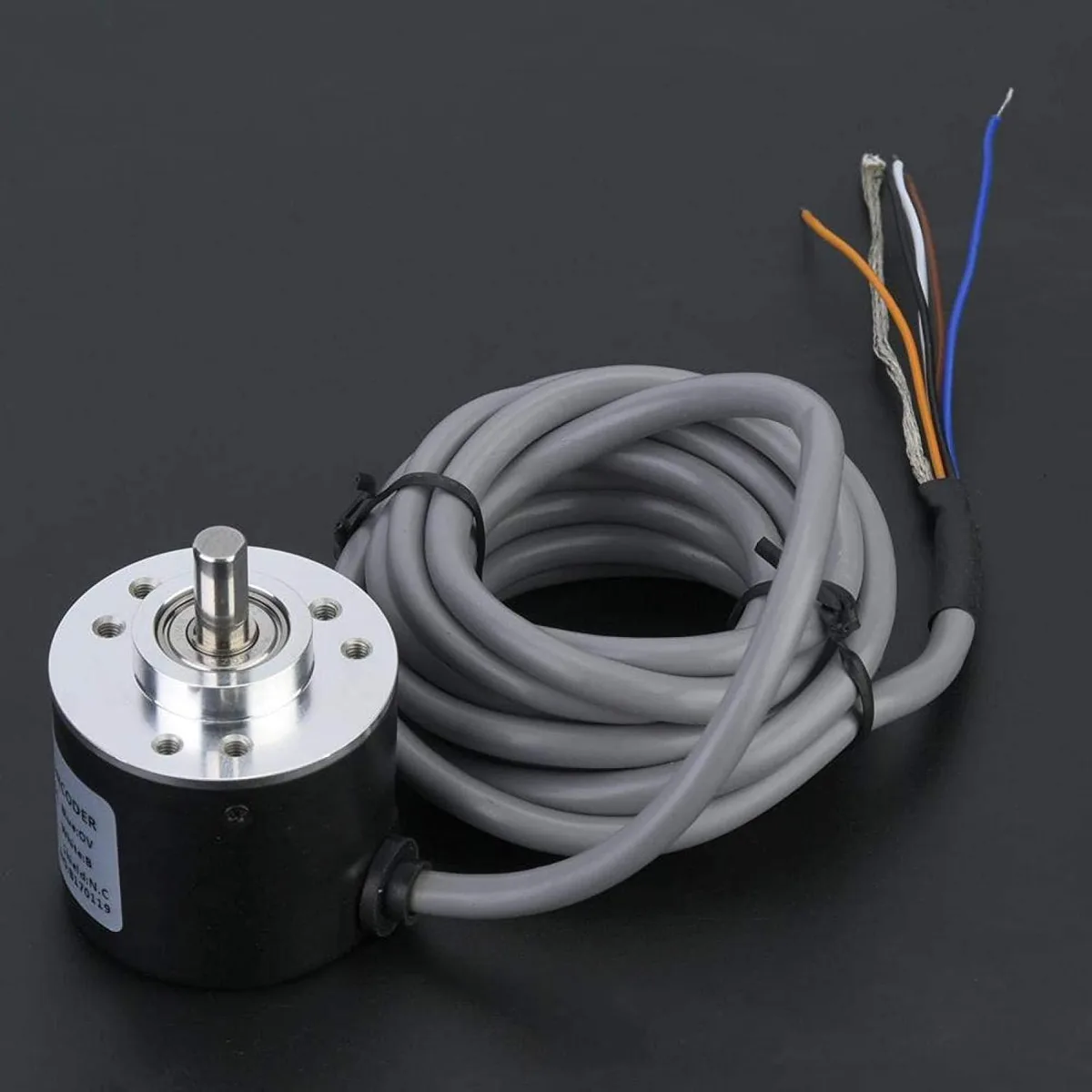

Does the 2m cable include the brown and blue power wires, or must I supply a separate DC5-26V source?

The 2m cable provides brown for DC5-26V positive and blue for 0V negative; you only need to connect a compatible power supply.
