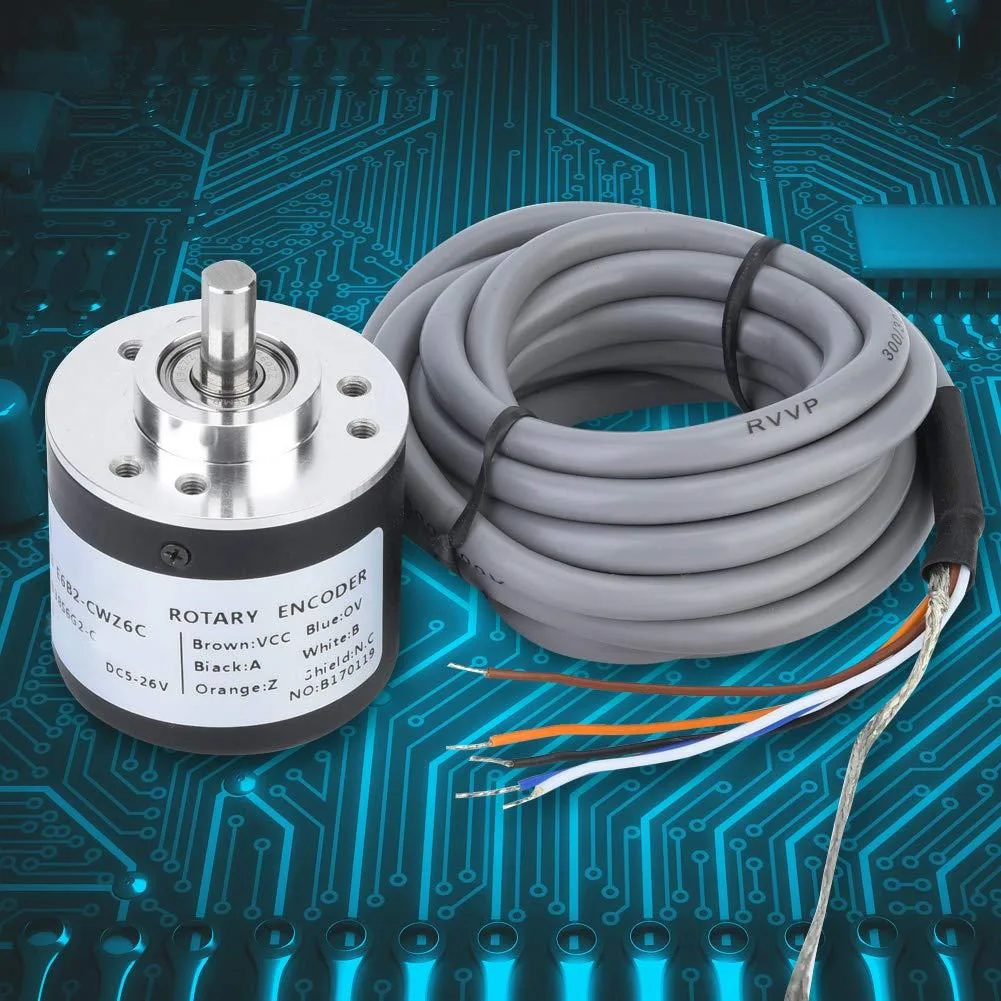

Small cylindrical encoder with metal body and 2m cable

myVolts

myVolts E6B2-CWZ6C Incremental Encoder 38mm 3600 P/R 2m Cable

SKU CH-54XB-VV3C2 MPN E6B2-CWZ6C

A 38 mm incremental encoder with 3600 P/R resolution, 2 m cable, DC 5–26 V supply and built‑in short‑circuit and reverse‑polarity protection

  • TypeAT
  • Precise positioning with 3600 pulses per revolution
  • Reliable signal integrity via internal ASIC circuitry
  • Durable stainless-steel spindle rated for 30 N radial load
  • Protected against wiring errors with reverse-polarity safeguard
  • Flexible 5–26 V DC supply suits varied systems

38mm Incremental Encoder for Motion Control

The myVolts E6B2-CWZ6C is a 38mm diameter incremental encoder built for machinery and automation tasks. It provides A, B and Z phase signals through voltage, collector, complementary, push-pull, long-line-drive, differential or fork outputs. The unit operates on a DC 5 to 26 V supply with open-collector output. A 2m cable and 6mm thrust shaft simplify installation in compact machine frames.

Upgrade from Lower Resolution or Unprotected Units

This encoder replaces devices that lack reverse-wiring protection or short-circuit protection on the output stage. The jump is worthwhile when the application demands selectable resolution up to 3600 pulses per revolution and the mechanical load reaches 30 N radial or 20 N axial. Builders who need more than 5000 pulses per revolution or a larger shaft diameter should look elsewhere.

Sustained Operation with ASIC Reliability

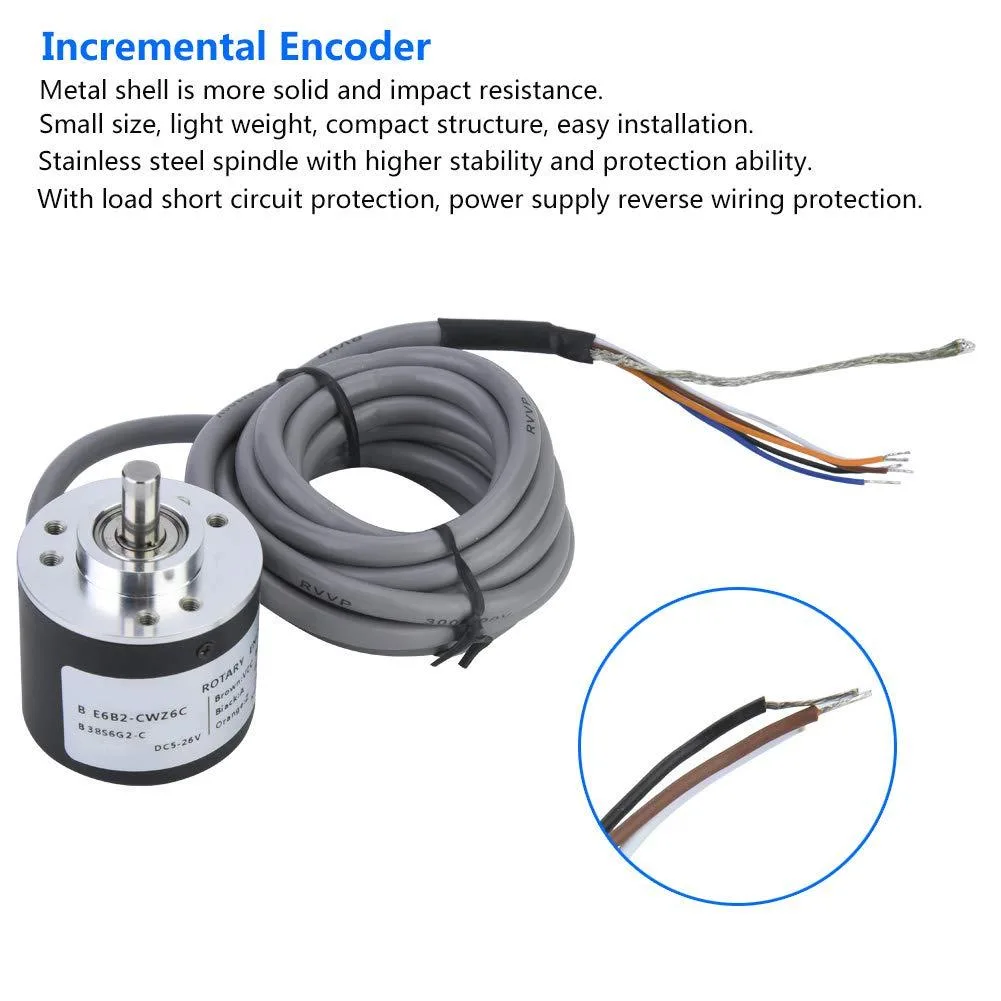

Internal ASIC devices give strong anti-interference performance during continuous rotation. The stainless steel spindle and metal shell resist impact and maintain stability under the rated 30 N radial and 20 N axial loads. Short-circuit and reverse-polarity safeguards protect the output stage during extended duty cycles. The encoder maintains specified output integrity across the full DC 5 to 26 V range.

Highlights

  • Precise positioning with 3600 pulses per revolution
  • Reliable signal integrity via internal ASIC circuitry
  • Durable stainless-steel spindle rated for 30 N radial load
  • Protected against wiring errors with reverse-polarity safeguard
  • Flexible 5–26 V DC supply suits varied systems

Specifications

TypeAT

Questions about this item

What shaft diameter and outer diameter must my mounting accommodate for the E6B2-CWZ6C encoder?

The encoder has a 6 mm thrust shaft diameter and a 38 mm outer diameter, so your mounting must accept those dimensions.

How do I wire the E6B2-CWZ6C encoder correctly and what common mistake should I avoid?

Connect the brown wire to DC 5–26 V positive, the blue wire to 0 V negative, and the black wire to the signal output; the most common error is reversing the brown and blue power leads.

Which wear items on the E6B2-CWZ6C encoder will need inspection or replacement over time?

The stainless-steel spindle and the 2 m cable are the primary wear items; inspect the spindle for radial play beyond 30 N load limits and the cable for insulation damage.
