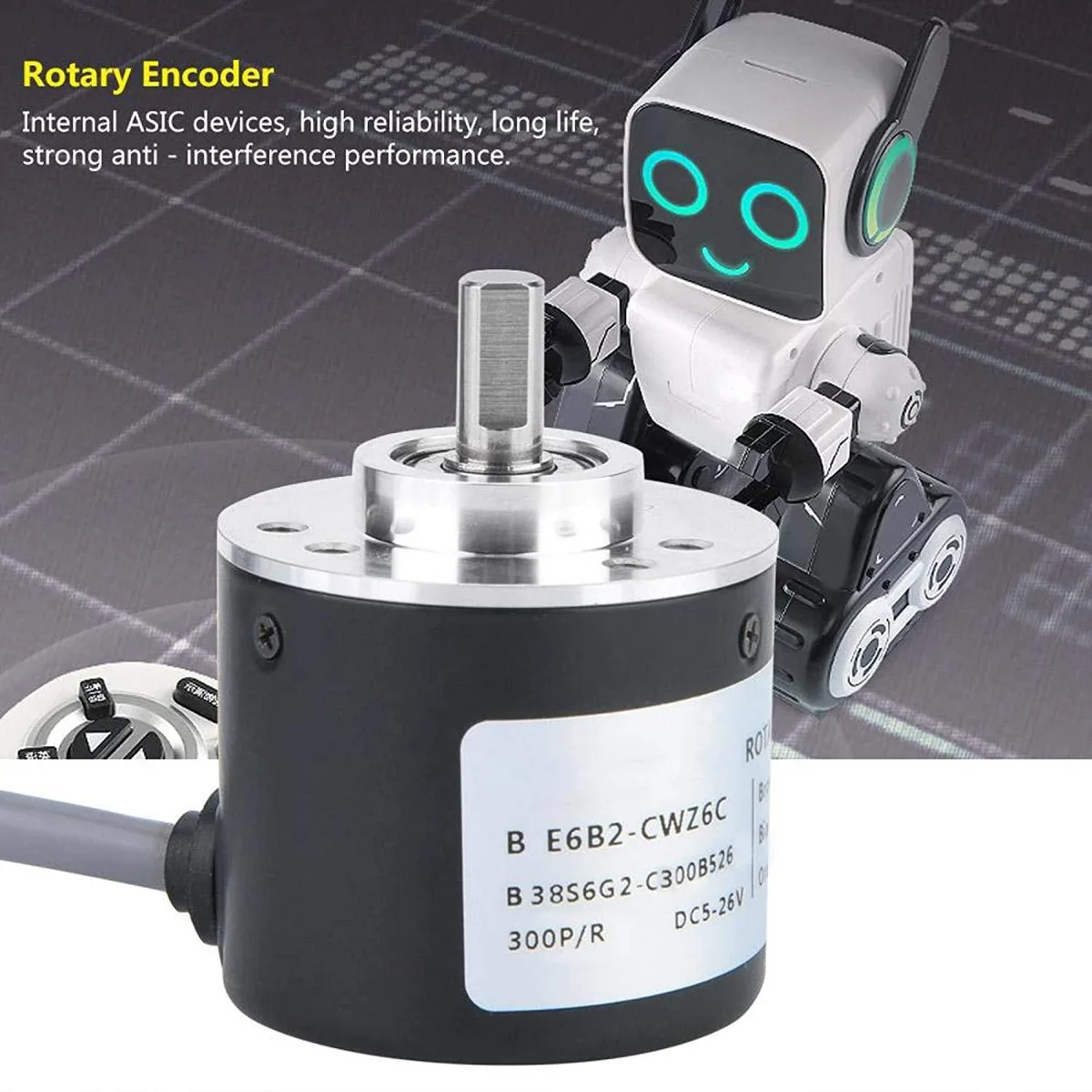

myVolts E6B2-CWZ6C Incremental Encoder 38mm 2m 300P/R transducer
A 38 mm incremental encoder with a 2 m cable delivering 300 pulses per revolution and operating on 5 to 26 V DC with short-circuit and reverse-wiring protection
- TypeAT
- Precise positioning with 300 pulses per revolution
- Robust 38 mm metal housing resists shock and vibration
- Stainless steel spindle handles 30 N radial and 20 N axial loads
- Wide DC 5–26 V supply range suits many control systems
- Built-in short-circuit and reverse-wiring protection prevents damage
38mm Incremental Encoder for Motion Control
The myVolts E6B2-CWZ6C is a 38mm diameter incremental encoder designed for position and speed feedback in automation systems. It suits engineers integrating precise rotational measurement into motor drives, conveyor lines or CNC equipment where a compact, rugged transducer is required.
2m Cable and ASIC Core Simplify Integration
A 2 metre pre-wired cable with colour-coded leads connects directly to DC 5–26V supplies and accepts open-collector, voltage, complementary, push-pull, line-drive, differential or fork outputs. Internal ASIC circuitry provides load short-circuit protection and reverse-wiring protection, reducing external components and improving noise immunity in electrically noisy cabinets.

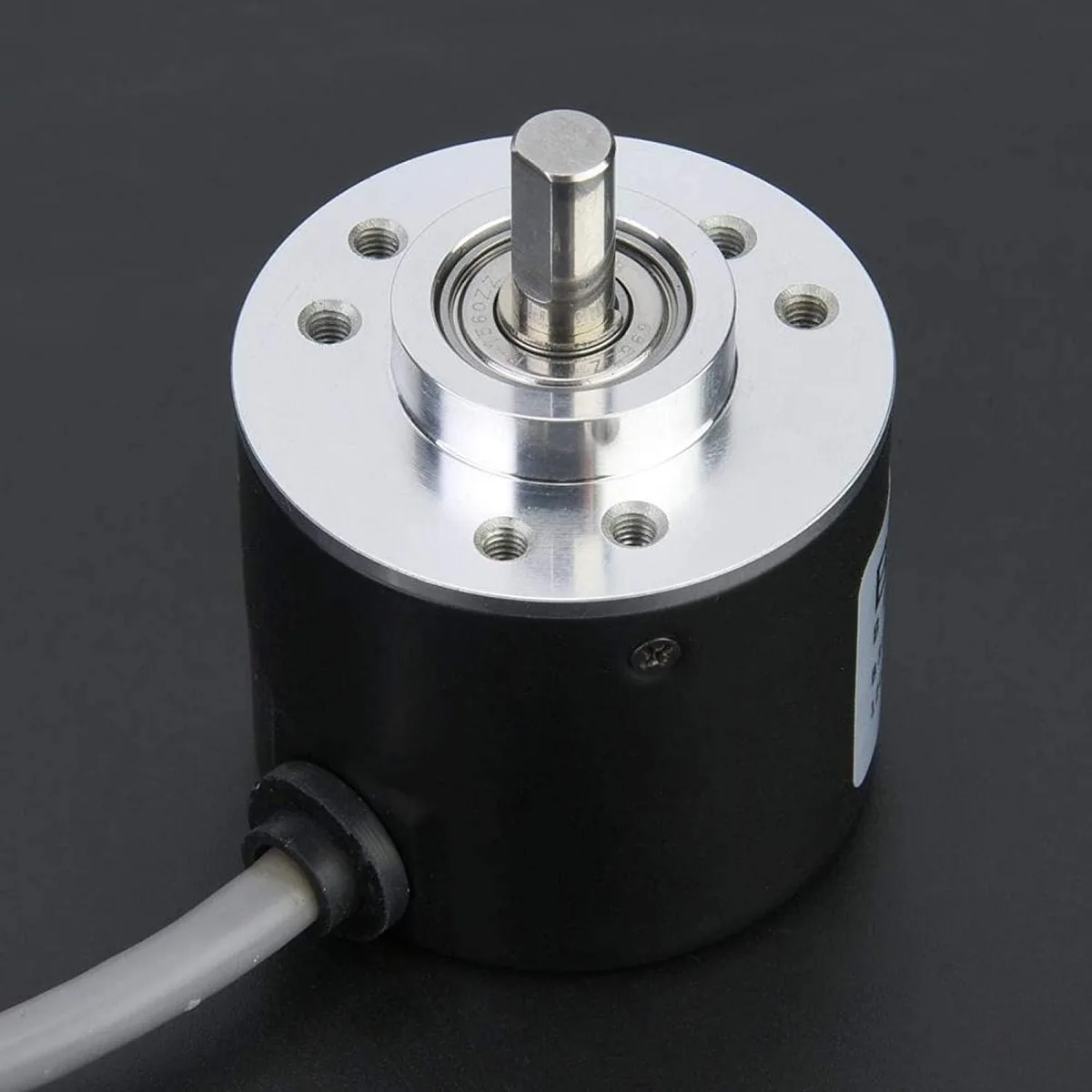

Metal Housing and 6mm Shaft Handle 30N Radial Loads
An alloy shell with aluminium body and stainless-steel spindle resists impact and vibration while supporting 30N radial and 20N axial shaft loads. The 6mm thrust shaft diameter fits standard couplings, and the compact 38mm outer diameter allows mounting in tight machine frames without additional brackets.
Highlights
- Precise positioning with 300 pulses per revolution
- Robust 38 mm metal housing resists shock and vibration
- Stainless steel spindle handles 30 N radial and 20 N axial loads
- Wide DC 5–26 V supply range suits many control systems
- Built-in short-circuit and reverse-wiring protection prevents damage
Specifications
| Type | AT |
|---|
Questions about this item
How long does the 2 m cable typically last before it needs replacing on the E6B2-CWZ6C encoder?
The 2 m cable is a fixed part of the encoder assembly; if it becomes damaged the whole unit would need replacement rather than just the cable.
What is the maximum radial shaft load the 6 mm spindle can handle continuously on this 38 mm encoder?
The radial shaft load limit is 30 N; exceeding this value will be the first mechanical constraint reached under sustained operation.
How much heat does the encoder generate when running all day at 26 V supply?
Power draw at 26 V is low for an incremental encoder, so heat output remains minimal during continuous all‑day operation.
