Small cylindrical encoder, 38 mm alloy shell, 2 m cable, 6 mm stainless shaft

myVolts

myVolts E6B2-CWZ6C Incremental Encoder 38mm 2m 200P/R transducer

SKU CH-011Q-Y4TSW MPN E6B2-CWZ6C

A 38 mm incremental encoder delivering 200 pulses per revolution with DC 5–26 V supply, 2 m cable and built-in short-circuit and reverse-wiring protection

  • TypeAT
  • Precise positioning with 200 pulses per revolution
  • Reliable operation from DC 5 V to 26 V supply
  • Strong noise immunity from internal ASIC design
  • Rugged stainless spindle and metal housing resist impact
  • Protected against short circuits and reverse wiring

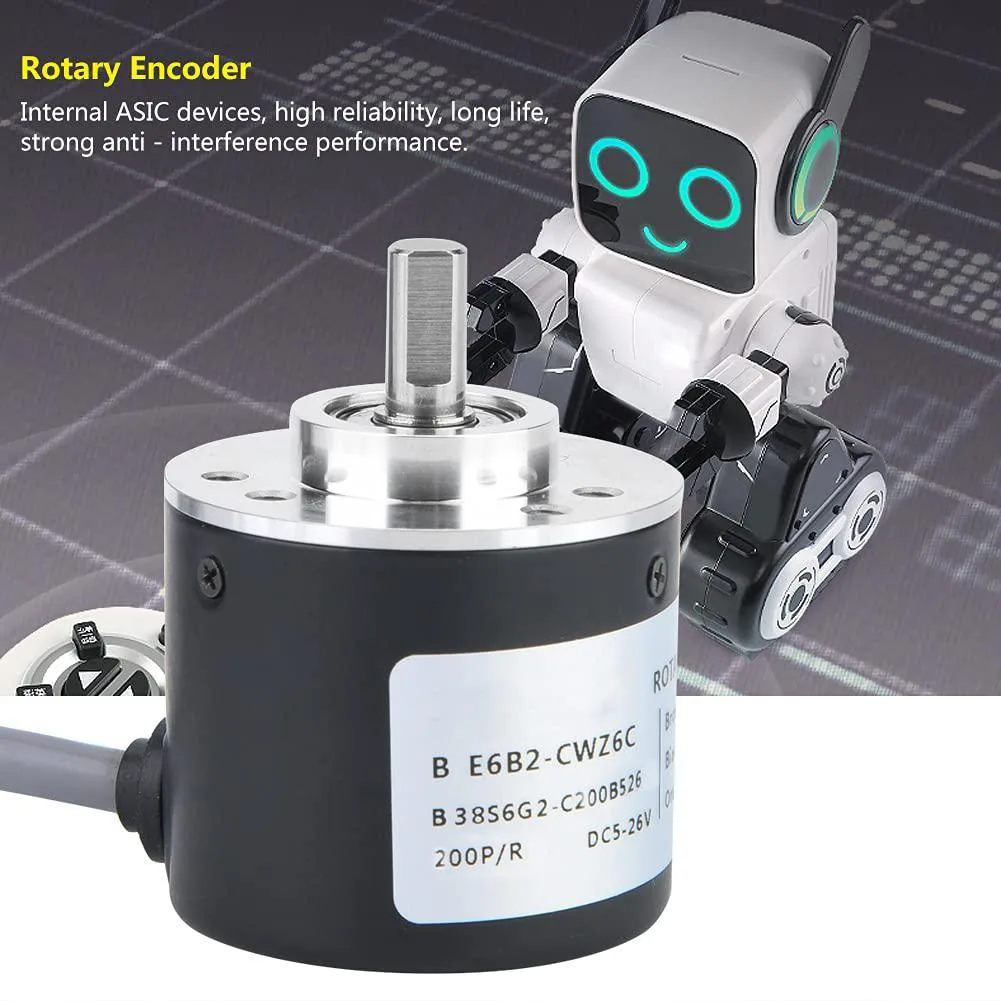

Compact 38 mm Incremental Encoder

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder built for motion-control systems that need precise position feedback. Its stainless-steel spindle and metal shell suit industrial machinery, robotics and automation equipment where durability matters.

DC 5–26 V Supply With Protection

The encoder operates from a DC 5 V to 26 V open-collector supply and includes load short-circuit protection plus power-supply reverse-wiring protection. Internal ASIC devices give strong anti-interference performance and long service life in electrically noisy environments.

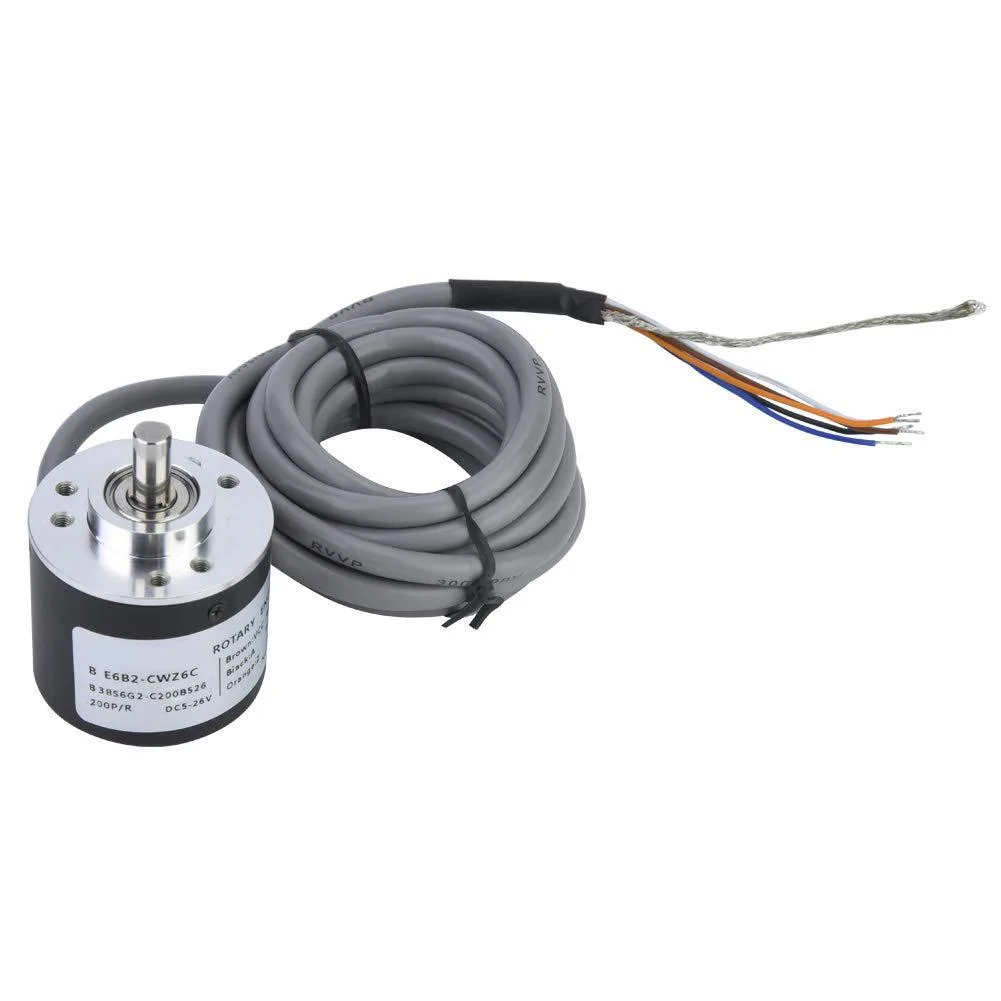

2 m Cable And 6 mm Shaft For Direct Mounting

A 2 m pre-wired cable with colour-coded leads connects directly to controllers, while the 6 mm thrust shaft handles 30 N radial and 20 N axial loads. The compact alloy-and-aluminium body fits tight mounting spaces without extra brackets or adapters.

Highlights

  • Precise positioning with 200 pulses per revolution
  • Reliable operation from DC 5 V to 26 V supply
  • Strong noise immunity from internal ASIC design
  • Rugged stainless spindle and metal housing resist impact
  • Protected against short circuits and reverse wiring

Specifications

TypeAT

Questions about this item

How do I wire the 2 m cable to a DC 5-26 V supply without reversing polarity?

Connect the brown wire to the positive terminal and the blue wire to the negative terminal; the encoder includes reverse-wiring protection, but correct polarity ensures normal operation.

What shaft load limits should I observe so the 6 mm stainless spindle lasts?

Keep radial load at or below 30 N and axial thrust at or below 20 N; exceeding these values can reduce bearing life.

At what cable length does signal degradation appear first on the 200 P/R output?

The supplied 2 m cable is factory-tested for the rated outputs; longer runs may need differential or long-line-driver wiring to maintain signal integrity.
