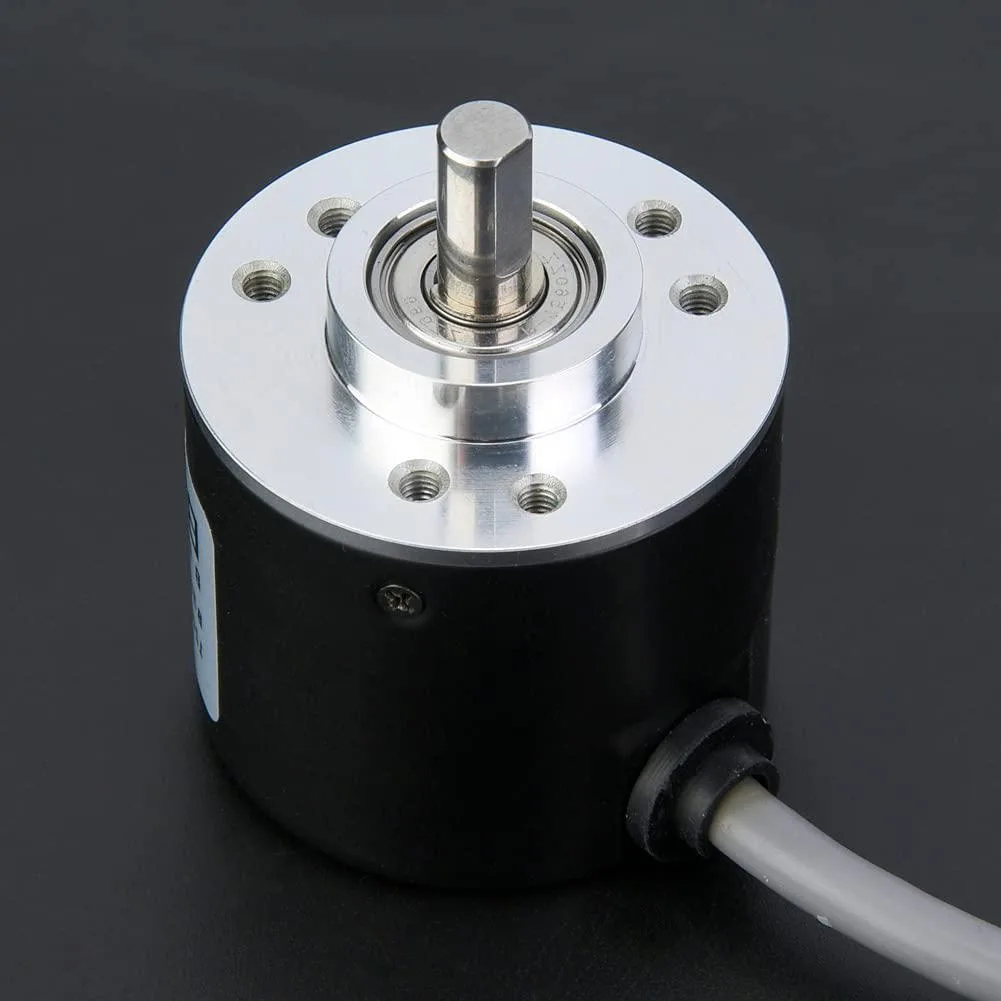

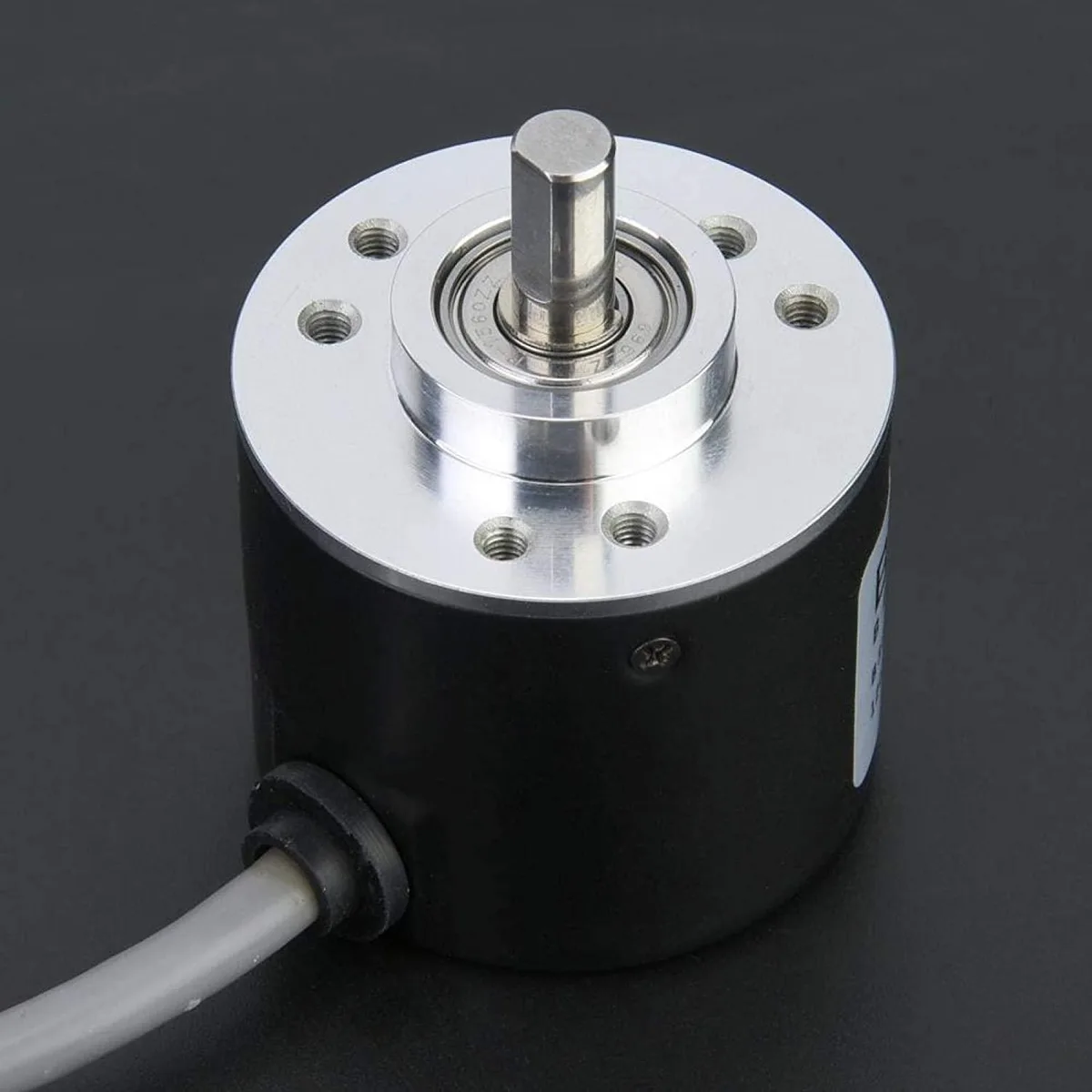

Small cylindrical incremental encoder 38mm diameter metal body stainless shaft 2m cable

myVolts

myVolts E6B2-CWZ6C Incremental Encoder 38mm 200P/R Transducer

SKU CH-4QXX-N0VVP MPN E6B2-CWZ6C

A 38 mm incremental encoder delivering 200 pulses per revolution with DC 5–26 V supply, stainless steel spindle, and built-in short-circuit plus reverse-wiring protection

  • TypeAT
  • Reliable position feedback from 200 pulses per revolution
  • Protected against wiring errors with reverse polarity and short circuit safeguards
  • Durable stainless steel spindle and metal housing resist impact
  • Compact 38 mm diameter fits tight mounting spaces
  • Wide 5 to 26 V DC supply suits varied control systems

What this encoder does

The myVolts E6B2-CWZ6C is a 38mm diameter incremental encoder built for motion-control systems that need reliable position feedback. It suits engineers and integrators fitting automation equipment, servo drives or custom machinery where a compact, metal-housed transducer is required.

Check voltage and shaft fit

Your control electronics must accept a DC supply between 5V and 26V and be wired for open-collector output. Verify the driven shaft can accommodate a 6mm thrust diameter and that the 2m cable reach suits the mounting location without extension.

Mounting and signal integration

The alloy shell and aluminium body mount directly to the machine frame, while the stainless spindle handles 30N radial and 20N axial loads. The encoder delivers A, B and Z phase signals in multiple output formats, letting the controller close the loop without extra signal-conditioning hardware.

Not for absolute-position needs

Buyers who require absolute position retention after power loss cannot use this incremental device. It also does not suit applications demanding a hollow shaft or a different flange pattern than the 38mm body provides.

Highlights

  • Reliable position feedback from 200 pulses per revolution
  • Protected against wiring errors with reverse polarity and short circuit safeguards
  • Durable stainless steel spindle and metal housing resist impact
  • Compact 38 mm diameter fits tight mounting spaces
  • Wide 5 to 26 V DC supply suits varied control systems

Specifications

TypeAT

Questions about this item

Does the encoder come with mounting hardware and cables or must they be sourced separately?

The unit includes a 2 m pre‑wired cable with colour‑coded leads for power, ground and signal outputs; mounting brackets or couplings are not supplied and must be purchased separately.

How do I choose between the listed pulse‑per‑revolution options such as 200 P/R, 1000 P/R or 5000 P/R?

Select the resolution that matches the positional granularity your controller requires; 200 P/R gives 200 counts per turn, while 5000 P/R provides 5000 counts per turn for finer positioning.

What does the 200 P/R rating mean for actual position feedback in a motion‑control system?

Each revolution generates 200 pulses on the A and B channels plus a single Z index pulse, so the controller receives 200 discrete position increments per full shaft turn.
