Small cylindrical encoder with metal body and 2m cable

myVolts

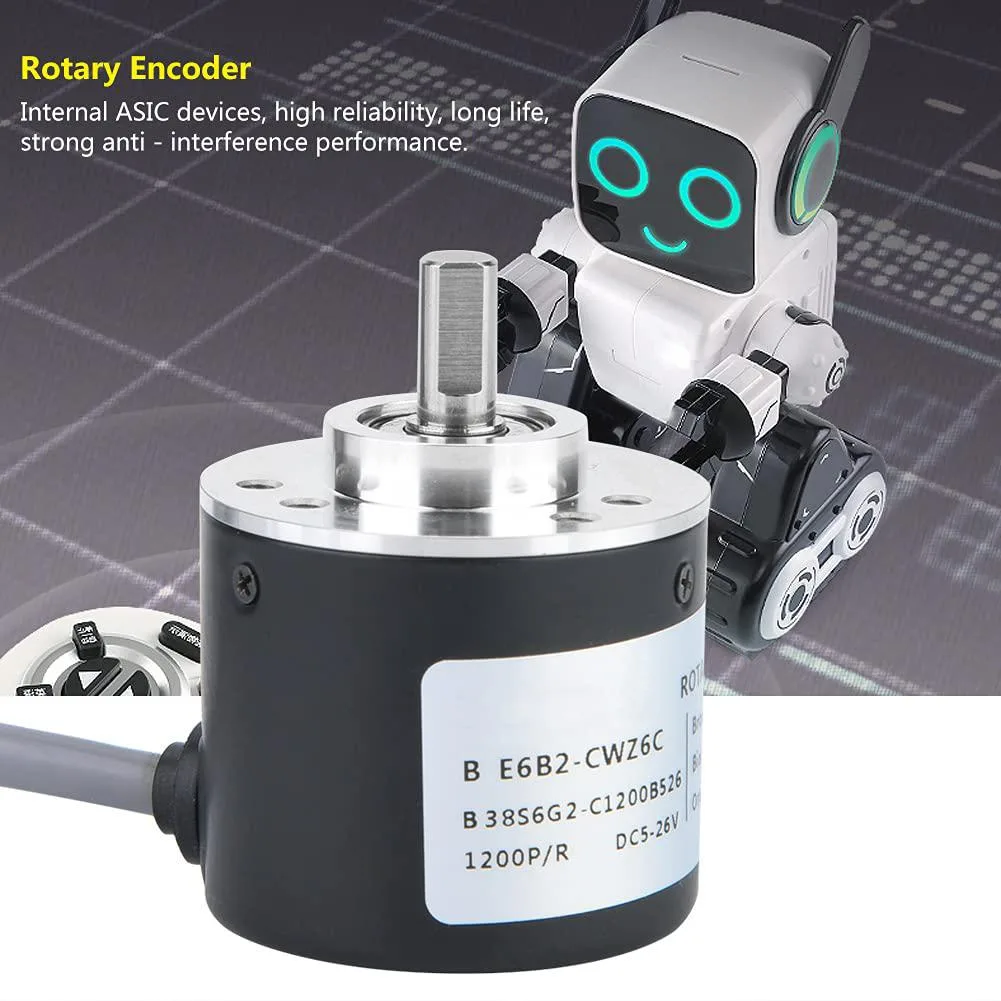

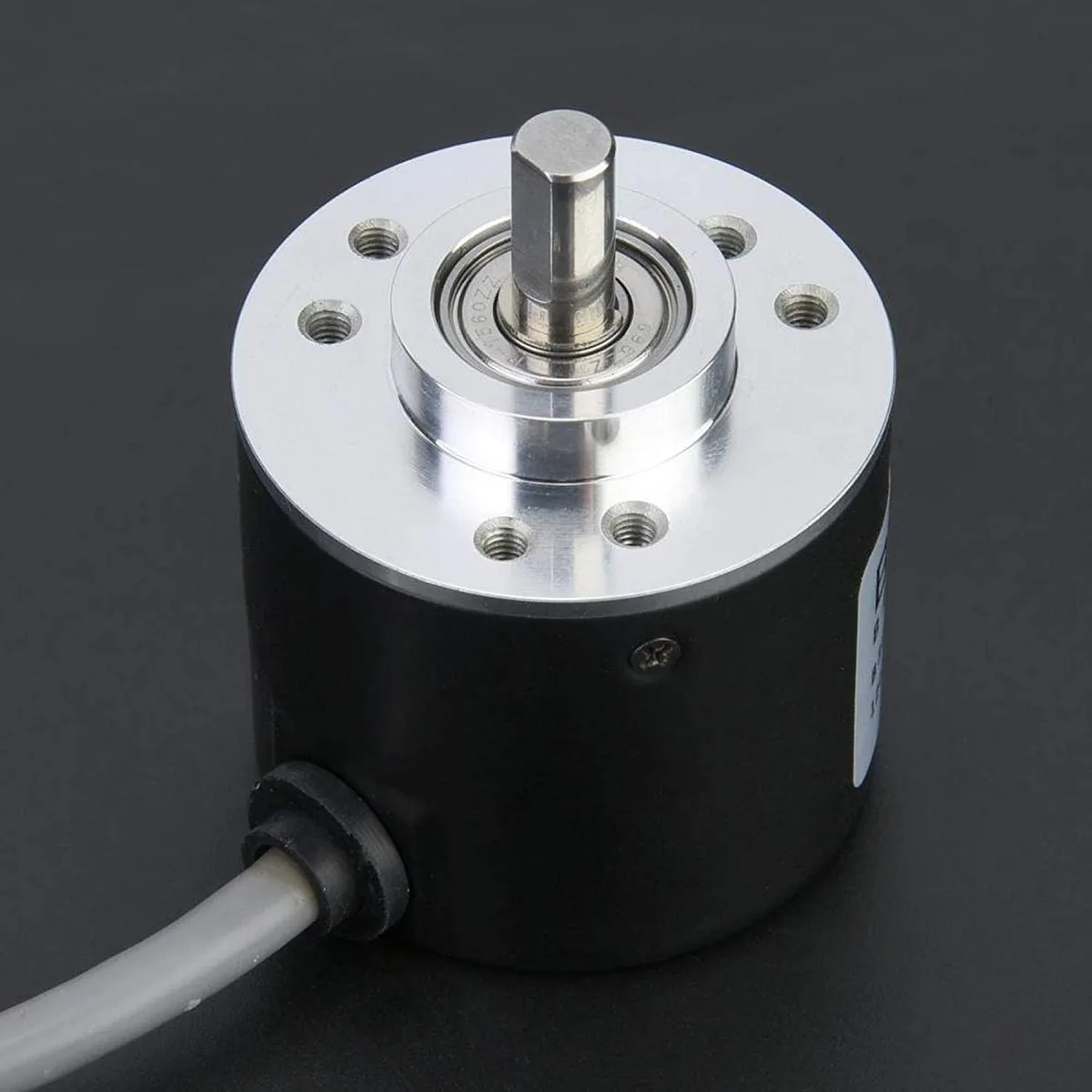

myVolts E6B2-CWZ6C Incremental Encoder 38mm 1200P/R 2m Cable

SKU CH-VY90-H4T8P MPN E6B2-CWZ6C

38 mm incremental encoder with 1200 pulses per revolution, 2 m cable and DC 5–26 V supply with reverse-wiring and short-circuit protection

  • TypeAT
  • 38 mm diameter enables compact machine integration
  • 1200 pulses per revolution delivers precise position feedback
  • ASIC design ensures reliable long-life operation
  • 5 to 26 V DC supply suits varied power systems
  • 2 m cable simplifies wiring in tight spaces

Compact 38mm Incremental Encoder

The myVolts E6B2-CWZ6C is a 38mm diameter incremental encoder built for motion-control systems that need precise position feedback. Its stainless-steel spindle and alloy shell suit industrial machinery, robotics and automation equipment where mechanical durability matters. The 2m cable and optional resolutions up to 5000 pulses per revolution let integrators match the sensor to the application.

Sustained-load behaviour

Internal ASIC circuitry maintains signal integrity during continuous rotation, while load short-circuit protection and power-supply reverse-wiring protection guard the electronics against wiring faults. The encoder handles 30N radial and 20N axial shaft loads without drift, and the DC5–26V open-collector input tolerates voltage variation across long production runs. Output options include voltage, collector, complementary, push-pull, long-line drive, differential and fork formats across A, B and Z phases.

Thermals noise and power draw

The compact metal body dissipates heat passively, so the unit runs silently without a fan. Current draw stays low thanks to the ASIC design, and the wide 5–26V supply range reduces the need for extra regulation stages. Installers can route the 2m cable away from noisy power lines to preserve the anti-interference performance that the internal shielding provides.

Highlights

  • 38 mm diameter enables compact machine integration
  • 1200 pulses per revolution delivers precise position feedback
  • ASIC design ensures reliable long-life operation
  • 5 to 26 V DC supply suits varied power systems
  • 2 m cable simplifies wiring in tight spaces

Specifications

TypeAT

Questions about this item

Does the E6B2-CWZ6C run hot or draw much power when operating continuously at 26 V?

The encoder accepts DC 5–26 V open-collector supply; built-in reverse-wiring and short-circuit protection limit excess current, so heat and power stay low during all-day use.

What must I already have to wire the 2 m cable — connector, supply voltage or controller input type?

You need a DC 5–26 V source and a device that accepts A, B, Z phase signals in voltage, collector, complementary, push-pull, line-driver, differential or fork format.

Will the 6 mm stainless shaft and 38 mm alloy housing mate with my older 6 mm bore couplings and mounting brackets?

Yes — the 6 mm thrust shaft diameter and 38 mm outer diameter match standard 6 mm bore couplings and 38 mm mounting patterns used on legacy equipment.
