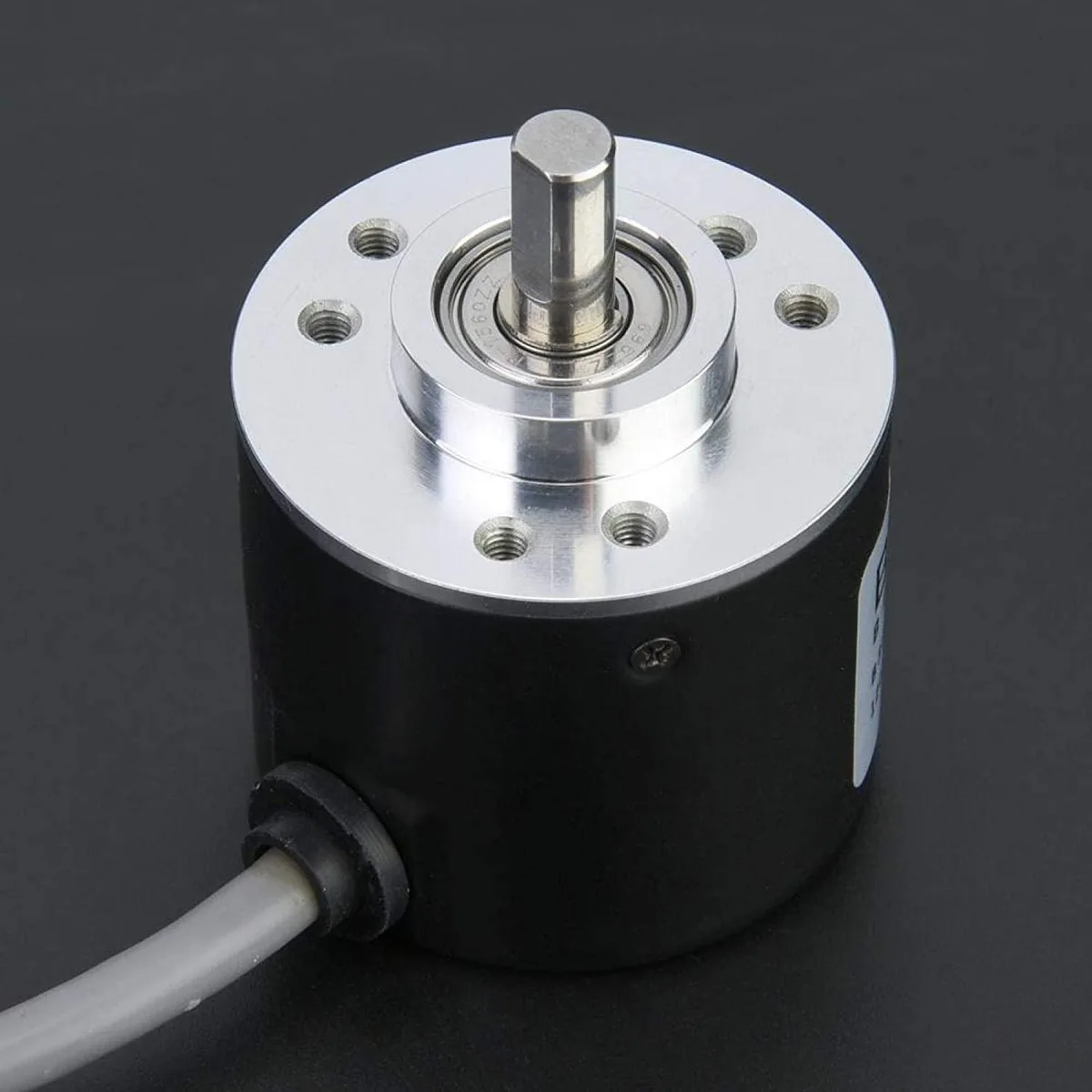

Cylindrical metal encoder 38mm diameter with 2m cable and 6mm stainless spindle

myVolts

myVolts E6B2-CWZ6C Incremental Encoder 38mm 1000P/R 2m Cable

SKU CH-P48N-FCBPN MPN E6B2-CWZ6C

38 mm incremental encoder delivering 1000 pulses per revolution with DC 5–26 V supply, stainless spindle, metal shell and 2 m cable

  • TypeAT
  • Reliable signal in noisy environments thanks to internal ASIC anti-interference design
  • Durable stainless-steel spindle and metal shell resist impact and heavy loads
  • Compact 38 mm body fits tight spaces and installs quickly
  • Protected against wiring errors with reverse-polarity and short-circuit safeguards
  • Versatile DC 5–26 V supply works with multiple output modes

What this encoder does

The myVolts E6B2-CWZ6C is a 38mm diameter incremental encoder built for motion-control systems that need precise position feedback. It suits engineers integrating rotary sensing into automation equipment, robotics or CNC machinery where a compact, rugged sensor is required.

Resolution and output options

This model ships configured for 1000 pulses per revolution and offers optional resolutions from 100 up to 5000 P/R. It operates on a DC 5–26 V supply with open-collector output and provides A, B and Z phase signals in voltage, collector, complementary, push-pull, long-line drive, differential or fork output modes.

Mounting and wiring notes

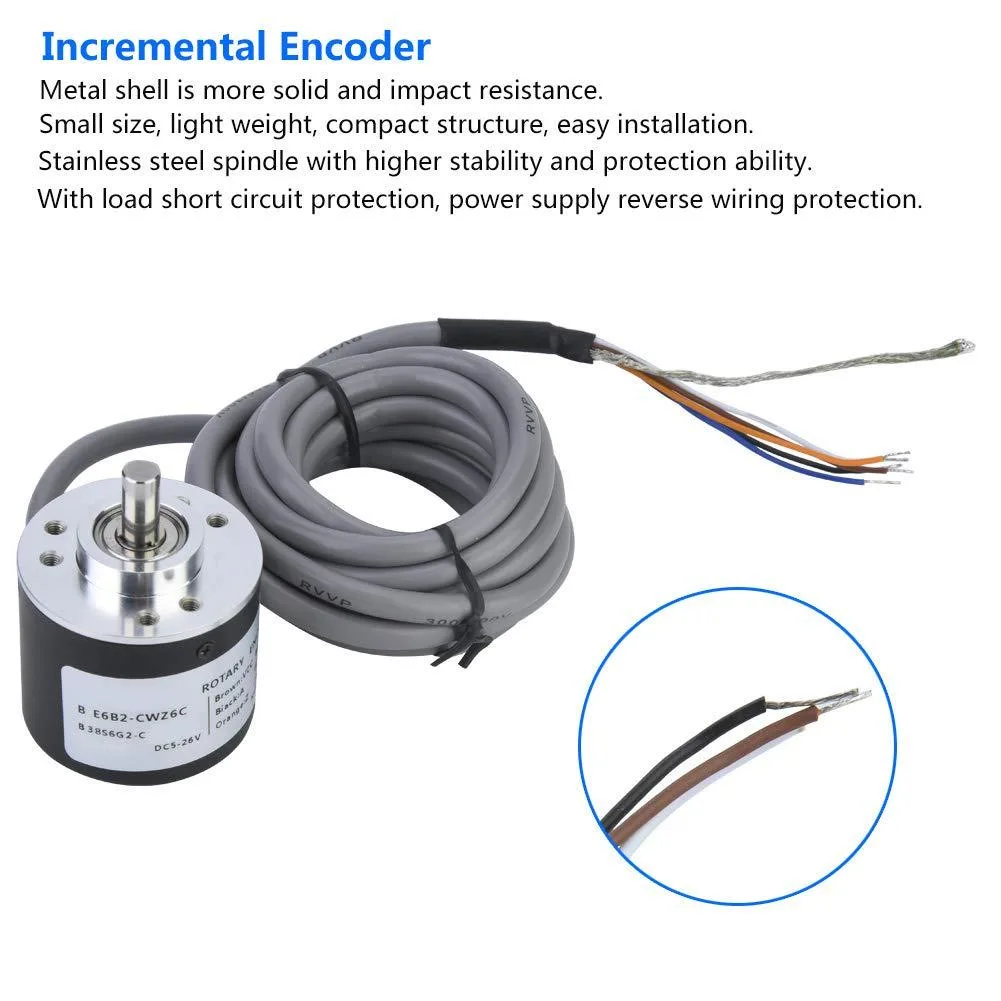

The 6mm stainless-steel shaft accepts up to 30N radial and 20N axial loads, and the 2m cable uses brown for positive supply, blue for ground and black for signal. The metal housing resists impact, while built-in short-circuit and reverse-polarity protection guard against common wiring mistakes. Installers must ensure the shaft load limits are not exceeded and that the supply voltage stays within the 5–26V range.

Highlights

  • Reliable signal in noisy environments thanks to internal ASIC anti-interference design
  • Durable stainless-steel spindle and metal shell resist impact and heavy loads
  • Compact 38 mm body fits tight spaces and installs quickly
  • Protected against wiring errors with reverse-polarity and short-circuit safeguards
  • Versatile DC 5–26 V supply works with multiple output modes

Specifications

TypeAT

Questions about this item

What does 1000 pulses per revolution mean for position tracking on the E6B2-CWZ6C?

The encoder outputs 1000 pulses on the A and B channels for every full rotation, so the controller can resolve position changes down to one thousandth of a turn.

How does the DC5–26 V open-collector output interface limit cable length and noise immunity?

Open-collector outputs at 5 to 26 V are suitable for short runs up to the supplied 2 m cable; longer distances or electrically noisy environments benefit from differential line-driver outputs instead.

What shaft and mounting dimensions must match for the 38 mm diameter encoder?

The unit has a 6 mm thrust shaft diameter and a 38 mm outer diameter; the mounting surface must accommodate the 38 mm body and accept a 6 mm shaft coupling.
