Cylindrical metal encoder with 38mm body, 6mm stainless shaft and 2m cable

myVolts

myVolts E6B2-CWZ6C 38mm Incremental Encoder Transducer 360 P/R 2m Cable

SKU CH-5NNK-PE098 MPN E6B2-CWZ6C

38 mm incremental encoder with 360 P/R resolution, 2 m cable and DC 5–26 V open-collector output

  • TypeAT
  • Precise 360 pulses per revolution for accurate positioning
  • Wide DC 5–26 V supply fits many control systems
  • Stainless-steel shaft and metal housing resist shock and wear
  • Built-in ASIC circuitry rejects electrical noise for clean signals
  • Two-metre cable simplifies wiring in tight installations

38mm Incremental Encoder with 360 P/R

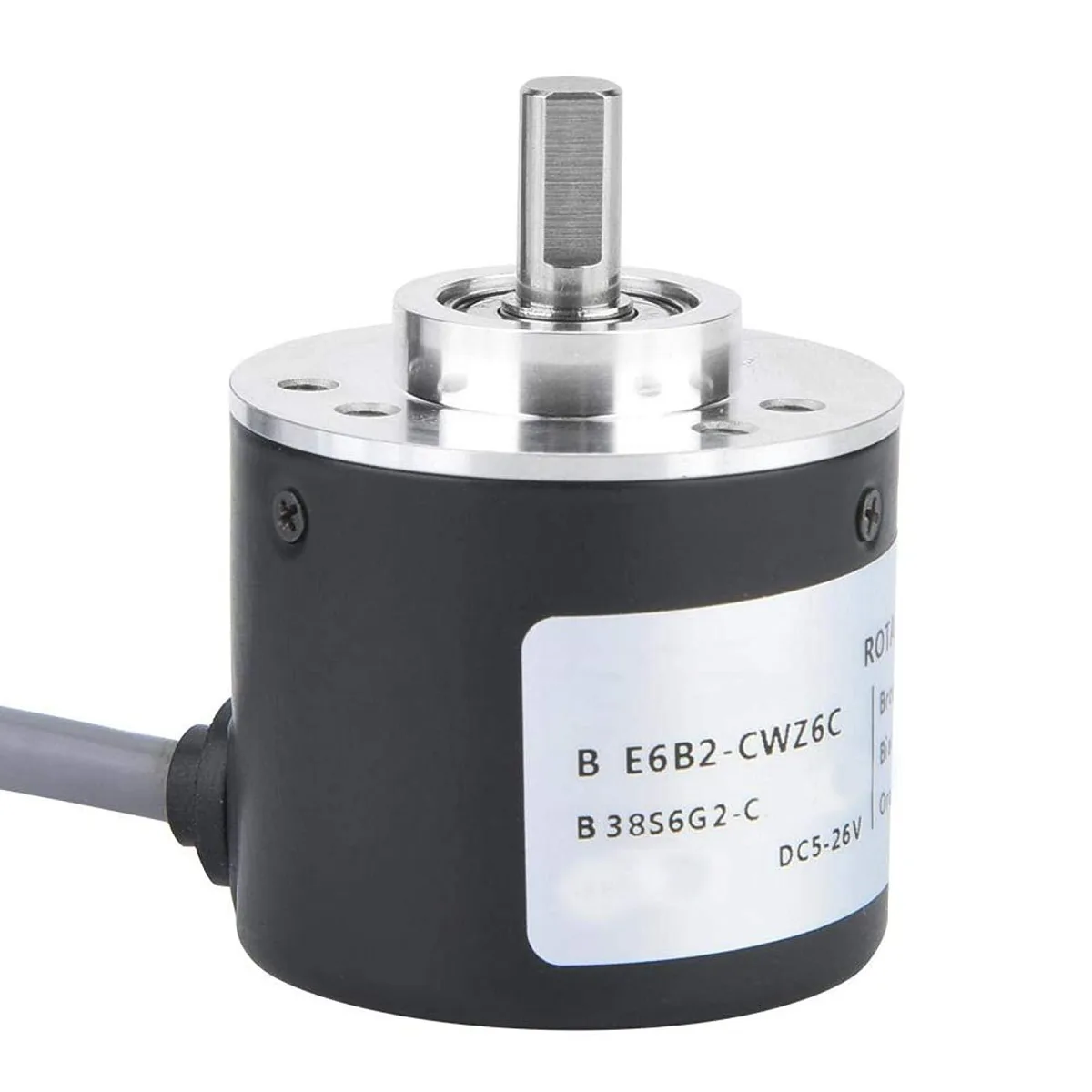

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder that delivers 360 pulses per revolution for precise position feedback. It operates on a DC 5 to 26 V supply with open-collector output and provides A, B and Z phase signals through a 2 m cable. The compact metal housing and stainless steel spindle suit machinery where space is limited and mechanical robustness is required.

Sustained load behaviour

The encoder withstands a radial shaft load of 30 N and an axial thrust load of 20 N without loss of signal integrity. Internal ASIC circuitry maintains stable output during continuous rotation, while built-in short-circuit and reverse-wiring protection guard the electronics against common wiring faults. The alloy shell and aluminium body dissipate heat effectively during extended duty cycles.

Open-collector interface limits

The open-collector output requires an external pull-up resistor and is best suited for cable runs within the supplied 2 m length; longer runs may demand differential or long-line drive variants not fitted to this model. Voltage must remain between 5 V and 26 V, and the 6 mm shaft diameter limits direct coupling to matching bore sizes. Buyers needing higher pulse counts per turn or different output types should select an alternative configuration.

Highlights

  • Precise 360 pulses per revolution for accurate positioning
  • Wide DC 5–26 V supply fits many control systems
  • Stainless-steel shaft and metal housing resist shock and wear
  • Built-in ASIC circuitry rejects electrical noise for clean signals
  • Two-metre cable simplifies wiring in tight installations

Specifications

TypeAT

Questions about this item

How much heat or electrical noise does the 38 mm encoder generate during continuous operation?

The unit draws power from a DC 5–26 V supply and includes built-in short-circuit and reverse-wiring protection, which limits excess current and reduces electrical noise during all-day use.

What power supply and wiring must I already have to connect the E6B2-CWZ6C?

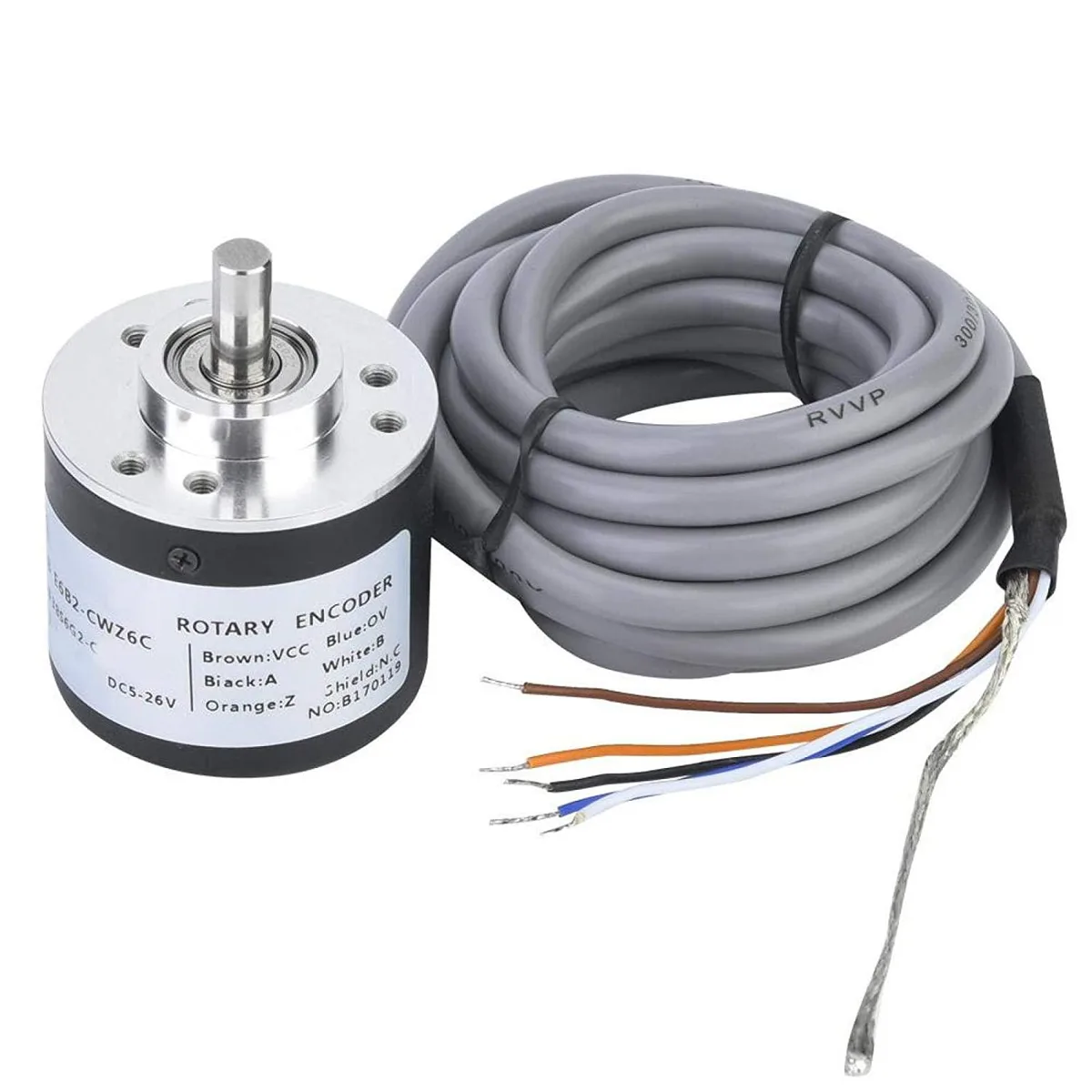

You need a DC 5–26 V source and must wire the brown lead to positive, the blue lead to 0 V, and the black lead to the chosen output signal.

Will the 6 mm shaft and 2 m cable fit the mounting brackets and cable runs on my older machine?

The encoder has a 6 mm thrust shaft rated for 20 N axial and 30 N radial loads, and the standard 2 m cable reaches most legacy panel layouts.
