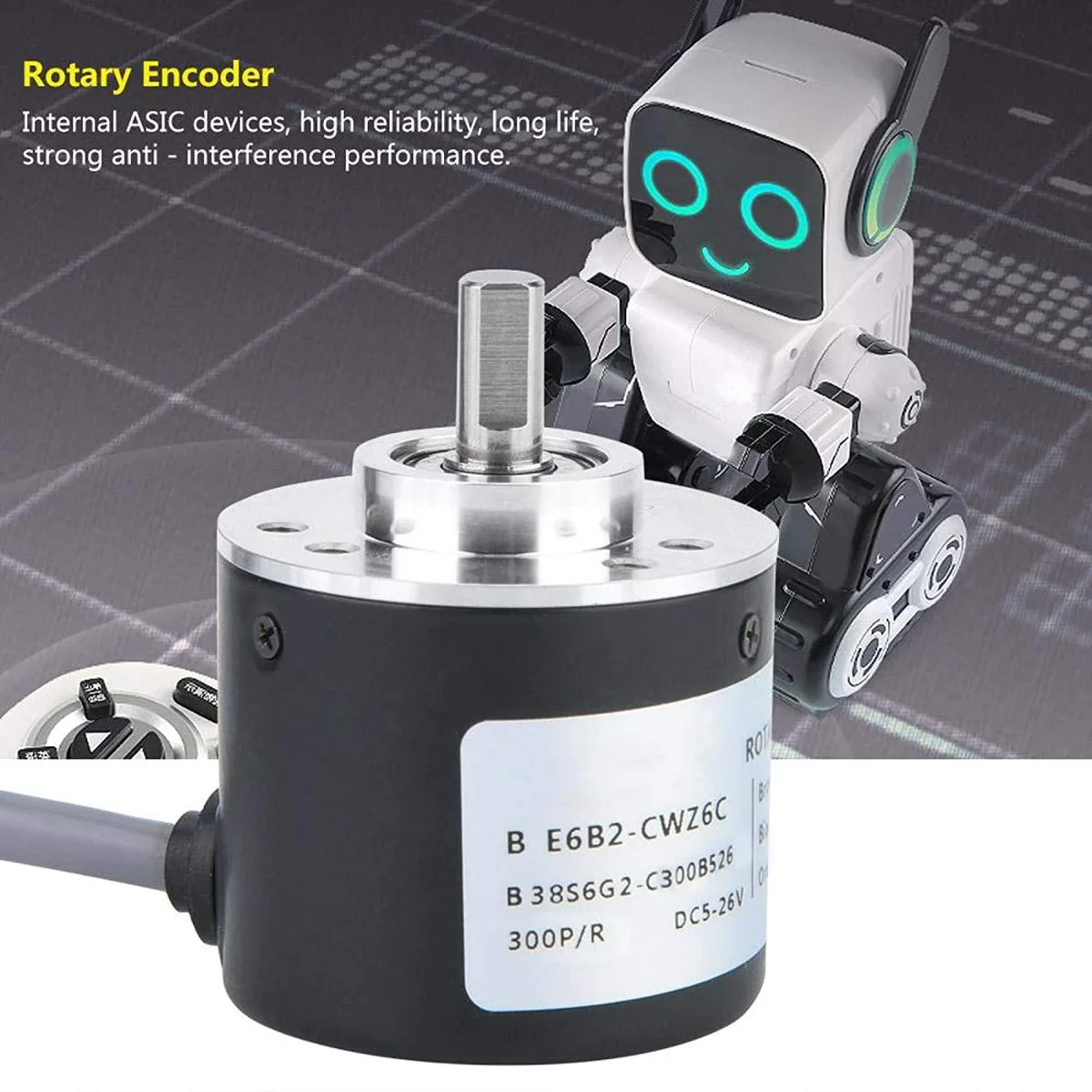

Cylindrical 38mm incremental encoder with metal body and stainless steel shaft, 2m cable attached

myVolts

myVolts E6B2-CWZ6C 38mm incremental encoder transducer 300 P/R

SKU CH-7D2X-MD74C MPN E6B2-CWZ6C

A 38 mm incremental encoder delivering 300 pulses per revolution with DC 5–26 V supply, multiple output modes, and built-in short-circuit and reverse-wiring protection

  • TypeAT
  • 38 mm compact diameter fits tight machine spaces
  • 300 pulses per revolution gives precise position feedback
  • DC 5–26 V wide input range suits varied power supplies
  • stainless steel spindle and metal shell resist shock and wear
  • ASIC design with short-circuit and reverse-wiring protection ensures reliable operation

Compact 38 mm Incremental Encoder

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder built for motion-control systems that need reliable position feedback. Its stainless-steel spindle and alloy shell suit industrial equipment, automation rigs and test benches where vibration and shock are routine. The open-collector output operates from a DC 5 V to 26 V supply, simplifying integration with common PLC and controller inputs. Engineers who need a rugged, drop-in transducer for new designs will find it a practical choice.

300 Pulses Per Revolution Resolution

This specific unit delivers 300 pulses per revolution, fixing the angular granularity for the control loop. The resolution is not field-programmable; swapping to a different count requires a different part number from the 100 to 5000 P/R range. Buyers who need finer interpolation or a coarser count must select another variant. The fixed 300 P/R output determines the smallest measurable step and the maximum usable speed before pulse losses occur.

Sustained Load and Thermal Behaviour

Under continuous rotation the encoder handles 30 N radial and 20 N axial shaft loads without mechanical degradation. Internal ASIC circuitry includes short-circuit and reverse-wiring protection, so prolonged fault conditions on the output lines do not damage the device. The metal housing conducts heat away from the electronics, maintaining signal integrity during long duty cycles. Installations that exceed the rated shaft loading will see reduced bearing life and potential signal drift.

Highlights

  • 38 mm compact diameter fits tight machine spaces
  • 300 pulses per revolution gives precise position feedback
  • DC 5–26 V wide input range suits varied power supplies
  • stainless steel spindle and metal shell resist shock and wear
  • ASIC design with short-circuit and reverse-wiring protection ensures reliable operation

Specifications

TypeAT

Questions about this item

How does the 300 P/R resolution translate to angular precision in a real machine?

Each pulse represents 1.2 degrees of rotation, so the controller can detect position changes as small as that angle.

What does the DC 5–26 V open-collector output actually limit in practice?

The encoder works with any supply in that range and the open-collector output sinks current to ground, requiring an external pull-up resistor to produce a logic-high level.

What shaft and mounting dimensions must the machine provide for this 38 mm encoder?

The unit needs a 6 mm diameter shaft and a 38 mm diameter mounting face; axial load is rated at 20 N and radial load at 30 N.
