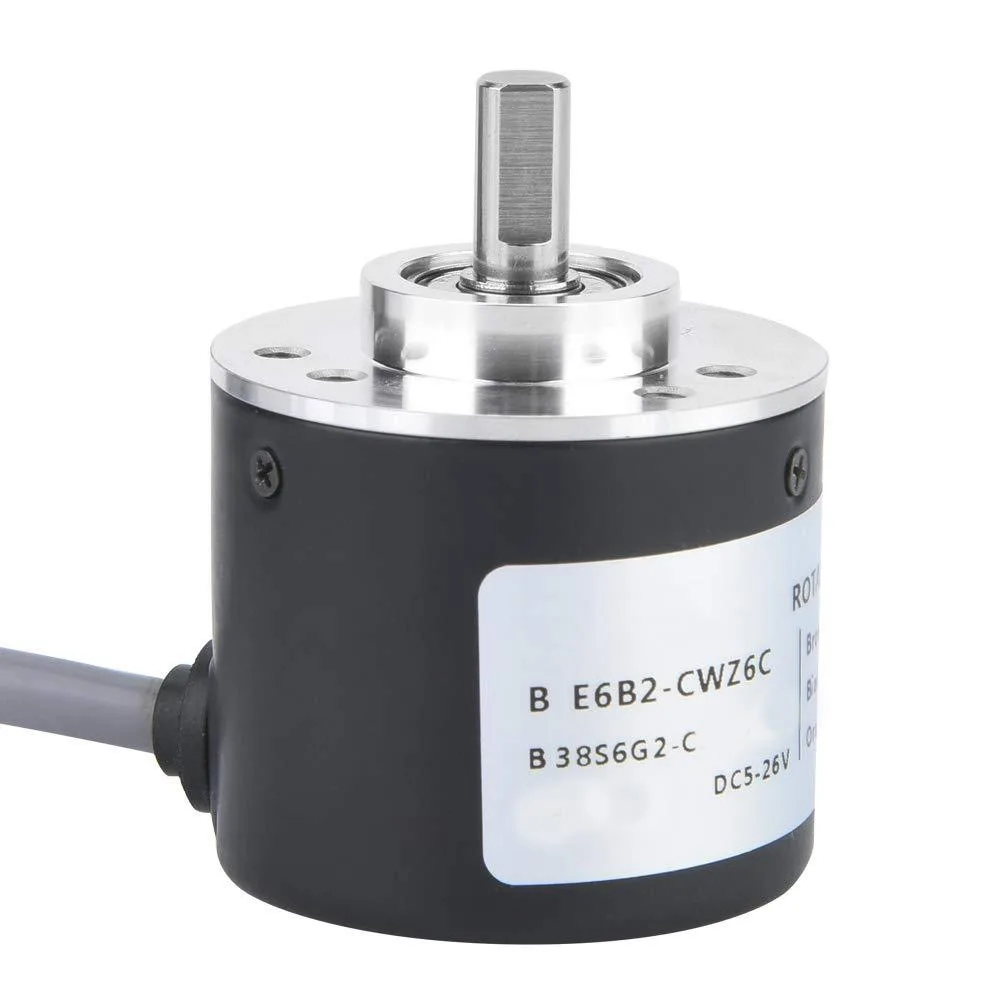

myVolts E6B2-CWZ6C 38mm Incremental Encoder 1024 P/R Part
38mm incremental encoder delivering 1024 pulses per revolution with DC5–26V supply, reverse-polarity and short-circuit protection
- TypeAT
- 38 mm compact diameter fits tight machinery spaces
- 1024 pulses per revolution delivers precise position feedback
- DC 5–26 V wide supply range simplifies power integration
- Stainless steel spindle and metal shell resist shock and vibration
- Built-in short-circuit and reverse-wiring protection safeguards the encoder
38mm Incremental Encoder 1024 P/R
The myVolts E6B2-CWZ6C is a 38mm diameter incremental encoder delivering 1024 pulses per rotation for precise position feedback. It suits engineers and technicians integrating motion control into automation, robotics or CNC machinery where accurate shaft encoding is required.
Upgrade from lower resolution encoders
Replacing a lower pulse-count encoder with this 1024 P/R model increases positional granularity for finer speed and position control. The jump is worth it when existing 100 to 600 P/R devices limit servo tuning or when mechanical wear demands the ASIC-based reliability and strong anti-interference performance noted in the specifications.
Simple wiring with protected inputs

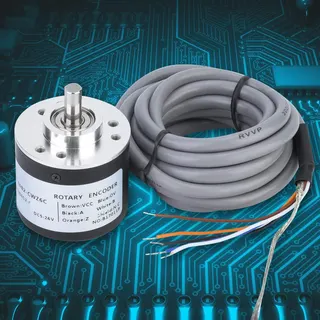

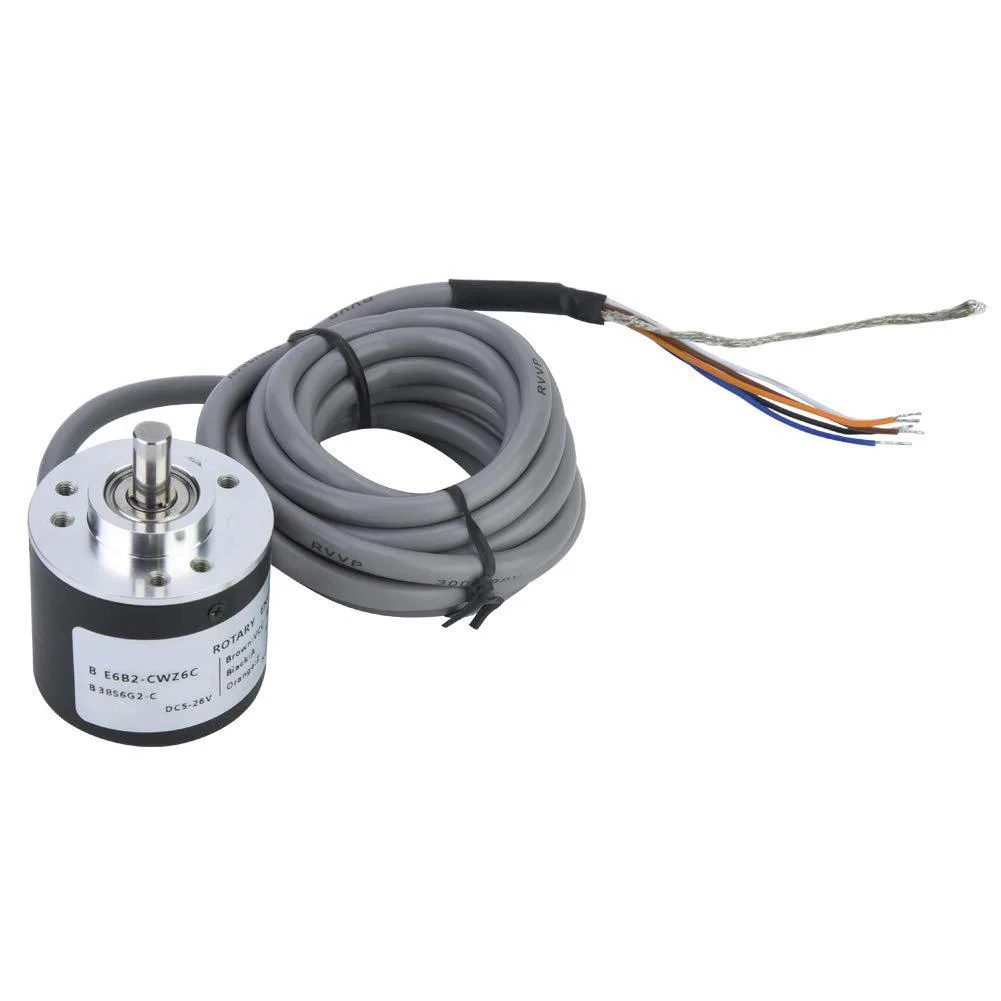

The 2m cable uses colour-coded leads: brown for DC5-26V, blue for 0V, black for A phase, white for B phase, orange for Z phase and shield for ground. Installation is straightforward thanks to the compact metal body and 6mm stainless spindle, but ensure the supply stays within 5 to 26V and axial or radial loads do not exceed 30N and 20N respectively to avoid mechanical damage.
Highlights
- 38 mm compact diameter fits tight machinery spaces
- 1024 pulses per revolution delivers precise position feedback
- DC 5–26 V wide supply range simplifies power integration
- Stainless steel spindle and metal shell resist shock and vibration
- Built-in short-circuit and reverse-wiring protection safeguards the encoder
Specifications
| Type | AT |
|---|
Questions about this item
What shaft diameter and outer diameter does the E6B2-CWZ6C encoder need for mounting?
The encoder has a 6 mm thrust shaft diameter and a 38 mm outer diameter, so the mounting interface must accommodate those dimensions.
How is the E6B2-CWZ6C wired and which step is often missed?
Connect brown to DC 5–26 V positive, blue to 0 V negative, and black to the signal output; the step often missed is verifying the supply voltage range before powering up.
What wear items should be planned for replacement on the E6B2-CWZ6C?
The stainless steel spindle and internal bearings are the primary wear items; plan periodic inspection and replacement if radial or axial play exceeds the 30 N radial or 20 N thrust load ratings.
