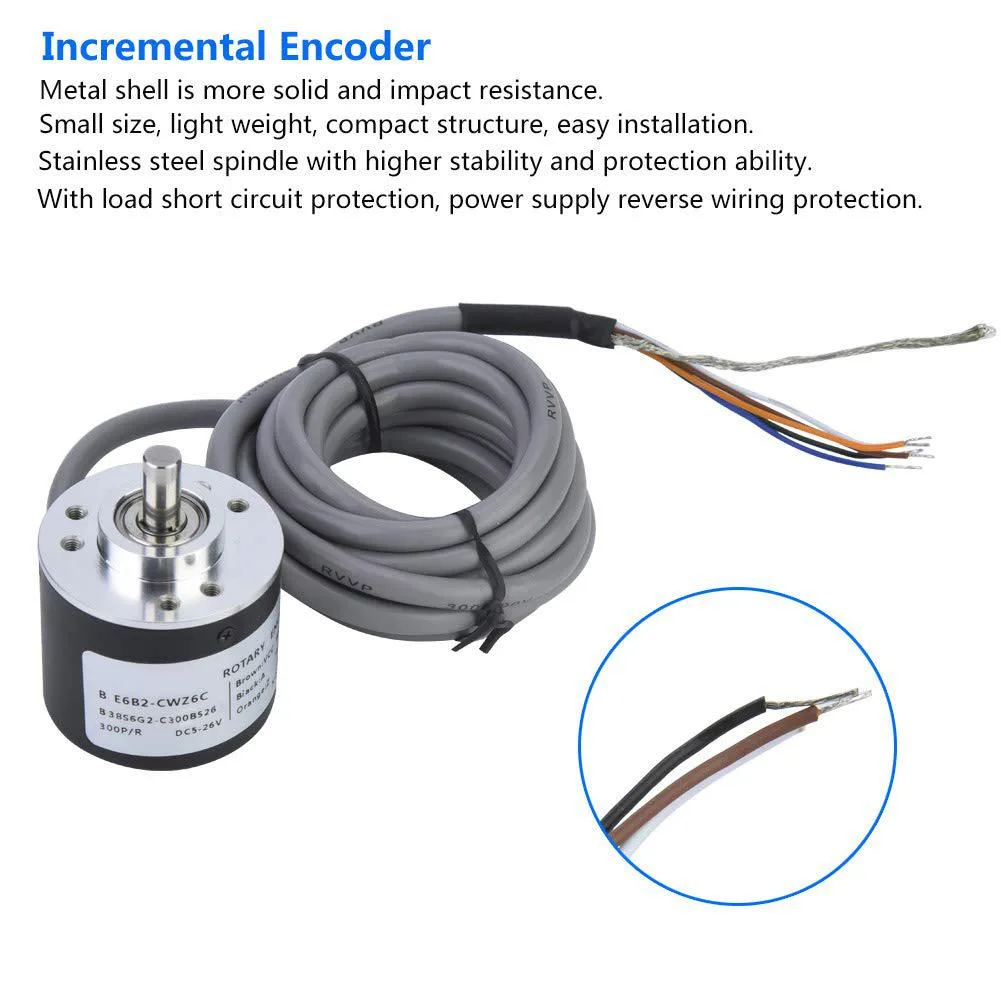

Small cylindrical metal encoder with stainless shaft and two‑metre cable

myVolts

myVolts E6B2-CWZ6C 38mm 300P/R incremental transducer

SKU CH-K1XH-7X3AE MPN E6B2-CWZ6C

38 mm incremental encoder with 300 pulses per revolution, 2 m cable and DC 5–26 V supply

  • TypeAT
  • Reliable operation with internal ASIC for strong anti-interference performance
  • Durable stainless-steel spindle and metal shell resist impact and wear
  • Compact 38 mm diameter design simplifies installation in tight spaces
  • Built-in short-circuit and reverse-wiring protection safeguards the power supply
  • Flexible 5–26 V DC input suits a wide range of control systems

38 mm incremental encoder for motion control

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental transducer that delivers 300 pulses per revolution. It suits engineers integrating position feedback into CNC axes, conveyor drives or servo loops where a compact, robust sensor is required. The alloy shell and aluminium body house an internal ASIC for high reliability and strong anti-interference performance in industrial environments.

Open-collector output with 5–26 V supply range

The encoder operates from a DC 5 V to 26 V supply using an open-collector output stage. Available output modes include voltage, collector, complementary, push-pull, long-line drive, differential and fork formats with A, B and Z phase signals. Axial load is rated at 30 N and thrust load at 20 N, while built-in short-circuit and reverse-wiring protection guard the electronics against common wiring faults.

2 m cable with colour-coded leads

A 2 m standard cable exits the housing with brown for positive supply, blue for 0 V and black for signal connections, simplifying termination in control cabinets. The stainless-steel spindle and compact metal shell resist shock and vibration, allowing direct mounting on motor shafts or gearboxes. Buyers needing hollow-shaft mounting, absolute-position output or resolutions beyond the listed optional range should select a different encoder model.

Highlights

  • Reliable operation with internal ASIC for strong anti-interference performance
  • Durable stainless-steel spindle and metal shell resist impact and wear
  • Compact 38 mm diameter design simplifies installation in tight spaces
  • Built-in short-circuit and reverse-wiring protection safeguards the power supply
  • Flexible 5–26 V DC input suits a wide range of control systems

Specifications

TypeAT

Questions about this item

Which resolution option should I select for the E6B2-CWZ6C encoder?

Choose from 100, 200, 300, 360, 400, 500, 600, 1000, 1024, 1200, 2000, 2500, 3600 or 5000 pulses per rotation to match your controller's counting requirements.

What does the 300 pulses per rotation rating deliver in actual use?

The encoder outputs 300 distinct pulses per full shaft revolution, giving your motion controller a position update every 1.2 degrees of rotation.

What voltage range does the DC5-26V supply input accept and what does it protect against?

The unit operates from 5 to 26 V DC and includes built-in protection against reverse wiring and output short circuits.
